Page 91 of 863
¾Luggage or other items are placed between the front passenger seat and driver seat.
¾An electric device is put on the front passenger's seat.
¾An additional electrical device, such as a seat warmer is installed to the surface of the front
passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will deactivate
if the front passenger air bag deactivation OFF indicator light turns on.
& $ 8 7 , 2 1
¾To assure proper deployment of the front air bag and to prevent damage to the sensor in
the front seat cushion:
¾Do not place sharp objects on the front seat cushion or leave heavy luggage on them.
¾Do not spill any liquids on the front seats or under the front seats.
¾To allow the sensors to function properly, always perform the following:
¾Adjust the front seats as far back as possible and always sit upright against the seatbacks
with seat belts worn properly.
¾If you place your child on the passenger seat, secure the child-restraint system properly
and slide the passenger seat as far back as possible within the position in which the
child-restraint system can be installed.
NOTE
xThe system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
xThe front passenger air bag deactivation OFF indicator light may turn on repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.
xThe front passenger air bag deactivation OFF indicator light may turn on for 10 seconds
if the electrostatic capacity on the front passenger seat changes.
xThe air bag/seat belt pretensioner system warning light might turn on if the front
passenger seat receives a severe impact.
xIf the front passenger air bag deactivation OFF indicator light does not turn on after
installing a child-restraint system on the front passenger seat, first, re-install your
child-restraint system according to the procedure in this owner's manual. Then, if the front
passenger air bag deactivation OFF indicator light still does not turn on, install the
child-restraint system on the rear seat and consult an Authorised Mazda Repairer as soon
as possible.
( V V H Q W L D O 6 D I H W \ ( T X L S P H Q W
6 5 6 $ L U % D J V
Page 94 of 863
$ F W L Y H % R Q Q H W S U H F D X W L R Q V
, Q W K H X Q O L N H O \ H Y H Q W W K D W W K H Y H K L F O H Z H U H W R K L W D S H G H V W U L D Q D Q G D F H U W D L Q D P R X Q W R I L P S D F W
L V D S S O L H G W R W K H I U R Q W R I W K H Y H K L F O H L P S D F W W R W K H K H D G R I W K H S H G H V W U L D Q L I L W Z H U H W R K L W W K H
E R Q Q H W L V O H V V H Q H G E \ W K H U H D U D U H D R I W K H E R Q Q H W U D L V L Q J L Q V W D Q W O \ W R P D L Q W D L Q D Z L G H V S D F H
E H W Z H H Q L W D Q G W K H S D U W V L Q W K H H Q J L Q H F R P S D U W P H Q W , I W K H V H Q V R U L Q V W D O O H G W R W K H E D F N R I W K H
I U R Q W E X P S H U G H W H F W V D F H U W D L Q D P R X Q W R I L P S D F W E \ D F R O O L V L R Q Z L W K D S H G H V W U L D Q R U R W K H U
R E V W U X F W L R Q Z K L O H W K H Y H K L F O H L V E H L Q J G U L Y H Q D W D V S H H G V X I I L F L H Q W W R D F W L Y D W H W K H V \ V W H P W K H
V \ V W H P L V D F W L Y D W H G D Q G W K H E R Q Q H W L V U D L V H G
Actuator Sensor
Active bonnet warning lightElectronic control unit
ActuatorActuator
: $ 5 1 , 1 *
If the active bonnet has activated, always consult an expert repairer, we recommend an
Authorised Mazda Repairer.
If the bonnet release handle is pulled after the active bonnet has activated, the bonnet will
rise even further. If the vehicle is driven with the bonnet raised it will obstruct visibility and
could result in an accident. In addition, do not attempt to push the bonnet back down.
Otherwise, it could deform the bonnet or cause injury because the activated bonnet cannot
be lowered manually. Before driving the vehicle to an expert repairer, we recommend an
Authorised Mazda Repairer after the active bonnet has activated, make sure that the raised
bonnet does not obstruct vision and drive the vehicle at a low speed.
( V V H Q W L D O 6 D I H W \ ( T X L S P H Q W
$ F W L Y H % R Q Q H W
6 R P H P R G H O V
Page 100 of 863
![MAZDA MODEL 6 2018 Owners Manual (in English) , I \ R X K D Y H D S U R E O H P Z L W K W K H N H \
F R Q V X O W D Q H [ S H U W U H S D L U H U Z H U H F R P P H Q G
D Q $ X W K R U L V H G 0 D ] G D 5 H S D](/img/28/13481/w960_13481-99.png "MAZDA MODEL 6 2018 Owners Manual (in English) , I \ R X K D Y H D S U R E O H P Z L W K W K H N H \
F R Q V X O W D Q H [ S H U W U H S D L U H U Z H U H F R P P H Q G
D Q $ X W K R U L V H G 0 D ] G D 5 H S D")
, I \ R X K D Y H D S U R E O H P Z L W K W K H N H \
F R Q V X O W D Q H [ S H U W U H S D L U H U Z H U H F R P P H Q G
D Q $ X W K R U L V H G 0 D ] G D 5 H S D L U H U
, I \ R X U N H \ L V O R V W R U V W R O H Q F R Q V X O W D Q
$ X W K R U L V H G 0 D ] G D 5 H S D L U H U D V V R R Q D V
S R V V L E O H I R U D U H S O D F H P H Q W D Q G W R P D N H W K H
O R V W R U V W R O H Q N H \ L Q R S H U D W L Y H
& $ 8 7 , 2 1
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE
xThe keyless entry system operation may
vary due to local conditions.
xThe keyless entry system is fully
operational (door/liftgate/boot lid lock/
unlock) when the ignition is switched
off. The system does not operate if the
ignition is switched to any position other
than off.
xIf the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-47).
xBattery life is about 1 year. Replace the
battery with a new one if the KEY
indicator light (green) flashes in the
instrument cluster (for vehicles with a
type A/type B instrument cluster (page
4-23, 4-44), messages are displayed
in the instrument cluster). Replacing the
battery about once a year is
recommended because the KEY warning
light/indicator light may not illuminate
or flash depending on the rate of battery
depletion.
xAdditional keys can be obtained at an
Authorised Mazda Repairer. Up to 6
keys can be used with the keyless
functions per vehicle. Bring all keys to
an Authorised Mazda Repairer when
additional keys are required.
▼ 7 U D Q V P L W W H U
Operation buttons Operation indicator light
NOTE
x(European models)
The headlights turn on/off by operating
the transmitter. Refer to Leaving Home
Light on page 4-97.
% H I R U H ' U L Y L Q J
. H \ V
Page 101 of 863
x(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-45.
x(With the advanced keyless function
(European models))
The setting can be changed so that a
beep sound is heard for confirmation
when the doors and the liftgate/boot lid
are locked/unlocked using the key.
(With the advanced keyless function
(Except European models))
A beep sound can be heard for
confirmation when the doors and the
liftgate/boot lid are locked/unlocked
using the key. If you prefer, the beep
sound can be turned off.
The volume of the beep sound can also
be changed.
Refer to Other Equipment/Functions on
page 9-18.
7 K H R S H U D W L R Q L Q G L F D W R U O L J K W I O D V K H V Z K H Q
W K H E X W W R Q V D U H S U H V V H G
/ R F N E X W W R Q
7 R O R F N W K H G R R U V D Q G W K H O L I W J D W H E R R W O L G
S U H V V W K H O R F N E X W W R Q D Q G W K H K D ] D U G
Z D U Q L Q J O L J K W V Z L O O I O D V K R Q F H
: L W K W K H D G Y D Q F H G N H \ O H V V I X Q F W L R Q
( [ F H S W ( X U R S H D Q P R G H O V
$ E H H S V R X Q G Z L O O E H K H D U G R Q F H
NOTE
xThe doors and the liftgate/boot lid
cannot be locked by pressing the lock
button while any other door is open. The
hazard warning lights will also not
flash.
x(With the i-stop function (European
models))
Removing the key from the vehicle,
closing all the doors and pressing the
LOCK button on the key while the i-stop
function is operating (engine is stopped)
will switch the ignition OFF and lock all
the doors (Steering wheel also locks).
Refer to i-stop on page 4-12.
xMake sure all doors and the liftgate/boot
lid are locked after pressing the button.
x(With double locking system)
Pressing the lock button twice within 3
seconds will activate the double locking
system.
Refer to Double Locking System on page
3-12.
x(With theft-deterrent system)
When the doors are locked by pressing
the lock button on the key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
8 Q O R F N E X W W R Q
7 R X Q O R F N W K H G R R U V D Q G W K H O L I W J D W H E R R W
O L G S U H V V W K H X Q O R F N E X W W R Q D Q G W K H K D ] D U G
Z D U Q L Q J O L J K W V Z L O O I O D V K W Z L F H
: L W K W K H D G Y D Q F H G N H \ O H V V I X Q F W L R Q
( [ F H S W ( X U R S H D Q P R G H O V
$ E H H S V R X Q G Z L O O E H K H D U G W Z L F H
% H I R U H ' U L Y L Q J
. H \ V
Page 102 of 863
NOTE
x(Auto re-lock function)
After unlocking with the key, all doors
and the liftgate/boot lid will
automatically lock if any of the
following operations are not performed
within about 30 seconds. If your vehicle
has a theft-deterrent system, the hazard
warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Other Equipment/Functions on
page 9-18.
xA door or the liftgate/boot lid is
opened.
xThe ignition is switched to any
position other than off.
x(With theft-deterrent system)
When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is turned
off, the hazard warning lights will flash
twice to indicate that the system is
turned off.
% R R W E X W W R Q 6 D O R R Q
7 R R S H Q W K H E R R W O L G S U H V V D Q G K R O G W K H
E R R W E X W W R Q X Q W L O W K H E R R W O L G R S H Q V
Type A Type B
, Q W U X V L R Q V H Q V R U F D Q F H O E X W W R Q
7 R F D Q F H O W K H L Q W U X V L R Q V H Q V R U S D U W R I W K H
W K H I W G H W H U U H Q W V \ V W H P S U H V V W K H L Q W U X V L R Q
V H Q V R U F D Q F H O E X W W R Q Z L W K L Q V H F R Q G V
D I W H U S U H V V L Q J W K H O R F N E X W W R Q D Q G W K H
K D ] D U G Z D U Q L Q J O L J K W V Z L O O I O D V K W L P H V
5 H I H U W R 7 K H I W ' H W H U U H Q W 6 \ V W H P R Q S D J H
▼▼ 2 S H U D W L R Q D O 5 D Q J H
7 K H V \ V W H P R S H U D W H V R Q O \ Z K H Q W K H G U L Y H U
L V L Q W K H Y H K L F O H R U Z L W K L Q R S H U D W L R Q D O
U D Q J H Z K L O H W K H N H \ L V E H L Q J F D U U L H G
6 W D U W L Q J W K H ( Q J L Q H
NOTE
xStarting the engine may be possible even
if the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from
the driver's seat.
If the vehicle is started and the key is not
in the vehicle, the vehicle will not restart
after it is shut off and the ignition is
switched to off.
xThe luggage compartment/boot is out of
the assured operational range, however,
if the key (transmitter) is operable the
engine will start.
% H I R U H ' U L Y L Q J
. H \ V
6 R P H P R G H O V
Page 110 of 863

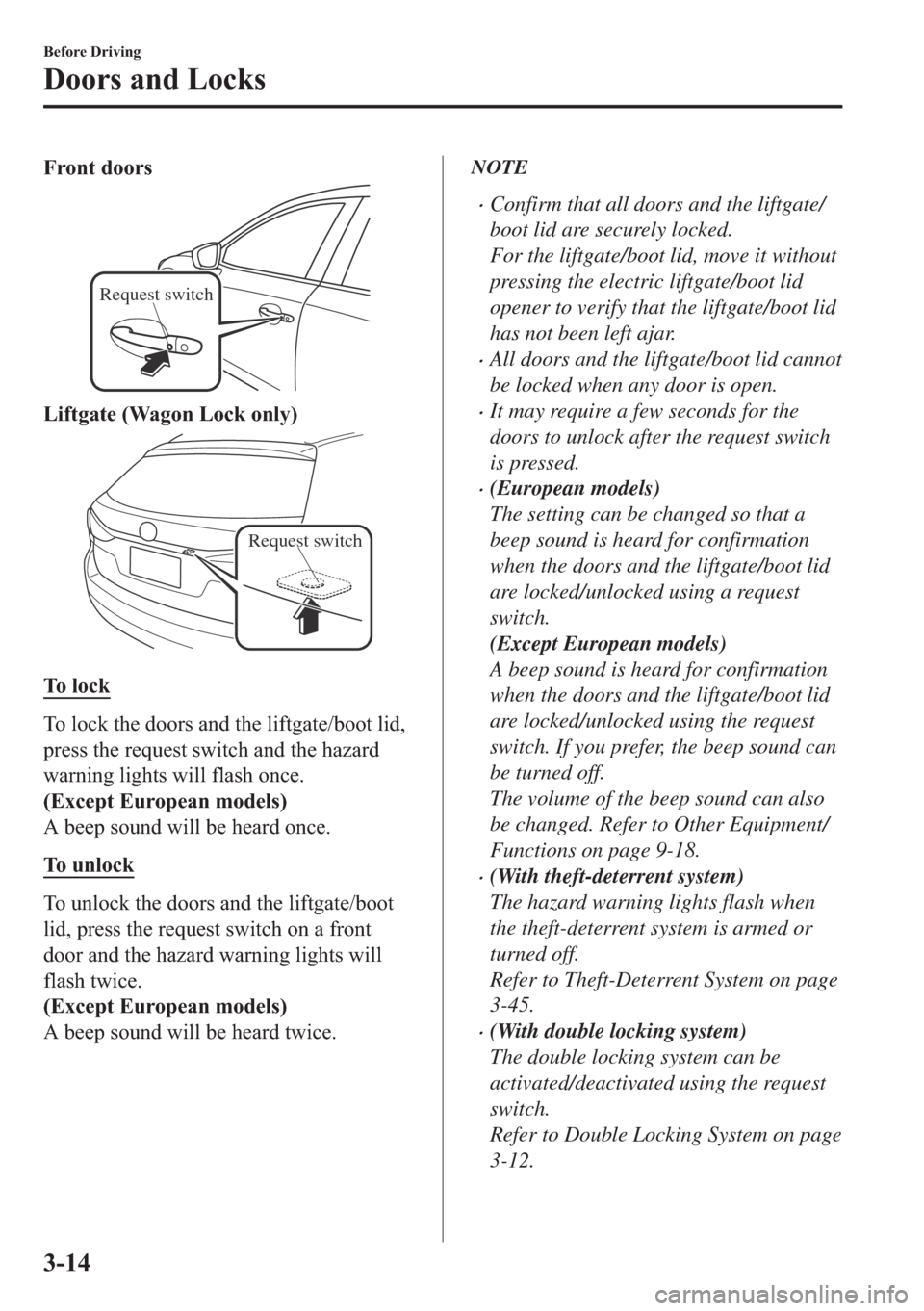

![MAZDA MODEL 6 2018 Owners Manual (in English) ) U R Q W G R R U V
Request switch
/ L I W J D W H : D J R Q / R F N R Q O \
Request switch
7 R O R F N
7 R O R F N W K H G R R U V D Q G W K H O L I W J D W H E R](/img/28/13481/w960_13481-109.png "MAZDA MODEL 6 2018 Owners Manual (in English) ) U R Q W G R R U V
Request switch
/ L I W J D W H : D J R Q / R F N R Q O \
Request switch
7 R O R F N
7 R O R F N W K H G R R U V D Q G W K H O L I W J D W H E R")
) U R Q W G R R U V
Request switch
/ L I W J D W H : D J R Q / R F N R Q O \
Request switch
7 R O R F N
7 R O R F N W K H G R R U V D Q G W K H O L I W J D W H E R R W O L G
S U H V V W K H U H T X H V W V Z L W F K D Q G W K H K D ] D U G
Z D U Q L Q J O L J K W V Z L O O I O D V K R Q F H
( [ F H S W ( X U R S H D Q P R G H O V
$ E H H S V R X Q G Z L O O E H K H D U G R Q F H
7 R X Q O R F N
7 R X Q O R F N W K H G R R U V D Q G W K H O L I W J D W H E R R W
O L G S U H V V W K H U H T X H V W V Z L W F K R Q D I U R Q W
G R R U D Q G W K H K D ] D U G Z D U Q L Q J O L J K W V Z L O O
I O D V K W Z L F H
( [ F H S W ( X U R S H D Q P R G H O V
$ E H H S V R X Q G Z L O O E H K H D U G W Z L F H
NOTE
xConfirm that all doors and the liftgate/
boot lid are securely locked.
For the liftgate/boot lid, move it without
pressing the electric liftgate/boot lid
opener to verify that the liftgate/boot lid
has not been left ajar.
xAll doors and the liftgate/boot lid cannot
be locked when any door is open.
xIt may require a few seconds for the
doors to unlock after the request switch
is pressed.
x(European models)
The setting can be changed so that a
beep sound is heard for confirmation
when the doors and the liftgate/boot lid
are locked/unlocked using a request
switch.
(Except European models)
A beep sound is heard for confirmation
when the doors and the liftgate/boot lid
are locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
The volume of the beep sound can also
be changed. Refer to Other Equipment/
Functions on page 9-18.
x(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-45.
x(With double locking system)
The double locking system can be
activated/deactivated using the request
switch.
Refer to Double Locking System on page
3-12.
% H I R U H ' U L Y L Q J
' R R U V D Q G / R F N V
Page 111 of 863
xThe setting can be changed so that the
doors and the liftgate/boot lid are locked
automatically without pressing the
request switch.
Refer to Other Equipment/Functions on
page 9-18.
(Walk-away auto lock function)
A beep sound is heard when all doors
and the liftgate are closed while the
advanced key is being carried. All doors
and the liftgate/boot lid are locked
automatically after about 3 seconds
when the advanced key is out of the
operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all
doors and the liftgate/boot lid are locked
automatically after about 30 seconds.) If
you are out of the operational range
before the doors and the liftgate/boot lid
are completely closed or another key is
left in the vehicle, the walk-away auto
lock function will not work. Always
make sure that all doors and the liftgate/
boot lid are closed and locked before
leaving the vehicle. The walk-away auto
lock function does not close the power
windows.
x(Auto re-lock function)
After unlocking with the request switch,
all doors and the liftgate/boot lid will
automatically lock if any of the
following operations are not performed
within about 30 seconds. If your vehicle
has a theft-deterrent system, the hazard
warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Other Equipment/Functions on
page 9-18.
xOpening a door or the liftgate/boot
lid.
xSwitching the ignition to any position
other than off.
▼ / R F N L Q J 8 Q O R F N L Q J Z L W K
7 U D Q V P L W W H U
$ O O G R R U V D Q G W K H O L I W J D W H E R R W O L G F D Q E H
O R F N H G X Q O R F N H G E \ R S H U D W L Q J W K H N H \ O H V V
H Q W U \ V \ V W H P W U D Q V P L W W H U U H I H U W R . H \ O H V V
( Q W U \ 6 \ V W H P S D J H
▼ / R F N L Q J 8 Q O R F N L Q J Z L W K ' R R U / R F N
6 Z L W F K
$ O O G R R U V D Q G W K H O L I W J D W H E R R W O L G O R F N
D X W R P D W L F D O O \ Z K H Q W K H O R F N V L G H L V
S U H V V H G Z L W K D O O G R R U V D Q G W K H O L I W J D W H
F O R V H G
7 K H \ D O O X Q O R F N Z K H Q W K H X Q O R F N V L G H L V
S U H V V H G
Unlock
Lock
NOTE
The doors and the liftgate/boot lid cannot
be locked while any other door or the
liftgate is open.
% H I R U H ' U L Y L Q J
' R R U V D Q G / R F N V
6 R P H P R G H O V
Page 116 of 863
To open
Press the electric liftgate opener again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
xIf the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
xIf the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate/boot lid cannot be
unlocked, the liftgate/boot lid can be
opened by performing the emergency
procedure.
Refer to When Liftgate/Boot Lid Cannot
be Opened on page 7-74.
& O R V L Q J W K H O L I W J D W H E R R W O L G
/ R Z H U W K H O L I W J D W H E R R W O L G V O R Z O \ X V L Q J
W K H O L I W J D W H E R R W O L G J U L S U H F H V V W K H Q S X V K
W K H O L I W J D W H E R R W O L G F O R V H G X V L Q J E R W K
K D Q G V
' R Q R W V O D P L W 3 X O O X S R Q W K H O L I W J D W H E R R W
O L G W R P D N H V X U H L W L V V H F X U H
: D J R Q
Liftgate grip recess
6 D O R R Q
Boot lid grip recess
▼▼ / X J J D J H & R P S D U W P H Q W & R Y H U
: D J R Q
/ X J J D J H & R P S D U W P H Q W & R Y H U
8 V H W K H O X J J D J H F R P S D U W P H Q W F R Y H U W R
F R Q F H D O F D U J R R U O X J J D J H 7 K H O X J J D J H
F R P S D U W P H Q W F R Y H U F D Q E H V W R U H G X Q G H U
W K H O X J J D J H E R D U G
: $ 5 1 , 1 *
Do not place anything on top of the
luggage compartment cover:
Placing luggage or other cargo on top of
the luggage compartment cover is
dangerous. During sudden braking or a
collision, the cargo could become a
projectile that could hit and injure
someone.
& $ 8 7 , 2 1
Make sure the luggage compartment cover
is
firmly secured. If it is not
firmly secured, it
could unexpectedly disengage resulting in
injury.
% H I R U H ' U L Y L Q J
' R R U V D Q G / R F N V
Page 125 of 863
¾Do not operate the engine at high idle for more than 2 minutes.
¾Do not tamper with the emission control system. All inspections and adjustments must be
made by a qualified technician.
¾Do not push-start or pull-start this vehicle.
$ E R X W W K H 6 & 5 V \ V W H P
: $ 5 1 , 1 *
Be careful not to allow the AdBlue® fluid to run out. If the AdBlue® fluid completely runs out,
the SCR system will not operate normally:
If the vehicle runs out of AdBlue
®, the vehicle speed is restricted in steps to prevent
contaminants from being exhausted. When the remaining distance-to-empty reaches 0 km (0
miles) in the
final stage, the engine cannot restart. For replenishment of the AdBlue
® supply,
consult an expert repairer, we recommend an Authorised Mazda Repairer.
& $ 8 7 , 2 1
Use a Mazda genuine product or a product conforming to ISO22241-1 for AdBlue®. If
incompatible AdBlue
® is used, the SCR system may not operate normally. In addition, the use
of incompatible AdBlue
® may be subject to fines and penalties. For the recommended AdBlue®,
consult the nearest expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
xWhen the remaining distance-to-empty is 1400 km (869.9 miles) or shorter while the
AdBlue
® warning indication is displayed, the SCR warning light turns on and the vehicle
speed is restricted. In addition, if there is a problem with the SCR system/AdBlue
® and the
remaining distance-to-empty is 700 km (435 miles) or shorter, the SCR warning light
flashes and the vehicle speed is restricted.
xAdBlue® needs to be replenished periodically according to the scheduled maintenance
information. If a warning message is displayed in the multi-information display or the
SCR warning light flashes, consult an expert repairer, we recommend an Authorised
Mazda Repairer.
xNormally, the vehicle can be driven about 12,000 km (7,500 miles) before AdBlue®needs
to be replenished.
% H I R U H ' U L Y L Q J
) X H O D Q G ( P L V V L R Q
Page 133 of 863
3 R Z H U : L Q G R Z V
7 K H Z L Q G R Z V F D Q E H R S H Q H G F O R V H G E \ R S H U D W L Q J W K H S R Z H U Z L Q G R Z V Z L W F K H V
: $ 5 1 , 1 *
Make sure the opening is clear before closing a window:
Closing a power window is dangerous. A person's hands, head, or even neck could be caught
by the window and result in serious injury or even death. This warning applies especially to
children.
Never allow children to play with power window switches:
Power window switches that are not locked with the power window lock switch would allow
children to operate power windows unintentionally, which could result in serious injury if a
child's hands, head or neck becomes caught by the window.
Make sure nothing blocks the window just before it reaches the fully closed position or while
fully holding up the power window switch:
Blocking the power window just before it reaches the fully closed position or while fully
holding up the power window switch is dangerous.
In this case, the jam-safe function cannot prevent the window from closing all the way. If
fingers are caught, serious injuries could occur.
NOTE
When driving with only 1 of the rear windows open, your ears might experience a
resonating sound. However, this does not indicate a problem. The sound can be reduced by
slightly opening a front window or by changing the size of the rear window opening.
% H I R U H ' U L Y L Q J
: L Q G R Z V
