MAZDA MODEL 6 2019 Owner's Manual (in English)

4. Touch the push button start using thebackside of the key (as shown) while
the push button start indicator light
(green) flashes.

Indicator light
Push button start
Key
NOTE
When touching the push button start
using the backside of the key as shown
in the illustration, touch the push
button start with the lock switch side of
the key facing up.
5. Make sure that the push button start
indicator light (green) turns on.
6. Press the push button start to start the engine.
NOTE
The engine cannot be started unless
the clutch pedal is fully depressed
(manual transaxle) or the brake
pedal is fully depressed (automatic
transaxle).
If there is a malfunction with the
push button start function, the push
button start indica tor light (amber)
flashes. In this case, the engine may
start, however, have the vehicle
checked at an Authorized Mazda
Dealer as soon as possible.
If the push button start indicator
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.
To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the clutch pedal (manual transaxle) or brake pedal
(automatic transaxle).
2. Press the push button start to switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position
again, perform the operation
from the beginning.
When Driving
Start/Stop Engine
4-9
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

▼Emergency Operati
on for Starting
the Engine
If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that
the engine may not s tart using the usual
starting method (for vehicles with a type
A/type B instrument cluster (page 7-23),
messages are displayed in the instrument
cluster). Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can be
force-started. Press and hold the push
button start until the engine starts. Other
procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
Turning the Engine Off
WA R N I N G
Do not stop the engine while the vehicle is
moving:
Stopping the engine while the vehicle is
moving for any reason other than in an
emergency is dangerous. Stopping the
engine while the vehicle is moving will
result in reduced braking ability due to the
loss of power braking, which could cause
an accident and serious injury.
1. Stop the vehicle completely.
2. (Manual transaxle)
Shift into neutral and set the parking
brake.
(Automatic transaxle)
Shift the selector lever to the P
position and set the parking brake.
3. Press the push button start to turn off
the engine. The ignition position is off.
CAUTION
When leaving the vehicle, make sure the
push button start is off.
NOTE
(SKYACTIV-G 2.5)
The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the A/C
is on or off, to cool the engine
compartment quickly.
When Driving
Start/Stop Engine
4-10
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-36.
(Vehicle equipped with Type A/B
instrument cluster)
A message is indicated in the display of
the instrument cluster.
(Vehicle equipped with Type C
instrument cluster)
The KEY indicator light (green) flashes
for approximately 30 seconds.
Refer to Taking Action on page 7-32.
(Automatic transaxle)
If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.
▼Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
Cylinder Deactivation*
The cylinder deactivation is a function
designed to reduce fuel consumption and
improve fuel economy by deactivating 2
out of the 4 cylinders while driving. The
function constantly determines which is
better for driving; 4 cylinders or 2
cylinders, regardless of the driver's
operations, and it performs the switching
automatically.
When the cylinder de
activation function
does not operate
The cylinder deactivation function does
not operate under the following
conditions.
The selector lever is in the P, N, or R
position, or 1st gear.
The engine oil temperature or engine
coolant temperature is low.
After disconnecting the battery
terminals for some reason, such as for
battery replacement.
When Driving
Start/Stop Engine
*Some models.4-11
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Instrument Cluster and Display

Instrument ClusterType A
Type B
Type C
Active Driving Display
ƒ Instrument Cluster (Type A)................................................................................. page 4-13
„ Instrument Cluster (Type B)..................................................................................page 4-30
… Instrument Cluster (Type C)..................................................................................page 4-46
† Active Driving Display......................................... ................................................ page 4-59
When Driving
Instrument Cluster and Display
4-12
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Instrument Cluster (Type A)

ƒSpeedometer.......................................................................................................... page 4-13
„ Tachometer............................................................................................................ page 4-1 3
… Multi-information Display (Type A)............................. ........................................ page 4-14
† Engine Coolant Temperature Gauge............................... ...................................... page 4-18
‡ Fuel Gauge............................................................................................................ page 4-1 8
ˆ Dashboard Illumination.........................................................................................page 4-19
‰ Speed Unit Selector............................................................................................... page 4-19
▼Speedometer
The speedometer indicates the speed of the
vehicle.
▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

STRIPED ZONERED ZONE
*
1The range varies depending on the type
of gauge. *
1*1
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-13
Mazda6_8HK6-EA-19A_Edition1
2018-11-15 9:36:06

▼Multi-information Display (Type A)
INFO switchMulti-information Display (Type A)
Selector knob
The multi-information display in dicates the following information.
Speedometer
Odometer
Trip meter
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor
Blind Spot Monitoring (BSM) Display
Traffic Sign Recognition System (TSR) Display
Distance Recognition Support System (DRSS) Display
Mazda Radar Cruise Control with S top & Go function (MRCC with Stop & Go function)
System Display
Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) Display
Cruise Control Display
Compass Display
Door-Ajar/Trunk lid-Ajar Warning Indication
Warning message
When Driving
Instrument Cluster and Display
4-14
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

The screen content changes each time the INFO switch is pressed.
Press the INFO switch
Press the INFO switch
Press the INFO switch
*2
*1
*2: Displayed only when a warning occurs. *1: Displayed when opening/closing door/trunk lid.
Press the INFO switch
Press the INFO switch
Basic display
Warning message
display
Trip Meter A display
Trip Meter B display
Press the INFO switch
i-ACTIVSENSE display Maintenance Monitor

display
Compass display
Press the INFO switch
When Driving
Instrument Cluster and Display
4-15
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

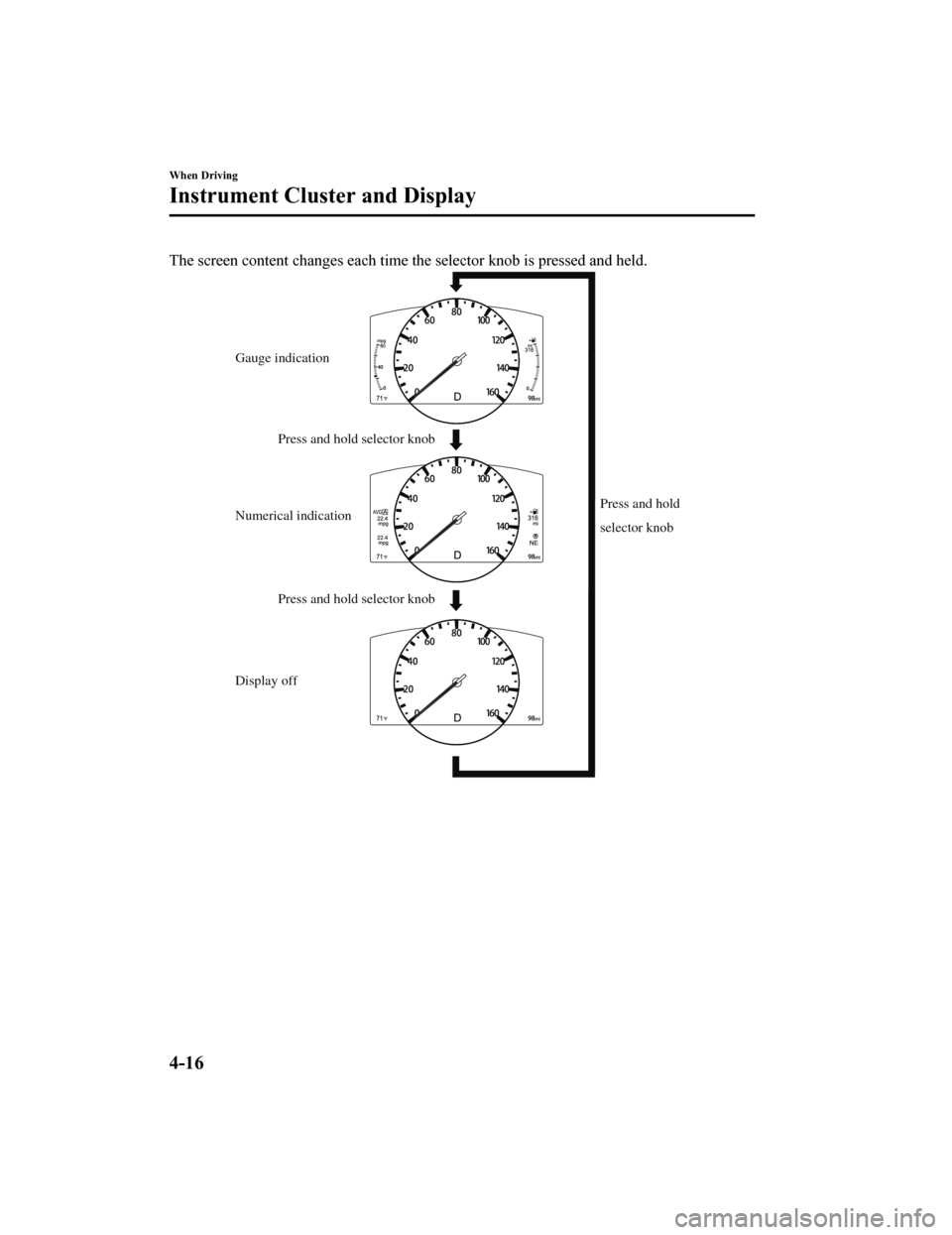

The screen content changes each time the selector knob is pressed and held.
Gauge indication
Display off Numerical indication Press and hold
selector knob
Press and hold selector knob
Press and hold selector knob
When Driving
Instrument Cluster and Display
4-16
Mazda6_8HK6-EA-19A_Edition1
2018-11-15 9:36:06

▼Odometer, Trip Meter and Trip
Meter Selector
The odometer is constantly displayed on
the screen when the ignition is switched
ON, and the TRIP A or TRIP B screen can
be displayed by operating the INFO
switch.

INFO switch
Press the INFO switch
Trip Meter A
display
Trip Meter B
display
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The driving distance for a specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance and the
average fuel economy for each can be
measured.

For instance, trip me
ter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
mode.
NOTE
Only the trip meters record tenths of
kilometers (miles).
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 9999.9 km
(mile).
When Driving
Instrument Cluster and Display
4-17
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

▼Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue gauge indicates that the engine
coolant temperature is low, and the red
gauge indicates that the engine coolant
temperature is high and overheating.

CAUTION
If the engine coolant temperature gauge
needle is in the red range, there is the
possibility of overheating. Drive slowly to
reduce engine load until you can find a safe
place to stop the vehicle and wait for the
engine to cool down.
Refer to Overheating on page 7-18.
NOTE
(SKYACTIV-G 2.5T)
If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.
During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).
▼ Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full
1/4 Full
Empty
If the low fuel w
arning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Taking Action on page 7-32.
NOTE
After refueling, it may require some time
for the indicator to st abilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
The direction of the arrow () indicates
that the fuel-filler lid is on the left side
of the vehicle.
When Driving
Instrument Cluster and Display
4-18
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06
