How the SRS Air Bags Work
Your Mazda is equipped with the following types of SRS air bags. SRS air bags are
designed to work together with the seat belts to help to reduce injuries during an accident.
The SRS air bags are designed to provide further protection for passengers in addition to the
seat belt functions. Be sure to wear seat belts properly.
▼ Front Seat Bel
t Pretensioners
The front seat belt pretensioners are designed to deploy in mod erate or severe frontal, near
frontal collisions.
In addition, the pretensioners o perate when a side collision or a roll-over accident is
detected. The pretensioners operate differently depending on wh at types of air bags are
equipped. For more details about seat belt pretensioner operati on, refer to the SRS Air Bag
Deployment Criteria (page 2-64).
▼ Driver Air Bag
The driver's air bag is mounted in the steering wheel.
When air bag crash sensors detect a frontal impact of greater than moderate force, the
driver's air bag inflates quickly helping to reduce injury main
ly to the driver's head or chest
caused by directly hitting the steering wheel.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-64).
(With Front Passenger Occupa nt Classification System)
The driver's dual-stage air bag controls air bag inflation in t wo energy stages. During an
impact of moderate severity, the driver's air bag deploys with lesser energy, whereas during
more severe impacts, it deploys with more energy.
Essential Safety Equipment
SRS Air Bags
2-60
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

▼Front Passenger Air Bag
The front passenger air bag is mounted in the front passenger dashboard.
The inflation mechanism for the fr
ont passenger air bag is the same as the driver's air bag.
For more details about air bag deployment, refer to "SRS Air Ba g Deployment Criteria"
(page 2-64).
(With Front Passenger Occupa nt Classification System)
In addition, the front passenger air bag is designed to only de ploy when the front passenger
occupant classification sensor detects a passenger sitting on t he front passenger's seat. For
details, refer to the front passenger occupant classification s ystem (page 2-67).
▼Side Air Bags
The side air bags are mounted in the outboard sides of the fron
t seatbacks.
When the air bag crash sensors detect a s ide impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce i njury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Ba g Deployment Criteria"
(page 2-64).
(With Front Passenger Occupa nt Classification System)
In addition, the front passenger s ide air bag is designed to only deploy when the front
passenger occupant classification sensor detects a passenger si tting on the front passenger's
seat. For details, refer to the front passenger occupant classi fication system (page 2-67).

Essential Safety Equipment
SRS Air Bags
2-61
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

▼Curtain Air Bags
The curtain air bags are mounted in the front and rear window p
illars, and the roof edge
along both sides.
When the air bag crash sensors detect a side impact of greater than moderate force, the
curtain air bag inflates quickly and helps to reduce injury mai nly to the rear outboard
passenger's head caused by dir ectly hitting interior parts such as a door or window.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-64).
In a side impact:
Greater than moderate impact to o ne side of the vehicle will cause the curtain air bag on that
side only to inflate.

Only one side curtain air bag will
deploy on the side of the vehicle
that receives the force of an impact.
(With Front Passenger Occupa nt Classification System)
In a roll-over:
In response to a vehicle roll-ov er, both curtain air bags inflate.

Both curtain air bags will
deploy after the roll-over
accident is detected.
Essential Safety Equipment
SRS Air Bags
2-62
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

▼Warning Light/Beep
A system malfunction or operation conditions are indicated by a
warning.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspe cted on page 7-26.
Refer to Warning Sound is Activated on page 7-42.
Essential Safety Equipment
SRS Air Bags
2-63
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type of
collision.
(The illustrations are the representative cases of collisions.)
SRS equip‐ ment Types of collision
A severe frontal/near frontal colli‐ sion A severe side colli‐
sion A roll-over/near
roll-over
*2A rear collision
Front seat
belt preten‐ sioner X*1 (both sides) X*1 (both sides) X*1 (both sides)
No air bag and
front seat belt pre‐
tensioner will be
activated in a rear
collision.
Driver air
bag X
Front pas‐ senger air bag X
*1
Side air bag
X*1 (impact side
only)
Curtain air bag X (impact side on‐
ly) X (both sides)
X: The SRS air bag equipment is
designed to deploy in a collision.*1(With Front Passenger Occupant Classification System)
The front passenger front and side air bags and the seat belt pretensioner are designed to deploy when the front
passenger occupant cla ssification sensor detects a passenger si tting on the front passenger's seat.
*2(With Front Passenger Occupant Classification System)
In a roll-over accident, the s eat belt pretensioners and the cu rtain air bags deploy.
NOTE
In a frontal offset collision, the equipp ed air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.
Essential Safety Equipment
SRS Air Bags
2-64
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Limitations to SRS Air Bag
In severe collisions such as those described previously in "SRS Air Bag Deployment
Criteria", the applicable SRS air bag equipment will deploy. However, in some accidents,
the equipment may not deploy depending on the type of collision and its severity.

Limitations to fron t/near front collision detection:
The following illustrations are examples of front/near front co llisions that may not be
detected as severe enough to deploy the SRS air bag equipment.

Impacts involving trees or poles Frontal offset impact to the vehicle

Rear-ending or running under a truck's tail gate
Essential Safety Equipment
SRS Air Bags
2-65
Mazda6_8HK6-EA-19A_Edition1
2018-11-15 9:36:06

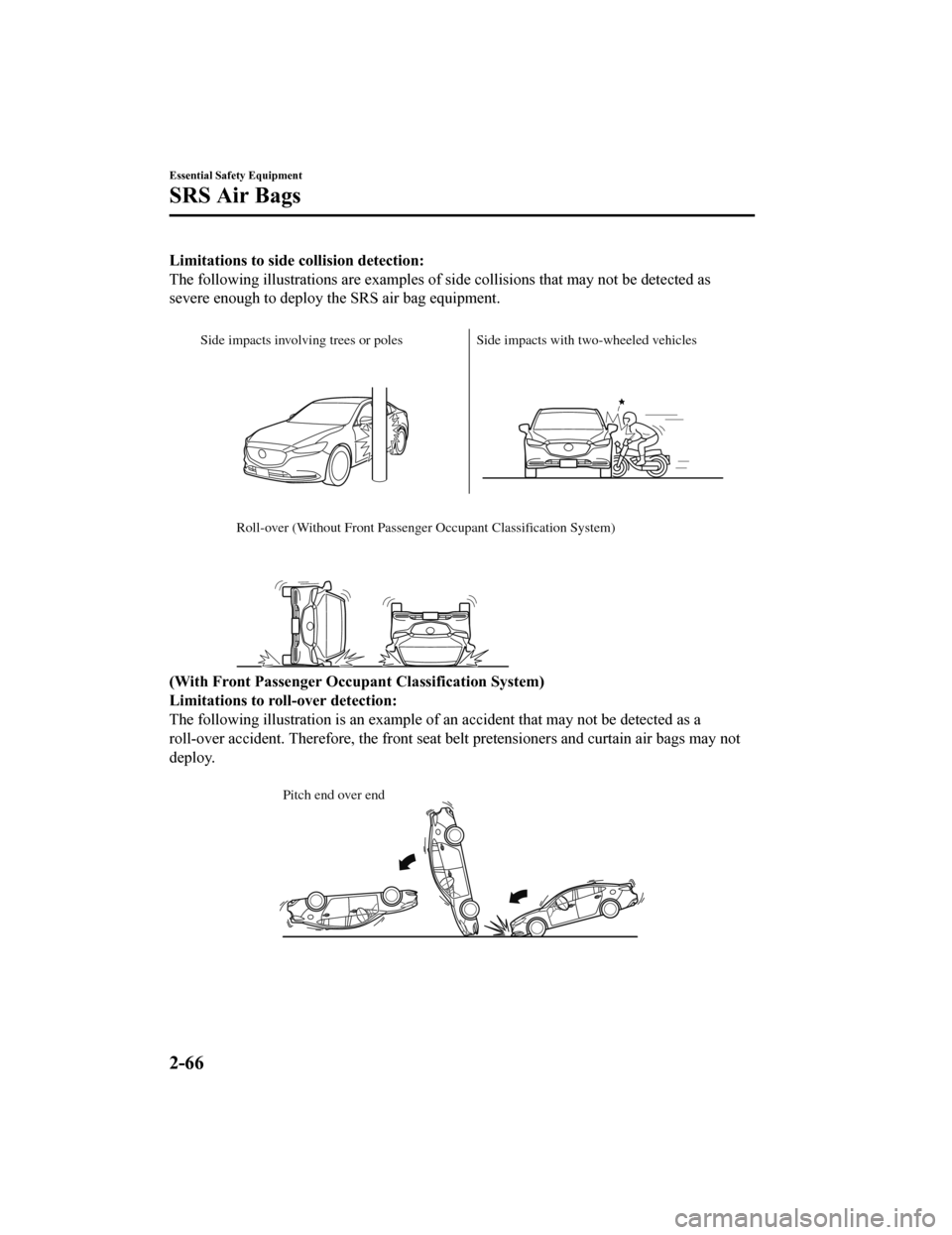

Limitations to side collision detection:
The following illustrations are e xamples of side collisions that may not be detected as
severe enough to deploy the SRS air bag equipment.

Side impacts involving trees or poles Side impacts with two-wheeled vehicles

Roll-over (Without Front Passenger Occupant Classification System)
(With Front Passenger Occupa
nt Classification System)
Limitations to roll-over detection:
The following illustration is an example of an accident that may not be detected as a
roll-over accident. Therefore, the front seat belt pretensioner s and curtain air bags may not
deploy.

Pitch end over end
Essential Safety Equipment
SRS Air Bags
2-66
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Front Passenger Occupant Classification System*
First, please read "Supplemental Restraint System (SRS) Precautions" (page 2-52) carefully.
▼Front Passenger Occupant Classification Sensor
Your vehicle is equipped with a front passenger occupant classi
fication sensor as a part of
the supplemental restraint system. This sensor is equipped in t he front passenger's seat
cushion. This sensor measures th e electrostatic capacity of the front passenger's seat. The
SAS unit is designed to prevent the front passenger front and s ide air bags and seat belt
pretensioner system from deployi ng if the front passenger air bag deactivation indicator
light turns on.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivati on indicator light turns on.
Refer to the following table for the front passenger air bag deactivation indicator light
illumination conditions.

This system shuts off the front passenger front and side air ba gs and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light turns on
according to the following table.

The air bag/front seat belt pretensioner system warning light f lashes and the front passenger
air bag deactivation indicator light illuminates if the sensors have a possible malfunction. If
this happens, the front passenger front and side air bags and s eat belt pretensioner system
will not deploy.
Front passenger air bag deactivation indicator light
This indicator light turns on to r emind you that the front passenger front and side air bags
and seat belt pretensioner will not deploy during a collision.
Essential Safety Equipment
SRS Air Bags
*Some models.2-67
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

If the front passenger occupant classification sensor is normal, the indicator light turns on
when the ignition is switched ON. The light turns off after a few seconds. Then, the
indicator light turns on or is off under the following conditio ns:
Front passenger air bag deactiva tion indicator light on/off condition chart
Condition detected by the front
passenger occupant classifica‐ tion system Front passenger air
bag deactivation indi‐ cator light Front passenger front
and side air bags Front passenger seat
belt pretensioner sys‐ tem
Empty (Not occupied) OnDeactivated Deactivated
A child less than 1 year old is
seated in a child-restraint system On
Deactivated Deactivated
Child
*1On or off Deactivated or ready Deactivated or ready
Adult
*2Off Ready Ready
*1 The occupant classification sens or may not detect a child seated on the seat, in a child-restraint system, or a
junior seat depending on the ch ild's physical size and seated posture.
*2 If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child
depending on the person's physique.
The curtain air bag is ready for inflating regardless of what the front passenger air bag
deactivation indicator light on/off condition chart indicates.
If the front passenger air bag deactivation indicator light doe s not turn on when the ignition
is switched ON and does not turn on as indicated in the front p assenger air bag deactivation
indicator light on/off condition chart, do not allow an occupan t to sit in the front passenger
seat and consult an Authorized M azda Dealer as soon as possible. The system may not work
properly in an accident.
WA R N I N G
Do not allow an occupant in the front passenger's seat to sit with a posture which makes it
difficult for the front passenger occupant classification sensor to detect the occupant
correctly:
Sitting in the front passenger's seat with a posture which makes it difficult for the front
passenger occupant classification sensor to dete ct the occupant correctly is dangerous. If the
front passenger occupant classification sensor ca nnot detect the occupant sitting on the front
passenger's seat correctly, the front passenge r front and side air bags and pretensioner
system may not operate (non-deploy) or they may operate (deploy) accidentally. The front
passenger will not have the su pplementary protection of the air bags or the accidental
operation (deployment) of the air bags could result in serious injury or death.
Under the following conditions, the front passe nger occupant classification sensor cannot
detect a passenger sitting on the front passe nger's seat correctly and the deployment/
non-deployment of the air bags cannot be contro lled as indicated in the front passenger air
bag deactivation indicator light on /off condition chart. For example:
Essential Safety Equipment
SRS Air Bags
2-68
