rear MAZDA MODEL 6 2020 Owner's Manual (in English)

2. Disconnect the bulb by pulling it out.Overhead lights/Front map lightsRear map lights
Maintenance and Care
Owner Maintenance
6-55
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
2 IG2 30 A For protection of various circuits
3 INJECTOR
ENG. SUB 30 A
Engine control system
*
4 SCR1
EVVT 20 A
Engine control system*
5 P.WINDOW1 30 A Power windows
6 IG1 2 30 A For protection of various circuits
7― ― ―
8 ADD FAN DE 50 A Cooling fan
9D EFO G 4 0 A
Rear window defogger
*
10 DCDC DE 40 A ―
11 EPB R 20 A Electric parking brake (EPB) (RH)
12 EPB L 20 A Electric parking brake (EPB) (LH)
13 CABIN.+B 50 A For protection of various circuits
14 FAN GE 30 A
Cooling fan
*
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17 HEATER 40 A
Air conditioner
*
18 WIPER 20 A Front window wiper and washer
19 FAN DE 50 A
Cooling fan
*
20 ADD FAN GE 30 A Cooling fan*
21 ENGINE3 15 A Engine control system
22 ENGINE2 15 A Engine control system
23 AUDIO2 7.5 A Audio system
24 METER210 A ―
25 SRS1 7.5 A Air bag
26 METER1 10 A Instrument cluster
27 ENGINE.IG1 7.5 A Engine control system
28 AT 15 A
Transaxle control system
*, Ignition switch
29 H/CLEAN 20 A ―
30 A/C 7.5 A Air conditioner
31 AT PUMP 15 A ―
32 HORN 15 A Horn
33 R.WIPER 15 A Theft-deterrent system
34 H/L HI 20 A Headlight high beam
35 ― ― ―
Maintenance and Care
Owner Maintenance
*Some models.6-59
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tire on
the front wheels (driving wheels):
Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be
affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
 Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.
 Do not use a tire chain on this tire
because it will not fit properly.
Do not use your temporary spare tire
on any other vehicle, it has been
designed only for your Mazda.
 Use only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
1. Remove the trunk mat.
Trunk mat
2. Turn the spare tire hold-down boltcounterclockwise.

Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.
If Trouble Arises
Flat Tire
7-6
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

5. Continue raising the jack headgradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.

Tire blocks
Jacking position
WA R N I N G
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or under
the jack is dangerous as it could deform
the vehicle body or the vehicle could fall
off the jack resulting in an accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
NOTE
When raising the ja ck head into the
jacking position and aligning the
groove in the jack head with the rail
under the vehicle body, the top of the
jack head contacts the vehicle's
underbody without the rail contacting
the bottom of the groove.
If Trouble Arises
Flat Tire
7-9
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―147 (12―14,
80―108)
WA R N I N G
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result in
loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.
6. (Without flat tire belt)
Store the damaged tire in the trunk.
(With flat tire belt)
Open the trunk mat.
7. Remove the belt for securing the flat tire.
8. Put the flat tire into the trunk on the
left and toward the back.

9. Fold the seat back f orward on the right
side of the rear seat.
10. Thread the belt thro ugh the rear seat as
shown in the figure.

11. Thread the buckle through the wheel as
shown in the figure and secure it so
that the buckle does not contact the
wheel.

If Trouble Arises
Flat Tire
7-13
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

12. Thread the belt through the buckle,then pull the belt end to secure the flat
tire.

13. Return the seat back on the right sideof the rear seat to it s original position.
14. Remove the tire blocks and store the
tools and jack.
15. Check the inflation pressure. Refer to Tires on page 9-9.
16. Have the flat tire repaired or replaced as soon as possible.
WA R N I N G
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air pressure
is dangerous. Tires with incorrect pressure
could affect handling and result in an
accident. When you check the regular tires'
air pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from rattling,
store them properly.
If Trouble Arises
Flat Tire
7-14
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.

Proper lifting and towing are necessary to
prevent damage to the vehicle. Particularly
when towing an AWD vehicle, where all
the wheels are connected to the drive train,
proper transporting of the vehicle is
absolutely essential to avoid damaging the
drive system. Government and local laws
must be followed.
Wheel dollies

A towed FWD vehicle should have its
drive wheels (front wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.

When towing a FWD vehicle with the rear
wheels on the ground, release the parking
brake.
Refer to Electric Parking Brake (EPB) on
page 4-99.

A towed AWD vehicle must have all its
wheels off the ground.
WA R N I N G
Always tow an AWD vehicle with all four
wheels off the ground:
Towing an AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail away
from the tow truck and cause an accident.
If the drive train has been damaged,
transport the vehicle on a flatbed truck.
CAUTION
 Do not tow the vehicle pointed backward
with driving wheels on the ground. This
may cause internal damage to the
transaxle.
If Trouble Arises
Emergency Towing
7-22
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Do not tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or
flatbed equipment.

If the parking brake cannot be released
when towing the vehicle, transport the
vehicle with all front and rear wheels
raised
off the ground as shown in the
figure. If the vehicle is towed without
raising the wheels off the ground, the
brake system could be damaged.
Wheel dollies
Tiedown Hooks*
CAUTION
Do not use the front and rear tiedown
eyelets for towing the vehicle.
They have been designed only for securing
the vehicle to a transport vessel during
shipping.
Using the eyelets for any other purpose
could result in the vehicle being damaged.
▼ Tiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2. Wrap a flathead screwdriver or similar
tool with a soft c loth to prevent
damage to a painted bumper, and open
the cap located on the front or rear
bumper.
Front
If Trouble Arises
Emergency Towing
*Some models.7-23
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

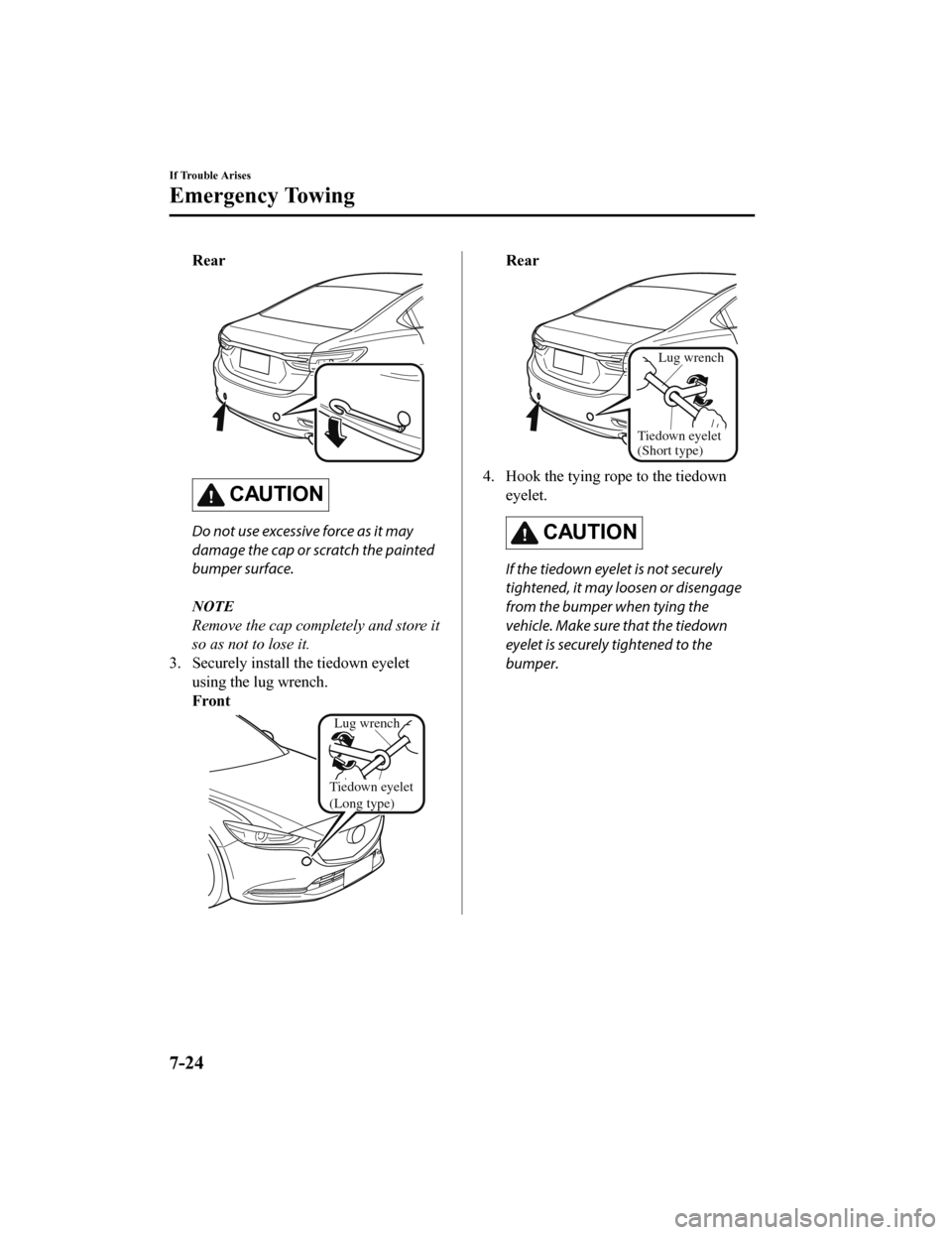

Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
NOTE
Remove the cap completely and store it
so as not to lose it.
3. Securely install the tiedown eyelet using the lug wrench.
Front
Lug wrench
Tiedown eyelet
(Long type)
Rear
Tiedown eyelet
(Short type) Lug wrench
4. Hook the tying ro
pe to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
If Trouble Arises
Emergency Towing
7-24
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Brake System Warning
Indication/Warning Light This warning has the following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with th
e ignition switched to
START or ON. It turns off when the parking brake is released.
When the light turns on
If the brake system warning light remains turned on even though the parking brake is
released, the brake fluid may be low or there could be a problem with the brake sys‐
tem. Park the vehicle in a safe place immediately and contact a n Authorized Mazda
Dealer.
When the light is flashing
The light flashes if the Electric Parking Brake (EPB) has a mal function.
If the light remains flashing ev en if the Electric Parking Brake (EPB) switch is oper‐
ated, consult an Authorized Maz da Dealer as soon as possible.
WARNING
Do not drive with the brake system warning light illuminated. Contact an Authorized
Mazda Dealer to have the brakes inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It indicates that
your brakes may not work at all or that they could completely fail at any time. If this
light remains illuminated, after checking that the parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the brakin g may diminish so you may need to depress
the brake pedal more strongly than normal to stop the vehicle.
Electronic Brake Force Distribution System Wa r n i n g If the electronic brake force di
stribution control unit determines that some compo‐
nents are operating incorrectly , the control unit may illuminate the brake system
warning light and the ABS warni ng light simultaneously. The problem is likely to be
the electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as
soon as possible:
Driving when the brake system warning li ght and ABS warning light are illuminated
simultaneously is dangerous.
When both lights are illuminate d, the rear wheels could lock more quickly in an emer‐
gency stop than under normal circumstances.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-26
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
