engine MAZDA MODEL 6 2020 Owner's Manual (in English)

Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, th ey could affect your vehicle's
performance or safety systems; the Mazda warranty doesn't cover this. Before you install
any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WA R N I N G
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:
Improperly designed parts or accessories coul d seriously affect your vehicle's performance or
safety systems. This could cause you to have an accident or increase your chances of injuries
in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-bag
(SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add- on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
War r a n ty
8-20
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

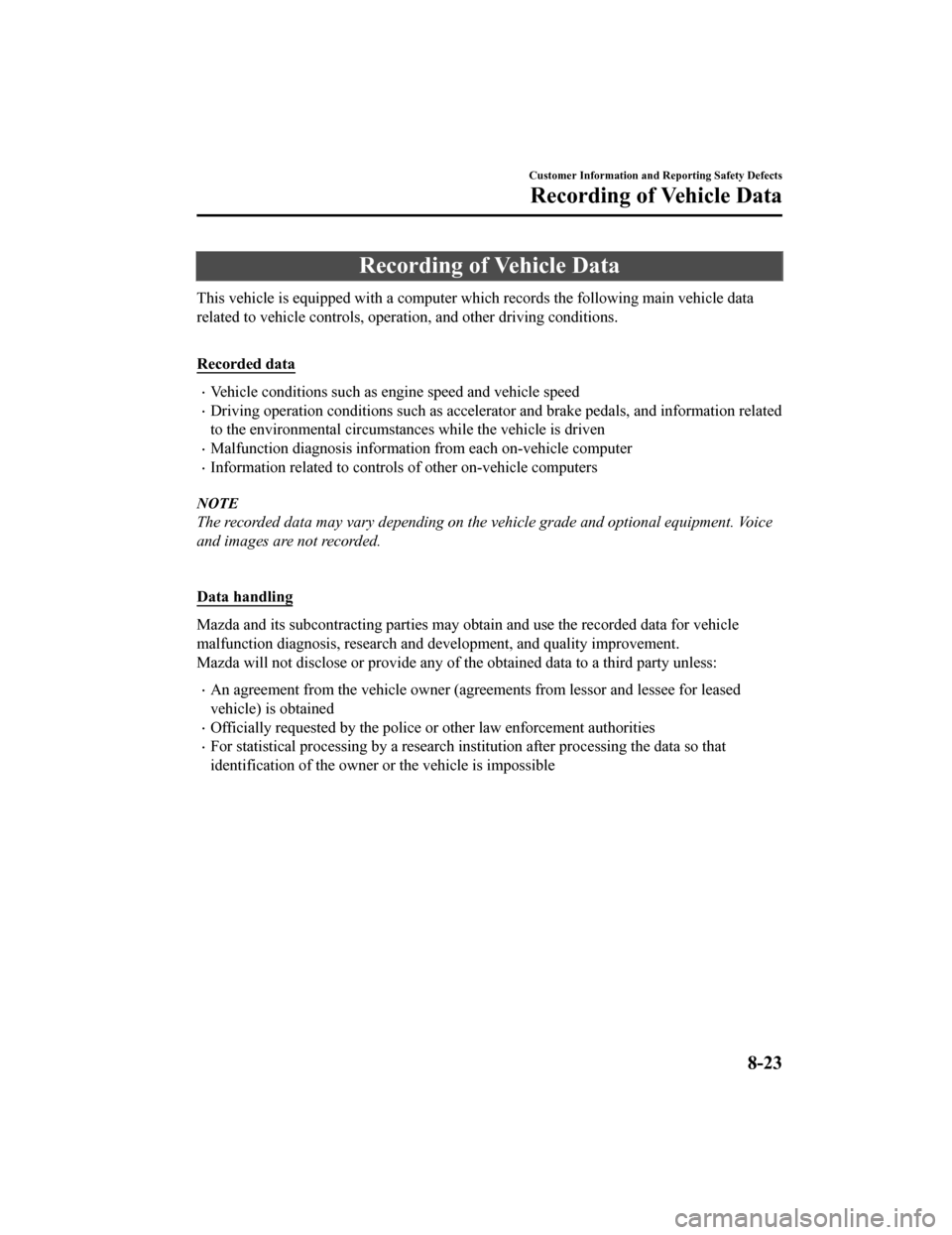

Recording of Vehicle Data
This vehicle is equipped with a computer which records the following main vehicle data
related to vehicle controls, operation, and other driving condi tions.

Recorded data
Vehicle conditions such as engine speed and vehicle speed
Driving operation conditions such as accelerator and brake peda ls, and information related
to the environmental circumstances while the vehicle is driven
Malfunction diagnosis informati on from each on-vehicle computer
Information related to controls of other on-vehicle computers
NOTE
The recorded data may vary depending on the vehicle grade and optional equipment. Voice
and images are not recorded.

Data handling
Mazda and its subcontracting part ies may obtain and use the recorded data for vehicle
malfunction diagnosis, research and development, and quality improvement.
Mazda will not disclose or provi de any of the obtained data to a third party unless:
An agreement from the vehicle owner (agreements from lessor and lessee for leased
vehicle) is obtained
Officially requested by the police or other law enforcement aut horities
For statistical processing by a research institution after processing the data so that
identification of the owner or the vehicle is impossible
Customer Information and Reporting Safety Defects
Recording of Vehicle Data
8-23
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

WA R N I N G
Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage , serious damage to the vehicle, or loss of
control.
Always keep the vehicle within the axle weight rating limits.

GCW
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).

GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.

WA R N I N G
Never Exceed GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the
certification label is dangerous. Exceeding
any vehicle rating limitation could result in a serious accident, injury, or damage to the
vehicle.
Do not use replacement tires with lower load carrying capacities than the originals because
they may lower the vehicle's GVWR and GAWR limitations. Replacement tires with a higher
limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-42
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Engine Number
SKYACTIV-G 2.5, SKYACTIV-G 2.5T

Forward
SKYACTIV-D 2.2

Forward
Specifications
Identification Numbers
9-3
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

Specifications
▼Engine
Gasoline engine
Item Specification
SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.010.5
Diesel engine
Item Specification
SKYACTIV-D 2.2
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 86.0 × 94.3 mm (3.39 × 3.71 in)
Displacement 2,191.1 ml (2,191.1 cc)
Compression ratio 14.4
▼Electrical System
Battery
Classification
Specification
SKYACTIV-G 2.5,
SKYACTIV-G 2.5T 12V-60Ah/20HR or 12V-65Ah/20HR
SKYACTIV-D 2.2 12V-65Ah/20HR or 12V-80Ah/20HR
Spark-plug
Classification Specification
SKYACTIV-G 2.5 Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine spark plug
*1PY8V-18-110
*1 The spark plugs provide the SKY ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-25.
Coolant FL-22 type
Manual transaxle oil Mazda Long Life Gear Oil G7
*1
Automatic transaxle fluid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life
Gear Oil G7 is recommended.
If Mazda Long Life Gear Oil G7 ca nnot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYACTIV-G
2.5
With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYACTIV-G
2.5T With oil filter replacement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
SKYACTIV-D
2.2 With oil filter replacement
5.1 L (5.4 US qt, 4.5 Imp qt)
Without oil filter replacement 4.8 L (5.1 US qt, 4.2 Imp qt)
Coolant U.S.A. and
Canada SKYAC‐
TIV-G 2.5
Manual trans‐
axle
6.8 L (7.2 US qt, 6.0 Imp qt)
Automatic
transaxle 7.0 L (7.4 US qt, 6.2 Imp qt)/7.1 L (7.5 US qt, 6.2
Imp qt)
SKYACTIV-G 2.5T 8.3 L (8.8 US qt, 7.3 Imp qt)
SKYACTIV-D 2.2 8.6 L (9.1 US qt, 7.6 Imp qt)
Mexico SKYACTIV-G 2.5
7.0 L (7.4 US qt, 6.2 Imp qt)
SKYACTIV-G 2.5T 8.2 L (8.7 US qt, 7.2 Imp qt)
Manual transaxle oil 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic
transaxle
fluid SKYACTIV-G 2.5
7.8 L (8.2 US qt, 6.9 Imp qt)/8.0 L (8.5 US qt, 7.0
Imp qt)
SKYACTIV-G 2.5T, SKYACTIV-D 2.2 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Specifications
Specifications
9-5
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Mexico
SKYACTIV-G 2.5
ItemWeight
GVW (Gross Vehicle Weight) Total
2,032 kg (4,480 lbs)
Front 1,037 kg (2,286 lbs)
Rear 995 kg (2,194 lbs)
GAW (Permissible axle load) Front
1,072 kg (2,363 lbs)
Rear 1,061 kg (2,339 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) Total
2,118 kg (4,669 lbs)
Front 1,121 kg (2,471 lbs)
Rear 997 kg (2,198 lbs)
GAW (Permissible axle load) Front
1,156 kg (2,549 lbs)
Rear 1,063 kg (2,344 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached t
o the inside of the engine com‐
partment. Check the label before recharging the refrigerant. Refer to Climate Control Sys‐
tem on page 5-2.
Item Specification
Refrigerant Type HFC134a (R-134a)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UN-R*1 (SAE)
Headlights LED
*2
― (―)
Daytime running lights
LED*2
Parking lightsLED type
LED*2
Bulb type 21/5*3W21/5W (7444)
Specifications
Specifications
9-7
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

ALC (Automatic volume adjustment)
The automatic level control (ALC) is a feature that automatical ly adjusts audio volume
according to the vehicle speed. The volume increases in accorda nce with the increase in
vehicle speed, and decreases as vehicle speed decreases.
Bose Centerpoint (Surround technology)
Centerpoint
*1 lets vehicle owners enjoy a Bo se surround sound experience.
Specifically engineered to meet the unique demands of reproduci ng surround sound in a
vehicle.
Converts stereo signals to multiple channels allowing greater p recision when reproducing
the sound.
An enhanced algorithm to simultaneously create a wider, more sp acious sound field.
Bose AUDIOPILOT (Noise compensation technology)
When driving, background noise can interfere with enjoying music.
AUDIOPILOT
*2 noise compensation technology continuously adjusts the music t o
compensate for background noise and vehicle speed.
It reacts only to sustained noise sources and not intermittent ones, such as speed bumps.
An enhanced DSP algorithm allows faster and more effective comp ensation for unusual
situations, such as driving on a very rough road or at high spe eds.
*1 Centerpoint is a registered trademark of Bose Corporation.*2 AUDIOPILOT is a registered trademark of Bose Corporation.

Specifications
Personalization Features
9-23
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Index
E
Electric parking brake (EPB)............ 4-99
Electric Parking Brake (EPB) Warning
Beep...................................................7-47
Emergency StartingPush-starting................................ 7-18
Running out of fuel (SKYACTIV-D
2.2)............................................... 7-19
Starting a Flooded Engine
(SKYACTIV-G 2.5 and SKYACTIV-
G 2.5T)........................................ 7-18
Emergency Towing Tiedown hooks......... ................... 7-23
Towing description...................... 7-22
Emission Control System (SKYACTIV-
D 2.2)................................................ 3-24
Emission Control System (SKYACTIV-
G 2.5, SKYACTIV-G 2.5T).............. 3-23
Ending Screen Display.................... 4-115
Engine Coolant.........................................6-29
Engine compartment overview.... 6-23
Exhaust gas.................................. 3-26
Hood release............................ .... 6-21
Oil................................................ 6-25
Starting...........................................4-5
Essential Information.......................... 6-2
Event Data Recorder......................... 8-22
Excessive Speed Warning................. 7-49
Exterior Care..................................... 6-63 Aluminum wheel maintenance.... 6-68
Bright-metal maint enance........... 6-67
Maintaining the finish................. 6-64
Plastic part maintenance.............. 6-68
F
Flasher Hazard warning........................... 4-89
Headlights.................................... 4-78
Flat Tire............................................... 7-3
Mounting the spare tire............... 7-12
Removing a flat tire...................... 7-8
Floor Mat.......................................... 3-45
Fluid
Brake/Clutch................................ 6-31
Washer......................................... 6-32
Fluids Classification................................. 9-5
Foot Brake.........................................4-98
Forward Sensing Camera (FSC)..... 4-210
Fuel Filler lid and cap......................... 3-27
Requirements (SKYACTIV-D
2.2)............................................... 3-22
Requirements (SKYACTIV-G 2.5,
SKYACTIV-G 2.5T)....................3-21
Tank capacity.................................9-5
Fuel Consumption Display..............4-114
Fuel Economy Monitor. .................. 4-113
Control Status Display...............4-115
Ending screen display................4-115
Ending Screen Display.............. 4-115
Fuel consumption display.......... 4-114
Fuel Consumption Display........ 4-114
Fuses.................................................. 6-56 Panel description......................... 6-58
Replacement................................ 6-56
G
Gauges............................................... 4-13
Glove Compartment.......................... 5-93
H
Hazardous Driving............................ 3-45
Hazard Warning Flasher....................4-89
HeadlightsComing home light......................4-81
Control......................................... 4-78
Flashing....................................... 4-81
10-4
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Index
Headlight flashing....................... 4-81
High-low beam............................ 4-81
Leaving home light..................... 4-82
Leveling....................................... 4-82
Head Restraint................................... 2-17
High Beam Control System
(HBC).............................................. 4-124 High Beam Control System (HBC)
indicator light (green)................ 4-125
Hill Launch Assist (HLA).............. 4-107
HomeLink Wireless Control System
(Type A)............................................ 4-90
HomeLink Wireless Control System
(Type B)............................................ 4-93
Hood Release.................................... 6-21
Horn...................................................4-89
I
If a Warning Light Turns On or
Flashes............................................... 7-25
If the Active Driving Display Does Not
Operate.............................................. 7-51
Ignition
Switch............................................ 4-4
Ignition Not Switched Off (STOP)
Warning Beep.................................... 7-46
Illuminated Entry System................. 5-87
Immobilizer System.......................... 3-40
Inside Trunk Release Lever.............. 3-20
Inspecting Brak e/Clutch Fluid
Level.................................................. 6-31
Inspecting Coolant Leve l.................. 6-29
Inspecting Engine Oil Level............. 6-28
Inspecting Washer Fluid Level......... 6-32
Instrument Cluster...... ....................... 4-13
Instrument Cluster (Type A)........4-14
Instrument Cluster (Type B)........4-32
Instrument Cluster (Type C)........4-50
Instrument Cluster (Type A)............. 4-14 Average Fuel Economy............... 4-22
Blind Spot Monitoring (BSM)
Display......................................... 4-23
Compass Display......................... 4-25
Cruise Control Set Vehicle Speed
Display......................................... 4-25
Current Fuel Econo my................ 4-22
Dashboard Illumina tion............... 4-20
Distance Recognition Support System
(DRSS) Display........................... 4-24
Distance-to-empty....................... 4-22
Engine Coolant Temperature
Gauge........................................... 4-19
Fuel Gauge.................................. 4-19
Indication/Indicator Lights.......... 4-28
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Display..........................4-24
Maintenance Monitor.................. 4-23
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) D isplay.......4-24
Message Display..........................4-25
Message Indicated in Multi-
information Display (Type A)..... 7-41
Multi-information Display (Type
A)................................................. 4-15
Odometer..................................... 4-18
Outside Temperature Display...... 4-21
Remaining Diesel Exhaust Fluid
(DEF) and Maximum Driving
Distance Display..........................4-23
Speedometer................................ 4-14
Speed Unit Selector..................... 4-21
Tachometer.................................. 4-14
Traffic Sign Recognition System
(TSR) Display..............................4-24
Trip Meter....................................4-18
Warning Indication/Warning
Lights........................................... 4-26
Instrument Cluster (Type B)............. 4-32
Average Fuel Economy............... 4-39
10-5
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
