Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Day/Night lever
Day
Night
Auto-dimming mirror
The auto-dimming mirror automatically
reduces the glare of headlights from
vehicles at the rear w hen the ignition is
switched ON.

(With Homelink wireless control
system)
(Type A)
Press the OFF button (
) to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto -dimming function,
press the ON button (
). The indicator
light will illuminate.
Indicator lightOFF button
ON button

(Type B)
Press the ON/OFF button (
) to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto-dimming function,
press the ON/ OFF button (
). The
indicator light will illuminate.
Indicator light
ON/OFF button
NOTE
Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.
(With Homelink wireless control
system)
(Type A)
Light sensor
(Type B)
Light sensor
Before Driving
Mirrors
3-32
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

(Without Homelink wireless control
system)

Light sensor
(With Homelink wireless control
system)
For information regarding the 3 buttons
(Type A
,,/Type B , , )
on the auto-dimming mirror.
Refer to HomeLink Wireless Control
System on page 4-90.
The auto-dimming function is canceled
when the ignition is switched ON and
the shift/selector lever is in the R
position.
Before Driving
Mirrors
3-33
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

i-ACTIV AWD............................... 4-118i-ACTIV AWD Operation
*....... 4-118
Power Steering............................... 4-119 Power Steering..........................4-119
i-ACTIVSENSE............................. 4-120 i-ACTIVSENSE
*......................4-120
Adaptive Front Lighting System
(AFS)
*...................................... 4-123
High Beam Control System
(HBC)
*......................................4-124
Blind Spot Monitoring (BSM)
*.........
.................................................. 4-127
Traffic Sign Recognition System
(TSR)
*...................................... 4-133
Distance Recognition Support
System (DRSS)
*....................... 4-141
Rear Cross Traffic Alert (RCTA)
*.....
.................................................. 4-145
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)
*............... 4-149
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)
*.................................. 4-163
Advanced Smart City Brake Support
(Advanced SCBS)
*...................4-174
Smart City Brake Support
(SCBS)
*.................................... 4-177
Smart Brake Support (SBS)
*.... 4-180
360° View Monitor
*................. 4-183
Forward Sensing Camera (FSC)
*......
.................................................. 4-210
Radar Sensor (Front)
*.............. 4-215
Radar Sensors (Rear)
*.............. 4-218
Front Camera/Side Cameras/Rear
Camera
*.................................... 4-220
Cruise Control............................... 4-221
Cruise Control
*.........................4-221
Tire Pressure Monitoring
System.............................................4-226 Tire Pressure Monitoring
System...................................... 4-226
Diesel Particulate Filter................ 4-230 Diesel Particulate Filter
(SKYACTIV-D 2.2)..................4-230
Selective Catalytic Reduction (SCR)
System.............................................4-231 Selective Catalytic Reduction (SCR)
System (SKYACTIV-D 2.2)..... 4-231
Rear View Monitor....................... 4-234 Rear View Monitor
*................. 4-234
Parking Sensor System................. 4-242 Parking Sensor System
*........... 4-242
4-2*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

The direction of the arrow () indicates
that the fuel-filler lid is on the left side
of the vehicle.

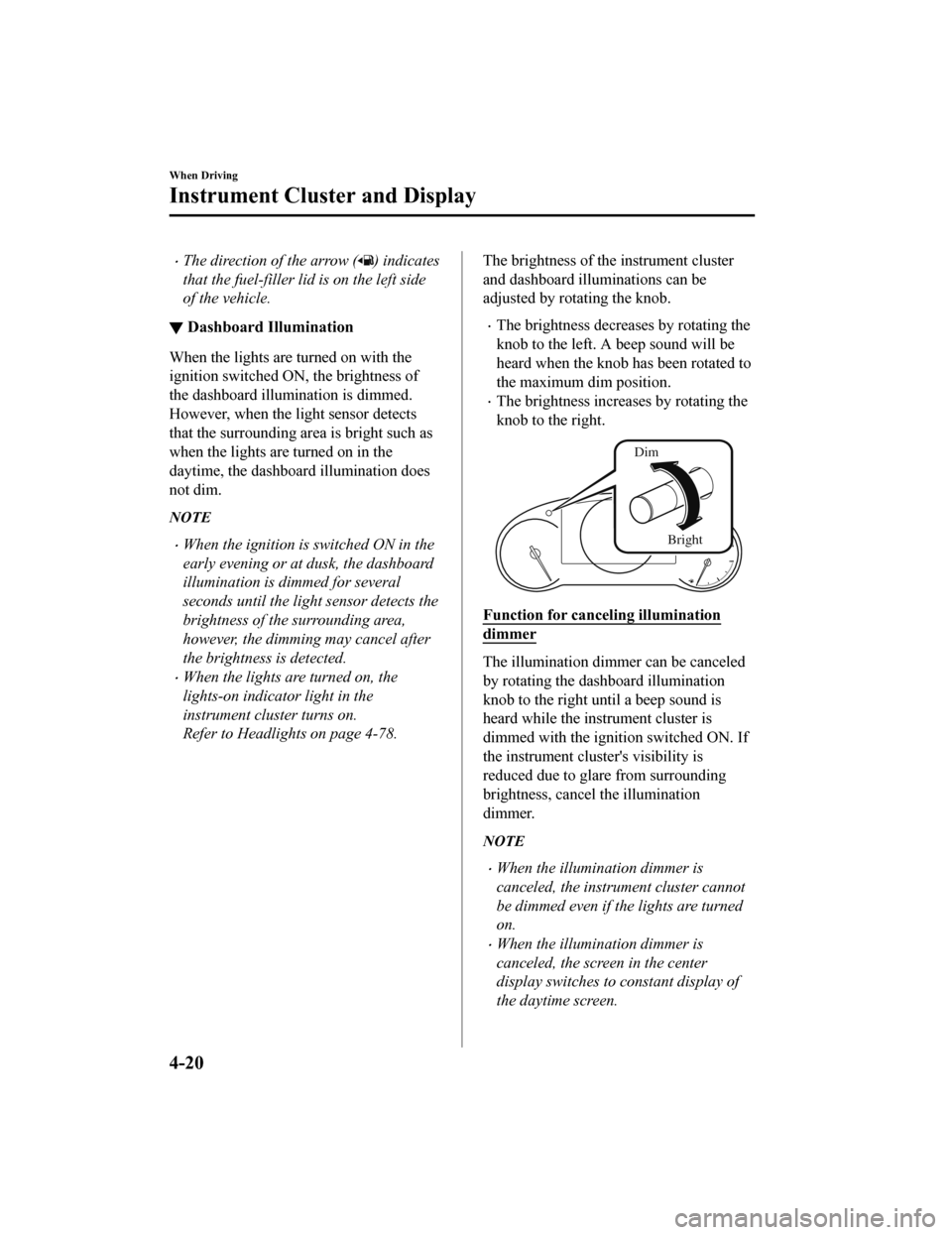

▼ Dashboard Illumination
