2. Press in the tab to unlock the uppercover.
3. Insert a tape-wrapped flatheadscrewdriver into the gap and slide it in
the direction of the arrow.
4. Twist the flathead screwdriver in the direction of the arrow and remove the
upper cover.
5. Remove the cap using thetape-wrapped flathead screwdriver.
6. Remove the battery usingtape-wrapped flathead screwdriver.
7. Insert a new battery into the transmitter
so that the positive pole is facing up.
8. Install the cap.
Maintenance and Care
Owner Maintenance
6-47
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

9. Install the upper cover.
10. Insert the tabs of the lower cover intothe slots of the transmitter and install
the lower cover.
Tires
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.
WA R N I N G
Using Different Tire Types:
Driving your vehicle with different types of
tires is dangerous. It could cause poor
handling and poor braking; leading to loss
of control.
Except for the limited use of the temporary
spare tire, use only the same type tires
(radial, bias-belted, bias-type) on all four
wheels.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for the vehicle (page 9-9) is
dangerous. It could seriously affect ride,
handling, ground clearance, tire clearance,
and speedometer calibration. This could
cause you to have an accident. Use only
tires that are the correct size specified for
the vehicle.
▼ Tire Inflation Pressure
WA R N I N G
Always
inflate the tires to the correct
pressure:
Overinflation or underinflation of tires is
dangerous. Adverse handling or
unexpected tire failure could result in a
serious accident.
Refer to Tires on page 9-9.
Maintenance and Care
Owner Maintenance
6-48
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Use only a Mazda-genuine tire valve cap:
Use of a non-genuine part is dangerous as
the correct tire air pressure cannot be
maintained if the tire valve becomes
damaged. If the vehicle is driven under this
condition, the tire air pressure will decrease
which could result in a serious accident. Do
not use any part for the tire valve cap that
is not a Mazda-genuine part.
Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures for
the best ride, handling, and minimum tire
wear.
Refer to the specification charts (page
9-9).
NOTE
Always check tire pressure when tires
are cold.
Warm tires normally exceed
recommended pressures. Do not release
air from warm tires to adjust the
pressure.
Underinflation can cause reduced fuel
economy, uneven and accelerated tire
wear, and poor sealing of the tire bead,
which will deform the wheel and cause
separation of tire from rim.
Overinflation can produce a harsh ride,
uneven and accelerated tire wear, and a
greater possibility of damage from road
hazards.
Keep your tire pressure at the correct
levels. If one frequently needs inflating,
have it inspected.
▼ Tire Rotation
WA R N I N G
Rotate tires periodically:
Irregular tire wear is dangerous. To
equalize tread wear for maintaining good
performance in handling and braking,
rotate the tires every 12,000 km (7,500
miles). However Mazda recommends to
rotate every 8,000 km (5,000 miles) to help
increase tire life and distribute wear more
evenly.
Refer to Scheduled Maintenance on page
6-4.

During rotation, inspect them for correct
balance.

Do not include (TEMPORARY USE
ONLY) spare tire in rotation.
Forward
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:

Incorrect tire pressure
Improper wheel alignment
Out-of-balance wheel
Severe braking

Maintenance and Care
Owner Maintenance
6-49
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

After rotation, inflate all tire pressures to
specification (page 9-9) and inspect the
lug nuts for tightness.
CAUTION
Rotate unidirectional tires and radial tires
that have an asymmetrical tread pattern or
studs only from front to rear, not from side
to side. Tire performance will be reduced if
rotated from side to side.
▼ Replacing a Tire
WA R N I N G
Always use tires that are in good condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and traction
could result in an accident.
Replace all four tires at the same time:
Replacing just one ti
re is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle control.
Mazda strongly recommends that you
replace all four tires at the same time.
If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.
New tread
Tread wear
indicator
Worn tread
You should replace the tire before the band
crosses the entire tread.
NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-26.
▼ Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make su
re it is properly
inflated and stored.
NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.
The temporary spare tire is easier to
handle because of its construction which is
lighter and smaller t han a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-9.

Maintenance and Care
Owner Maintenance
6-50
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

CAUTION
Do not use your temporary spare tire rim
with a snow tire or a conventional tire.
Neither will properly
fit and could
damage both tire and rim.
 The temporary spare tire has a tread life
of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.
 The temporary spare tire is for limited
use, however, if the tread wear
solid-band indicator appears, replace the
tire with the same type of temporary
spare (page 6-50).
NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-26.
▼ Replacing a Wheel
WA R N I N G
Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is dangerous.
Braking and handling could be affected,
leading to loss of control and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:
 Tire fit
 Wheel and bearing life
 Ground clearance
 Snow-chain clearance
 Speedometer calibration
 Headlight aim
 Bumper height
 Tire Pressure Monitoring System
NOTE
When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).
For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
6-51
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Light Bulbs
Front turn signal lights
Headlights (High/Low beam)/
Daytime running lights Parking lights
Overhead lights/
Front map lights Side turn signal lights Courtesy lights
Vanity mirror lights
Ambient lights
Rear map lights
Trunk light
High-mount brake light
License plate lights
Front side-marker lights
Daytime running lights/
Parking lights
Brake lights/Taillights Rear side-marker lights
Rear turn signal lights
Taillights (Trunk lid side) Taillights
Reverse lights
Some models.
Courtesy lights
Ambient lights
Maintenance and Care
Owner Maintenance
6-52
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

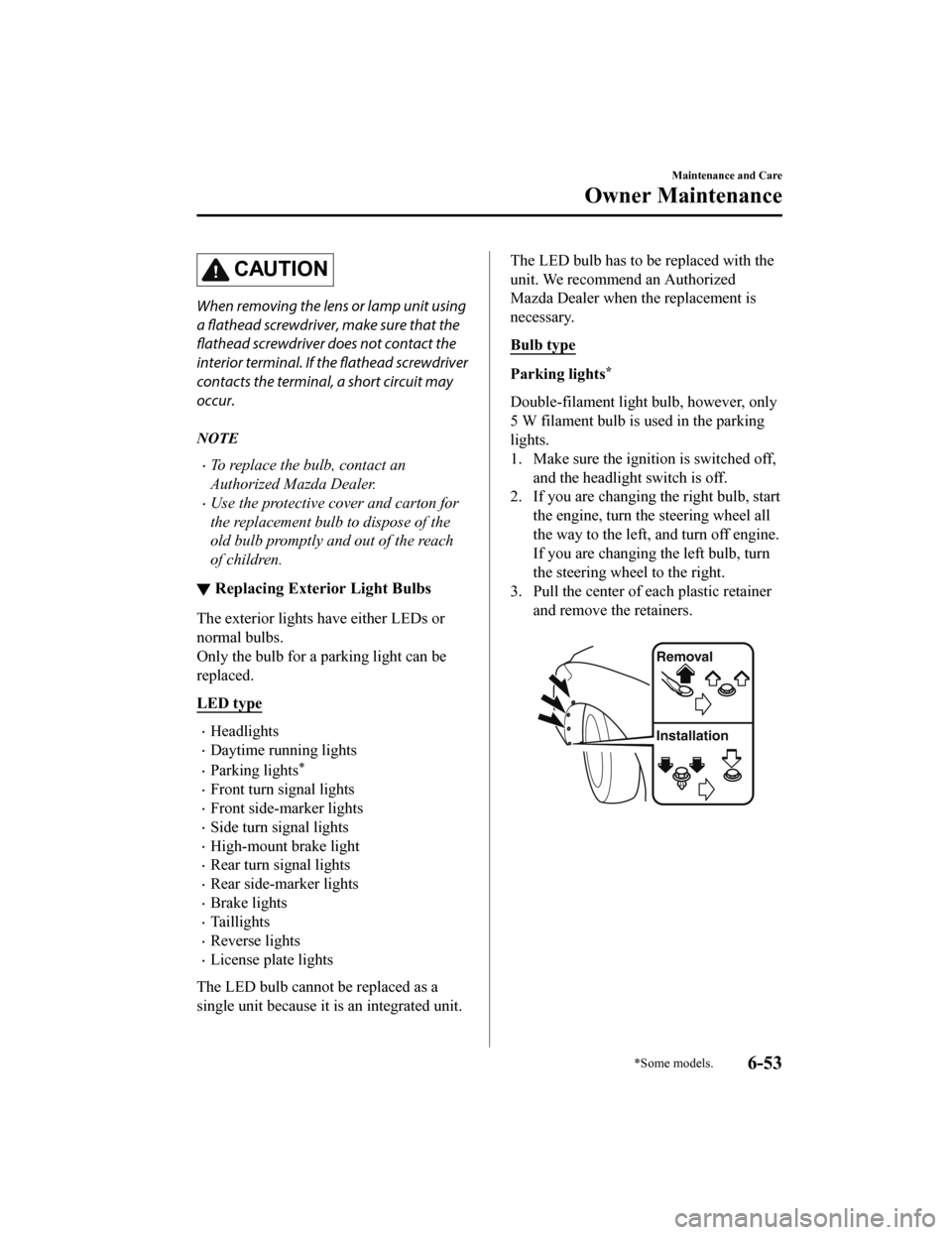

CAUTION
When removing the lens or lamp unit using
a flathead screwdriver, make sure that the
flathead screwdriver does not contact the
interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may
occur.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
▼Replacing Exterior Light Bulbs
The exterior lights have either LEDs or
normal bulbs.
Only the bulb for a parking light can be
replaced.
LED type
Headlights
Daytime running lights
Parking lights*
Front turn signal lights
Front side-marker lights
Side turn signal lights
High-mount brake light
Rear turn signal lights
Rear side-marker lights
Brake lights
Taillights
Reverse lights
License plate lights
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.
Bulb type
Parking lights*
Double-filament light bulb, however, only
5 W filament bulb is used in the parking
lights.
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the center of each plastic retainer and remove the retainers.
Removal
Installation
Maintenance and Care
Owner Maintenance
*Some models.6-53
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

4. Turn the screw counterclockwise andremove it, and then partially peel back
the mudguard.
5. Turn the socket and bulb assemblycounterclockwise and remove it.
6. Disconnect the bulb from the socket.
7. Install the new bulb in the reverse order of the removal procedure.
▼Replacing Interior Light Bulbs
Overhead lights/Front map lights (LED
type), Rear map lig
hts (LED type),
Vanity mirror lights (LED type)*,
Courtesy lights, Trunk lights (LED
type), Ambient Lights*
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.
Overhead lights/Fron t map lights (Bulb
type), Rear map lights (Bulb type),
Vanity mirror lights (Bulb type)*
1. Wrap a small flathead screwdriver with
a soft cloth to prev ent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
Maintenance and Care
Owner Maintenance
6-54*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

2. Disconnect the bulb by pulling it out.Overhead lights/Front map lightsRear map lights
Maintenance and Care
Owner Maintenance
6-55
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Vanity mirror lights*
3. Install the new bulb in the reverseorder of the removal procedure.
Trunk light (Bulb type)
1. Press both sides o f the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverseorder of the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect th e appropriate circuit
protector. If a fuse h as blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
▼ Fuse Replacement
Replacing the fuses on
the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
Maintenance and Care
Owner Maintenance
6-56*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
