warning MAZDA MODEL 6 2021 Owners Manual

Function for cancelling illumination dimmer
If the BSM warning indicator lights turn on when the parking lights are turned on, the
brightness of the BSM warning indicator lights is dimmed.
If the BSM warning indicator lights are difficult to see due to glare from surrounding
brightness when traveling on snow-covered roads or under foggy conditions, press the
dimmer cancellation button to can cel the dimmer and increase the brightness of BSM
warning indicator lights when they turn on.
Refer to Dashboard Illumina tion on page 4-20, 4-38, 4-55.
Display indicator (Vehicles with multi-information display and active driving display)
The detected approaching vehicle and warning are displayed in t he multi-information
display and active driving display when the vehicle is moving f orward (BSM operational).
Multi-information Display
Instrument Cluster (Type A)
Instrument Cluster (Type B)Active Driving Display
Detection and warning indicator Detection and warning indicator
Detection and warning indicator
The detected direction is displayed with a detection indicator
(white) when an approaching
vehicle is detected. In addition , if the turn signal lever is o perated to signal a lane change
while the vehicle is detected, the display changes the color (a mber) of the warning indicator.
BSM warning beep
The BSM warning beep is activated simultaneously with the flash ing of a BSM warning
indicator light.
When Driving
i-ACTIVSENSE
4-130
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

Traffic Sign Recognition System (TSR)*
The TSR helps prevent the driver from overlooking traffic signs , and provides support for
safer driving by displaying traffic signs on the active driving display/instrument cluster
which are recognized by the Forward Sensing Camera (FSC) or rec orded in the navigation
system while the v ehicle is driven.
The TSR displays the speed limit , do not enter, and traffic stop signs.
If the vehicle speed exceeds the speed limit sign indicated in the active driving display/
instrument cluster while the veh icle is driven, the system noti fies the driver using the
indication in the active driving display/instrument cluster and a warning sound.
NOTE
The TSR is not supported in some countries or regions. For information concerning the
supported countries or regions, consult an Authorized Mazda Dealer.
The TSR operates only if the navigation system SD card (Mazda genuine) is inserted in
the SD card slot. Consult an Authorized Mazda Dealer for details.
When Driving
i-ACTIVSENSE
4-132*Some models.
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

WARNING
Always check the traffic signs visually while driving.
The TSR helps prevent the driver from overlookin g traffic signs and provides support for safer
driving. Depending on the weath er conditions or problems with
traffic signs, a
traffic sign
may not be recognized or a traffic sign different from the actual traffic sign may be displayed.
Always make it your responsibility as a driver to check the actual traffic signs. Otherwise, it
could result in an accident.
NOTE
The TSR does not operate if there is a malf unction in the Forward Sensing Camera (FSC).
Under the following conditions, the TSR may not operate normally.
An object placed on the dashboard is reflected in the windshield and picked up by the
camera.
Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.
The tire pressures are not adjusted to the specified pressure.
Tires other than standard tires are equipped.
The vehicle is driven on the ramp and surrounding area to or from a rest area or a
tollgate on a highway.
When surrounding brightness suddenly changes such as when entering or exiting a
tunnel.
The illumination of the headlights is weakened because of dirt or the optical axis is
deviated.
The windshield is dirty or foggy.
The windshield and camera are fogged (water droplets).
Strong light is directed at the front of the vehicle (such as backlight or high-beam
headlights of on-coming vehicles).
The vehicle is making a sharp turn.
Strong light reflects off the road.
A traffic sign is in a position which makes it difficult to reflect the light from the
vehicle's headlights, such as when the vehicle is driven at night or in a tunnel.
The vehicle is driven under weather conditions such as rain, fog, or snow.
The stored map data for the navigation system is not current.
A traffic sign is obscured by mud or snow.
A traffic sign is concealed by trees or a vehicle.
A traffic sign is partially shaded.
A traffic sign is bent or warped.
A traffic sign is too low or too high.
When Driving
i-ACTIVSENSE
4-135
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

▼Excessive Speed Warning
If the vehicle speed exceeds the speed limit sign displayed in
the active driving display/
instrument cluster, the area aro und the speed limit sign flashes 3 times in amber and the
warning sound is activated 3 tim es at the same time. If the vehicle speed continues to exceed
the displayed speed limit sign, the indication stops flashing and remains on. Check the
surrounding conditions and adjust the vehicle speed to the lega l speed using the appropriate
operation such as depressing the brake pedal.
6060
Active driving display indication
Instrument cluster (Type A) Active driving display indication
Instrument cluster (Type A)
While 60 mph is displayed
50 mph is displayed
Instrument cluster (Type B) Instrument cluster (Type B)
*1: Indication color in excessive speed area changes.
*1
Some models.
When Driving
i-ACTIVSENSE
4-138
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

The excessive speed warning is initially set to inoperable. If you want to activate the
excessive speed warning, change the setting in the personalizat ion features. In addition, the
warning pattern and the warning activation timing differ depending on the setting contents.
Refer to the Settings section in the Mazda Connect Owner's Manu al.
Warning pattern
Off: The excessive speed warning is not activated.
Visual: The area around the speed limit sign displayed in the d isplay flashes 3 times in
amber, and if the vehicle speed continues to exceed the display ed speed limit sign, the
indication stops flashing and remains on.
Audio & Visual: The area around t he speed limit sign displayed in the display flashes 3
times in amber and the warning sound is activated 3 times at th e same time. If the vehicle
speed continues to exceed the displayed speed limit sign, the i ndication stops flashing and
remains on.
Warning activation timing
 0: If the vehicle speed exceeds the speed limit sign displayed in the display, the
excessive speed warning is activated.
 5: If the vehicle speed exceeds the speed limit sign displayed in the display by 5 km/h
(3 mph), the excessive speed warning is activated.
 10: If the vehicle speed exceed s the speed limit sign displayed in the display by 10
km/h (5 mph), the excessive speed warning is activated.
NOTE
In the following cases, the excessive speed warning stops operating.
The vehicle speed is less than the speed of the displayed speed limit sign. (If the
activation timing for the exce ssive speed warning is changed in the personalization
features, the excessive speed warning stops operating when the vehicle speed is less
than the changed vehicle speed.
A speed limit sign indication has been updated and the vehicle speed is lower than the
updated indication.
Display of the speed limit sign stops.
The warning indication is displayed at the same time the excessive speed warning sound
is activated if the vehicle speed exceeds the speed indicated on the speed limit sign.
Refer to Warning Sound is Activated on page 7-45.
If the Forward Sensing Camera (FSC) incorrectly recognizes the actual speed limit sign
at a lower speed, the excessive speed alarm is activated even if the vehicle is driven at the
legal speed.
When Driving
i-ACTIVSENSE
4-139
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

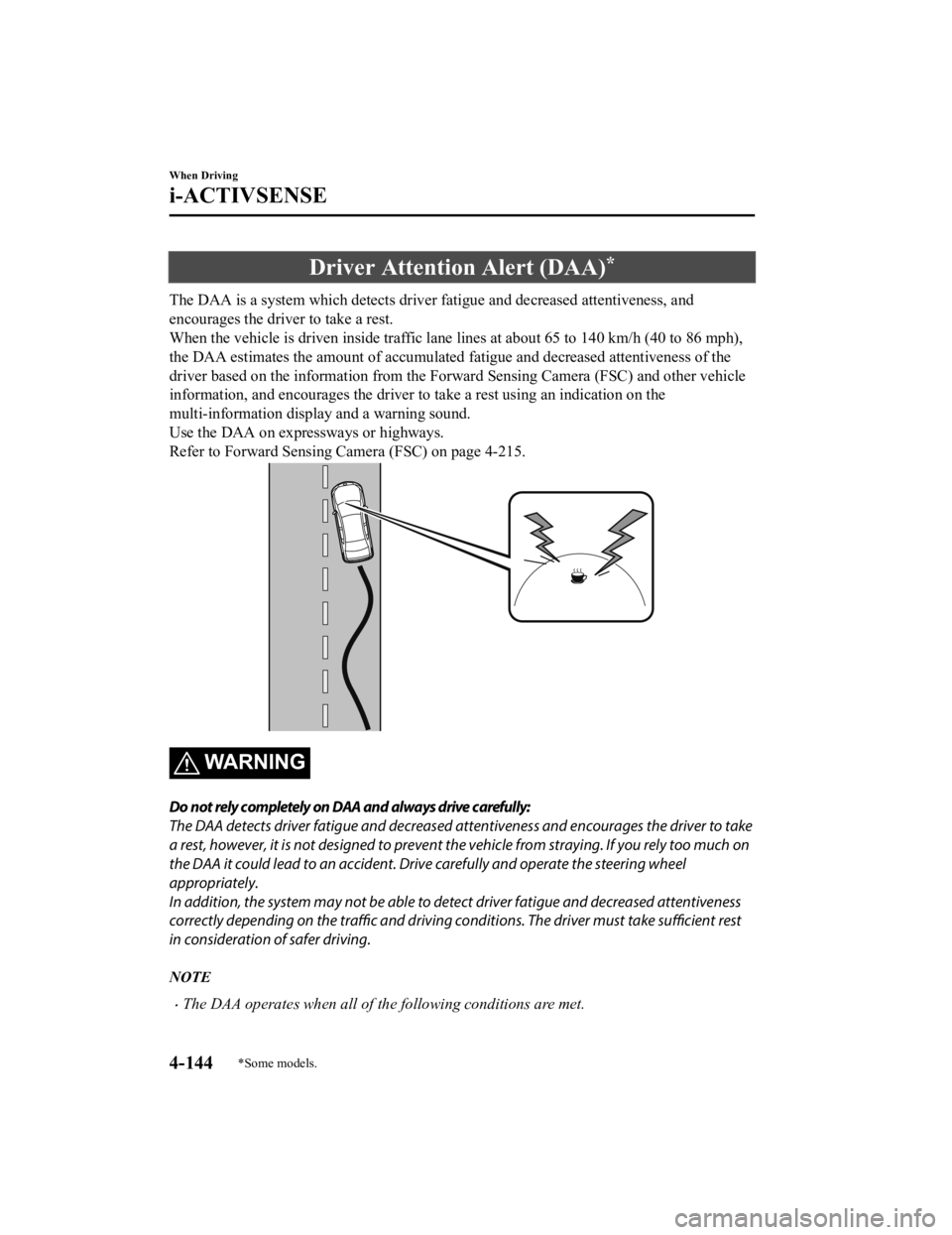

Driver Attention Alert (DAA)*
The DAA is a system which detects driver fatigue and decreased attentiveness, and
encourages the driver to take a rest.
When the vehicle is driven inside traffic lane lines at about 6 5 to 140 km/h (40 to 86 mph),
the DAA estimates the amount of accumulated fatigue and decreased attentiveness of the
driver based on the information from the Forward Sensing Camera (FSC) and other vehicle
information, and encourages the driver to take a rest using an indication on the
multi-information display and a warning sound.
Use the DAA on expressways or highways.
Refer to Forward Sensing Camera (FSC) on page 4-215.
WA R N I N G
Do not rely completely on DAA and always drive carefully:
The DAA detects driver fatigue and decreased attentiveness and encourages the driver to take
a rest, however, it is not designed to prevent the vehicle from straying. If you rely too much on
the DAA it could lead to an accident. Dr ive carefully and operate the steering wheel
appropriately.
In addition, the system may not be able to de tect driver fatigue and decreased attentiveness
correctly depending on the traffic and driving cond itions. The driver must take sufficient rest
in consideration of safer driving.
NOTE
The DAA operates when all of the following conditions are met.
When Driving
i-ACTIVSENSE
4-144*Some models.
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

The vehicle speed is about 65 to 140 km/h (40 to 86 mph).
The system detects white (yellow) lane lines.
The system has completed learning of the driver’s driving data.
The DAA does not operate under the following conditions.
The vehicle speed is less than about 65 km/h (40 mph).
The vehicle speed exceeds about 140 km/h (86 mph)
The vehicle is making a sharp turn.
The vehicle is changing lanes.
The system cannot detect white (yellow) lane lines.
The DAA may not operate normally under the following conditions.
White (yellow) lane lines are less visible because of dirt or fading/patchiness.
The vehicle is jolted or swayed continuously by strong winds or rough roads.
The vehicle is driven aggressively.
When making frequent lane changes.
The DAA detects driver fatigue and decreased attentiveness based on the driving data
when the vehicle is driven at about 65 to 140 km/h (40 to 86 mph) for about 20 minutes.
The driving data will be reset under the following conditions.
The vehicle is stopped for 15 minutes or longer.
The vehicle is driven at less than about 65 km/h (40 mph) for about 30 minutes.
The ignition is switched off.
After the DAA has displayed the first message encouraging rest, it does not display the
next one until 45 minutes have passed.
▼ Driver Attention Alert (DAA)
Display (White)
When the system detects driver fatigue or
decreased attentiveness, it activates the
warning sound and displays an alert in the
multi-information display.
▼Canceling Driver Attention Alert
(DAA)
The DAA can be set to not activate.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When Driving
i-ACTIVSENSE
4-145
Mazda6_8JN3-EA-20H_Edition1_old
2020-6-18 17:31:27

Rear Cross Traffic Alert (RCTA)
The RCTA system is designed to assist the driver in checking the area to the rear of the
vehicle on both sides while the vehicle is reversing by alertin g the driver to the presence of
vehicles approaching the rear of the vehicle.
The RCTA system detects vehicles approaching from the rear left and right sides of the
vehicle, and the rear of the vehicle while the vehicle is being reversed out of a parking
space, and notifies the driver of possible danger using the Blind Spot Monitoring (BSM)
warning indicator lights and the warning buzzer.
Detection areas
Your vehicle
When Driving
i-ACTIVSENSE
4-146
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

RCTA operation
1. The RCTA system operates when the selector lever is shifted to the reverse (R) position.
2. If there is the po ssibility of a collision with an approachin g vehicle, the Blind Spot
Monitoring (BSM) warning indicator lights flashes and the warni ng beep is activated
simultaneously.
The RCTA warning indication in t he rearview monitor also synchronizes with the Blind
Spot Monitoring (BSM) warning indicator light on the door mirro rs.
WARNING
Always check the surrounding area visually before actually putting the vehicle in reverse:
The system is only designed to assist you in checking for vehicles at the rear when putting the
vehicle in reverse. Due to certain limitations with the operation of this system, the Blind Spot
Monitoring (BSM) warning indicator lights may not flash or it might be delayed even though
a vehicle is behind your vehicl e. Always make it your responsibility as a driver to check the
rear.
When Driving
i-ACTIVSENSE
4-147
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

NOTE
In the following cases, the Blind Spot Monitoring (BSM) OFF indicator light turns on and
operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF indicator
light remains illuminated, have the vehicle inspected at an Authorized Mazda Dealer as
soon as possible.
Some problem with the system including the Blind Spot Monitoring (BSM) warning
indicator lights has occurred.
A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).
Driving on snow-covered roads for long periods.
The temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.
The battery voltage has decreased.
Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
The vehicle speed when reversing is about 10 km/h (6.3 mph) or faster.
The radar sensor (rear) detection area is obstructed by a nearby wall or parked vehicle.
(Reverse the vehicle to a position where the radar sensor detection area is no longer
obstructed.)
Your vehicle
A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
When Driving
i-ACTIVSENSE
4-148
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27
