MAZDA MODEL 6 HATCHBACK 2005 Owners Manual (in English)

WARNING
The temperature grade for this tire is established for a tire that is properly inflated and
not overloaded. Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and possible tire failure.
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.
q Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR 200 TRACTION AA
TEMPERATURE A
UTQGS MARK (example)
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
9-17

Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1
(800) 424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA,
U.S. Department of Transportation. Washington, D.C. 20590. You can also
obtain other information about motor vehicle safety from the Hotline.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-8) in this booklet.
9-18
Customer Information and Reporting Safety Defects
Reporting Safety Defects

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-19

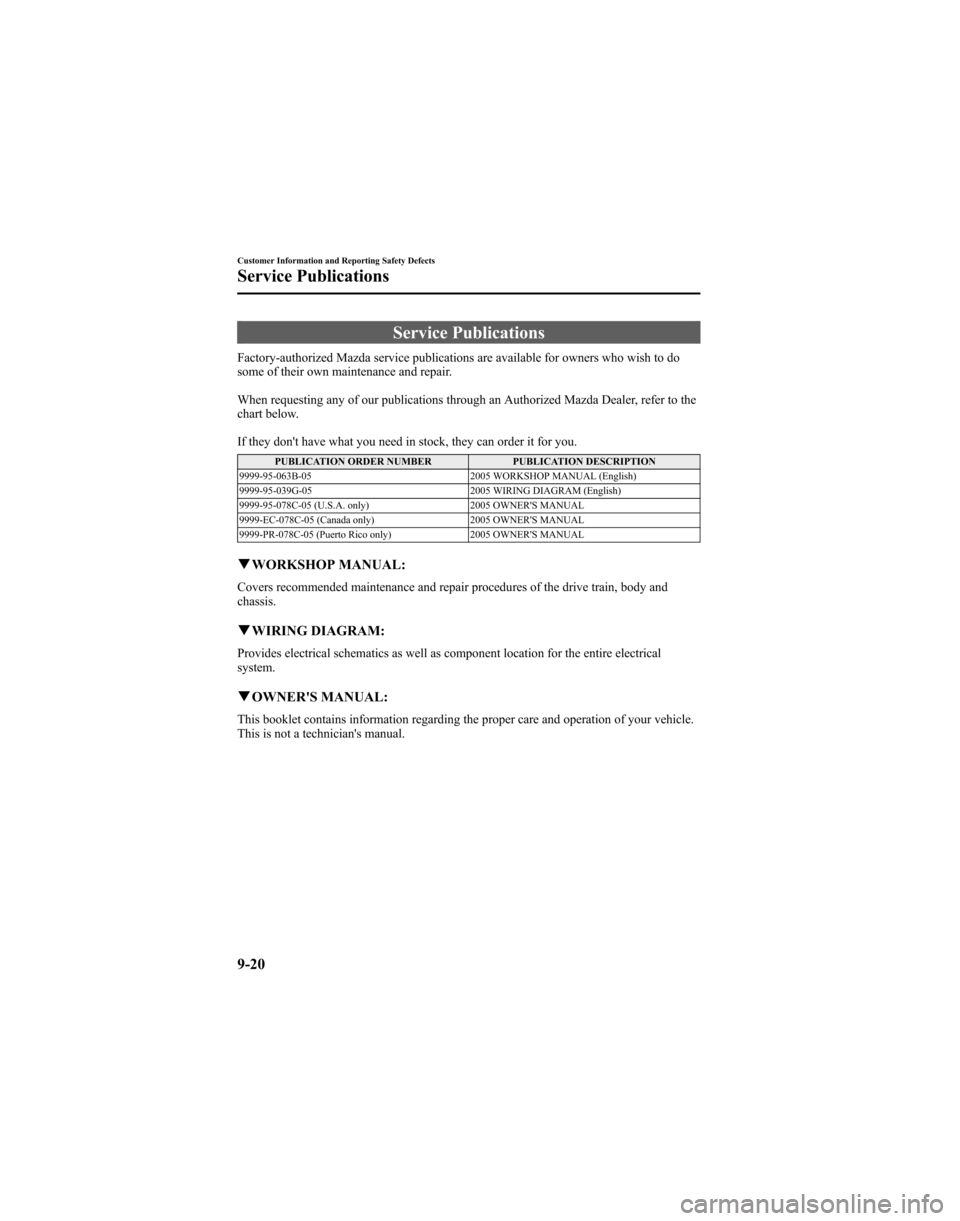

Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don't have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-063B-05 2005 WORKSHOP MANUAL (English)
9999-95-039G-05 2005 WIRING DIAGRAM (English)
9999-95-078C-05 (U.S.A. only) 2005 OWNER'S MANUAL
9999-EC-078C-05 (Canada only) 2005 OWNER'S MANUAL
9999-PR-078C-05 (Puerto Rico only) 2005 OWNER'S MANUAL
q WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-20
Customer Information and Reporting Safety Defects
Service Publications

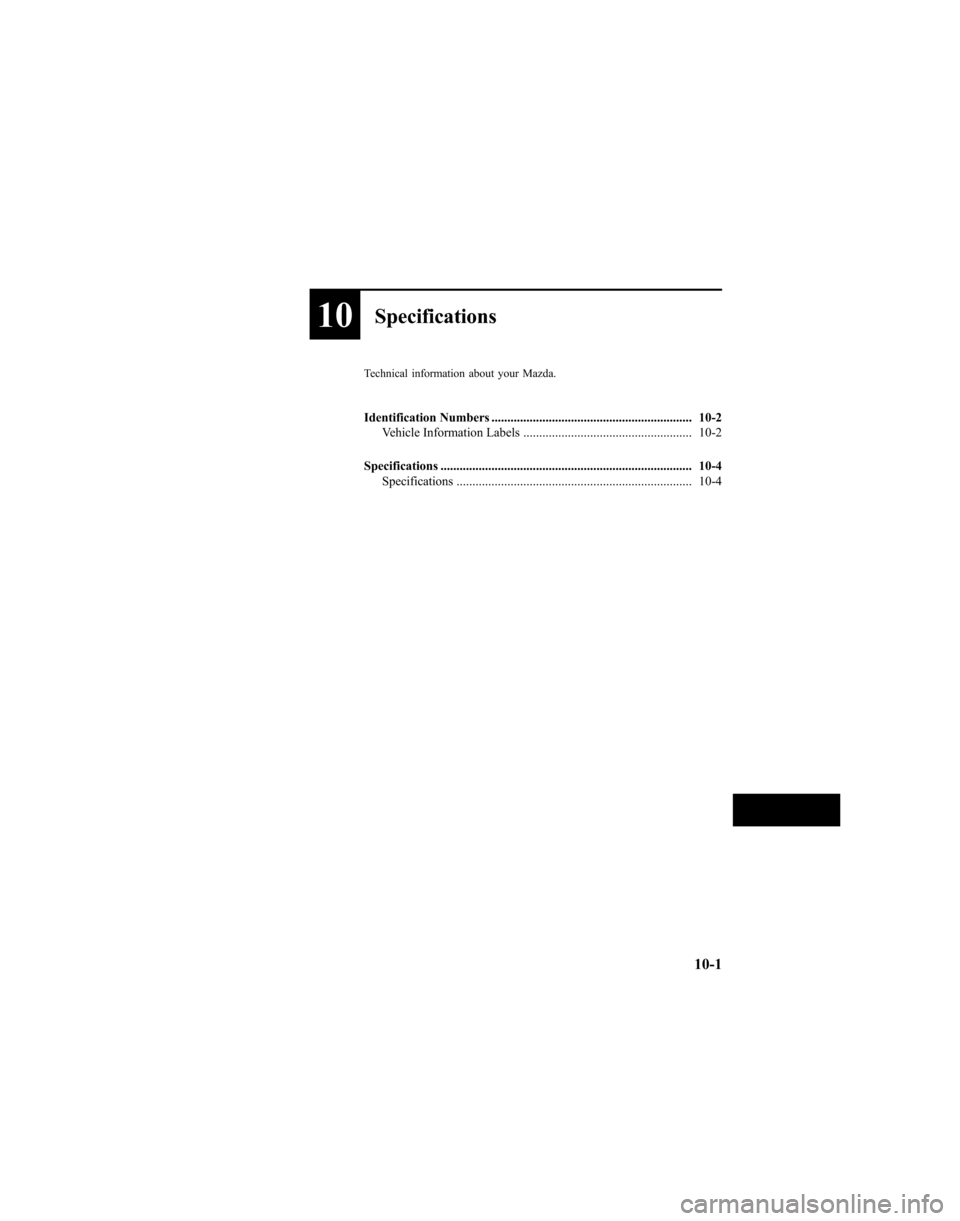

10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
10-1

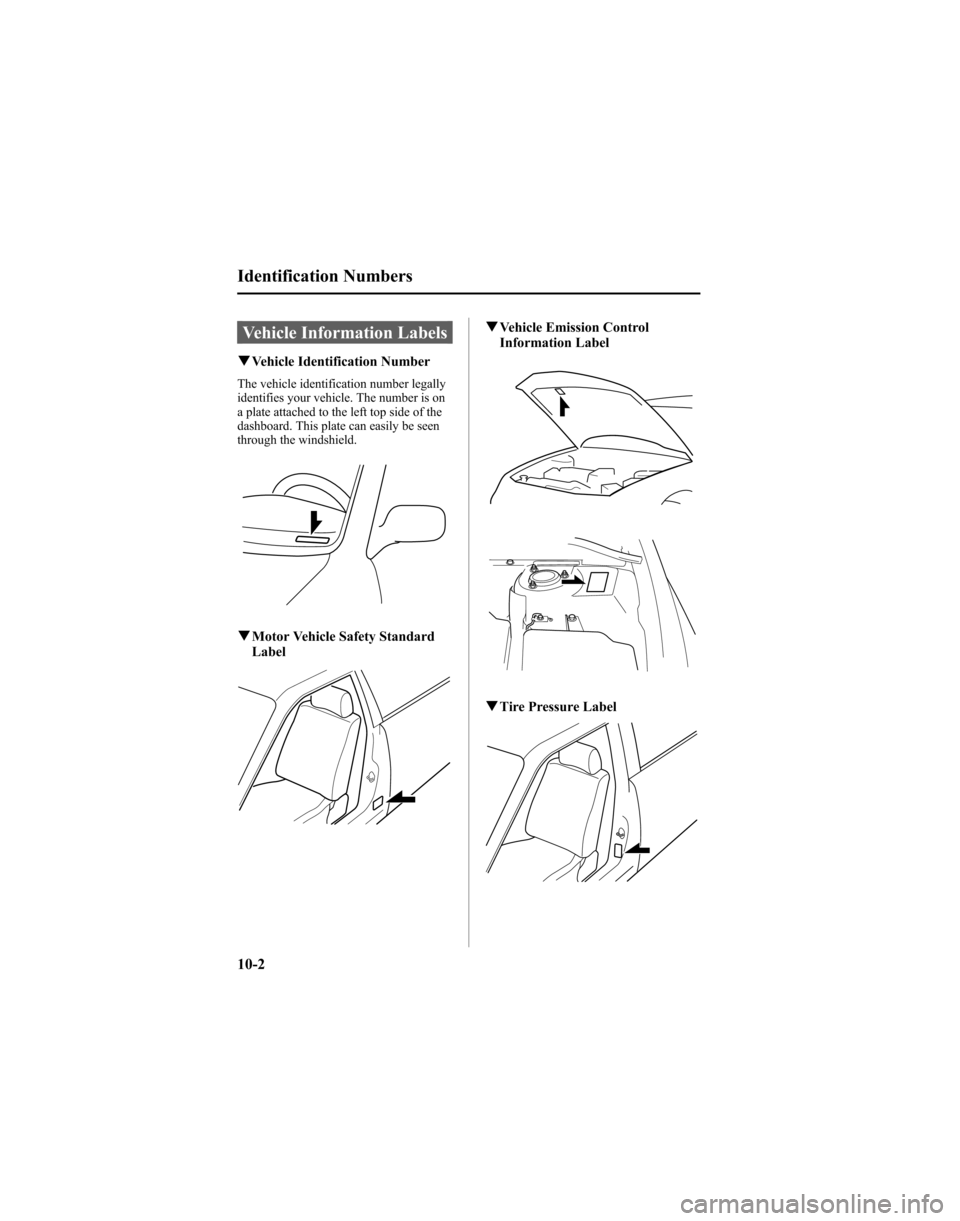

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
qMotor Vehicle Safety Standard
Label
q Vehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers

qEngine Number (3.0-liter engine
only)
Forward
Identification Numbers
10-3

Specifications
qEngine
Item Specification
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
q Electrical System
Item Classification
Battery 12V-50AH/5HR
Alternator 2.3-liter engine 12 V - 90 A
3.0-liter engine 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number 2.3-liter engine L303 18 110
*
3.0-liter engine AJ57 18 110*
Spark-plug gap
2.3-liter engine 1.25
―1.35 mm (0.049 ―0.053 in)
3.0-liter engine 1.29 ―1.45 mm (0.051 ―0.057 in)
* ex factory
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers
on page 8-10.
Manual transmission
oil 2.3-liter engine
Any temperature
API Service GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service GL-4 or GL-5
SAE 80W-90
3.0-liter engine API Service GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid 2.3-liter engine ATF M-V
3.0-liter engine ATF T-IV
Power steering fluid ATF M-III, M-V, or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications

qCapacities
(Approximate Quantities)
Item Unit
L US qt Imp qt
Engine oil 2.3-liter
engine
With oil filter replacement 4.3 4.5 3.8
Without oil filter
replacement
3.9 4.1 3.4
3.0-liter
engine With oil filter replacement 5.7 6.0 5.0
Without oil filter
replacement
5.2 5.5 4.6
Coolant 2.3-liter engine 7.0 7.4 6.2
3.0-liter engine 8.5 9.0 7.5
Manual transaxle oil 2.3-liter engine 2.87 3.0 2.5
3.0-liter engine 2.3 2.4 2.0
Automatic transaxle fluid 2.3-liter engine 7.2 7.6 6.3
3.0-liter engine 7.0 7.4 6.1
Fuel tank 68 18.0 (US gal) 15.0
(Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Specification
Overall length Sedan 4,745 mm (186.8 in)
5-Door 4,745 mm
*3(186.8 in), 4,765 mm*4(187.6 in)
Sport Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall height Sedan/5-Door 1,440 mm (56.7 in)
Sport Wagon 1,455 mm (57.3 in)
Front tread 1,540mm
*1(60.6in), 1,530mm*2(60.2in)
Rear tread 1,540mm*1(60.6in), 1,530mm*2(60.2in)
Wheelbase 2,675 mm (105.3 in)
*1 16 inch wheel vehicle
*2 17 inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
Specifications
10-5

qWeights
Item Weight
GVWR (Gross Vehicle Weight Rating) Sedan 1,956 kg (4,312 lb)
5-Door/Sport Wagon 2,037 kg (4,491 lb)
GAWR (Gross Axle Weight Rating) Sedan
Front 1,071 kg (2,361 lb)
Rear 888 kg (1,958 lb)
5-Door/Sport Wagon Front 1,076 kg (2,372 lb)
Rear 961 kg (2,119 lb)
q
Air Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
q Light Bulbs
Exterior light
Light bulb Category
Wattage ECE R SAE
Headlights High beam 55 H1
―
Low beam 55 H1 ―
Front turn signal lights 28
*1― #2357A
Parking lights 5 W5W ―
Fog lights
í55 H3 ―
Side-marker lights 5 W5W ―
High-mount brake light Sedan/Sport Wagon 18.4 W16W #921
5-Door 21
――
Rear turn signal lights 21 WY21W ―
Brake lights/Taillights 21/5 W21/5W #7443
Taillights 5
*2W21/5W #7443
Reverse lights 18.4 W16W #921
License plate lights 5 W5W ―
*1 Use a 28/7W type bulb.
*2 Use a 21/5W type bulb.
10-6íSome models.
Specifications
