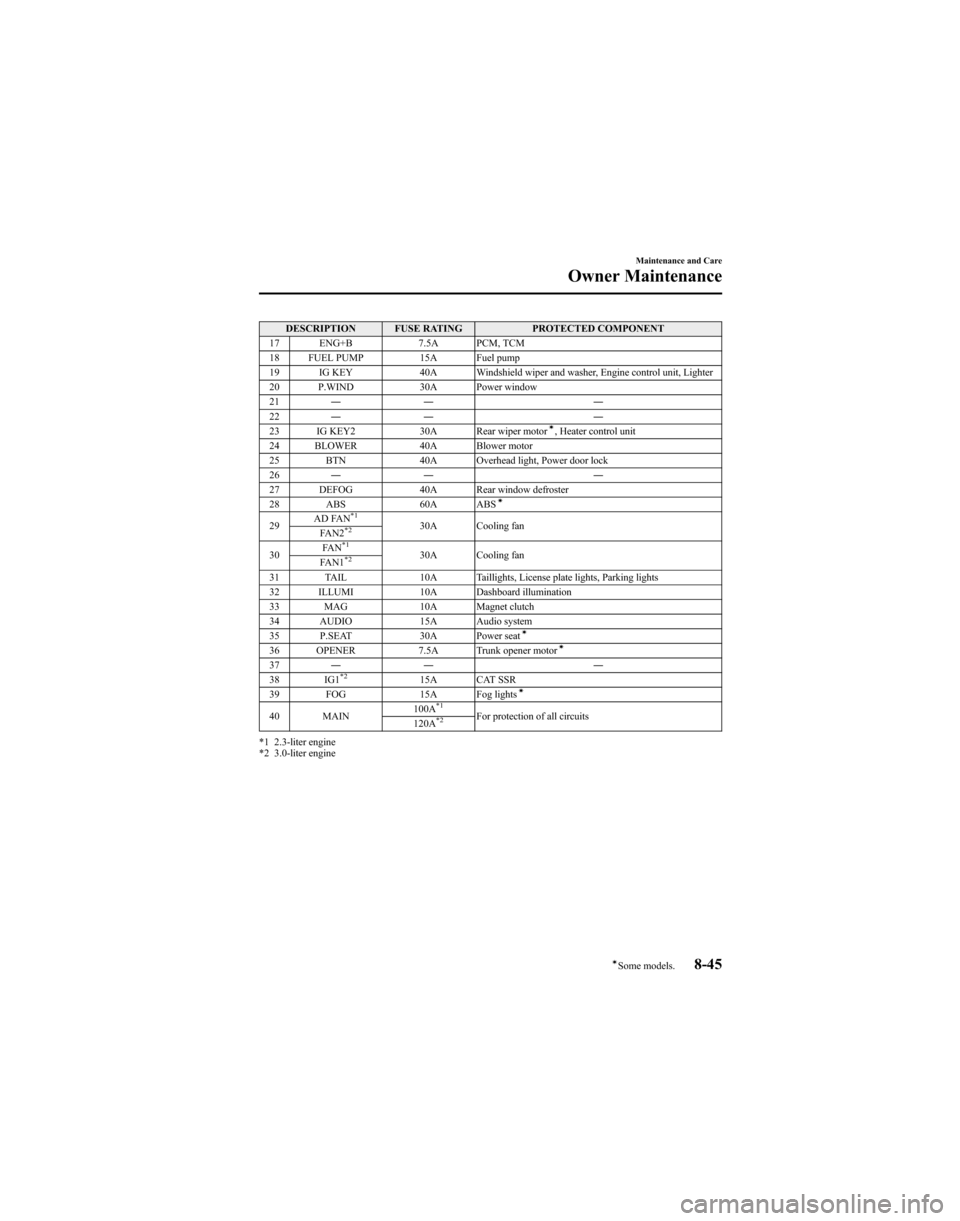

DESCRIPTION FUSE RATING PROTECTED COMPONENT
17 ENG+B 7.5A PCM, TCM
18 FUEL PUMP 15A Fuel pump
19 IG KEY 40A Windshield wiper and washer, Engine control unit, Lighter
20 P.WIND 30A Power window
21 ―― ―
22 ―― ―
23 IG KEY2 30A Rear wiper motor
í, Heater control unit
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 ―― ―
27 DEFOG 40A Rear window defroster
28 ABS 60A ABS
í
29 AD FAN*130A Cooling fan
FAN2*2
30 FA N*130A Cooling fan
FAN1*2
31 TAIL 10A Taillights, License plate lights, Parking lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36 OPENER 7.5A Trunk opener motorí
37 ―― ―
38 IG1*215A CAT SSR
39 FOG 15A Fog lightsí
40 MAIN 100A*1For protection of all circuits
120A*2
*1 2.3-liter engine
*2 3.0-liter engine
Maintenance and Care
Owner Maintenance
8-45íSome models.

Fuse block (Driver's side kick-panel)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 ENGINE IG 15A Engine control system
2 METER IG 15A Instrument cluster
3 SEAT 15A Seat warmer
í, Rear window defroster
4 M.DEF 7.5A Mirror defroster
5 WIPER 20A Windshield wiper and washer
6 SAS 15 ABS unit
í, SAS unit
7 ―― ―
8 A/C 15A Heater
9 METER ACC 5A Auto light off unit
10 CIGAR 15A Lighter
11 ROOM 15A Overhead light
12 R.WIP 10A Rear wiper
í
13 MIRROR 5A Power control mirror, Audio system
14 R.CIGAR 15A Accessory socket
15 ―― ―
16 D.LOCK 30A Power door lock
17 ―― ―
8-46
Maintenance and Care
íSome models.
Owner Maintenance

Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety requirements (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to
travelers on vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-10
Customer Information and Reporting Safety Defects
Warranty

Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to
travelers on vacation.
You may have the following problems if you do take your vehicle outside of Canada:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Warranty
9-11

Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety system; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Installation of Non-Genuine Parts or Accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety system.
This could cause you to have an accident or increase your chances of injuries in an
accident. Always consult an Authorized Mazda Dealer before you install non-genuine
parts or accessories.
Add-On Electrical and Electronic Equipment:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Warranty
9-13

qEngine Number (3.0-liter engine
only)
Forward
Identification Numbers
10-3

Specifications
qEngine
Item Specification
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
q Electrical System
Item Classification
Battery 12V-50AH/5HR
Alternator 2.3-liter engine 12 V - 90 A
3.0-liter engine 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number 2.3-liter engine L303 18 110
*
3.0-liter engine AJ57 18 110*
Spark-plug gap
2.3-liter engine 1.25
―1.35 mm (0.049 ―0.053 in)
3.0-liter engine 1.29 ―1.45 mm (0.051 ―0.057 in)
* ex factory
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers
on page 8-10.
Manual transmission
oil 2.3-liter engine
Any temperature
API Service GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service GL-4 or GL-5
SAE 80W-90
3.0-liter engine API Service GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid 2.3-liter engine ATF M-V
3.0-liter engine ATF T-IV
Power steering fluid ATF M-III, M-V, or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications

qCapacities
(Approximate Quantities)
Item Unit
L US qt Imp qt
Engine oil 2.3-liter
engine
With oil filter replacement 4.3 4.5 3.8
Without oil filter
replacement
3.9 4.1 3.4
3.0-liter
engine With oil filter replacement 5.7 6.0 5.0
Without oil filter
replacement
5.2 5.5 4.6
Coolant 2.3-liter engine 7.0 7.4 6.2
3.0-liter engine 8.5 9.0 7.5
Manual transaxle oil 2.3-liter engine 2.87 3.0 2.5
3.0-liter engine 2.3 2.4 2.0
Automatic transaxle fluid 2.3-liter engine 7.2 7.6 6.3
3.0-liter engine 7.0 7.4 6.1
Fuel tank 68 18.0 (US gal) 15.0
(Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Specification
Overall length Sedan 4,745 mm (186.8 in)
5-Door 4,745 mm
*3(186.8 in), 4,765 mm*4(187.6 in)
Sport Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall height Sedan/5-Door 1,440 mm (56.7 in)
Sport Wagon 1,455 mm (57.3 in)
Front tread 1,540mm
*1(60.6in), 1,530mm*2(60.2in)
Rear tread 1,540mm*1(60.6in), 1,530mm*2(60.2in)
Wheelbase 2,675 mm (105.3 in)
*1 16 inch wheel vehicle
*2 17 inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
Specifications
10-5

A
Accessory Socket .............................. 6-55
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Air Bag Systems ............................... 2-44
Air Filter ............................................ 8-21
Ambient Temperature Display .......... 6-47
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-7
Appearance Care ............................... 8-47
Ashtray .............................................. 6-49
Audio System ................................... 6-16
Audio control switch .................. 6-40
Audio set .................................... 6-23
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-42
Automatic Transaxle Driving tips ................................ 5-15
Fluid ........................................... 8-18
Manual shift mode ..................... 5-12
Shift-lock system ........................ 5-11
Transaxle ranges ........................ 5-10
B
Battery
Emergency starting .................... 7-16
Maintenance ............................... 8-28
Specifications ............................. 10-4
Beep sounds
Ignition key reminder ................. 5-37
Lights-on reminder ..................... 5-37
Seat belt warning beep ............... 5-37
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-21
B
Bottle Holder ..................................... 6-51
Brake/Clutch
Fluid ........................................... 8-16
Brakes
Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-33
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-53
Cargo Sub-Compartment .................. 6-54
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-14
Center Box ........................................ 6-52
Center Console .................................. 6-52
Child Restraint
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-39
Child Safety Locks for Rear Doors ..... 3-9
Cigarette Lighter ............................... 6-48
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-47
Courtesy Lights ................................. 6-45
Cruise Control ................................... 5-16
Cup Holder ........................................ 6-50
Customer Assistance ........................... 9-2
11-2
Index

D
Dashboard Illumination .................... 5-26
Daytime Running Lights ................... 5-39
DefrosterRear window .............................. 5-42
Dimensions ....................................... 10-5
Door Locks ......................................... 3-7
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-15
Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-16Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-19
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-13
Exhaust gas .................................. 4-5
Hood release .............................. 3-26
Oil .............................................. 8-10
Overheating ................................ 7-14
Starting ......................................... 5-3
Engine Compartment Overview .......... 8-9
Engine Coolant Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-25
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-49
F
Flasher Hazard warning .......................... 5-44
Headlights .................................. 5-38
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ..................... 8-7
Fog Lights ......................................... 5-40
Foot Brake .......................................... 5-4
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-24
Gauge ......................................... 5-26
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-42 Panel description ........................ 8-44
Replacement ............................... 8-42
G
Glove Box ......................................... 6-52
H
Hatch ................................................. 3-10Luggage compartment cover ...... 3-11
Luggage strap ............................. 3-11
Hazard Warning Flasher .................... 5-44
Hazardous Driving .............................. 4-8
Index
11-3
