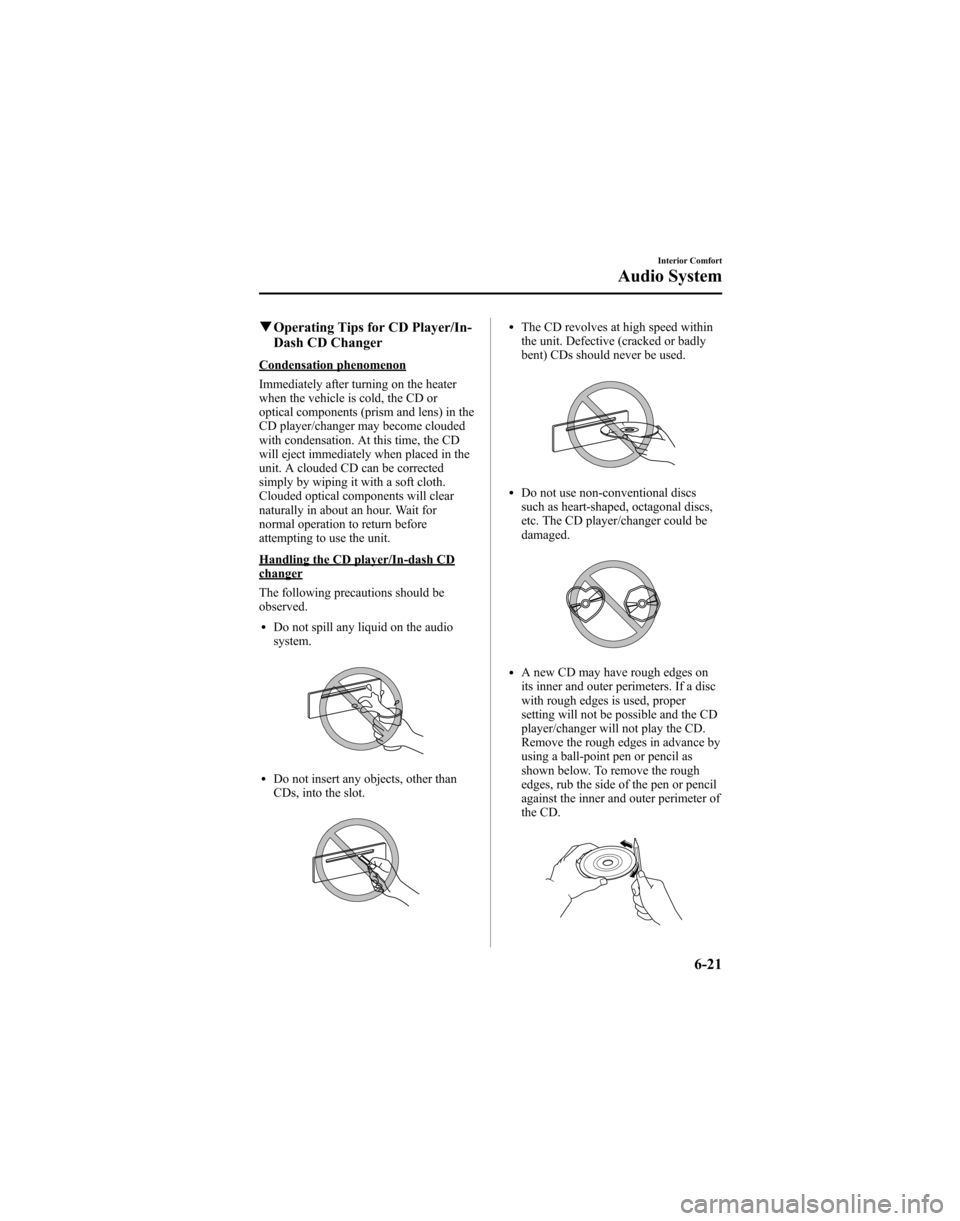

qOperating Tips for CD Player/In-
Dash CD Changer
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or
optical components (prism and lens) in the
CD player/changer may become clouded
with condensation. At this time, the CD
will eject immediately when placed in the
unit. A clouded CD can be corrected
simply by wiping it with a soft cloth.
Clouded optical components will clear
naturally in about an hour. Wait for
normal operation to return before
attempting to use the unit.
Handling the CD player/In-dash CDchanger
The following precautions should be
observed.
lDo not spill any liquid on the audio
system.
lDo not insert any objects, other than
CDs, into the slot.
lThe CD revolves at high speed within
the unit. Defective (cracked or badly
bent) CDs should never be used.
lDo not use non-conventional discs
such as heart-shaped, octagonal discs,
etc. The CD player/changer could be
damaged.
lA new CD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper
setting will not be possible and the CD
player/changer will not play the CD.
Remove the rough edges in advance by
using a ball-point pen or pencil as
shown below. To remove the rough
edges, rub the side of the pen or pencil
against the inner and outer perimeter of
the CD.
Interior Comfort
Audio System
6-21

Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season ―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the FULL or F and
LOW or L marks on the coolant reservoir
when the engine is cool.
2.3-liter engine
3.0-liter engine
If it's at or near LOW or L, add enough
coolant to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to FULL or F.
CAUTION
Radiator coolant will damage paint.
Rinse it off quickly if spilled.
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
q Changing Coolant
Change coolant according to Scheduled
Maintenance (page 8-3).
CAUTION
lUse only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant's effectiveness.
lDon't add only water. Always add a
proper coolant mixture.
lThe engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
lDO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
lDO NOT MIX alcohol or methanol
with the coolant. This could damage
the cooling system.
lDon't use a solution that contains
more than 60 % antifreeze.
This would reduce effectiveness.
8-14
Maintenance and Care
Owner Maintenance

DESCRIPTION FUSE RATING PROTECTED COMPONENT
17 ENG+B 7.5A PCM, TCM
18 FUEL PUMP 15A Fuel pump
19 IG KEY 40A Windshield wiper and washer, Engine control unit, Lighter
20 P.WIND 30A Power window
21 ―― ―
22 ―― ―
23 IG KEY2 30A Rear wiper motor
í, Heater control unit
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 ―― ―
27 DEFOG 40A Rear window defroster
28 ABS 60A ABS
í
29 AD FAN*130A Cooling fan
FAN2*2
30 FA N*130A Cooling fan
FAN1*2
31 TAIL 10A Taillights, License plate lights, Parking lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36 OPENER 7.5A Trunk opener motorí
37 ―― ―
38 IG1*215A CAT SSR
39 FOG 15A Fog lightsí
40 MAIN 100A*1For protection of all circuits
120A*2
*1 2.3-liter engine
*2 3.0-liter engine
Maintenance and Care
Owner Maintenance
8-45íSome models.

Fuse block (Driver's side kick-panel)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 ENGINE IG 15A Engine control system
2 METER IG 15A Instrument cluster
3 SEAT 15A Seat warmer
í, Rear window defroster
4 M.DEF 7.5A Mirror defroster
5 WIPER 20A Windshield wiper and washer
6 SAS 15 ABS unit
í, SAS unit
7 ―― ―
8 A/C 15A Heater
9 METER ACC 5A Auto light off unit
10 CIGAR 15A Lighter
11 ROOM 15A Overhead light
12 R.WIP 10A Rear wiper
í
13 MIRROR 5A Power control mirror, Audio system
14 R.CIGAR 15A Accessory socket
15 ―― ―
16 D.LOCK 30A Power door lock
17 ―― ―
8-46
Maintenance and Care
íSome models.
Owner Maintenance
