MAZDA MODEL 6 SPORT SEDAN 2005 Owners Manual

Black plate (291,1)

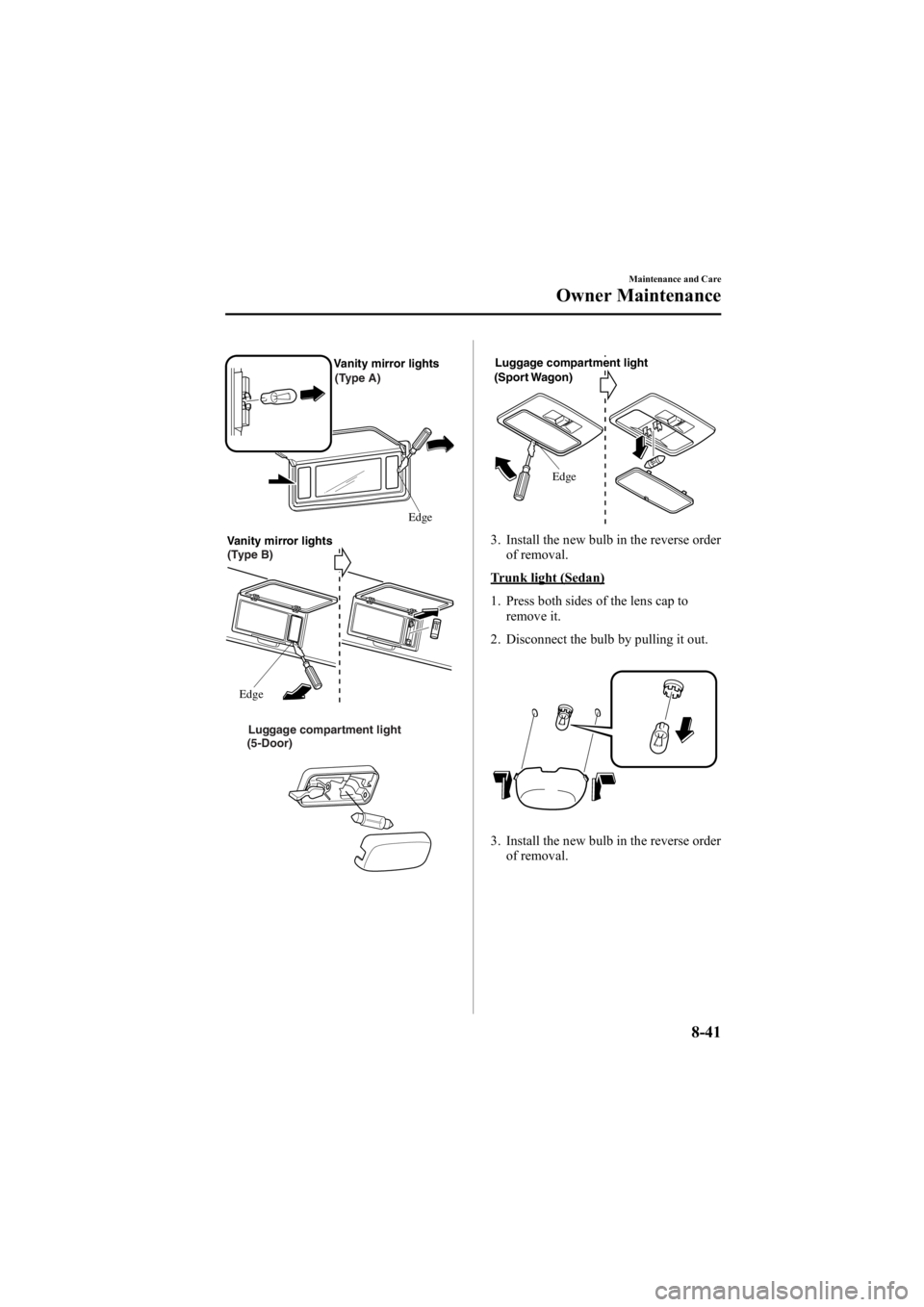

Vanity mirror lightsEdge
(Type A)
Edge
Vanity mirror lights
(Type B)
(5-Door) Luggage compartment light
Luggage compartment light
(Sport Wagon)
Edge
3. Install the new bulb in the reverse orderof removal.
Trunk light (Sedan)
1. Press both sides of the lens cap toremove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-41
Mazda6_8T55-EA-04G_Edition2 Page291
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (292,1)

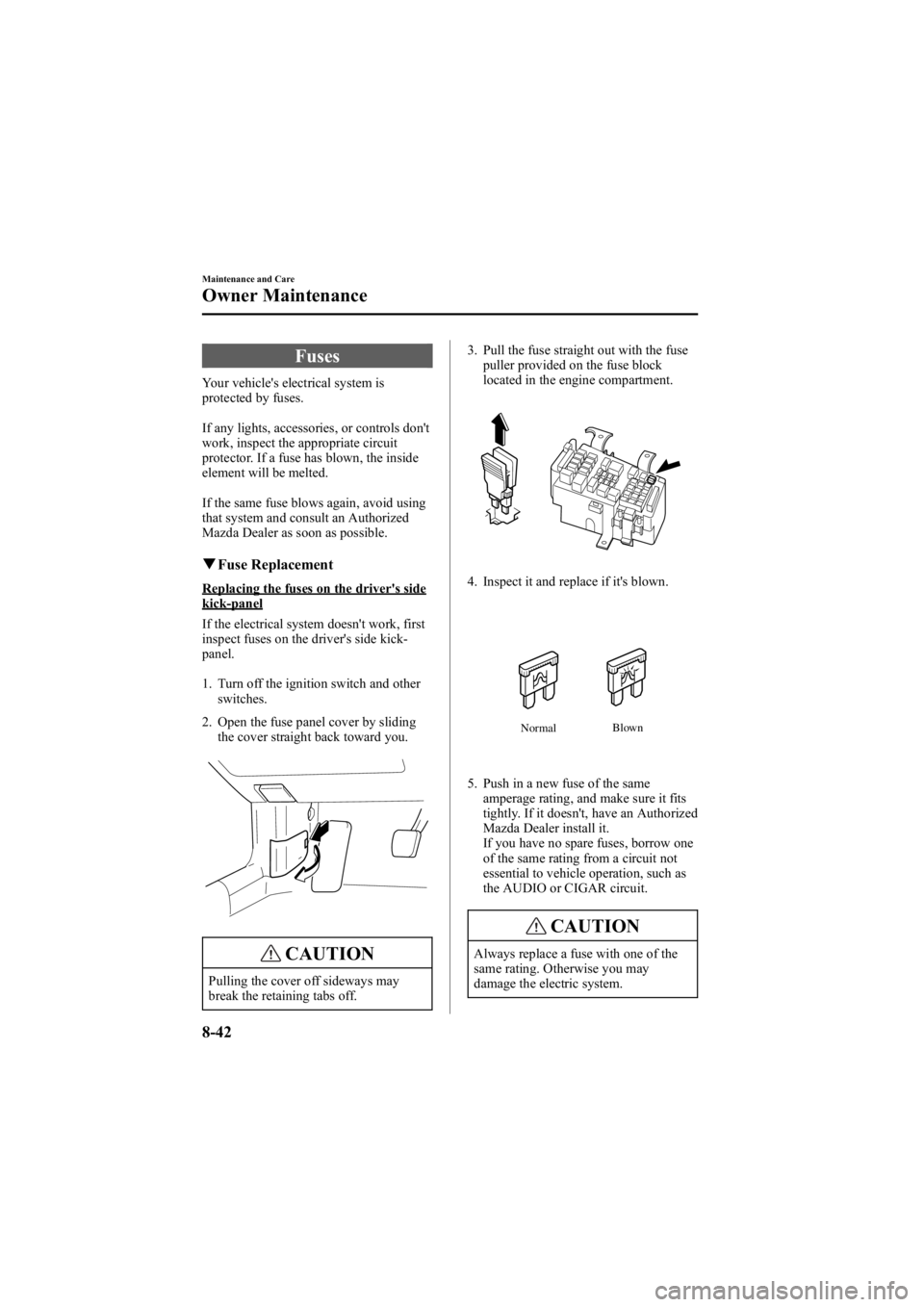

Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's sidekick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off. 3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect it and replace if it's blown.
Normal Blown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
8-42
Maintenance and Care
Owner Maintenance
Mazda6_8T55-EA-04G_Edition2 Page292
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (293,1)
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new one of the same amperage rating .
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-44).
Maintenance and Care
Owner Maintenance
8-43
Mazda6_8T55-EA-04G_Edition2 Page293
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (294,1)

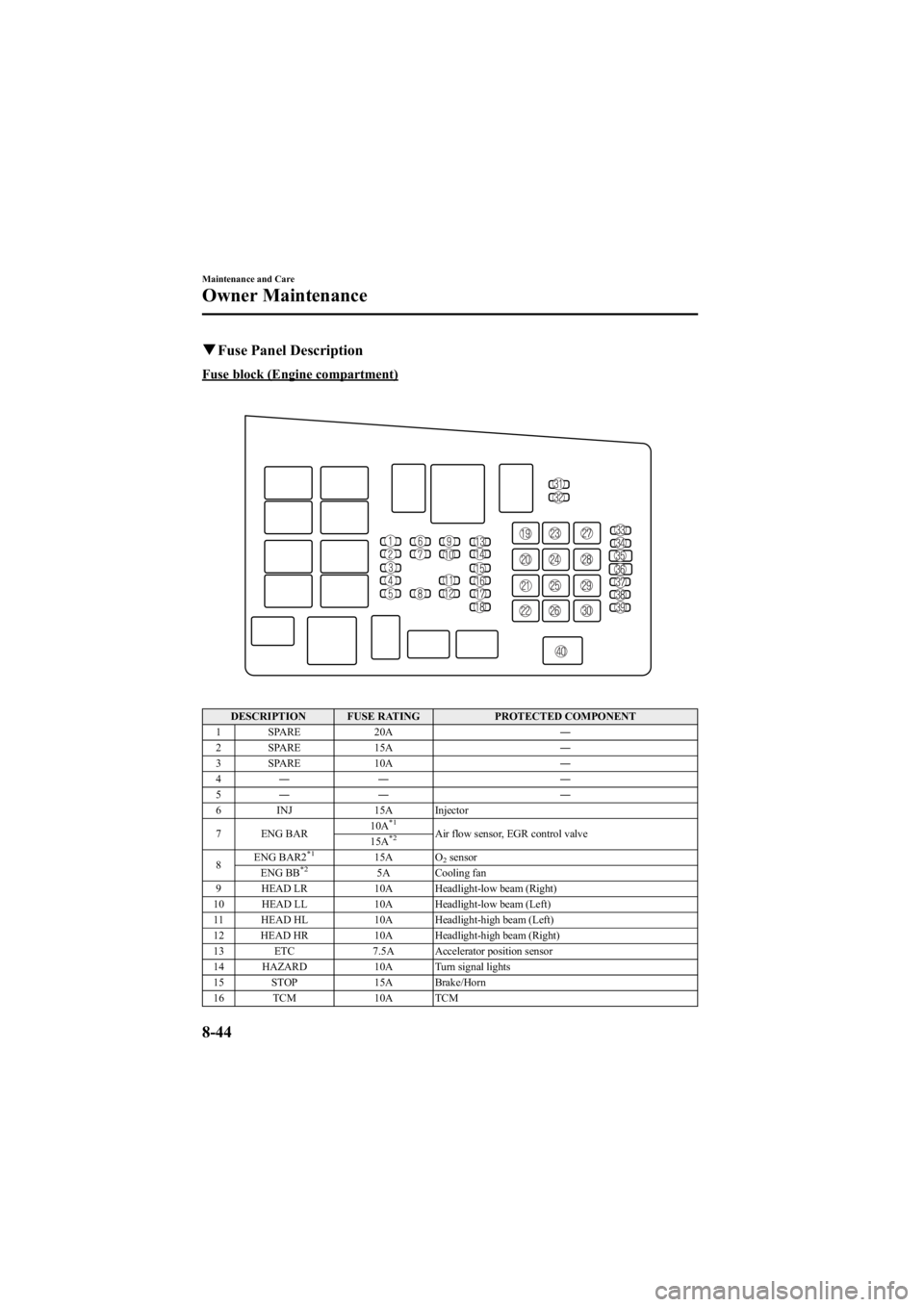

qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 SPARE 20A ―
2 SPARE 15A ―
3 SPARE 10A ―
4 ―― ―
5 ―― ―
6 INJ 15A Injector
7 ENG BAR 10A
*1Air flow sensor, EGR control valve
15A*2
8 ENG BAR2*115A O2sensor
ENG BB*25A Cooling fan
9 HEAD LR 10A Headlight-low beam (Right)
10 HEAD LL 10A Headlight-low beam (Left) 11 HEAD HL 10A Headlight-high beam (Left)
12 HEAD HR 10A Headlight-high beam (Right)
13 ETC 7.5A Accelerator position sensor
14 HAZARD 10A Turn signal lights
15 STOP 15A Brake/Horn
16 TCM 10A TCM
8-44
Maintenance and Care
Owner Maintenance
Mazda6_8T55-EA-04G_Edition2 Page294
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (295,1)

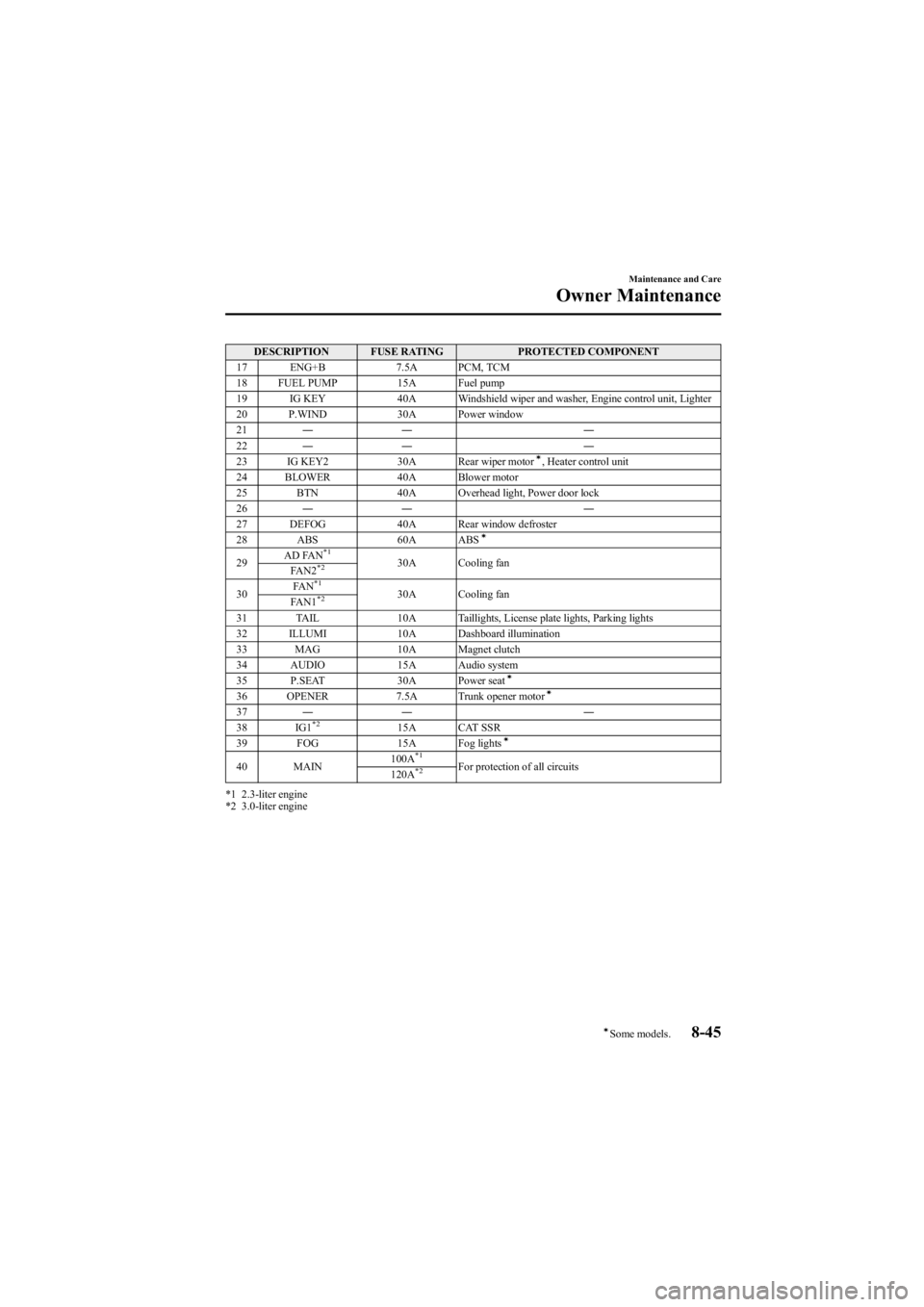

DESCRIPTION FUSE RATINGPROTECTED COMPONENT
17 ENG+B 7.5A PCM, TCM
18 FUEL PUMP 15A Fuel pump
19 IG KEY 40A Windshield wiper and washer, Engine control unit, Lighter
20 P.WIND 30A Power window
21 ―― ―
22 ―― ―
23 IG KEY2 30A Rear wiper motor
í, Heater control unit
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 ―― ―
27 DEFOG 40A Rear window defroster
28 ABS 60A ABS
í
29 AD FAN*130A Cooling fan
FAN2*2
30 FA N*130A Cooling fan
FAN1*2
31 TAIL 10A Taillights, License plate lights, Parking lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36 OPENER7.5A Trunk opener motorí
37―― ―
38 IG1*215A CAT SSR
39 FOG 15A Fog lightsí
40 MAIN 100A*1For protection of all circuits
120A*2
*1 2.3-liter engine
*2 3.0-liter engine
Maintenance and Care
Owner Maintenance
8-45íSome models.
Mazda6_8T55-EA-04G_Edition2 Page295
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (296,1)

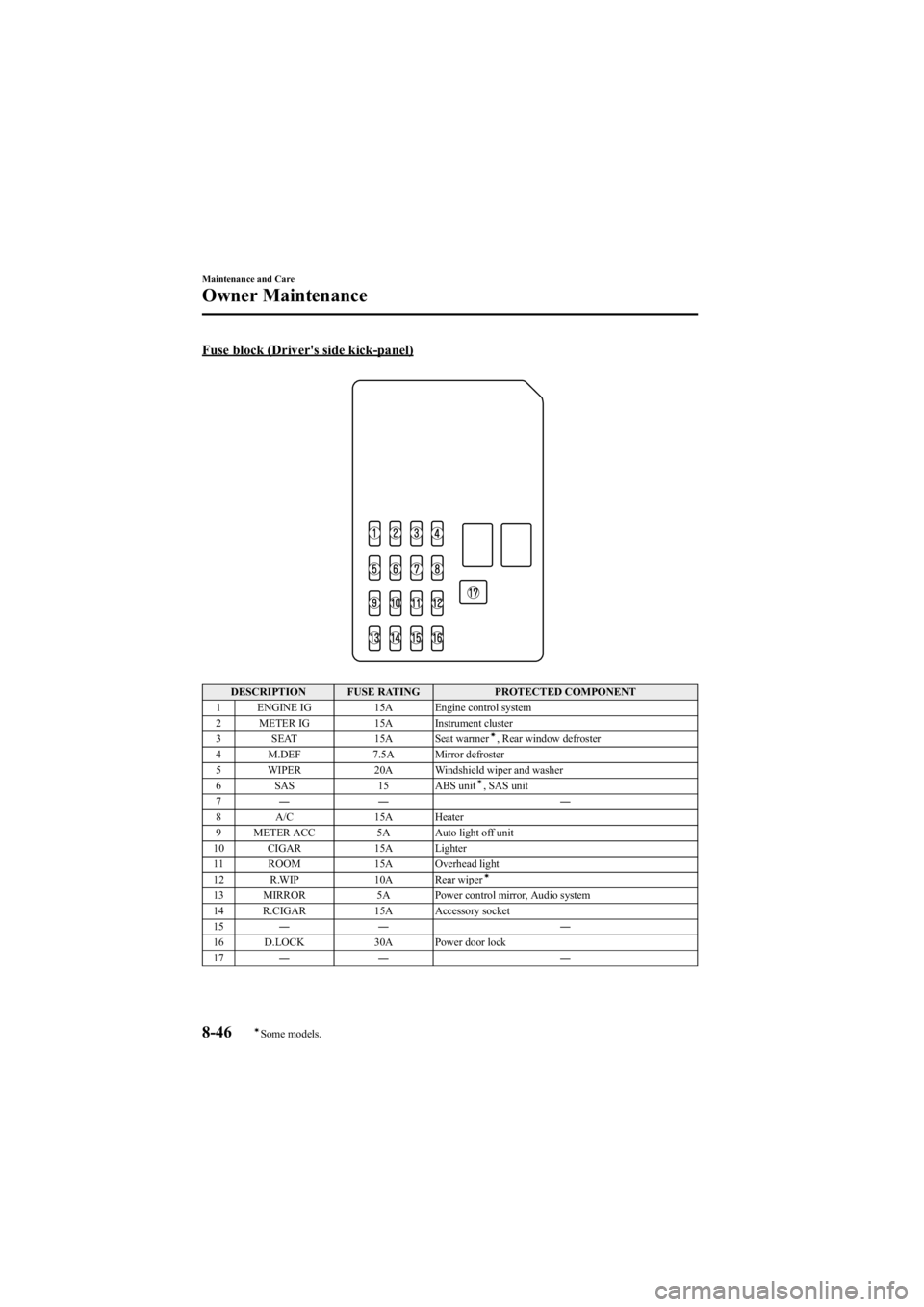

Fuse block (Driver's side kick-panel)
DESCRIPTION FUSE RATINGPROTECTED COMPONENT
1 ENGINE IG 15A Engine control system
2 METER IG 15A Instrument cluster
3 SEAT 15A Seat warmer
í, Rear window defroster
4 M.DEF 7.5A Mirror defroster
5 WIPER 20A Windshield wiper and washer
6 SAS 15 ABS unit
í, SAS unit
7 ―― ―
8 A/C 15A Heater
9 METER ACC 5A Auto light off unit
10 CIGAR 15A Lighter 11 ROOM 15A Overhead light
12 R.WIP 10A Rear wiper
í
13 MIRROR 5A Power control mirror, Audio system
14 R.CIGAR 15A Accessory socket
15 ―― ―
16 D.LOCK 30A Power door lock
17 ―― ―
8-46
Maintenance and Care
íSome models.
Owner Maintenance
Mazda6_8T55-EA-04G_Edition2 Page296
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (297,1)

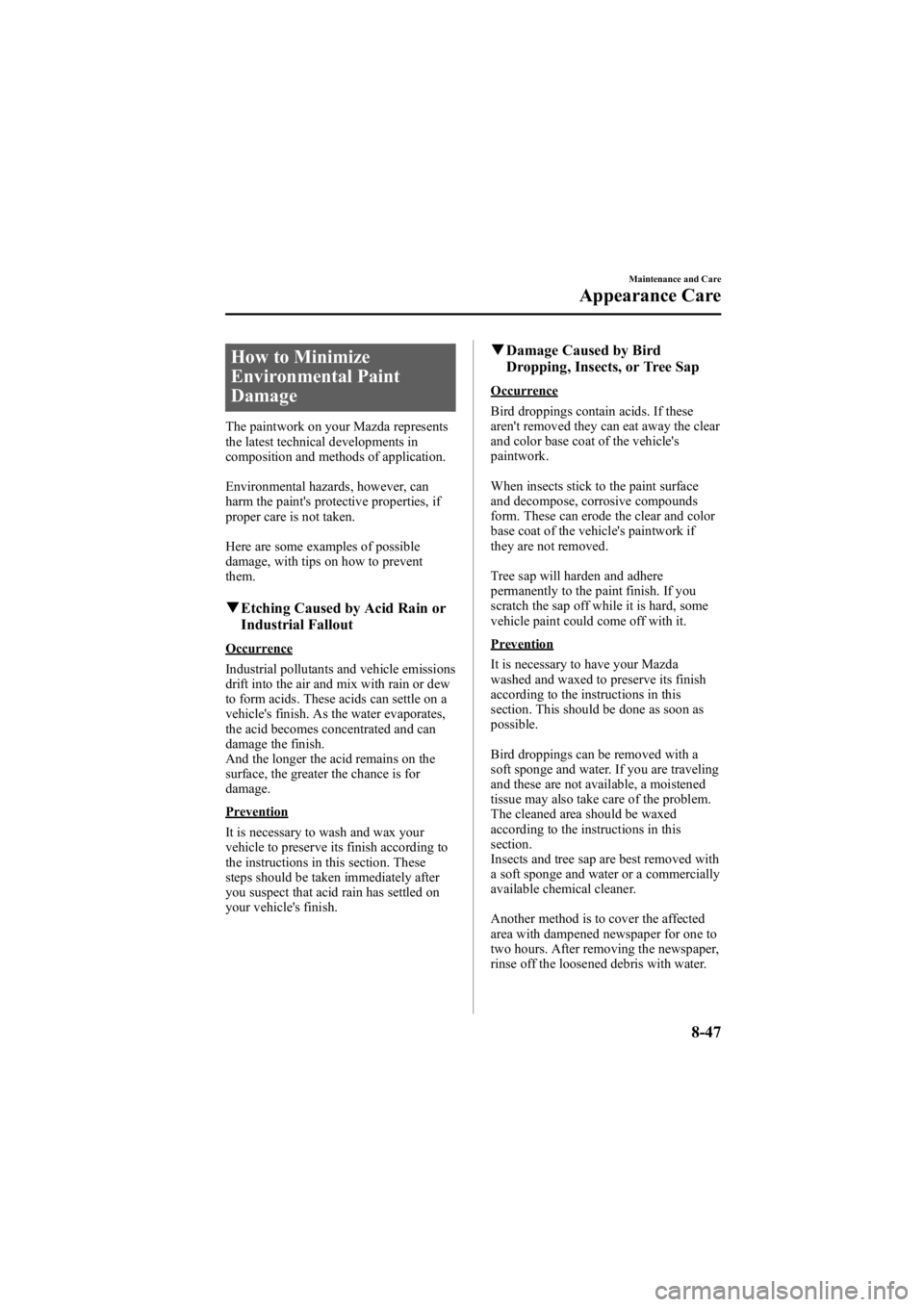

How to Minimize
Environmental Paint
Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
8-47
Mazda6_8T55-EA-04G_Edition2 Page297
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (298,1)

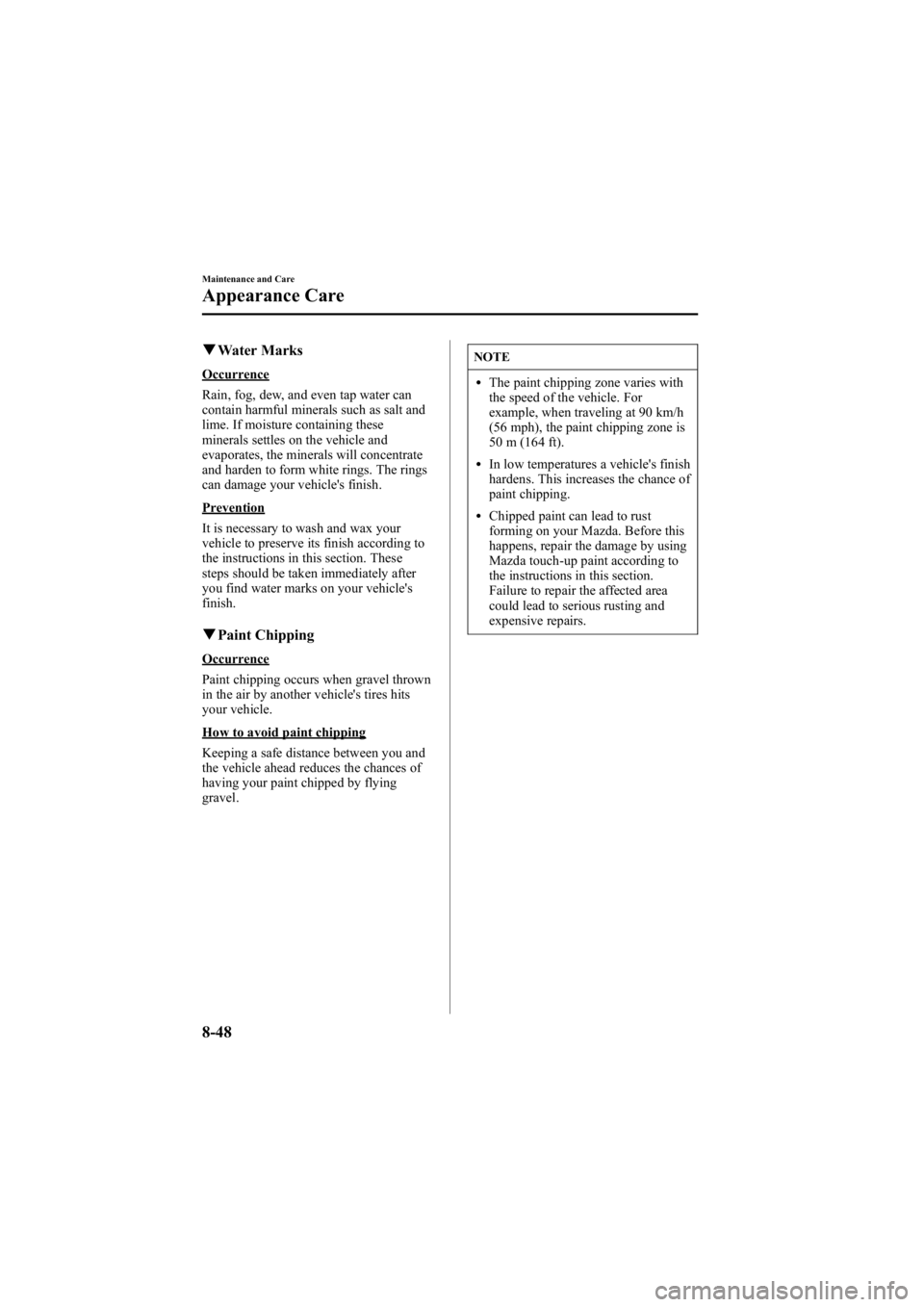

qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
lChipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.
8-48
Maintenance and Care
Appearance Care
Mazda6_8T55-EA-04G_Edition2 Page298
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (299,1)

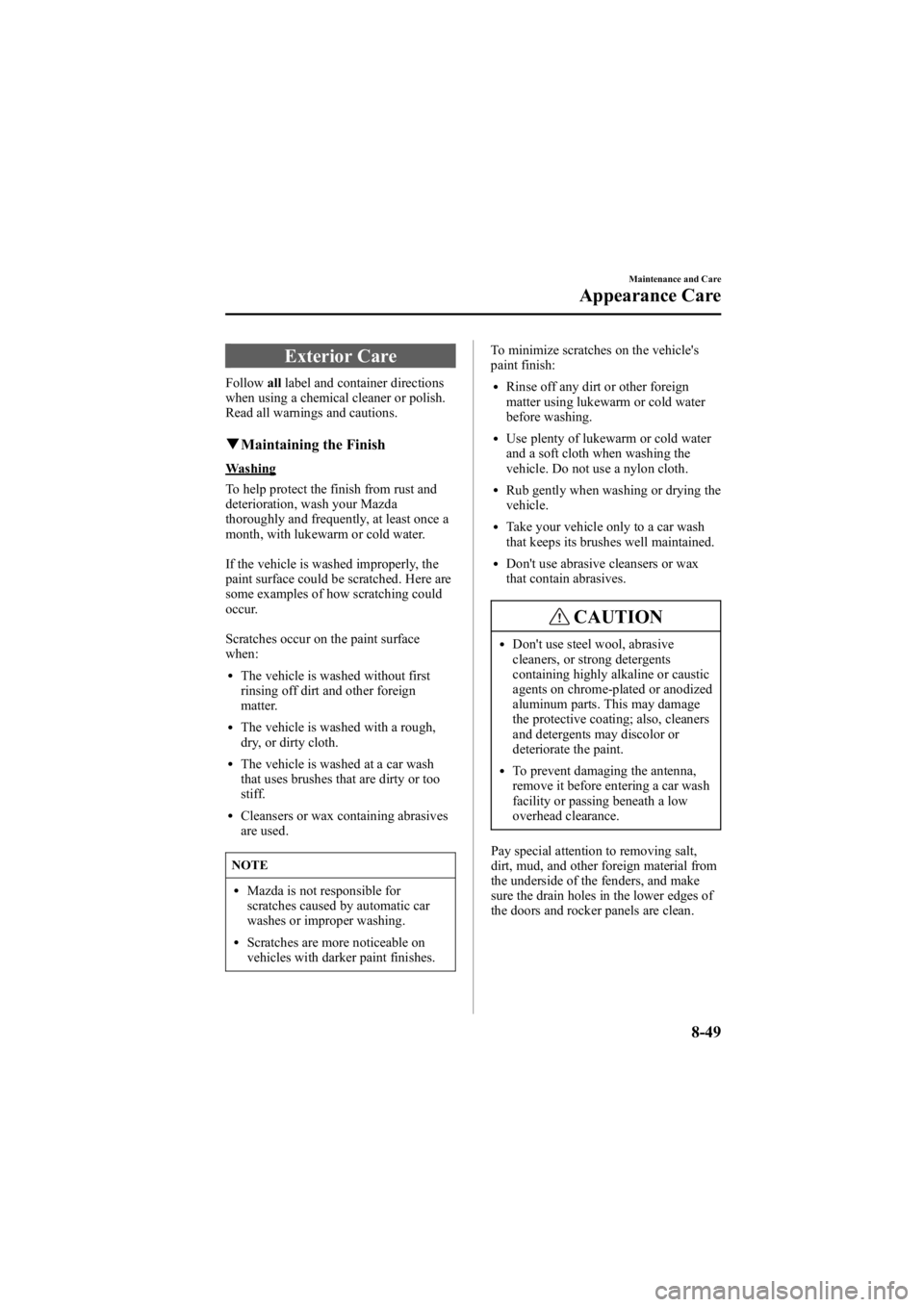

Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for
scratches caused by automatic car
washes or improper washing.
lScratches are more noticeable on
vehicles with darker paint finishes. To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
CAUTION
lDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
lTo prevent damaging the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Maintenance and Care
Appearance Care
8-49
Mazda6_8T55-EA-04G_Edition2 Page299
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G

Black plate (300,1)
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors. 3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.
q Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
8-50
Maintenance and Care
Appearance Care
Mazda6_8T55-EA-04G_Edition2 Page300
Monday, November 15 2004 1:53 PM
Form No.8T55-EA-04G
