MAZDA MODEL 6 SPORTS SEDAN 2006 Quicktips (in English)

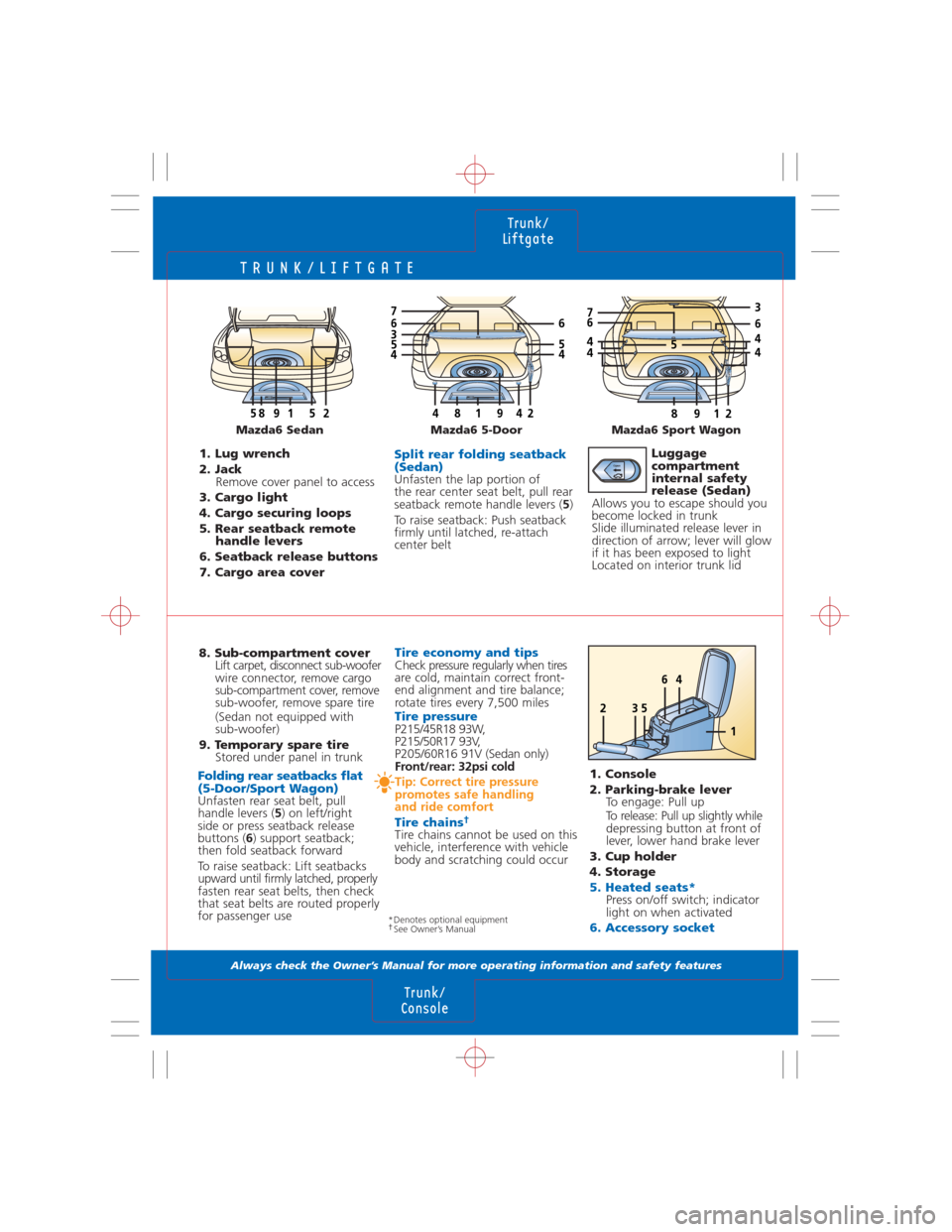

TRUNK/LIFTGATE
Always check the Owner’s Manual for more operating information and safety features
Trunk/
Liftgate
Trunk/
Console
1. Lug wrench
2. Jack
Remove cover panel to access
3. Cargo light
4. Cargo securing loops
5. Rear seatback remote
handle levers
6. Seatback release buttons
7. Cargo area coverSplit rear folding seatback
(Sedan)
Unfasten the lap portion of
the rear center seat belt, pull rear
seatback remote handle levers (5)
To raise seatback: Push seatback
firmly until latched, re-attach
center beltLuggage
compartment
internal safety
release (Sedan)
Allows you to escape should you
become locked in trunk
Slide illuminated release lever in
direction of arrow; lever will glow
if it has been exposed to light
Located on interior trunk lid
8. Sub-compartment cover
Lift carpet, disconnect sub-woofer
wire connector, remove cargo
sub-compartment cover, remove
sub-woofer, remove spare tire
(Sedan not equipped with
sub-woofer)
9. Temporary spare tire
Stored under panel in trunk
Folding rear seatbacks flat
(5-Door/Sport Wagon)
Unfasten rear seat belt, pull
handle levers (5) on left/right
side or press seatback release
buttons (6) support seatback;
then fold seatback forward
To raise seatback: Lift seatbacks
upward until firmly latched, properly
fasten rear seat belts, then check
that seat belts are routed properly
for passenger use
*Denotes optional equipment†See Owner’s Manual
8219
44
6
4
4554456
667
184492
3
3
552918
7
Open
Mazda6 Sedan Mazda6 5-Door Mazda6 Sport Wagon
46
1
532
1. Console
2. Parking-brake lever
To engage: Pull up
To release: Pull up slightly while
depressing button at front of
lever, lower hand brake lever
3. Cup holder
4. Storage
5. Heated seats*Press on/off switch; indicator
light on when activated
6. Accessory socket Tire economy and tips
Check pressure regularly when tires
are cold, maintain correct front-
end alignment and tire balance;
rotate tires every 7,500 miles
Tire pressureP215/45R18 93W,
P215/50R17 93V,
P205/60R16 91V (Sedan only)
Front/rear: 32psi cold
Tip: Correct tire pressure
promotes safe handling
and ride comfort
Tire chains
†
Tire chains cannot be used on this
vehicle, interference with vehicle
body and scratching could occur

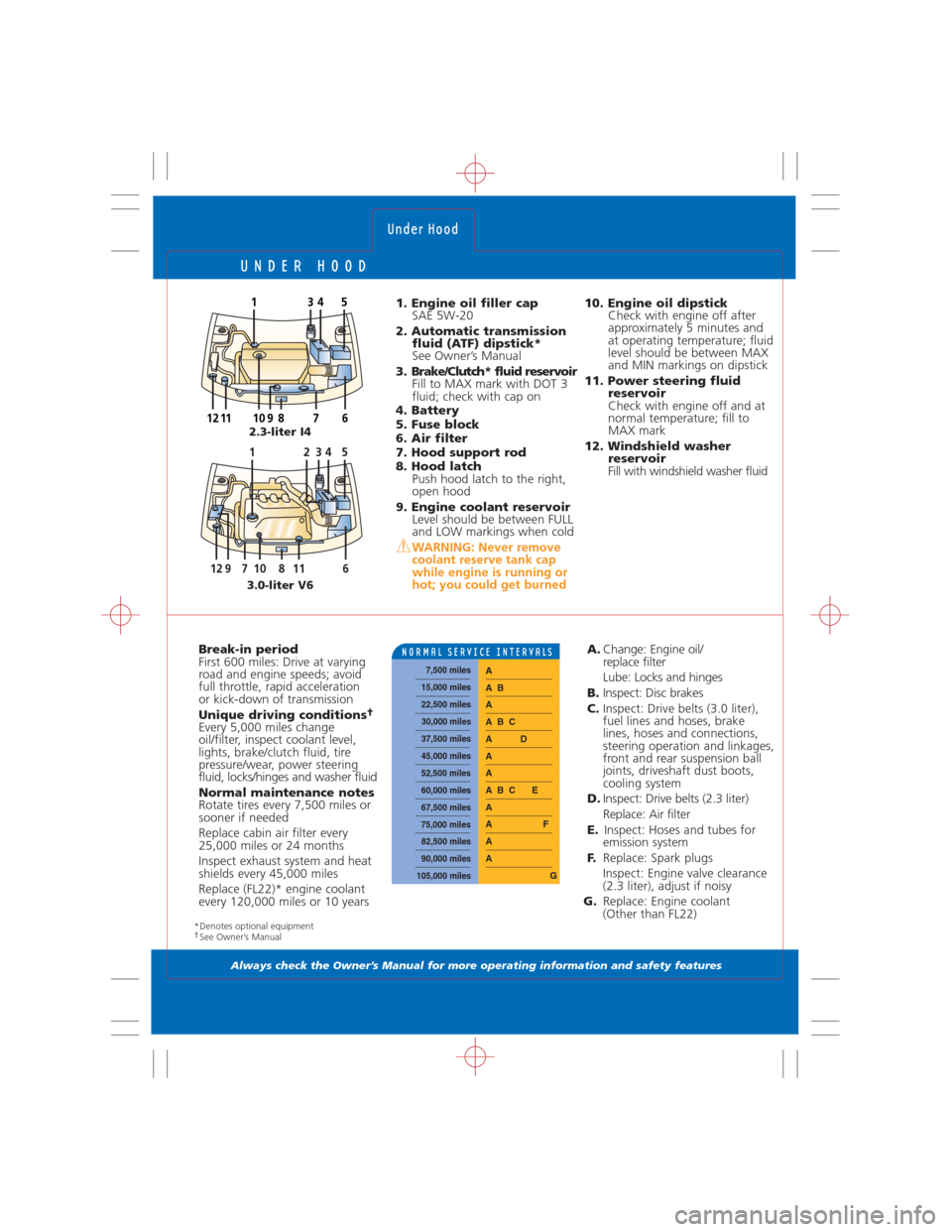

UNDER HOOD
Always check the Owner’s Manual for more operating information and safety features
Under Hood
1. Engine oil filler cap
SAE 5W-20
2. Automatic transmission
fluid (ATF) dipstick*
See Owner’s Manual
3 . Brake/Clutch* fluid reservoir
Fill to MAX mark with DOT 3
fluid; check with cap on
4. Battery
5. Fuse block
6. Air filter
7. Hood support rod
8. Hood latch
Push hood latch to the right,
open hood
9. Engine coolant reservoir
Level should be between FULL
and LOW markings when cold
WARNING: Never remove
coolant reserve tank cap
while engine is running or
hot; you could get burned
10. Engine oil dipstick
Check with engine off after
approximately 5 minutes and
at operating temperature; fluid
level should be between MAX
and MIN markings on dipstick
11. Power steering fluid
reservoir
Check with engine off and at
normal temperature; fill to
MAX mark
12. Windshield washer
reservoir
Fill with windshield washer fluid
Break-in period
First 600 miles: Drive at varying
road and engine speeds; avoid
full throttle, rapid acceleration
or kick-down of transmission
Unique driving conditions
†Every 5,000 miles change
oil/filter, inspect coolant level,
lights, brake/clutch fluid, tire
pressure/wear, power steering
fluid, locks/hinges and washer fluid
Normal maintenance notes
Rotate tires every 7,500 miles or
sooner if needed
Replace cabin air filter every
25,000 miles or 24 months
Inspect exhaust system and heat
shields every 45,000 miles
Replace (FL22)* engine coolant
every 120,000 miles or 10 years
A.Change: Engine oil/
replace filter
Lube: Locks and hinges
B.Inspect: Disc brakes
C.Inspect: Drive belts (3.0 liter),
fuel lines and hoses, brake
lines, hoses and connections,
steering operation and linkages,
front and rear suspension ball
joints, driveshaft dust boots,
cooling system
D.Inspect: Drive belts (2.3 liter)
Replace: Air filter
E.Inspect: Hoses and tubes for
emission system
F. Replace: Spark plugs
Inspect: Engine valve clearance
(2.3 liter), adjust if noisy
G. Replace: Engine coolant
(Other than FL22)
3.0-liter V62.3-liter I4
*Denotes optional equipment†See Owner’s Manual
1197126
5143
810
101179126
51243
8
7,500 miles
15,000 miles
22,500 miles
30,000 miles
37,500 miles
45,000 miles
52,500 miles
60,000 miles
67,500 miles
75,000 miles
82,500 miles
90,000 miles
A A A
F A A
B C E A A
A D
A
BC A
A B
A
105,000 miles G
