In Case of Emergency6-62. Turn off the engine of the vehiclewith the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact sequence as in the illustration.
(1) Connect one end of a cable to the positive terminal on the
discharged battery
.
(2) Attach the other end to the positive terminal on the booster
battery
.
(3) Connect one end of the other
cable to the negative terminal
of the booster battery
.
(4) Connect the other end to a solid,
stationary, exposed metallic
point (for example, the engine
hanger) away from the
discharged battery
.
4. Start the engine of the booster vehicle and run it a few minutes.
Then start the engine of the other
vehicle.
5. When finished, carefully disconnect the cables in the reverse
order described in Step 3.
WARNING
!
Connecting to Negative Terminal:Connecting the end of the second
cable to the negative (–) terminal
of the discharged battery is
dangerous. A spark could cause
the gas around the battery to
explode and injure someone.
Connect the cable to a point away
from the battery.

Form No. 8P95-EA-00G
In Case of Emergency
6-7
WARNING
!
Connecting Jumper Cable to aMoving Part:Connecting a jumper cable near
or to a moving part is dangerous.
The cable could get caught when
the engine starts and cause
serious injury. Never connect a
jumper cable to or near any part
that moves.
073-3A1E
Push-Starting
You can’ t start a vehicle with an
automatic transaxle by pushing it.
CAUTION
!
You shouldn’ t push-start a vehicle
that has a manual transaxle. It can
damage the emission control
system.
WARNING
!
Towing a Vehicle to Start It:Towing a vehicle to start it could
be dangerous. The vehicle being
towed could surge forward when
its engine starts, causing the two
vehicles to collide. The occupants
could be injured. Never tow a
vehicle to start it.

Form No. 8P95-EA-00G
In Case of Emergency
6-9

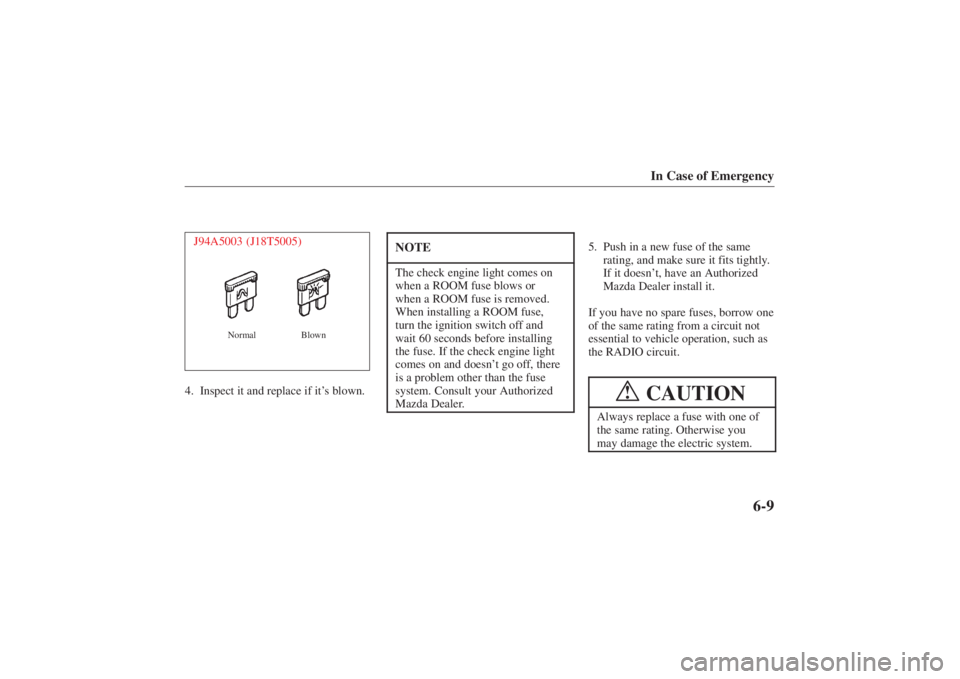

J94A5003 (J18T5005)
Normal Blown
4. Inspect it and replace if it’s blown.
NOTEThe check engine light comes on
when a ROOM fuse blows or
when a ROOM fuse is removed.
When installing a ROOM fuse,
turn the ignition switch off and
wait 60 seconds before installing
the fuse. If the check engine light
comes on and doesn’t go off, there
is a problem other than the fuse
system. Consult your Authorized
Mazda Dealer.
5. Push in a new fuse of the same rating, and make sure it fits tightly.
If it doesn’ t, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the RADIO circuit.
CAUTION
!
Always replace a fuse with one of
the same rating. Otherwise you
may damage the electric system.

Form No. 8P95-EA-00G
J94S.J94A5007
1
2
35
6
7
8
9
10
4
11
12
13
14
15
16
17
18
*Some models.
In Case of Emergency6-12
Q074-6AE

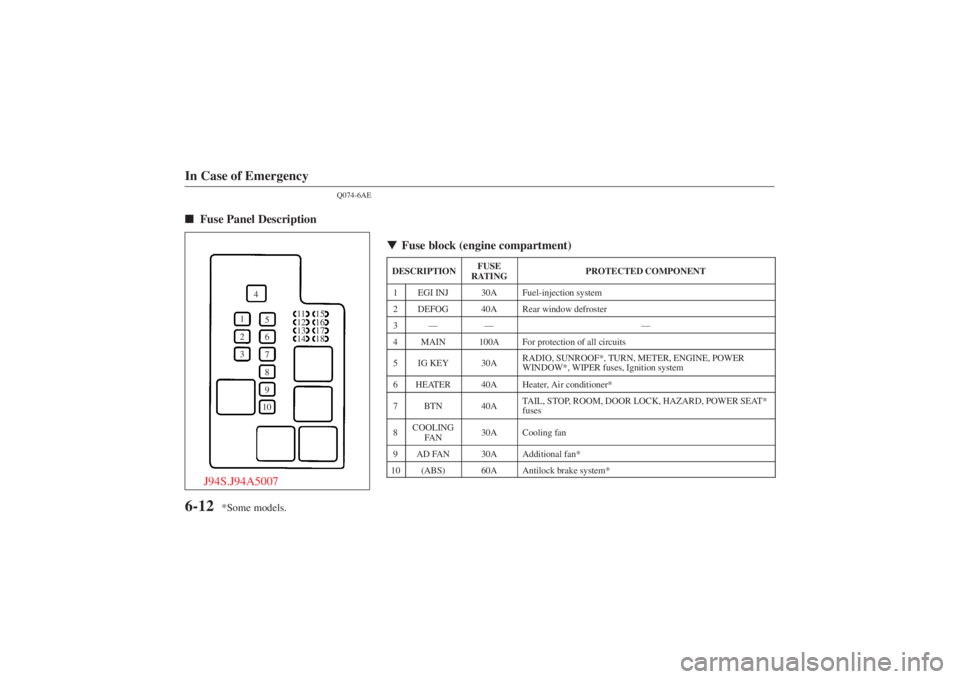

Fuse Panel Description
\bFuse block (engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1
EGI INJ
30A
Fuel-injection system
2
DEFOG
40A
Rear window defroster
3
—
—
—
4
MAIN
100A
For protection of all circuits
5
IG KEY
30A
RADIO, SUNROOF*, TURN, METER, ENGINE, POWER
WINDOW*, WIPER fuses, Ignition system
6
HEATER
40A
Heater, Air conditioner*
7
BTN
40A
TAIL, STOP, ROOM, DOOR LOCK, HAZARD, POWER SEAT*
fuses
8
COOLING FA N
30A
Cooling fan
9
AD FAN
30A
Additional fan*
10
(ABS)
60A
Antilock brake system*

Form No. 8P95-EA-00G
*Some models.
In Case of Emergency
6-15
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
13
P. WIND
30A
Power windows*
14
—
—
—
15
RADIO
15A
Audio system*, Socket, outside mirror
16
ENGINE
10A
Engine control system
17
ILLUMI
10A
Tail light, License plate lights, parking lights, Dashboard
illumination
18
STOP
15A
Brake lights, Horn, Cruise control*
19
CIGAR
15A
Accessory socket, clock*, radio*, outside mirror
20
—
—
—
21
—
—
—
22
P. SEAT
30A
Power seat*
23
M. DEF
15A
Mirror defroter*
24
P. POINT
15A
Power point

Form No. 8P95-EA-00G
In Case of Emergency
6-21

076-6A3E

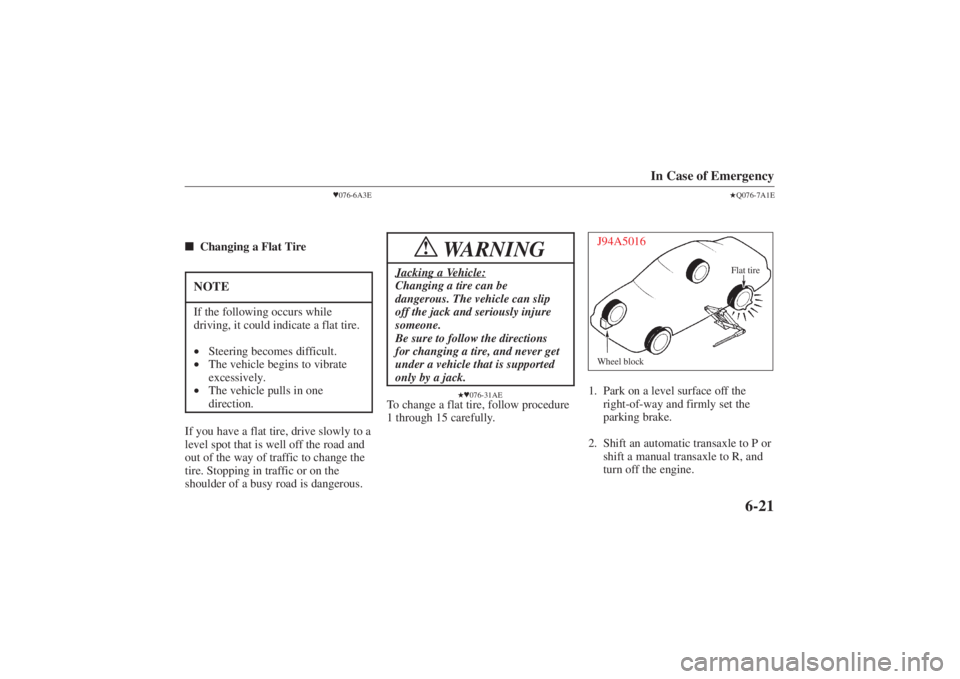

 Changing a Flat TireNOTEIf the following occurs while
driving, it could indicate a flat tire.
•Steering becomes difficult.
• The vehicle begins to vibrate
excessively.
• The vehicle pulls in one
direction.If you have a flat tire, drive slowly to a
level spot that is well off the road and
out of the way of traffic to change the
tire. Stopping in traffic or on the
shoulder of a busy road is dangerous.
WARNING
!
Jacking a Vehicle:Changing a tire can be
dangerous. The vehicle can slip
off the jack and seriously injure
someone.
Be sure to follow the directions
for changing a tire, and never get
under a vehicle that is supported
only by a jack.

076-31AE
To change a flat tire, follow procedure
1 through 15 carefully.
Q076-7A1E
Wheel block Flat tireJ94A50161. Park on a level surface off the
right-of-way and firmly set the
parking brake.
2. Shift an automatic transaxle to P or shift a manual transaxle to R, and
turn off the engine.

Form No. 8P95-EA-00G

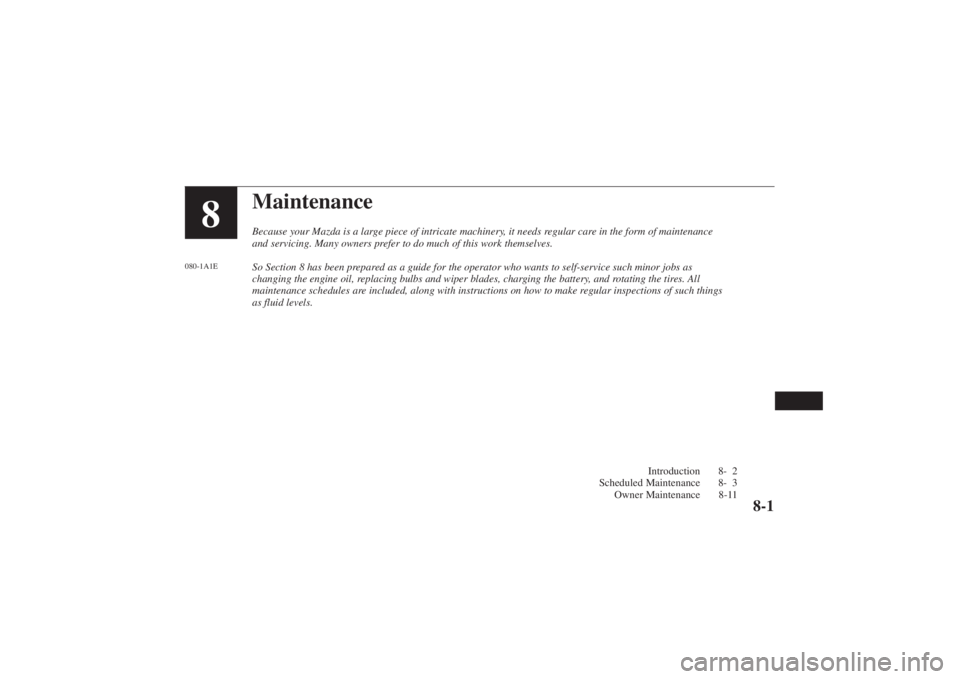

MaintenanceBecause your Mazda is a large piece of intricate machinery, it needs regular care in the form of maintenance
and servicing. Many owners prefer to do much of this work themselves.
So Section 8 has been prepared as a guide for the operator who wants to self-service such minor jobs\
as
changing the engine oil, replacing bulbs and wiper blades, charging the battery, and rotating the tires. All
maintenance schedules are included, along with instructions on how to make regular inspections of such things
as fluid levels.Introduction 8- 2
Scheduled Maintenance 8- 3 Owner Maintenance 8-11
8
8-1
080-1A1E

Form No. 8P95-EA-00G
I: Inspect and repair, clean, adjust, or replace if necessary
R : Replace

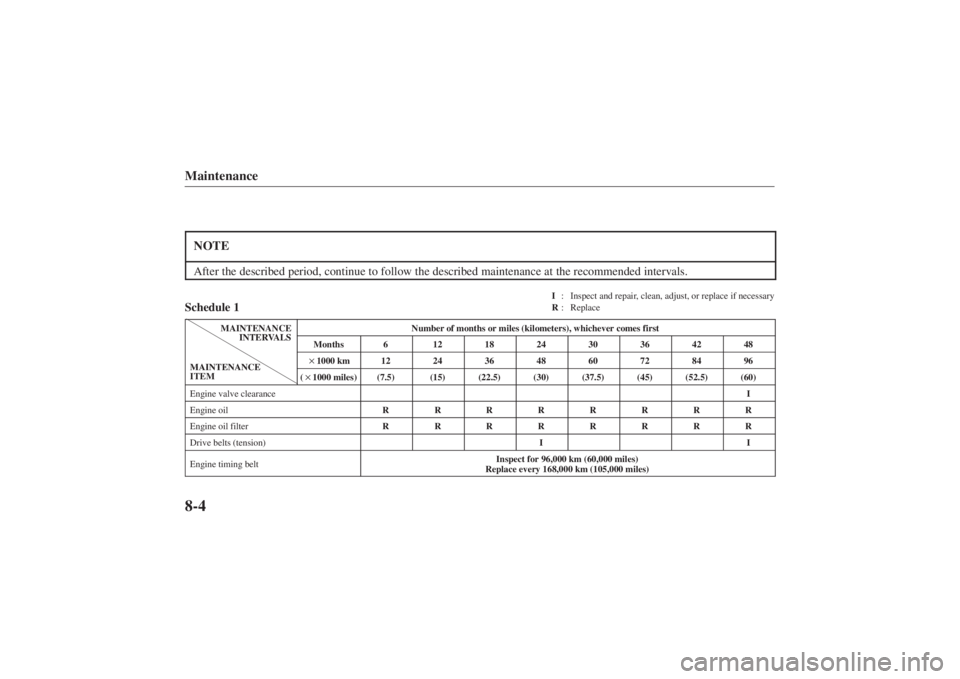

Maintenance8-4NOTEAfter the described period, continue to follow the described maintenance at t\
he recommended intervals.Schedule 1
MAINTENANCE
INTERVALS
Number of months or miles (kilometers), whichever comes first
INTERVALS
Months
6
12
18
24
30
36
42
48
MAINTENANCE

1000 km
12
24
36
48
60
72
84
96
MAINTENANCE

ITEM
(
1000 miles)
(7.5)
(15)
(22.5)
(30)
(37.5)
(45)
(52.5)
(60)
Engine valve clearance
I
Engine oil
R
R
R
R
R
R
R
R
Engine oil filter
R
R
R
R
R
R
R
R
Drive belts (tension)
I
I
Engine timing belt
Inspect for 96,000 km (60,000 miles)
Replace every 168,000 km (105,000 miles)

Form No. 8P95-EA-00G
I: Inspect and repair, clean, adjust, or replace if necessary
(Oil-permeated air filter cannot be cleaned using the air-blow method.)
R : Replace
Maintenance
8-5
Schedule 1 (Cont’d)
MAINTENANCE
INTERVALS
Number of months or miles (kilometers), whichever comes first
INTERVALS
Months
6
12
18
24
30
36
42
48
MAINTENANCE

1000 km
12
24
36
48
60
72
84
96
MAINTENANCE

ITEM
(
1000 miles)
(7.5)
(15)
(22.5)
(30)
(37.5)
(45)
(52.5)
(60)
Hoses and tubes for emission
I*
1
Air filter
R
R
Spark plugs
2.0-liter engine
R
R
Spark plugs
2.5-liter engine
Replace every 96,000 km (60,000 miles)
Idle speed
I
I
Fuel lines and hoses
I*1
I*1
Cooling system
I
I
Engine coolant
Replace at first 168,000 km (105,000 miles) or 60 months;
after that, every 48,000 km (30,000 miles) or 24 months
Brake lines, hoses and connections
I
I
*1 According to state and federal regulations, failure to perform maintenan\
ce on these items will not void your emissions warranties. However, Mazda
recommends that all maintenance services be performed at the recommended\
time or kilometrage (mileage) period to ensure long-term reliability.

Form No. 8P95-EA-00G
I: Inspect and repair, clean, adjust, or replace if necessary
R : Replace
Maintenance
8-7

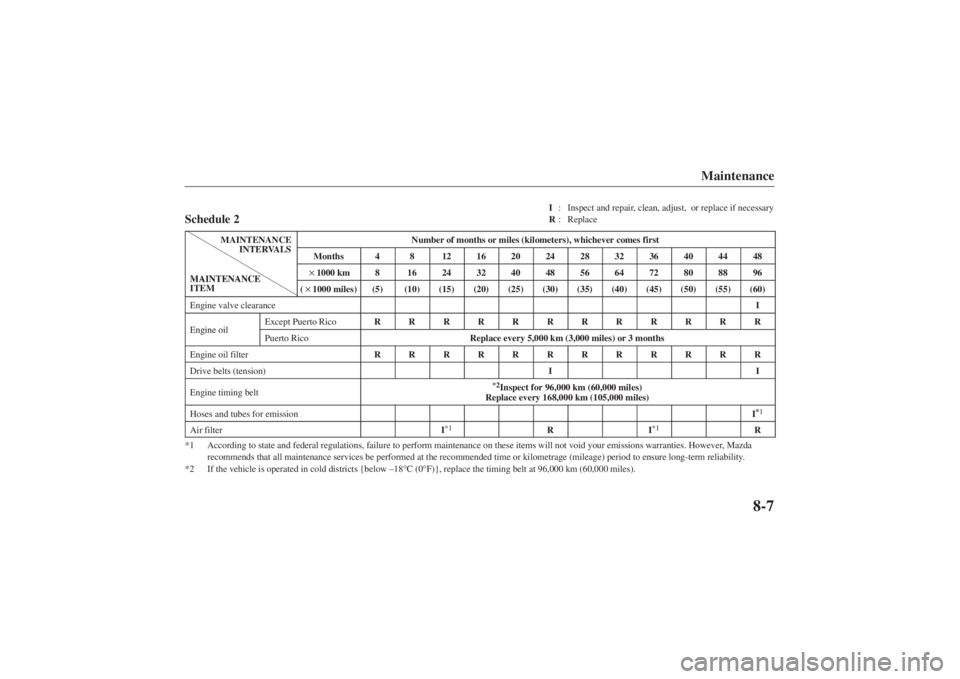

Schedule 2
MAINTENANCE
INTERVALS
Number of months or miles (kilometers), whichever comes first
INTERVALS
Months
4
8
12
16
20
24
28
32
36
40
44
48
MAINTENANCE

1000 km
8
16
24
32
40
48
56
64
72
80
88
96
MAINTENANCE

ITEM
(
1000 miles)
(5)
(10)
(15)
(20)
(25)
(30)
(35)
(40)
(45)
(50)
(55)
(60)
Engine valve clearance
I
Engine oil
Except Puerto Rico
R
R
R
R
R
R
R
R
R
R
R
R
Engine o
il
Puerto Rico
Replace every 5,000 km (3,000 miles) or 3 months
Engine oil filter
R
R
R
R
R
R
R
R
R
R
R
R
Drive belts (tension)
I
I
Engine timing belt
*2Inspect for 96,000 km (60,000 miles)
Replace every 168,000 km (105,000 miles)
Hoses and tubes for emission
I* 1
Air filter
I*1
R
I*1
R
*1 According to state and federal regulations, failure to perform maintenan\
ce on these items will not void your emissions warranties. However, Mazda
recommends that all maintenance services be performed at the recommended\
time or kilometrage (mileage) period to ensure long-term reliability.
*2 If the vehicle is operated in cold districts {below –18° C (0°F)}, replace the timing belt at 96,000 km (60,000 miles).
