How to Use This Manual
Q002-2AE
Graphic symbols:
Some of the following symbols are used to identify
controls and displays on your vehicle.

Form No. 8P95-EA-00G
How to Use This ManualHAZARD WARNINGFLASHER
SEAT BELTS
FLOOR
FLOOR
DEFROSTING
DEFROSTING
REAR WINDOW DEFROSTER
WINDSHIELD
WIPER & WASHER
LIGHTER
HORN
WASHER FLUID
CHECK ENGINE LIGHT

Form No. 8P95-EA-00G
Essential Safety Equipment
2-5

016-5BE
Up
Down
J94A2070
 Seat Tilt (Driver’s Seat)
The seat-bottom angle can be adjusted
by rotating the dial. The dial tilts the
seat-bottom upward.

017-1DE
Front Seats
(Electrically Operated)The seat-bottom tilt, seat height and
seat slide can be electrically adjusted.
Move them to the desired positions by
using the switch on the seat’ s lower
side.


017-8A1E
CAUTION
!
•The seat-bottom power adjust is
operated by a motor. Avoid
extended operation because
excessive use can damage the
motor.
• To prevent the battery from
running down, avoid using the
power adjust when the engine is
stopped. The adjuster uses a
great amount of electric power.

Form No. 8P95-EA-00G
*Some models.
Essential Safety Equipment
2-51

000–00?

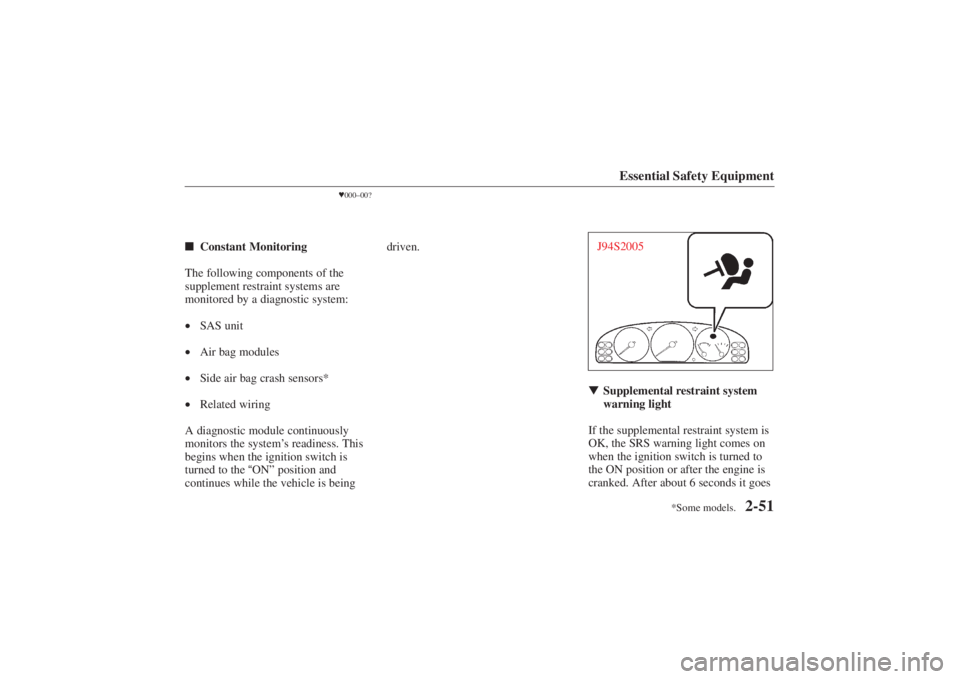

 Constant Monitoring
The following components of the
supplement restraint systems are
monitored by a diagnostic system:
• SAS unit
• Air bag modules
• Side air bag crash sensors*
• Related wiring
A diagnostic module continuously
monitors the system’s readiness. This
begins when the ignition switch is
turned to the “ ON” position and
continues while the vehicle is being driven.
J94S2005

Supplemental restraint system
warning light
If the supplemental restraint system is
OK, the SRS warning light comes on
when the ignition switch is turned to
the ON position or after the engine is
cranked. After about 6 seconds it goes

Form No. 8P95-EA-00G
Knowing Your Mazda
3-3
CAUTION
!
When starting the engine, do not
let the following materials touch
the key grip. The engine may not
start:
•Spare keys.
• Keys for other vehicles
equipped with an immobilizer
system.
• Metal objects that touch or pass
through the hole in the key.

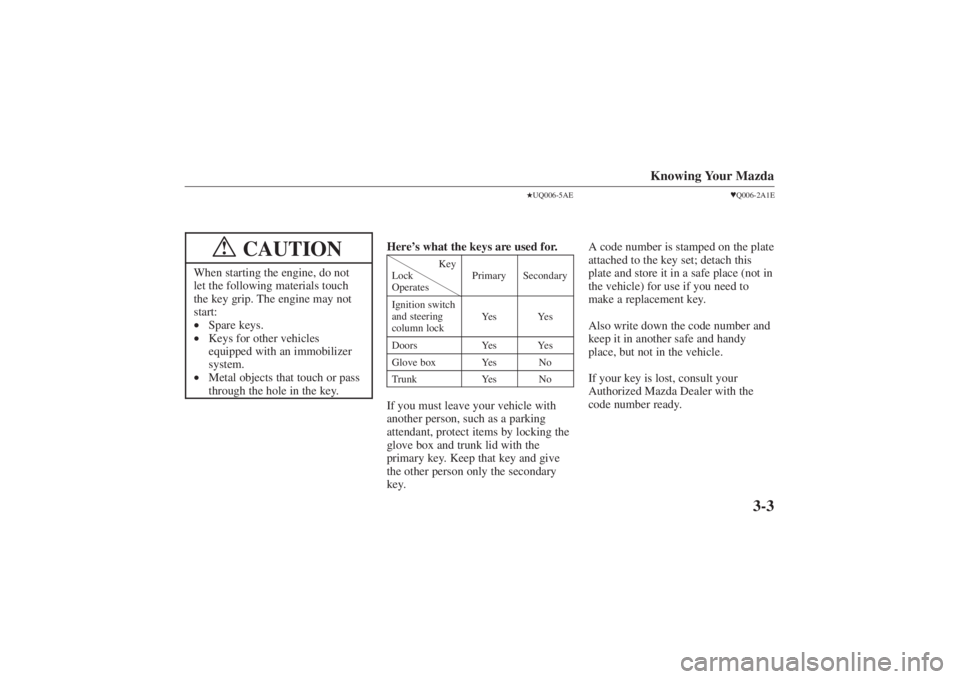

UQ006-5AE
Here’s what the keys are used for.
Key
Lock
Operates
Primary
Secondary
Ignition switch
and steering
column lock
Ye s
Ye s
Doors
Ye s
Ye s
Glove box
Ye s
No
Trunk
Ye s
No
If you must leave your vehicle with
another person, such as a parking
attendant, protect items by locking the
glove box and trunk lid with the
primary key. Keep that key and give
the other person only the secondary
key.
 Q006-2A1E
A code number is stamped on the plate
attached to the key set; detach this
plate and store it in a safe place (not in
the vehicle) for use if you need to
make a replacement key.
Also write down the code number and
keep it in another safe and handy
place, but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the
code number ready.

Form No. 8P95-EA-00G
*Some models.
Knowing Your Mazda3-22
134-1B1E

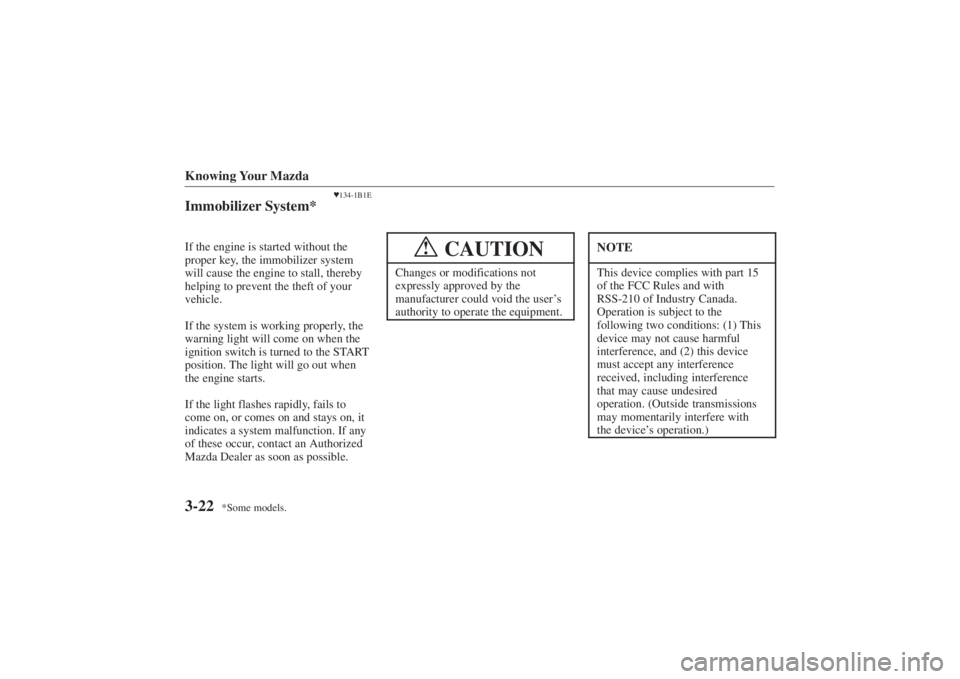

Immobilizer System*If the engine is started without the
proper key, the immobilizer system
will cause the engine to stall, thereby
helping to prevent the theft of your
vehicle.
If the system is working properly, the
warning light will come on when the
ignition switch is turned to the START
position. The light will go out when
the engine starts.
If the light flashes rapidly, fails to
come on, or comes on and stays on, it
indicates a system malfunction. If any
of these occur, contact an Authorized
Mazda Dealer as soon as possible.
CAUTION
!
Changes or modifications not
expressly approved by the
manufacturer could void the user ’s
authority to operate the equipment.
NOTEThis device complies with part 15
of the FCC Rules and with
RSS-210 of Industry Canada.
Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device
must accept any interference
received, including interference
that may cause undesired
operation. (Outside transmissions
may momentarily interfere with
the device’ s operation.)

Form No. 8P95-EA-00G
Knowing Your Mazda
3-23
NOTE•Signals from a TV or radio
station, or from a transceiver or
a mobile telephone, could
interfere with your immobilizer
system. If you are using the
proper key and your engine
fails to start, check the warning
light. If it is flashing, turn the
key to the OFF position and try
again. If the engine doesn’ t start
after 3 or more tries, contact an
Authorized Mazda Dealer.
(Continued)
• If the warning light flashes
continuously while you are
driving, don’ t shut off the
engine. Go to an Authorized
Mazda Dealer and have it
checked. If you shut off the
engine while the light is
flashing you won’ t be able to
restart it.
J94S3001 Operation
When you start the engine with a key
the system recognizes, the system will
allow the engine to continue running.
However, if someone attempts to start
the engine with an unrecognized key,
the system will stall the engine

Form No. 8P95-EA-00G

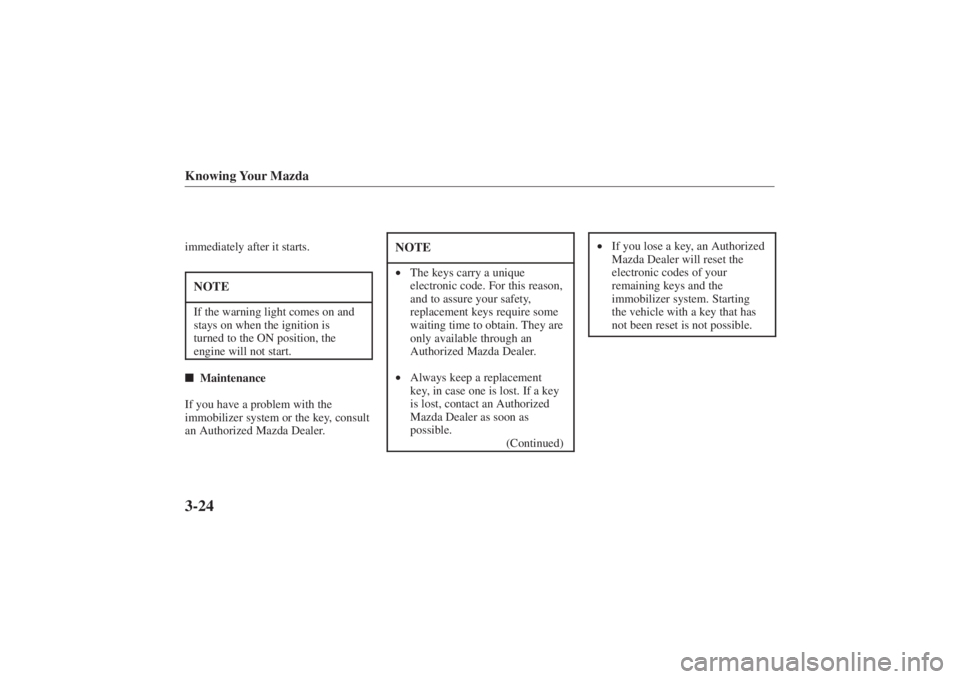

Knowing Your Mazda3-24immediately after it starts.NOTEIf the warning light comes on and
stays on when the ignition is
turned to the ON position, the
engine will not start.Maintenance
If you have a problem with the
immobilizer system or the key, consult
an Authorized Mazda Dealer.
NOTE• The keys carry a unique
electronic code. For this reason,
and to assure your safety,
replacement keys require some
waiting time to obtain. They are
only available through an
Authorized Mazda Dealer.
• Always keep a replacement
key, in case one is lost. If a key
is lost, contact an Authorized
Mazda Dealer as soon as
possible.
(Continued)
•If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your
remaining keys and the
immobilizer system. Starting
the vehicle with a key that has
not been reset is not possible.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-25

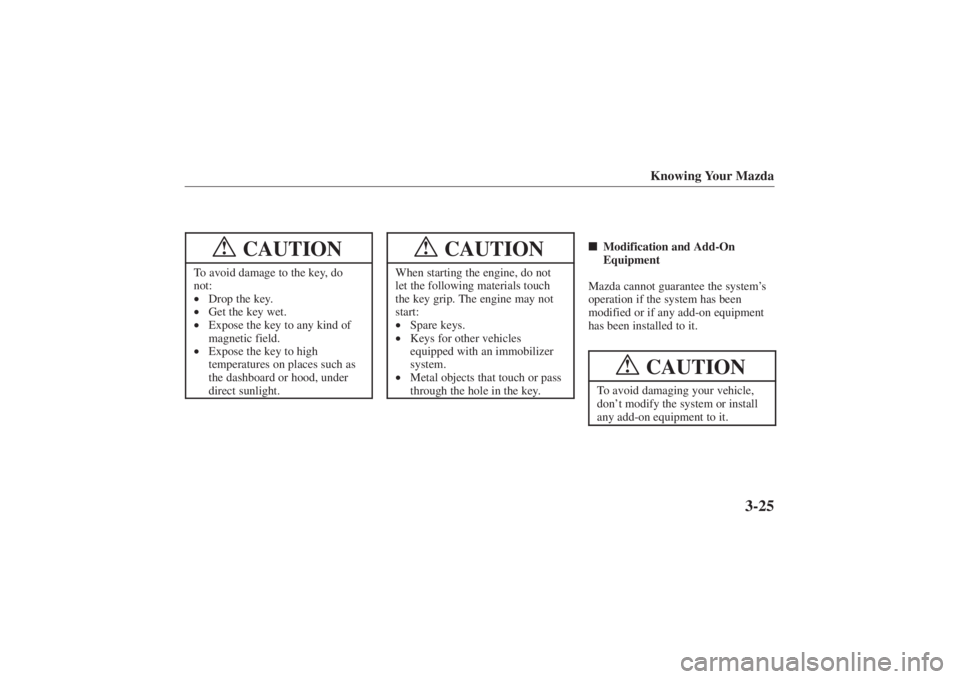

CAUTION
!
To avoid damage to the key, do
not:
•Drop the key.
• Get the key wet.
• Expose the key to any kind of
magnetic field.
• Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
!
When starting the engine, do not
let the following materials touch
the key grip. The engine may not
start:
•Spare keys.
• Keys for other vehicles
equipped with an immobilizer
system.
• Metal objects that touch or pass
through the hole in the key.
Modification and Add-On
Equipment
Mazda cannot guarantee the system’ s
operation if the system has been
modified or if any add-on equipment
has been installed to it.
CAUTION
!
To avoid damaging your vehicle,
don’ t modify the system or install
any add-on equipment to it.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-31
015-3AE
WARNING
!
Fuel Spray:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause
illness when ingested. Fuel spray
happens when there is pressure in
the fuel tank and the fuel cap is
removed too quickly. When
removing the fuel cap, loosen the
cap slightly and wait for any
hissing to stop. Then remove it.
WARNING
!
Fuel Vapor:Fuel vapor is dangerous. It could
be ignited by sparks or flames;
causing serious burns and
injuries. Before refueling, stop
the engine. And always keep
sparks and flames away from the
filler neck.
015-4AE
CAUTION
!
Always use only a designated
Mazda fuel cap or an approved
equivalent, available at Authorized
Mazda Dealers. The wrong cap
can result in a serious malfunction
of the fuel and emission control
systems. If may also cause the
check engine light in the
instrument cluster to appear.
