A Word to Mazda Owners
Form No. 8Q50-EA-01G
Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that's the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda North American Operations©2001 Mazda North American Operations
Printed in U.S.A.
Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of
your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because
improvement is a constant goal at Mazda, we reserve the right to make changes in
specifications at any time without notice and without obligation.
Air Conditioning and the Environment
Your Mazda's genuine air conditioner is filled with R134a, a refrigerant that has been
found not to damage the earth's ozone layer. If the air conditioner does not operate
properly, consult an Authorized Mazda Dealer.
Please be aware that this manual applies to all models, equipment and options. As a
result, you may find some explanations for equipment not installed on your vehicle.
J94S.book Page 1 Saturday, June 23, 2001 1:04 PM
Page 51 of 250
3-7
Knowing Your Mazda
Doors and Locks
Form No. 8Q50-EA-01G
2. Pull the battery out.
3. Put in the new battery (CR2032 or the equivalent) with the positive pole ( )
facing down.
4. Align the front and back covers and snap the transmitter shut.
Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative. The ignition switch must be in the ON
position for the power windows to
operate.
• Changes or modifications could
void your right to operate the
keyless entry system.
• Damage to your keyless entry
system will affect the vehicle
warranty coverage.
Slot
CAUTION
Power Windows
Closing Power Windows:Closing power windows are
dangerous. A person ’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
To prevent burning out the fuse and
damaging the power window system,
don’ t open or close more than two
windows at once.
WARNING
CAUTION
J94S.book Page 7 Saturday, June 23, 2001 1:04 PM
Page 106 of 250
5-26
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q50-EA-01G
Charging System Warning Light
This warning light indicates a malfunction
of the alternator or of the charging system.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine. Inspect the alternator drive belt for looseness and
breakage.
3. If it ’s OK, the charging system has a
problem. Consult an Authorized
Mazda Dealer as soon as possible.
Engine Oil Pressure Warning
Light
This warning light indicates low engine
oil pressure.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the engine oil level (page 8-11). If it ’s low,
add oil.
3. Check the light.
If the light remains on even after you add
oil, have your vehicle towed to the nearest
service station or to an Authorized Mazda
Dealer.
Don
’t drive with a loose or broken
alternator belt. The engine could
overheat because this belt also drives
the water pump.
CAUTION
Don ’t run the engine if oil pressure is
low. It could result in extensive engine
damage.
CAUTION
J94S.book Page 26 Saturday, June 23, 2001 1:04 PM
Page 152 of 250
6-36
Interior Comfort
Audio System
Form No. 8Q50-EA-01G
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Safety Certification
•This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
• Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure. Never operate the CD
player with the top case of the unit removed.
• Changes or modifications not expressly approved by Mazda may void the user ’s
authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
CAUTION
J94S.book Page 36 Saturday, June 23, 2001 1:04 PM
Page 168 of 250
7-8
In Case of an Emergency
Flat Tire
Form No. 8Q50-EA-01G
2. Mount the spare tire.
3. Install the lug nuts with the beveled edge inward; tighten them by hand. 4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you ’re unsure of how tight the nuts
should be, have them inspected at a
service station.
Nut tightening torque:
Removing Dirt and Grime from Wheels, Hubs and Hub Bolts:When changing or replacing a tire,
not removing dirt and grim from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
Applying Oil and Grease to Lug Nuts, Bolts:Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
N· m (kgf ·m, ft ·lbf) 90 —120 (9—12, 65—87)
WARNING
J94S.book Page 8 Saturday, June 23, 2001 1:04 PM
Page 172 of 250
7-12
In Case of an Emergency
Form No. 8Q50-EA-01G
Emergency Starting
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and hold it there.
2. Turn the ignition switch to the START position and hold it there —for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it without using the accelerator—for up
to 10 seconds. Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about jump-
starting, we strongly recommend that you
have a competent service technician do
the work.
Starting a Flooded EngineJump-Starting
Battery-Related Explosion:Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from
open battery cells.
Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one
with a low fluid level is dangerous. It
may rupture or explode, causing
serious injury.
Don’
t jump-start a frozen battery or
one with a low fluid level.
Use only a 12 V booster system. You
can damage a 12 V starter, ignition
system, and other electrical parts
beyond repair with a 24 V power
supply (two 12 V batteries in series or
a 24 V motor generator set).
WARNING
CAUTION
J94S.book Page 12 Saturday, June 23, 2001 1:04 PM
Page 175 of 250
7-15
In Case of an Emergency
Form No. 8Q50-EA-01G

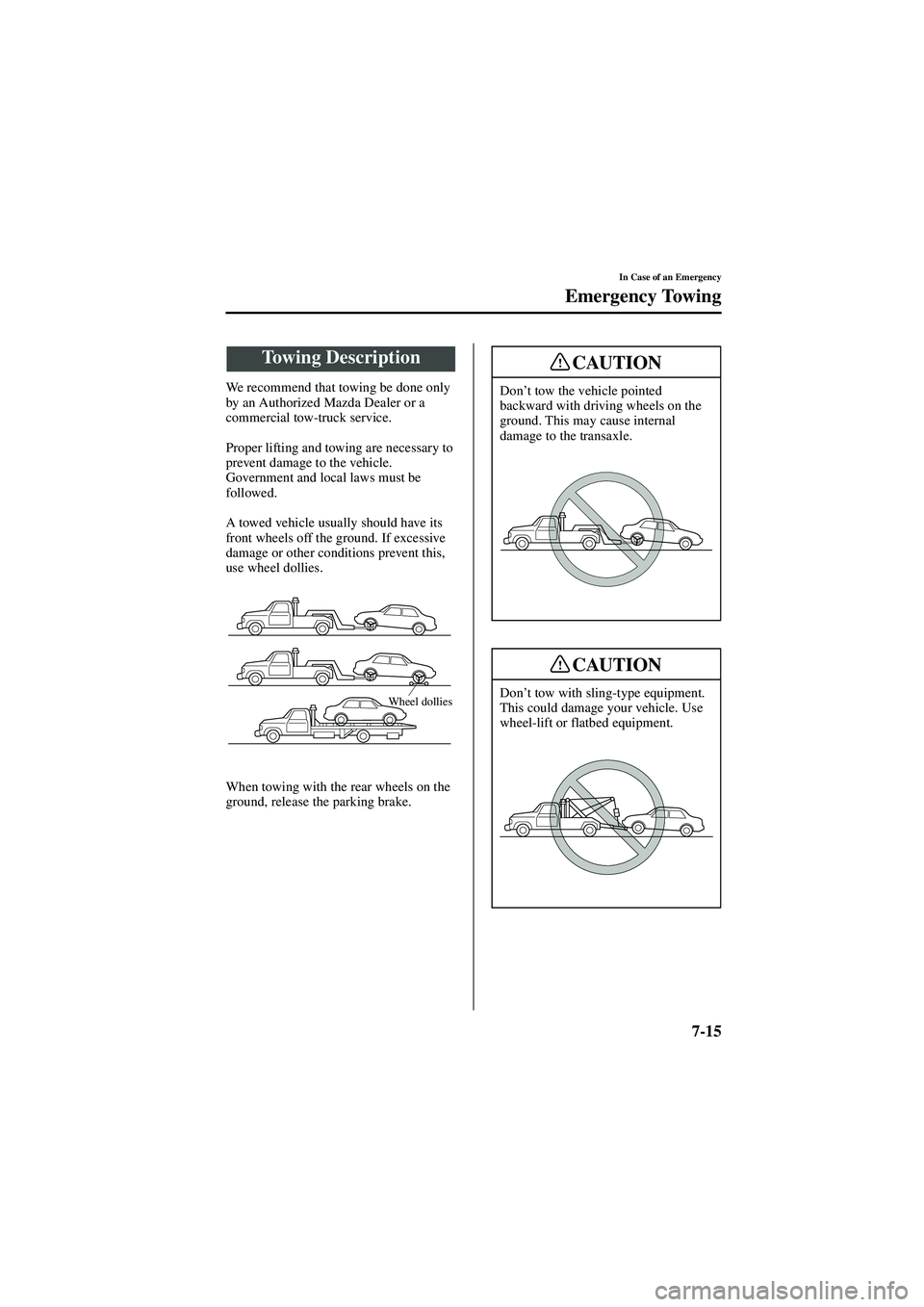

Emergency Towing
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
When towing with the rear wheels on the
ground, release the parking brake.
Towing Description
Wheel dollies
Don’t tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
Don ’t tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
CAUTION
CAUTION
J94S.book Page 15 Saturday, June 23, 2001 1:04 PM
Page 178 of 250
8-2
Maintenance and Care
Form No. 8Q50-EA-01G
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda’ s original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Introduction
J94S.book Page 2 Saturday, June 23, 2001 1:04 PM
Page 180 of 250
8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8Q50-EA-01G
Schedule 1
I : Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air filter cannot be cleaned using the air-blow method.) R: Replace
L : Lubricate
*1: According to state and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability.
Maintenance
Interval
Maintenance
Item Number of months or kilometers (miles), whichever comes first Months 6 12182430364248
×1000 Km 12 24 36 48 60 72 84 96
(×1000 Miles) (7.5) (15) (22.5) (30) (37.5) (45) (52.5) (60)
Engine valve clearance I
Drive belts (tension) II
Engine timing belt Inspect at 96,000km (60,000miles)
Replace every 168,000km (105,000miles)
Engine oil RRRRRRRR
Engine oil filter RRRRRRRR
Cooling system II
Engine coolant Replace at first 168,000km (105,000miles) or 60 months ;
after that, every 48,000km (30,000miles) or 24 months
Idle speed II
Air filter RR
Fuel lines and hoses
*1II
Hoses and tubes for emission*1I
Spark plugs 2.0-liter engine
(non-PLATINUM tipped type)
RR
2.5-liter engine
(PLATINUM tipped type) Replace every 96,000km (60,000miles)
Brake lines, hoses and connections II
Disc brakes II
Drum brakes II
Steering operation and linkages II
Front suspension ball joints II
Driveshaft dust boots II
Bolts and nuts on chassis and body II
Exhaust system heat shields II
All locks and hinges LLLLLLLL
Refrigerant amount (if installed) IIII
Compressor operation (if installed) IIII
08.fm Page 4 Monday, June 25, 2001 5:12 PM
Page 181 of 250
8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8Q50-EA-01G
Schedule 2
I : Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air filter cannot be cleaned using the air-blow method.) R: Replace
L : Lubricate
*1: According to state and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability.
*2: If the vehicle is operated in cold districts { below –18 degrees C (0 degrees F) }, replace the timing belt at 96,000km (60,000miles).
Maintenance
Interval
Maintenance
Item Number of months or kilometers (miles), whichever comes first Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 Km 8 1624324048566472808896
(×1000 Miles) (5) (10) (15) (20) (25) (30) (35) (40) (45) (50) (55) (60)
Engine valve clearance I
Drive belts (tension) II
Engine timing belt
*2Inspect at 96,000km (60,000miles)
Replace every 168,000km (105,000miles)
Engine oil Puerto Rico
Replace every 5,000km (3,000miles) or 3 months
others RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Cooling system II
Engine coolant Replace at first 168,000km (105,000miles) or 60 months ;
after that, every 48,000km (30,000miles) or 24 months
Engine coolant level IIIIIIIIIIII
Idle speed II
Air filter I
*1RI *1R
Fuel lines and hoses*1II
Hoses and tubes for emission*1I
Spark plugs 2.0-liter engine
(non-PLATINUM tipped type)
RR
2.5-liter engine
(PLATINUM tipped type) Replace every 96,000km (60,000miles)
Function of all lights IIIIIIIIIIII
Brake lines, hoses and connections II
Brake and clutch fluid level IIIIIIIIIIII
Disc brakes IIII
Drum brakes II
Tire inflation pressure and tire wear IIIIIIIIIIII
Steering operation and linkages II
Power steering fluid level IIIIIIIIIIII
Front suspension ball joints II
Driveshaft dust boots II
Bolts and nuts on chassis and body IIII
Exhaust system heat shields II
All locks and hinges LLLLLLLLLLLL
08.fm Page 5 Monday, June 25, 2001 5:12 PM
