2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to yourservice maintenance
sectionto determine the correct service interval.
3Do not mix different types or colors of engine coolant.
4Brake fluid will drop slowly as the brakes wear and will rise when brake
components are replaced. Fluid levels below the MAX line that do not
trigger the brake warning light are within the normal operating range,
there is no need to add fluid. If the levels are outside the normal
operating range, the performance of your brake system could be
compromised, seek service from your authorized dealer immediately.
ENGINE SPECIFICATIONS
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap 0.049–0.053 inch
(1.25–1.35mm)0.051–0.057 inch
(1.29–1.45mm)0.052–0.056 inch
(1.32–1.42mm)
Ignition system EDIS EDIS EDIS
Compression
ratio9.7:1 9.6:1 9.7:1
VEHICLE DIMENSIONS
Vehicle dimensions Regular Cab -
inches (mm)SuperCab -
inches (mm)
(1) Overall length 188.5 (4788) 202.6 (5147)
(2) Overall width 69.4 (1762) 70.3 (1785)
(3) Overall height – 4x2/4x4 65.0 (1652) /
68.5 (1740)66.0 (1676) /
68.7 (1746)
(4) Wheelbase 111.4 (2831) 125.7 (3192)
(5) Track - Front 58.5 (1486) 58.5 (1486)
(5) Track - Rear 57.3 (1455) 57.3 (1455)
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Maintenance and Specifications
251

2
5
3
1
4
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Maintenance and Specifications
252

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
1
4
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT:XXRC: XXDSO:
WB BRK INT TR TP/PS R AXLE TR SPR XXXXX
XXX X XX X XX X XX XXX
XXXXXXXXXXXXX XXX XXXX-XXXXXXX-XX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
VIN:XXXXXXXXXXXXXXXXX XXXXX
TYPE: XXX XXXXX DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG
FRONT GAWR: XXXXL REAR GAWR: XXXXLB
AT XXX kPa/XX PSI COLD AT XXX kPa/XX PSI COLD XXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMSXXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMS
FOR MAZDA MOTOR CORPORATION
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Maintenance and Specifications
253

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Maintenance and Specifications
254

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic (5R44E/5R55E) D
Five-speed manual (R1) R
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT:XXRC: XXDSO:
WB BRK INT TR TP/PS R AXLE TR SPR XXXXX
XXX X XX X XX X XX XXX
XXXXXXXXXXXXX XXX XXXX-XXXXXXX-XX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
VIN:XXXXXXXXXXXXXXXXX XXXXX
TYPE: XXX XXXXX DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG
FRONT GAWR: XXXXL REAR GAWR: XXXXLB
AT XXX kPa/XX PSI COLD AT XXX kPa/XX PSI COLD XXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMSXXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMS
FOR MAZDA MOTOR CORPORATION
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Maintenance and Specifications
255

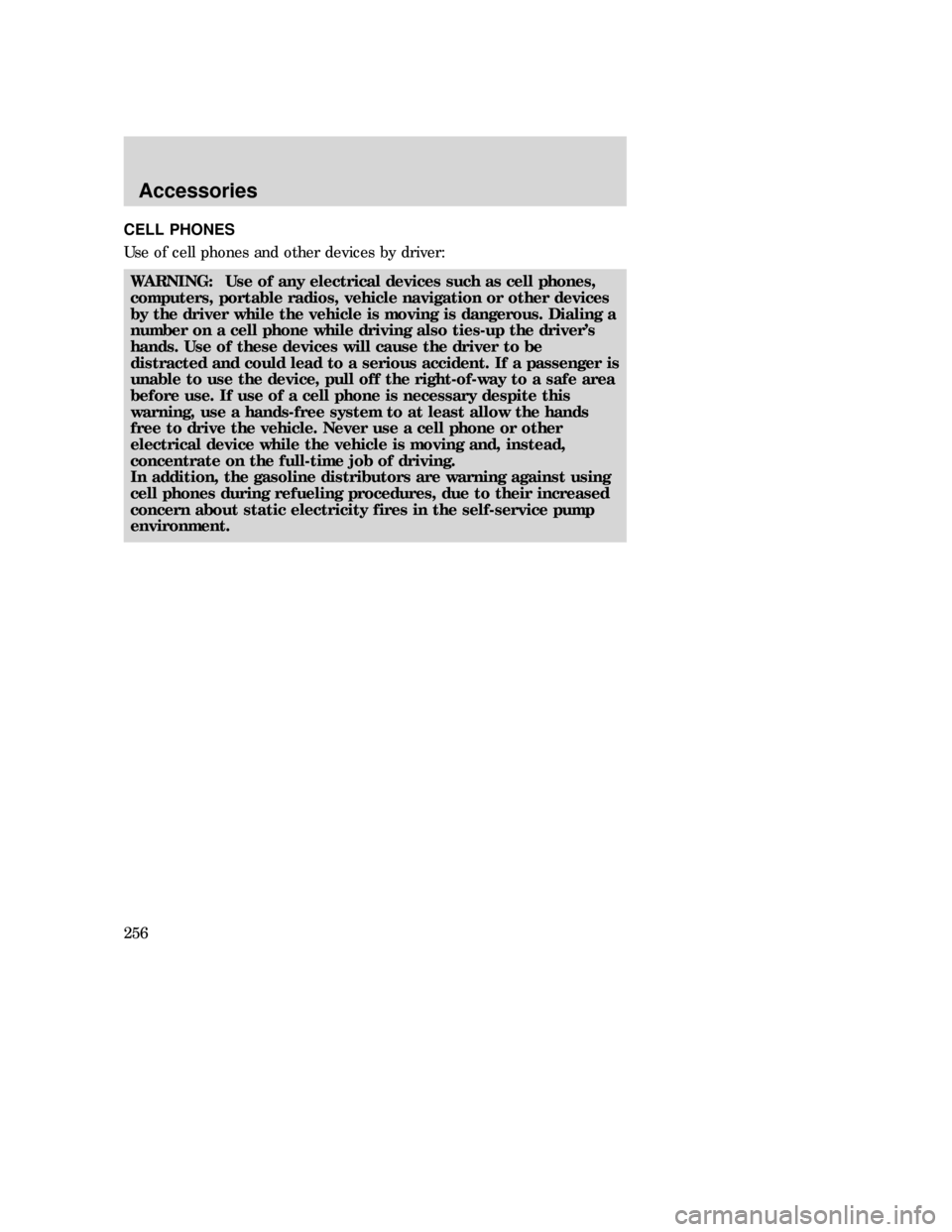

CELL PHONES
Use of cell phones and other devices by driver:
WARNING: Use of any electrical devices such as cell phones,
computers, portable radios, vehicle navigation or other devices
by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver’s
hands. Use of these devices will cause the driver to be
distracted and could lead to a serious accident. If a passenger is
unable to use the device, pull off the right-of-way to a safe area
before use. If use of a cell phone is necessary despite this
warning, use a hands-free system to at least allow the hands
free to drive the vehicle. Never use a cell phone or other
electrical device while the vehicle is moving and, instead,
concentrate on the full-time job of driving.
In addition, the gasoline distributors are warning against using
cell phones during refueling procedures, due to their increased
concern about static electricity fires in the self-service pump
environment.
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Accessories
256

A
ABS (see Brakes) .....................144
Airbag supplemental
restraint system ..........................77
and child safety seats ..............80
description ................................77
disposal ......................................83
driver airbag ..............................81
indicator light ...........................82
operation ...................................81
passenger airbag .......................81
passenger deactivation
switch ........................................83
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................225
Anti-lock brake system
(see Brakes) ......................144–145
Audio system
6-CD in dash .............................23
Single CD ..................................20
Audio system
(see Radio) ................18, 20, 23, 27
Automatic transmission ............148
driving an automatic
overdrive .................................149
fluid, refill capacities ..............247
fluid, specification ..................251
Auxiliary power point .................48
Axle
lubricant specifications ..250–251
refill capacities ........................247
traction lok ..............................147
B
Battery .......................................223
acid, treating emergencies .....223jumping a disabled battery ....181
maintenance-free ....................223
servicing ..................................223
Bed extender ..............................54
BeltMinder ...................................72
Brakes ........................................144
anti-lock ...........................144–145
anti-lock brake system
(ABS) warning light ...............145
fluid, checking and adding ....242
fluid, refill capacities ..............247
fluid, specifications .........250–251
lubricant specifications ..250–251
parking ....................................146
shift interlock ..........................148
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....247
Cassette tape player ...................23
Cell phone warning ...................256
Changing a tire .........................171
Child safety restraints ................89
child safety belts ......................89
Child safety seats ........................93
attaching with tether straps ....97
in front seat ..............................94
in rear seat ................................94
LATCH .....................................101
tether anchorage hardware .....97
Chimes (warning) .......................16
Cleaning your vehicle
engine compartment ..............198
instrument panel ....................201
interior .....................................202
interior trim ............................201
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Index
257

Mazda car care products .......202
plastic parts ............................200
washing ....................................197
waxing .....................................197
wheels ......................................198
wiper blades ............................200
Clock adjust
AM/FM Stereo ...........................18
AM/FM stereo CD .....................20
AM/FM stereo tape/CD/MP3 ....23
Premium AM/FM stereo
CD6/MP3 ...................................27
Single CD ..................................20
Clutch
fluid ..........................................243
operation while driving ..........151
recommended shift speeds ....152
Console ........................................49
Coolant
checking and adding ..............225
refill capacities ................229, 247
specifications ..................250–251
Cruise control
(see Speed control) ....................50
Customer
Assistance ..................187–188, 191
D
Daytime running lamps
(see Lamps) ................................36
Dipstick
engine oil .................................217
Doors
lubricant specifications ..........250
Driveline universal joint and
slip yoke ....................................246
Driving under special
conditions ..................153, 156, 158mud ..........................................158
sand .........................................157
snow and ice ...........................159
through water .................158–159
E
Emergencies, roadside
jump-starting ..........................181
Emergency Flashers .................160
Emission control system ..........238
Engine ........................................251
cleaning ...................................198
coolant .....................................225
idle speed control ...................223
lubrication
specifications ..................250–251
refill capacities ........................247
service points ..................213–215
starting after a collision .........160
Engine block heater .................144
Engine oil ..................................217
checking and adding ..............217
dipstick ....................................217
filter, specifications ................221
recommendations ...................221
refill capacities ........................247
specifications ..................250–251
Exhaust fumes ..........................143
F
Fluid capacities .........................247
Foglamps .....................................36
Four-Wheel Drive vehicles .......154
driving off road .......................155
electronic shift ................154–155
indicator light .........................154
preparing to drive your
vehicle .....................................147
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Index
258

Fuel ............................................231
calculating fuel economy .......235
cap ...........................................233
capacity ...................................247
choosing the right fuel ...........233
comparisons with EPA fuel
economy estimates .................238
detergent in fuel .....................234
filling your vehicle
with fuel ..................231, 233, 235
filter, specifications ................230
fuel pump shut-off switch .....160
improving fuel economy ........235
octane rating ...................234, 251
quality ......................................234
running out of fuel .................235
safety information relating to
automotive fuels .....................231
Fuel pump shut-off switch .......160
Fuses ..................................161–162
G
Gas cap (see Fuel cap) ............233
Gas mileage
(see Fuel economy) .................235
Gauges .........................................16
H
Hazard flashers .........................160
Headlamps ...................................35
aiming ........................................37
bulb specifications ....................39
daytime running lights .............36
flash to pass ..............................35
high beam .................................35
replacing bulbs .........................40
turning on and off ....................35Heating
heating and air
conditioning system ...........32–33
Hood ..........................................212
I
Ignition ...............................140, 251
Infant seats
(see Safety seats) .......................93
Inspection/maintenance
(I/M) testing ..............................240
Instrument panel
cleaning ...................................201
cluster ........................................12
lighting up panel and
interior .......................................36
location of components ............12
J
Jack ............................................171
positioning ...............................171
storage .....................171, 174–175
Jump-starting your vehicle ......181
K
Keys
positions of the ignition .........140
L
Lamps
bulb replacement
specifications chart ..................39
daytime running light ...............36
fog lamps ...................................36
headlamps .................................35
headlamps, flash to pass ..........35
instrument panel, dimming .....36
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Index
259

interior lamps .....................39–40
replacing bulbs ....... 39–40, 43–46
Lane change indicator
(see Turn signal) ........................38
LATCH anchors .........................101
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........145
Load limits .................................122
Loading instructions .................129
Lubricant specifications ...250–251
Lug nuts ....................................179
Lumbar support, seats ...............64
M
Manual transmission .................151
fluid capacities ........................247
lubricant specifications ..........251
reverse .....................................152
Mirrors .........................................50
fold away ...................................50
side view mirrors (power) .......50
Motorcraft parts ........................230
O
Octane rating ............................234
Oil (see Engine oil) ..................217
Overdrive .....................................53
Overheating ...............................180
P
Parking brake ............................146
Power distribution box
(see Fuses) ...............................165
Power door locks ........................56Power mirrors .............................50
Power point .................................48
Power steering ..........................147
fluid, checking and adding ....241
fluid, refill capacity ................247
fluid, specifications .........250–251
Power Windows ...........................49
Preparing to drive
your vehicle ...............................147
R
Radio ..........................18, 20, 23, 27
Single CD ..................................20
Relays ........................................161
Remote entry system .................57
illuminated entry ......................60
locking/unlocking doors .....56–57
S
Safety Belt Maintenance ............76
Safety belts (see
Safety restraints) ............65, 67–71
Safety restraints ..............65, 67–71
belt minder ...............................72
extension assembly ..................72
for adults .............................67–70
for children .........................88–89
safety belt maintenance ...........76
warning light and chime ..........72
Safety restraints - LATCH
anchors ......................................101
Safety restraints - tether
anchors ........................................97
Safety seats for children ............93
Safety Compliance
Certification Label ....................253
2006 B-Series(mbs)
Owners Guide (post-2002-fmt)
Canadian_French(fr_can)
Index
260
