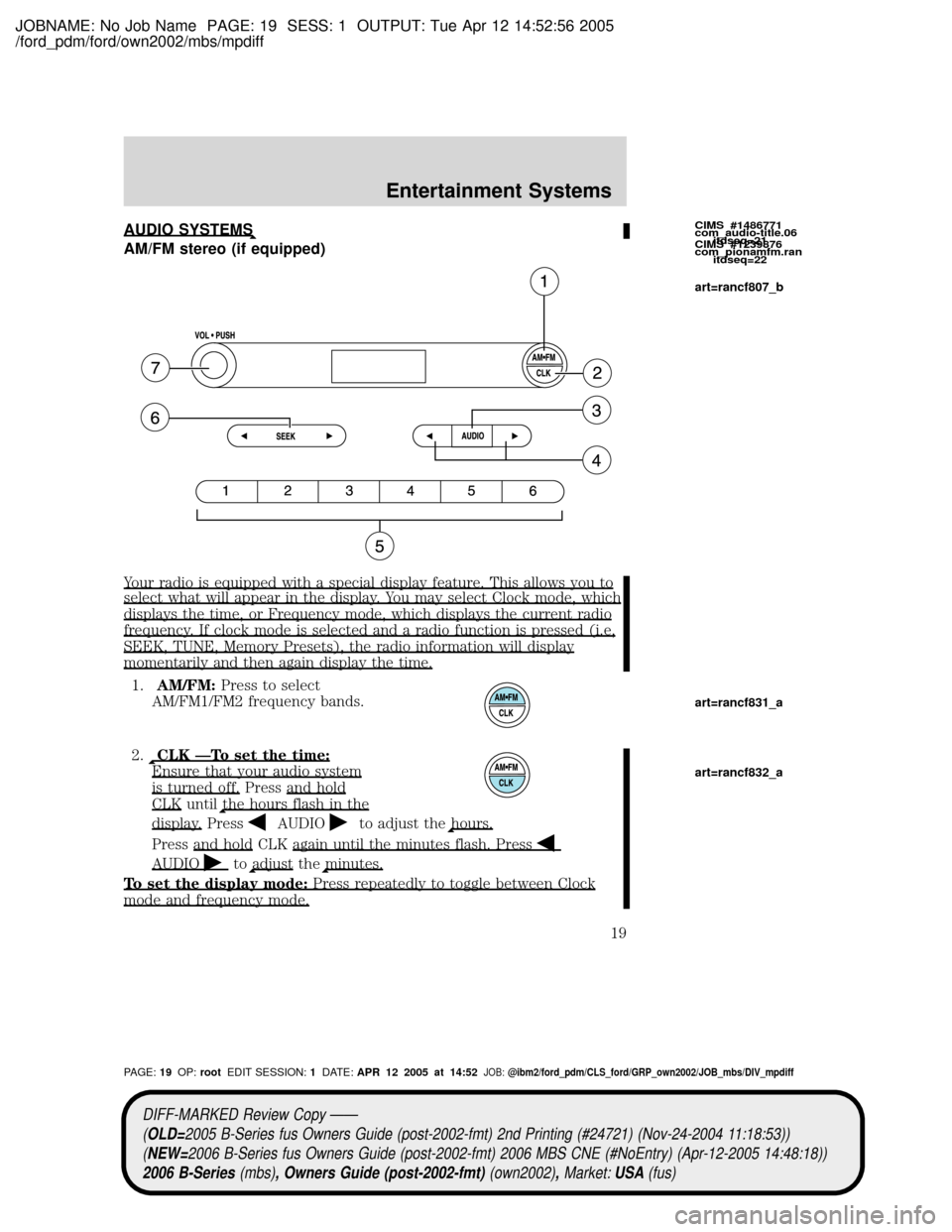

AUDIO SYSTEMS
AM/FM stereo (if equipped)
Your radio is equipped with a special display feature. This allows you to
select what will appear in the display. You may select Clock mode, which
displays the time, or Frequency mode, which displays the current radio
frequency. If clock mode is selected and a radio function is pressed (i.e,
SEEK, TUNE, Memory Presets), the radio information will display
momentarily and then again display the time.
1.AM/FM:Press to select
AM/FM1/FM2 frequency bands.
2.
CLK ÐTo set the time:
Ensure that your audio system
is turned off. Press and hold
CLK untilthe hours flash in the
display. PressAUDIOto adjust thehours.
Press and hold CLK again until the minutes flash. Press
AUDIOtoadjust theminutes.
To set the display mode:Press repeatedly to toggle between Clock
mode and frequency mode.
CIMS #1486771
com_audio-title.06
itdseq=21
CIMS #1239876
com_pionamfm.ran
itdseq=22
art=rancf807_b
art=rancf831_a
art=rancf832_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:19OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Entertainment Systems
19

JOBNAME: No Job Name PAGE: 24 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

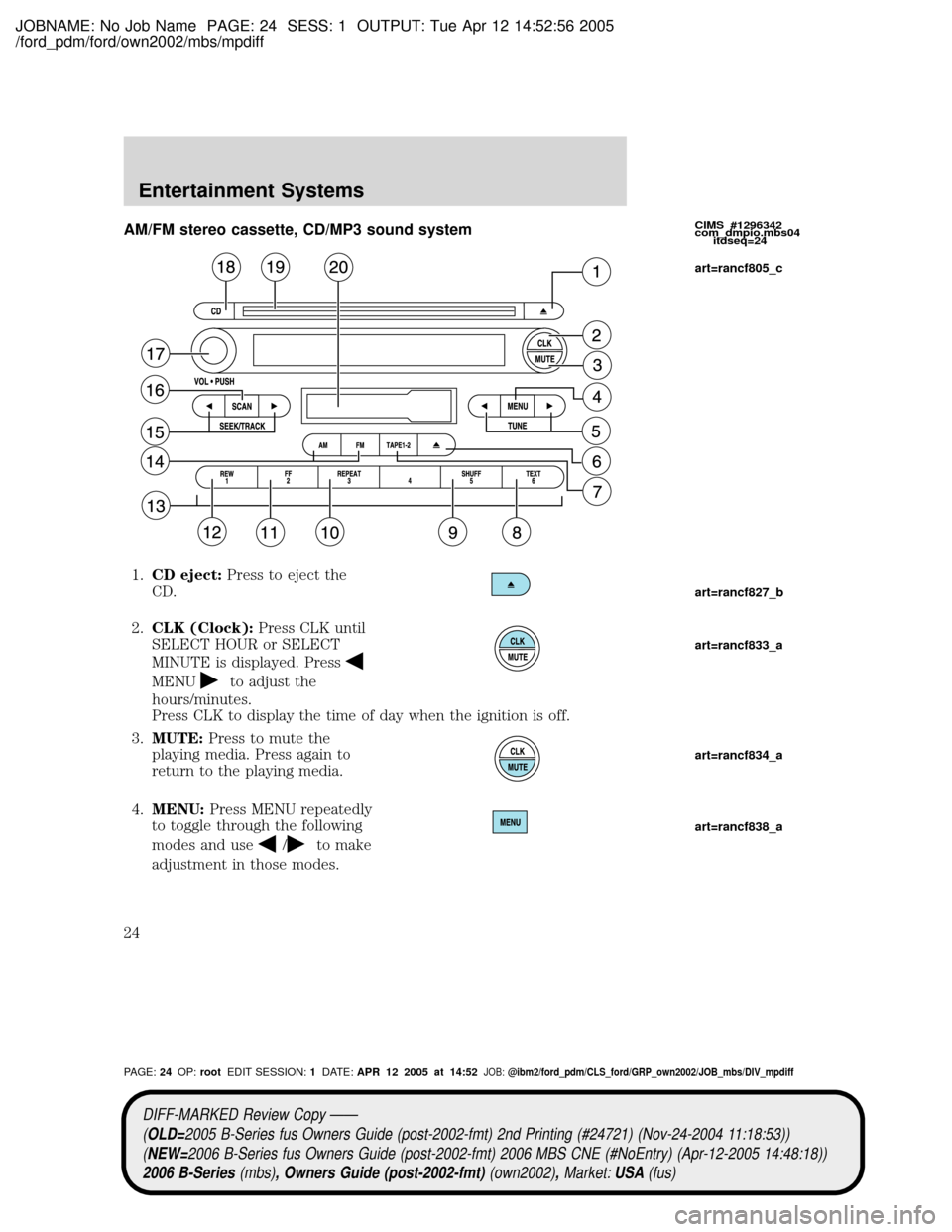

AM/FM stereo cassette, CD/MP3 sound system
1.CD eject:Press to eject the
CD.
2.CLK (Clock):Press CLK until
SELECT HOUR or SELECT
MINUTE is displayed. Press
MENUto adjust the
hours/minutes.
Press CLK to display the time of day when the ignition is off.
3.MUTE:Press to mute the
playing media. Press again to
return to the playing media.
4.MENU:Press MENU repeatedly
to toggle through the following
modes and use
/to make
adjustment in those modes.
CIMS #1296342
com_dmpio.mbs04
itdseq=24
art=rancf805_c
art=rancf827_b
art=rancf833_a
art=rancf834_a
art=rancf838_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:24OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Entertainment Systems
24

JOBNAME: No Job Name PAGE: 28 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

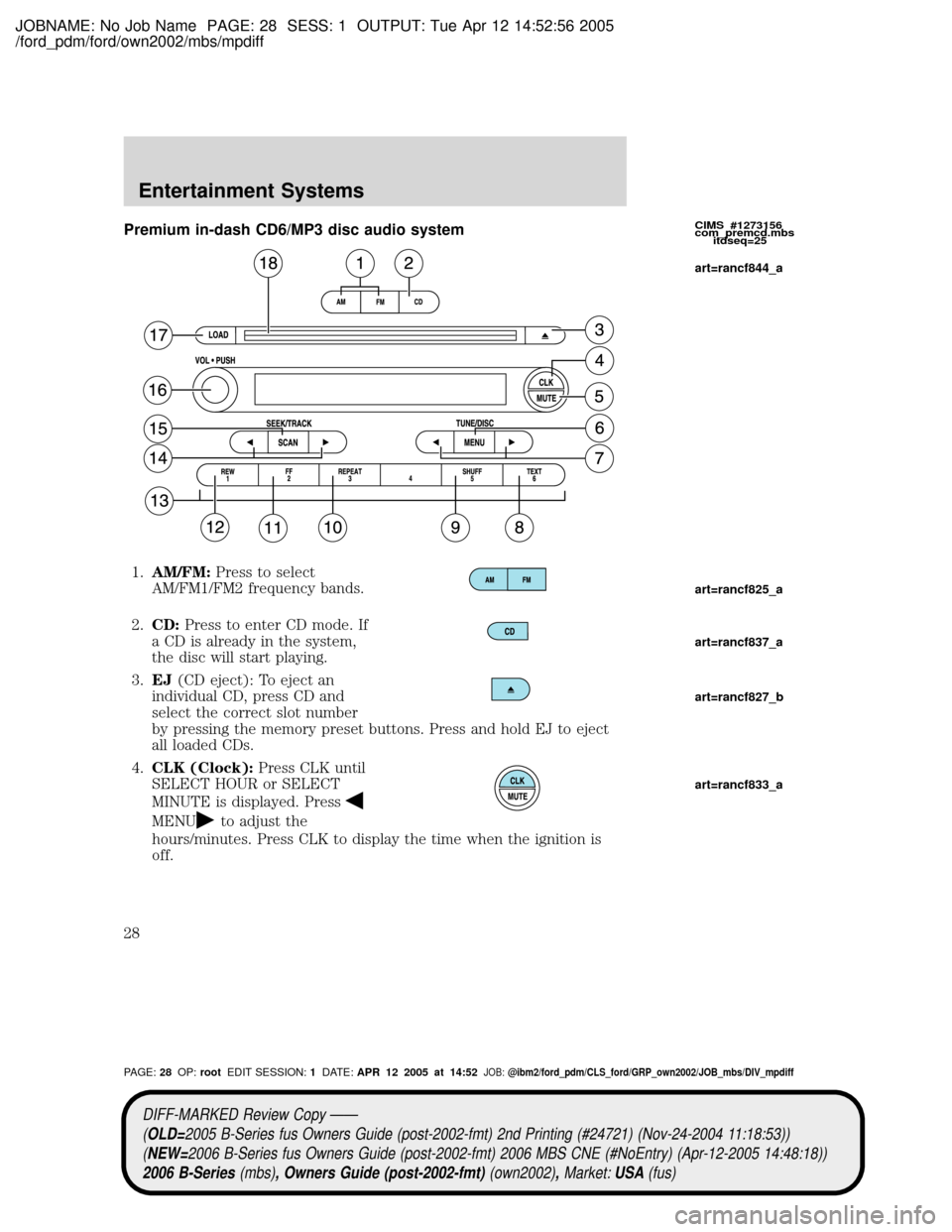

Premium in-dash CD6/MP3 disc audio system
1.AM/FM:Press to select
AM/FM1/FM2 frequency bands.
2.CD:Press to enter CD mode. If
a CD is already in the system,
the disc will start playing.
3.EJ(CD eject): To eject an
individual CD, press CD and
select the correct slot number
by pressing the memory preset buttons. Press and hold EJ to eject
all loaded CDs.
4.CLK (Clock):Press CLK until
SELECT HOUR or SELECT
MINUTE is displayed. Press
MENUto adjust the
hours/minutes. Press CLK to display the time when the ignition is
off.
CIMS #1273156
com_premcd.mbs
itdseq=25
art=rancf844_a
art=rancf825_a
art=rancf837_a
art=rancf827_b
art=rancf833_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:28OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Entertainment Systems
28

JOBNAME: No Job Name PAGE: 230 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

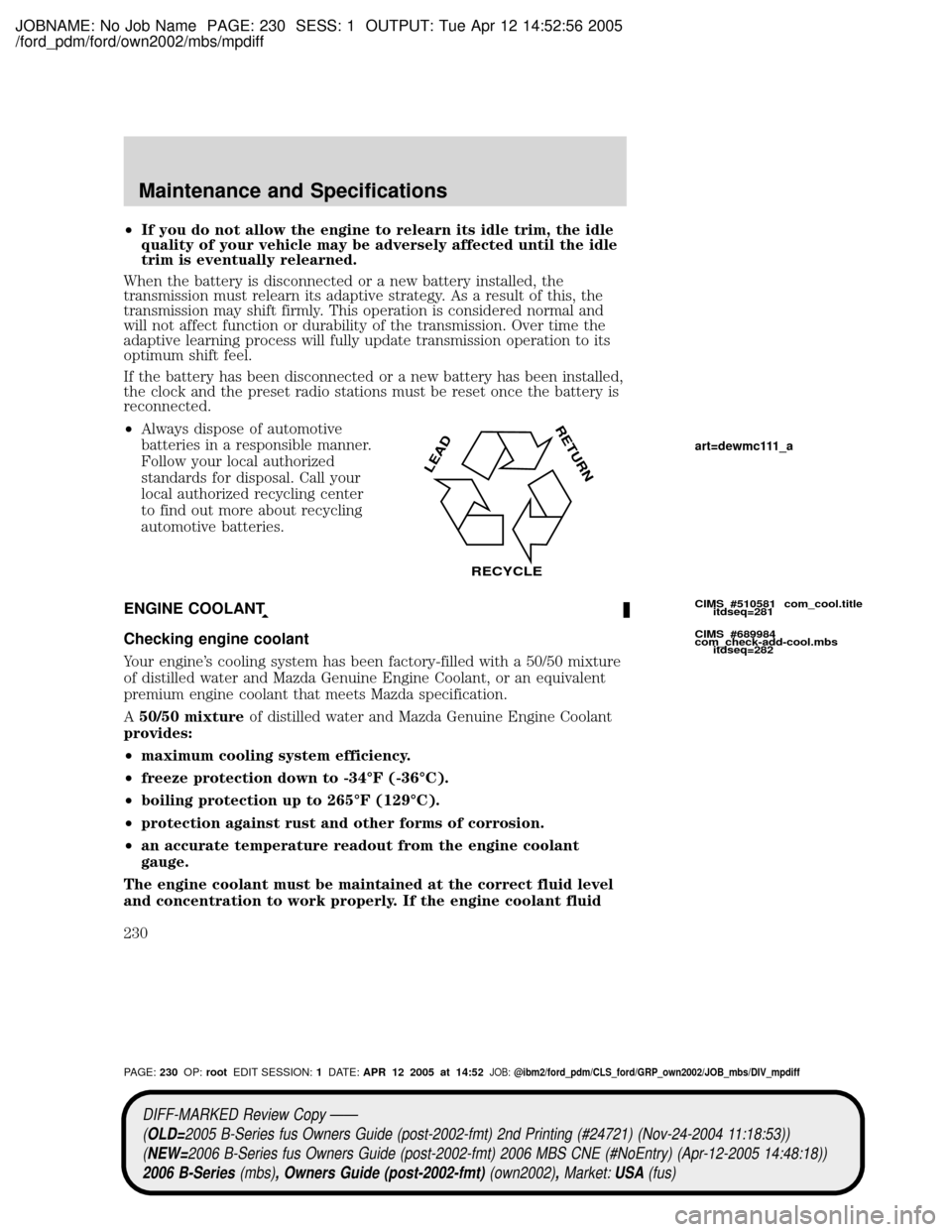

²If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
When the battery is disconnected or a new battery installed, the
transmission must relearn its adaptive strategy. As a result of this, the
transmission may shift firmly. This operation is considered normal and
will not affect function or durability of the transmission. Over time the
adaptive learning process will fully update transmission operation to its
optimum shift feel.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
²Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
Your engine's cooling system has been factory-filled with a 50/50 mixture
of distilled water and Mazda Genuine Engine Coolant, or an equivalent
premium engine coolant that meets Mazda specification.
A50/50 mixtureof distilled water and Mazda Genuine Engine Coolant
provides:
²maximum cooling system efficiency.
²freeze protection down to -34ÉF (-36ÉC).
²boiling protection up to 265ÉF (129ÉC).
²protection against rust and other forms of corrosion.
²an accurate temperature readout from the engine coolant
gauge.
The engine coolant must be maintained at the correct fluid level
and concentration to work properly. If the engine coolant fluid
LEAD
RETURN
RECYCLE
CIMS #510581 com_cool.title
itdseq=281
CIMS #689984
com_check-add-cool.mbs
itdseq=282
art=dewmc111_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:230OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
230

JOBNAME: No Job Name PAGE: 267 SESS: 3 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff
child safety seats ......................94
Servicing your vehicle ..............216
Setting the clock
AM/FM stereo ...........................19
AM/FM stereo CD .....................21
AM/FM stereo tape/CD/MP3 ....24
Premium AM/FM stereo
CD6/MP3 ...................................28
Snowplowing .................................7
Spark plugs, specifications .......258
Special notice
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart, lubricants 256±257
Speed control ..............................50
Starting your vehicle .......141±142,
144
jump starting ..........................183
Steering wheel
tilting .........................................47
Stereo
Single CD ..................................21
T
Tether anchors ............................98
Tilt steering wheel ......................47
Tires ...........................107±108, 173
alignment ................................114
care ..........................................112
changing ..........................173, 178
checking the pressure ............110
inspecting and inflating .........109
label .........................................121
replacing ..................................116
rotating ....................................114
safety practices .......................113
sidewall information ...............117snow tires and chains ............121
spare tire .........................173±174
terminology .............................108
tire grades ...............................108
treadwear ........................107, 112
Towing .......................................129
recreational towing .................139
trailer towing ..........................129
wrecker ....................................188
Traction-lok rear axle ...............148
Transfer case
fluid checking .........................252
Transmission
automatic operation ...............149
brake-shift interlock (BSI) ....149
fluid, checking and adding
(manual) .................................251
fluid, refill capacities ..............253
lubricant specifications ..256±257
manual operation ....................153
Turn signal ..................................39
V
Vehicle dimensions ...................258
Vehicle Identification Number
(VIN) ..........................................260
Vehicle loading ..........................122
camper bodies ........................140
Ventilating your vehicle ...........145
W
Warning chimes ...........................16
Warning lights (see Lights) .......12
Washer fluid ..............................221
Water, Driving through .............161
