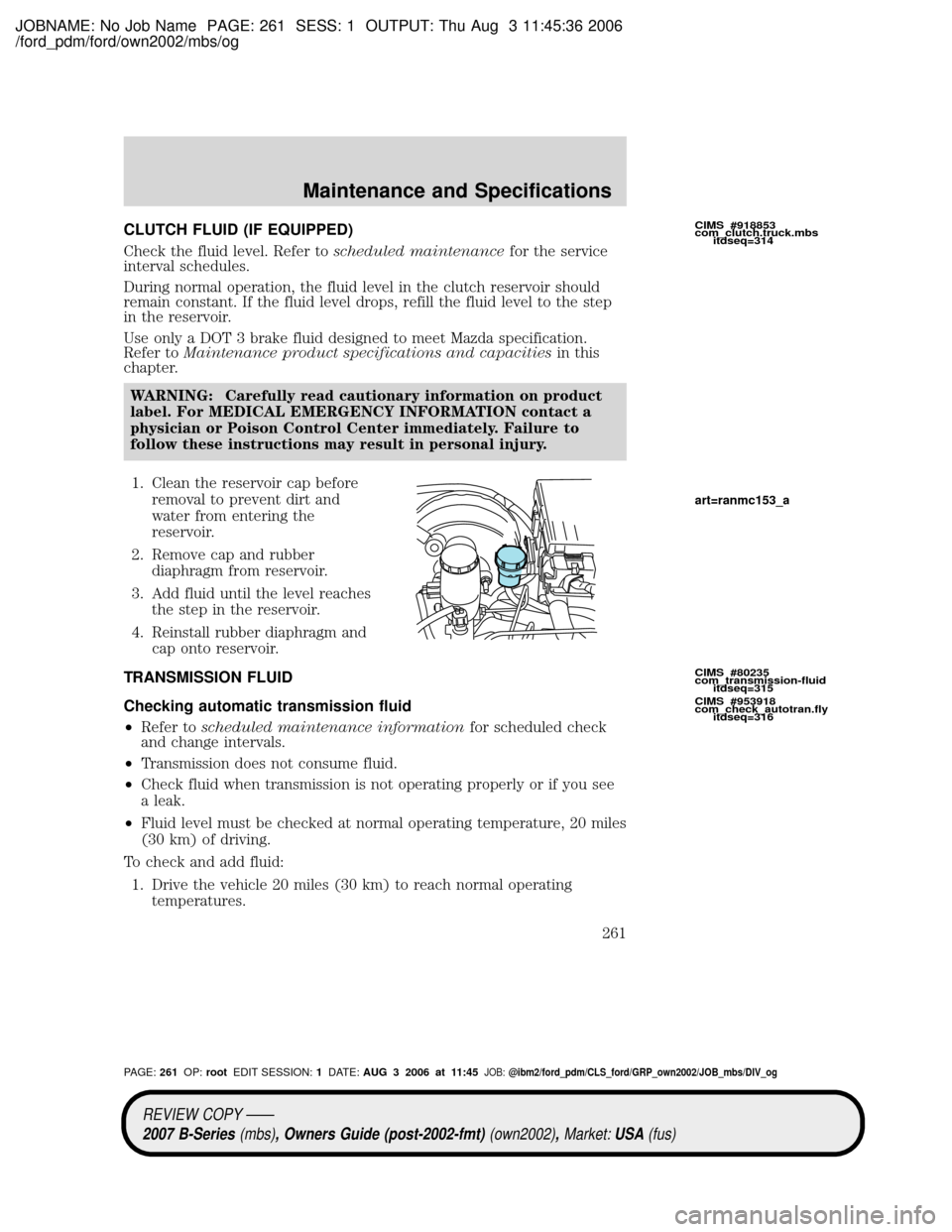

CLUTCH FLUID (IF EQUIPPED)
Check the fluid level. Refer toscheduled maintenancefor the service
interval schedules.
During normal operation, the fluid level in the clutch reservoir should
remain constant. If the fluid level drops, refill the fluid level to the step
in the reservoir.
Use only a DOT 3 brake fluid designed to meet Mazda specification.
Refer toMaintenance product specifications and capacitiesin this
chapter.
WARNING: Carefully read cautionary information on product
label. For MEDICAL EMERGENCY INFORMATION contact a
physician or Poison Control Center immediately. Failure to
follow these instructions may result in personal injury.
1. Clean the reservoir cap before
removal to prevent dirt and
water from entering the
reservoir.
2. Remove cap and rubber
diaphragm from reservoir.
3. Add fluid until the level reaches
the step in the reservoir.
4. Reinstall rubber diaphragm and
cap onto reservoir.
TRANSMISSION FLUID
Checking automatic transmission fluid
²Refer toscheduled maintenance informationfor scheduled check
and change intervals.
²Transmission does not consume fluid.
²Check fluid when transmission is not operating properly or if you see
a leak.
²Fluid level must be checked at normal operating temperature, 20 miles
(30 km) of driving.
To check and add fluid:
1. Drive the vehicle 20 miles (30 km) to reach normal operating
temperatures.CIMS #918853
com_clutch.truck.mbs
itdseq=314
CIMS #80235
com_transmission-fluid
itdseq=315
CIMS #953918
com_check_autotran.fly
itdseq=316
art=ranmc153_a
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:261OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
261

JOBNAME: No Job Name PAGE: 262 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

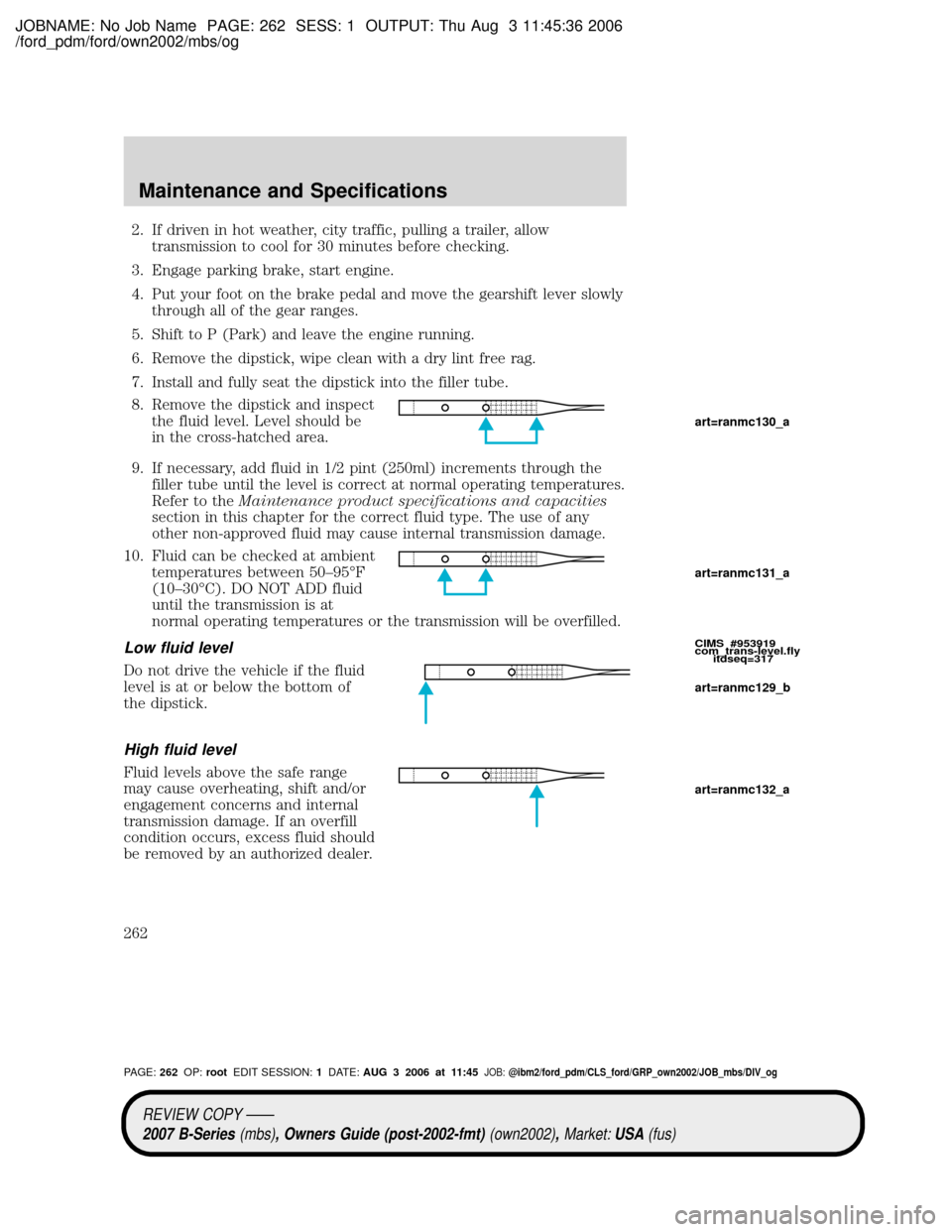

2. If driven in hot weather, city traffic, pulling a trailer, allow
transmission to cool for 30 minutes before checking.
3. Engage parking brake, start engine.
4. Put your foot on the brake pedal and move the gearshift lever slowly
through all of the gear ranges.
5. Shift to P (Park) and leave the engine running.
6. Remove the dipstick, wipe clean with a dry lint free rag.
7. Install and fully seat the dipstick into the filler tube.
8. Remove the dipstick and inspect
the fluid level. Level should be
in the cross-hatched area.
9. If necessary, add fluid in 1/2 pint (250ml) increments through the
filler tube until the level is correct at normal operating temperatures.
Refer to theMaintenance product specifications and capacities
section in this chapter for the correct fluid type. The use of any
other non-approved fluid may cause internal transmission damage.
10. Fluid can be checked at ambient
temperatures between 50±95ÉF
(10±30ÉC). DO NOT ADD fluid
until the transmission is at
normal operating temperatures or the transmission will be overfilled.
Low fluid level
Do not drive the vehicle if the fluid
level is at or below the bottom of
the dipstick.
High fluid level
Fluid levels above the safe range
may cause overheating, shift and/or
engagement concerns and internal
transmission damage. If an overfill
condition occurs, excess fluid should
be removed by an authorized dealer.
CIMS #953919
com_trans-level.fly
itdseq=317
art=ranmc130_a
art=ranmc131_a
art=ranmc129_b
art=ranmc132_a
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:262OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
262

JOBNAME: No Job Name PAGE: 263 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

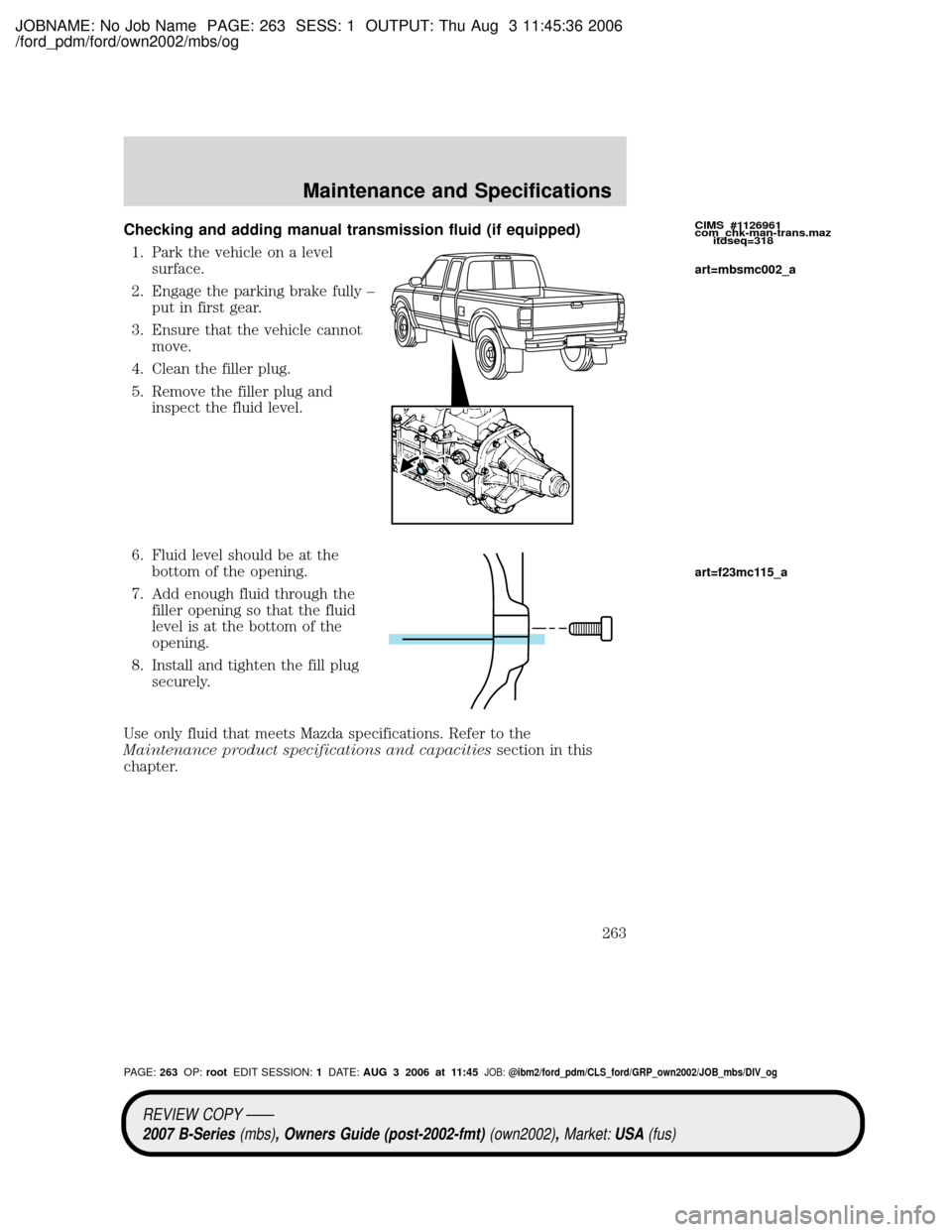

Checking and adding manual transmission fluid (if equipped)
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully ±
put in first gear.
3. Ensure that the vehicle cannot
move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at the
bottom of the opening.
7. Add enough fluid through the
filler opening so that the fluid
level is at the bottom of the
opening.
8. Install and tighten the fill plug
securely.
Use only fluid that meets Mazda specifications. Refer to the
Maintenance product specifications and capacitiessection in this
chapter.CIMS #1126961
com_chk-man-trans.maz
itdseq=318
art=mbsmc002_a
art=f23mc115_a
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:263OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
263

JOBNAME: No Job Name PAGE: 264 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

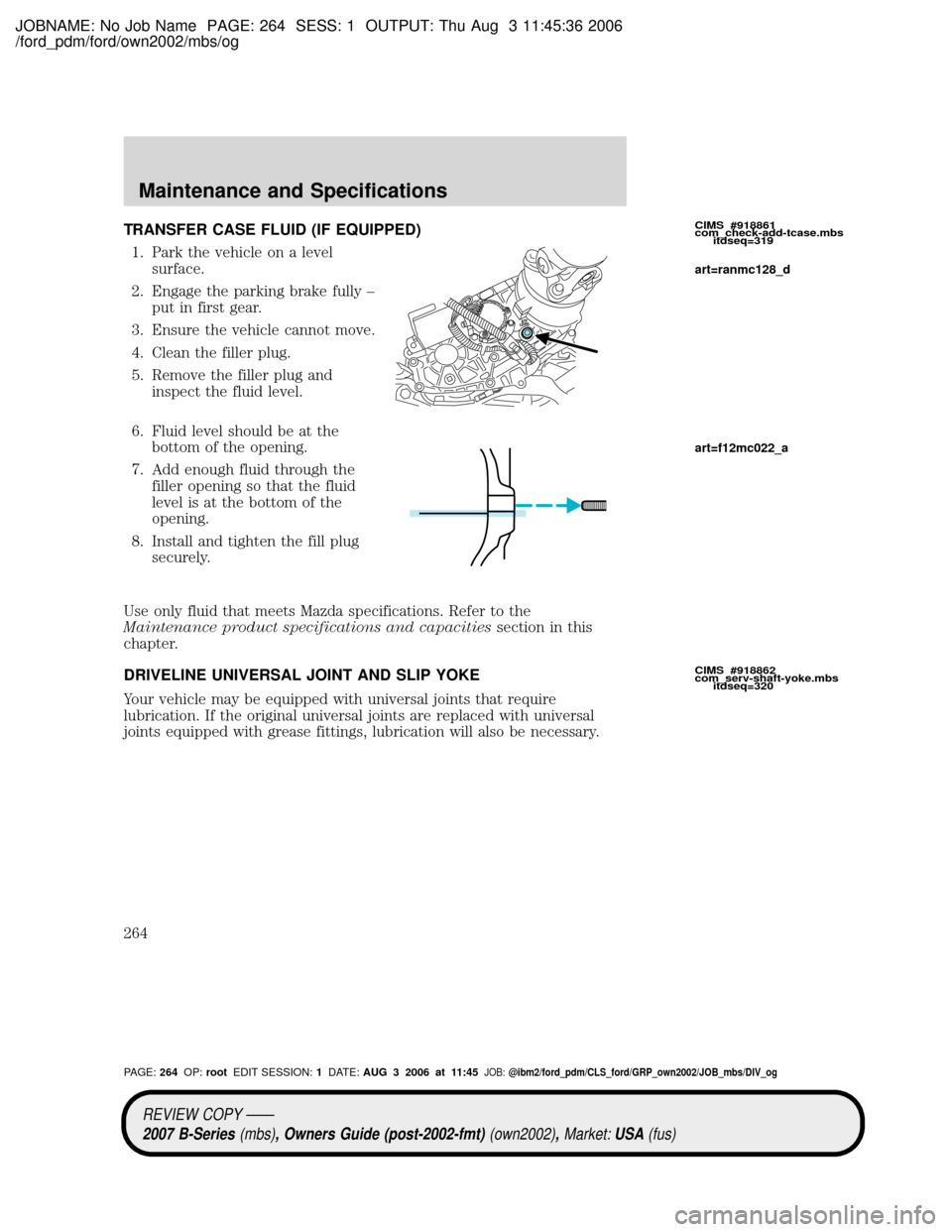

TRANSFER CASE FLUID (IF EQUIPPED)
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully ±
put in first gear.
3. Ensure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at the
bottom of the opening.
7. Add enough fluid through the
filler opening so that the fluid
level is at the bottom of the
opening.
8. Install and tighten the fill plug
securely.
Use only fluid that meets Mazda specifications. Refer to the
Maintenance product specifications and capacitiessection in this
chapter.
DRIVELINE UNIVERSAL JOINT AND SLIP YOKE
Your vehicle may be equipped with universal joints that require
lubrication. If the original universal joints are replaced with universal
joints equipped with grease fittings, lubrication will also be necessary.CIMS #918861
com_check-add-tcase.mbs
itdseq=319
CIMS #918862
com_serv-shaft-yoke.mbs
itdseq=320
art=ranmc128_d
art=f12mc022_a
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:264OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
264

JOBNAME: No Job Name PAGE: 265 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

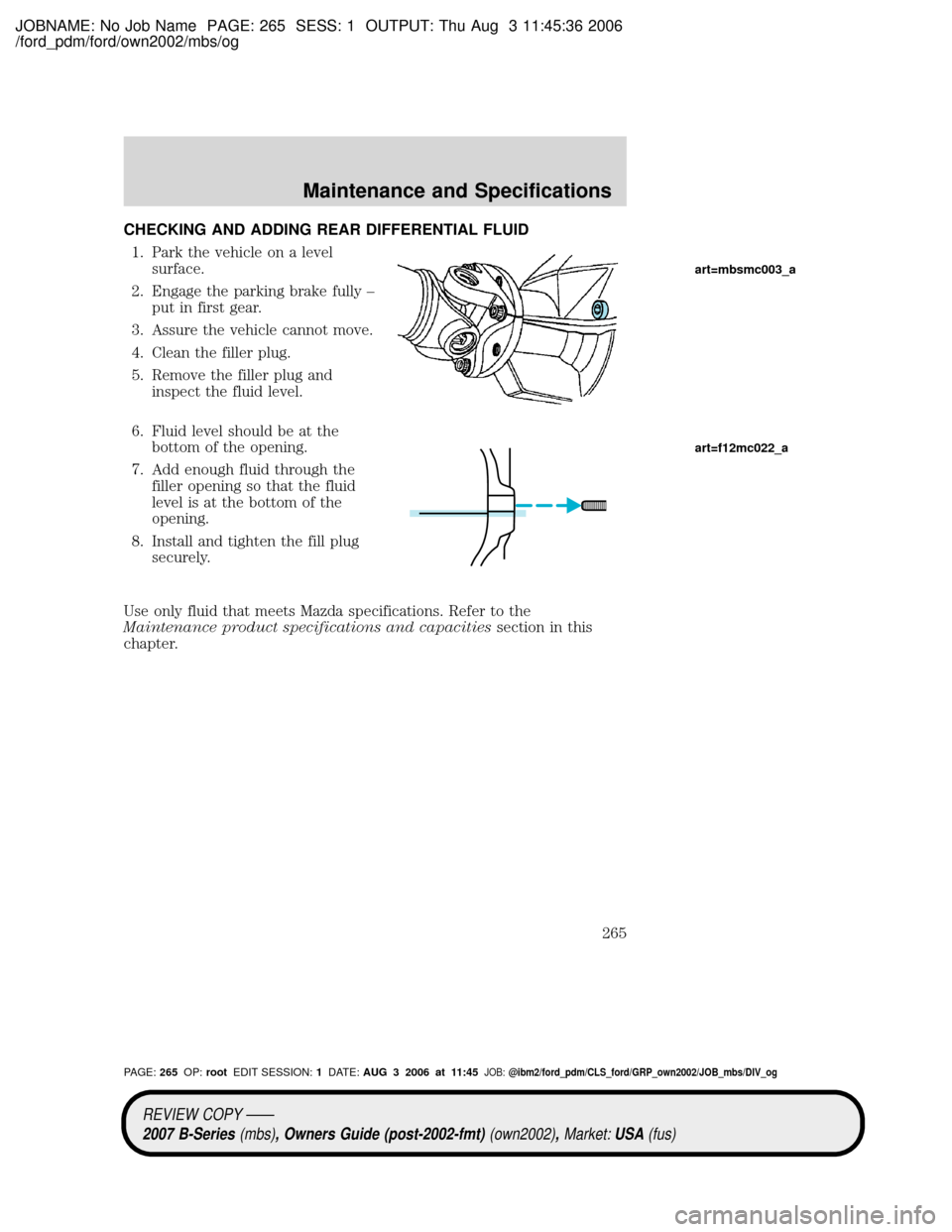

CHECKING AND ADDING REAR DIFFERENTIAL FLUID
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully ±
put in first gear.
3. Assure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at the
bottom of the opening.
7. Add enough fluid through the
filler opening so that the fluid
level is at the bottom of the
opening.
8. Install and tighten the fill plug
securely.
Use only fluid that meets Mazda specifications. Refer to the
Maintenance product specifications and capacitiessection in this
chapter.
art=mbsmc003_a
art=f12mc022_a
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:265OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
265

JOBNAME: No Job Name PAGE: 266 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

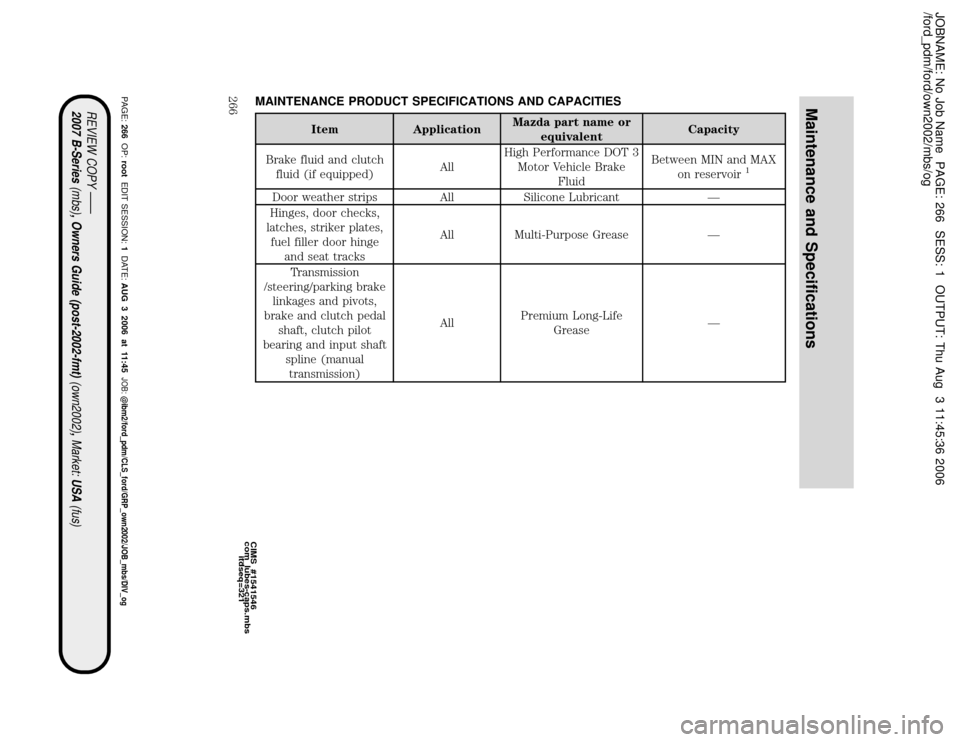

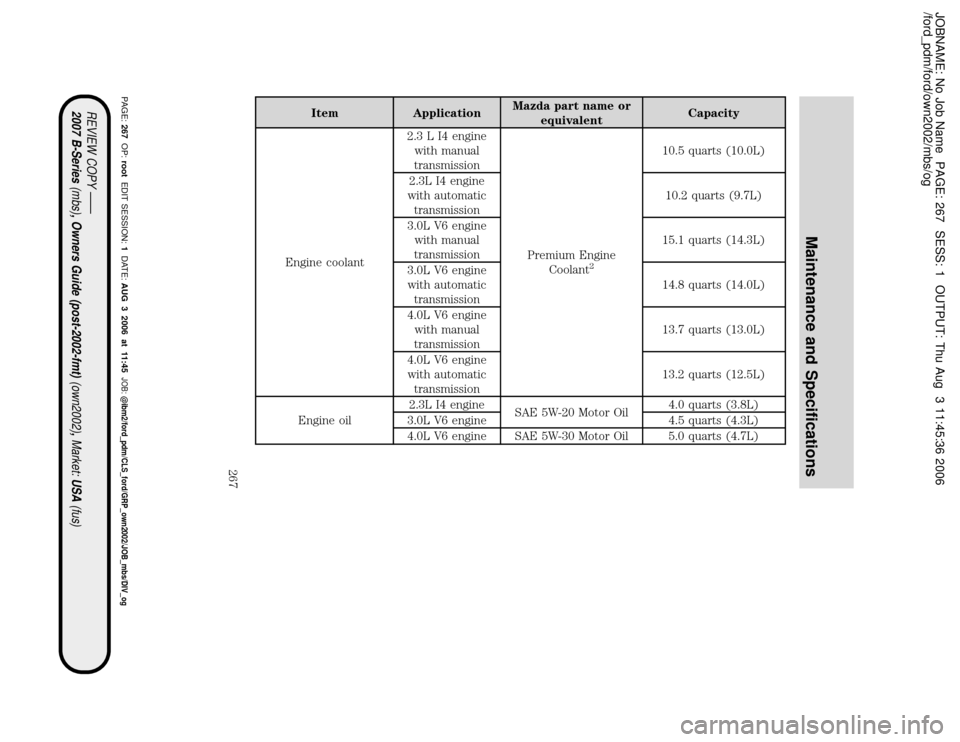

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item ApplicationMazda part name or
equivalentCapacity
Brake fluid and clutch
fluid (if equipped)AllHigh Performance DOT 3
Motor Vehicle Brake
FluidBetween MIN and MAX
on reservoir
1
Door weather strips All Silicone Lubricant Ð
Hinges, door checks,
latches, striker plates,
fuel filler door hinge
and seat tracksAll Multi-Purpose Grease Ð
Transmission
/steering/parking brake
linkages and pivots,
brake and clutch pedal
shaft, clutch pilot
bearing and input shaft
spline (manual
transmission)AllPremium Long-Life
GreaseÐ
CIMS #1541546
com_lubes-caps.mbs
itdseq=321
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:266OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
266

JOBNAME: No Job Name PAGE: 267 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og
Item ApplicationMazda part name or
equivalentCapacity
Engine coolant2.3 L I4 engine
with manual
transmission
Premium Engine
Coolant
2
10.5 quarts (10.0L)
2.3L I4 engine
with automatic
transmission10.2 quarts (9.7L)
3.0L V6 engine
with manual
transmission15.1 quarts (14.3L)
3.0L V6 engine
with automatic
transmission14.8 quarts (14.0L)
4.0L V6 engine
with manual
transmission13.7 quarts (13.0L)
4.0L V6 engine
with automatic
transmission13.2 quarts (12.5L)
Engine oil2.3L I4 engine
SAE 5W-20 Motor Oil4.0 quarts (3.8L)
3.0L V6 engine 4.5 quarts (4.3L)
4.0L V6 engine SAE 5W-30 Motor Oil 5.0 quarts (4.7L)
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:267OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
267

JOBNAME: No Job Name PAGE: 268 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

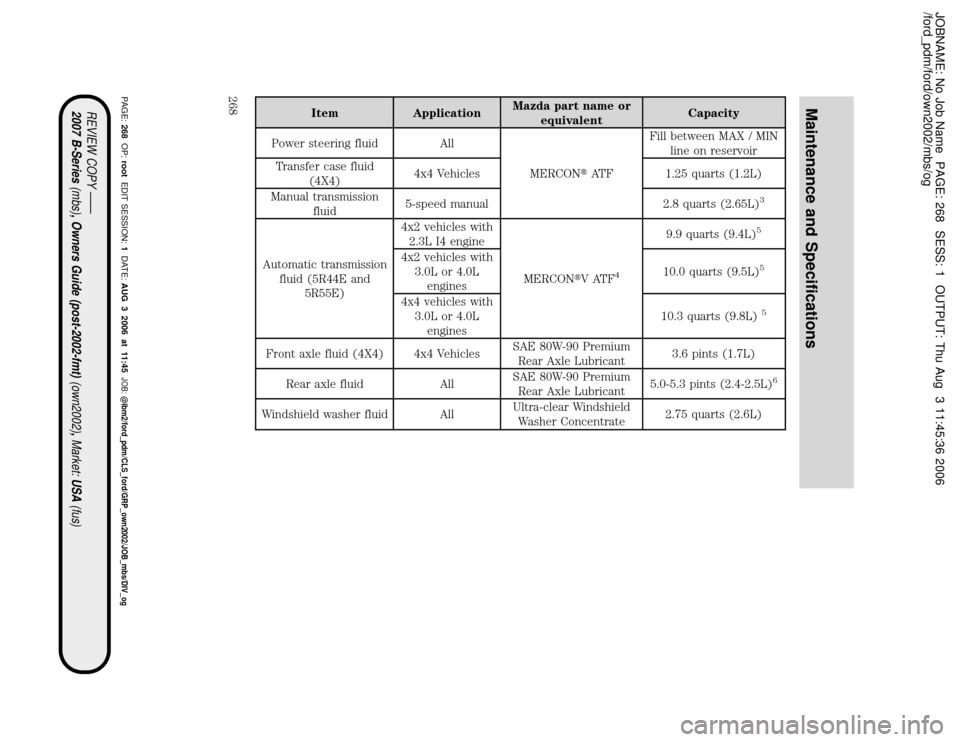

Item ApplicationMazda part name or
equivalentCapacity
Power steering fluid All
MERCONtAT FFill between MAX / MIN
line on reservoir
Transfer case fluid
(4X4)4x4 Vehicles 1.25 quarts (1.2L)
Manual transmission
fluid5-speed manual 2.8 quarts (2.65L)
3
Automatic transmission
fluid (5R44E and
5R55E)4x2 vehicles with
2.3L I4 engine
MERCONtVATF
4
9.9 quarts (9.4L)
5
4x2 vehicles with
3.0L or 4.0L
engines10.0 quarts (9.5L)
5
4x4 vehicles with
3.0L or 4.0L
engines10.3 quarts (9.8L)
5
Front axle fluid (4X4) 4x4 VehiclesSAE 80W-90 Premium
Rear Axle Lubricant3.6 pints (1.7L)
Rear axle fluid AllSAE 80W-90 Premium
Rear Axle Lubricant5.0-5.3 pints (2.4-2.5L)
6
Windshield washer fluid AllUltra-clear Windshield
Washer Concentrate2.75 quarts (2.6L)
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:268OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
268

JOBNAME: No Job Name PAGE: 269 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

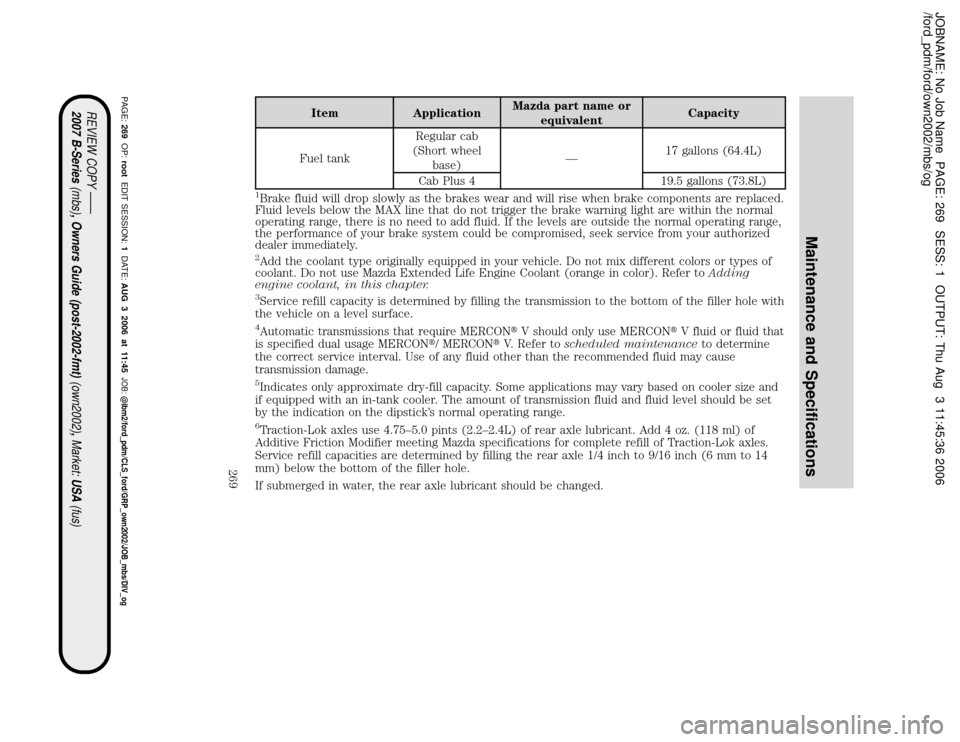

Item ApplicationMazda part name or
equivalentCapacity
Fuel tankRegular cab
(Short wheel
base)Ð17 gallons (64.4L)
Cab Plus 4 19.5 gallons (73.8L)
1Brake fluid will drop slowly as the brakes wear and will rise when brake components are replaced.
Fluid levels below the MAX line that do not trigger the brake warning light are within the normal
operating range, there is no need to add fluid. If the levels are outside the normal operating range,
the performance of your brake system could be compromised, seek service from your authorized
dealer immediately.2Add the coolant type originally equipped in your vehicle. Do not mix different colors or types of
coolant. Do not use Mazda Extended Life Engine Coolant (orange in color). Refer toAdding
engine coolant, in this chapter.3Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface.4Automatic transmissions that require MERCONtV should only use MERCONtV fluid or fluid that
is specified dual usage MERCONt/ MERCONtV. Refer toscheduled maintenanceto determine
the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.5Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick's normal operating range.6Traction-Lok axles use 4.75±5.0 pints (2.2±2.4L) of rear axle lubricant. Add 4 oz. (118 ml) of
Additive Friction Modifier meeting Mazda specifications for complete refill of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6 mm to 14
mm) below the bottom of the filler hole.
If submerged in water, the rear axle lubricant should be changed.
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:269OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
269

JOBNAME: No Job Name PAGE: 270 SESS: 1 OUTPUT: Thu Aug 3 11:45:36 2006
/ford_pdm/ford/own2002/mbs/og

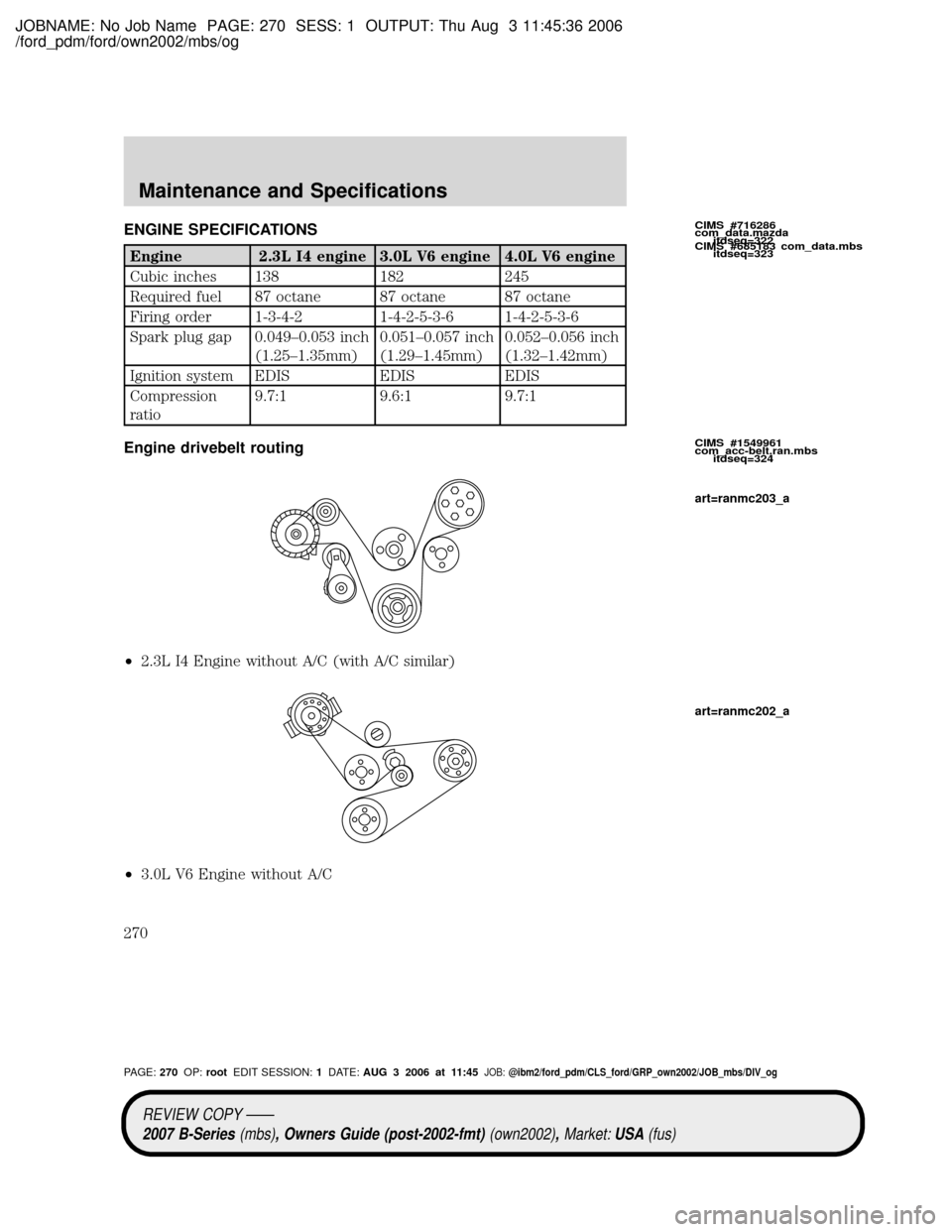

ENGINE SPECIFICATIONS
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap 0.049±0.053 inch
(1.25±1.35mm)0.051±0.057 inch
(1.29±1.45mm)0.052±0.056 inch
(1.32±1.42mm)
Ignition system EDIS EDIS EDIS
Compression
ratio9.7:1 9.6:1 9.7:1
Engine drivebelt routing
²2.3L I4 Engine without A/C (with A/C similar)
²3.0L V6 Engine without A/C
CIMS #716286
com_data.mazda
itdseq=322
CIMS #685183 com_data.mbs
itdseq=323
CIMS #1549961
com_acc-belt.ran.mbs
itdseq=324
art=ranmc203_a
art=ranmc202_a
REVIEW COPY ÐÐ
2007 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:270OP:rootEDIT SESSION:1DATE:AUG 3 2006 at 11:45JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Maintenance and Specifications
270
