MAZDA MODEL B2300 TRUCK 2008 Owners Manual (in English)

ItemApplicationMazda part name or
equivalent Capacity
Engine coolant 2.3 L I4 engine
with manual
transmission
Premium EngineCoolant
2
10.5 quarts (10.0L)
2.3L I4 engine
with automatic transmission 10.2 quarts (9.7L)
3.0L V6 engine with manual
transmission 15.1 quarts (14.3L)
3.0L V6 engine with automatic transmission 14.8 quarts (14.0L)
4.0L V6 engine with manual
transmission 13.7 quarts (13.0L)
4.0L V6 engine with automatic transmission 13.2 quarts (12.5L)
Engine oil 2.3L I4 engine
SAE 5W-20 Motor Oil 4.0 quarts (3.8L)
3.0L V6 engine 4.5 quarts (4.3L)
4.0L V6 engine SAE 5W-30 Motor Oil 5.0 quarts (4.7L)
Power steering fluid AllMERCONVATF Fill between MAX / MIN
line on reservoir
2008 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
261

ItemApplicationMazda part name or
equivalent Capacity
Transfer case fluid (4X4) 4x4 Vehicles Transfer Case Fluid
1.25 quarts (1.2L)
Manual transmission fluid 5-speed manual MERCON
V ATF 2.8 quarts (2.65L)
3
Automatic transmission
fluid (5R44E and 5R55E) 4x2 vehicles with
2.3L I4 engine
MERCONVATF
4
9.9 quarts (9.4L)
5
4x2 vehicles with
3.0L or 4.0Lengines 10.0 quarts (9.5L)
5
4x4 vehicles with
3.0L or 4.0Lengines 10.3 quarts (9.8L)
5
Front axle fluid (4X4) 4x4 Vehicles
SAE 80W-90 Premium
Rear Axle Lubricant 3.6 pints (1.7L)
Rear axle fluid AllSAE 80W-90 Premium
Rear Axle Lubricant 5.0-5.3 pints (2.4-2.5L)
6
Windshield washer fluid All Ultra-clear Windshield
Washer Concentrate 2.75 quarts (2.6L)
2008 B-Series
(mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
262

ItemApplicationMazda part name or
equivalent Capacity
Fuel tank Regular cab
(Short wheel base) —
17 gallons (64.4L)
Cab Plus 4 —19.5 gallons (73.8L)
1Brake fluid will drop slowly as the brakes wear and will rise when brake components are replaced.
Fluid levels below the MAX line that do not trigger the brake warning light are within the normal
operating range, there is no need to add fluid. If the levels are outside the normal operating range,
the performance of your brake system could be compromised, seek service from your authorized
dealer immediately.2Add the coolant type originally equipped in your vehicle. Do not mix different colors or types of
coolant. Do not use Mazda Extended Life Engine Coolant (orange in color). Refer to Adding
engine coolant, in this chapter.3Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface.4Automatic transmissions that require MERCON V should only use MERCONV fluid or fluid that
is specified dual usage MERCON/MERCON V. Refer toscheduled maintenance to determine
the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.5Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.6Traction-Lok axles use 4.75–5.0 pints (2.2–2.4L) of rear axle lubricant. Add 4 oz. (118 ml) of
Additive Friction Modifier meeting Mazda specifications for complete refill of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6 mm to 14
mm) below the bottom of the filler hole.
If submerged in water, the rear axle lubricant should be changed.
2008 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
263

ENGINE SPECIFICATIONS
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap 0.049–0.053 inch(1.25–1.35mm)0.051–0.057 inch
(1.29–1.45mm)0.052–0.056 inch
(1.32–1.42mm)
Ignition system EDIS EDISEDIS
Compression
ratio 9.7:1
9.6:19.7:1
Engine drivebelt routing
• 2.3L I4 Engine without A/C (with A/C similar)
• 3.0L V6 Engine without A/C
2008 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
264

•3.0L V6 Engine with A/C
• 4.0L V6 Engine
2008 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
265

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT:XX RC: XXDSO:
WB BRK INT TR TP/PS R AXLE TR SPR XXXXX
XXX X XX X XX X XX \
XXX
XXXXXXXXXXXXX XXX XXXX-XXXXXXX-XX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
VIN: XXXXXXXXXXXXXXXXX XXXXX
TYPE: XXX XXXXX
DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG
FRONT GAWR: XXXXL REAR GAWR: XXXXLB
AT XXX kPa/XX PSI COLD AT XXX kPa/XX PSI COLD XXXXKG
WITH
XXXX/XXXXXXX TIRES
XXXX.XX RIMSXXXXKG
WITH
XXXX/XXXXXXX TIRES
XXXX.XX RIMS
FOR MAZDA MOTOR CORPORATION
XXXXXXXXXXXXXXXXX
2008 B-Series(mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
266

The Vehicle Identification Number (VIN) contains the following
information:1. World manufacturer identifier
2. Brake system / Gross Vehicle Weight Rating (GVWR) /
Restraint System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic (5R44E/5R55E) D
Five-speed manual (HD) J
Five-speed manual (R1) R
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XX RC: XXDSO:
WB BRK INT TR TP/PS R AXLE TR SPR XXXXX
XXX X XX X XX X XX \
XXX
XXXXXXXXXXXXX XXX XXXX-XXXXXXX-XX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
VIN: XXXXXXXXXXXXXXXXX XXXXX
TYPE: XXX XXXXX
DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG
FRONT GAWR: XXXXL REAR GAWR: XXXXLB
AT XXX kPa/XX PSI COLD AT XXX kPa/XX PSI COLD XXXXKG
WITH
XXXX/XXXXXXX TIRES
XXXX.XX RIMSXXXXKG
WITH
XXXX/XXXXXXX TIRES
XXXX.XX RIMS
FOR MAZDA MOTOR CORPORATION
2008 B-Series(mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
267

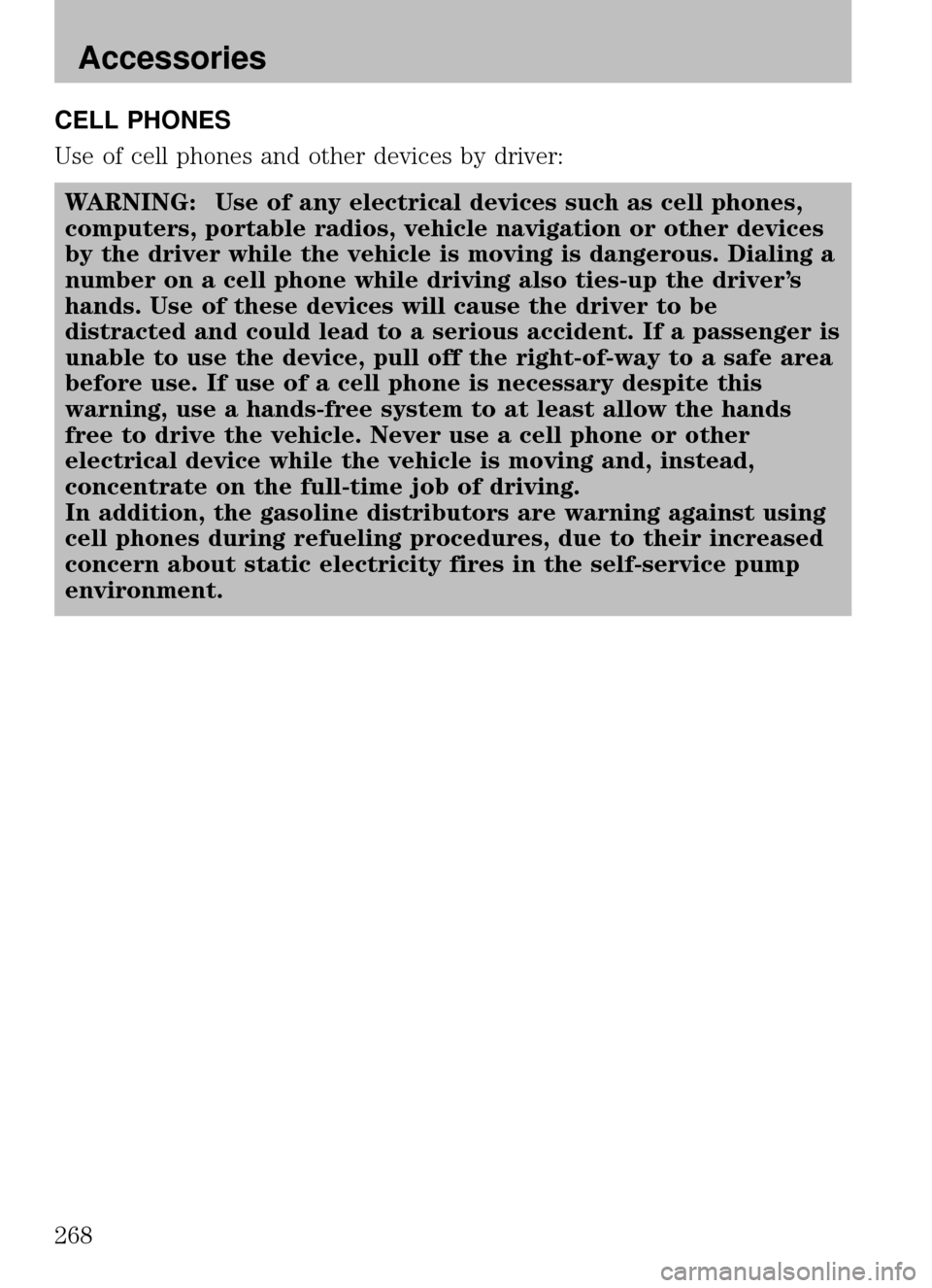

CELL PHONES
Use of cell phones and other devices by driver:WARNING: Use of any electrical devices such as cell phones,
computers, portable radios, vehicle navigation or other devices
by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver’s
hands. Use of these devices will cause the driver to be
distracted and could lead to a serious accident. If a passenger is
unable to use the device, pull off the right-of-way to a safe area
before use. If use of a cell phone is necessary despite this
warning, use a hands-free system to at least allow the hands
free to drive the vehicle. Never use a cell phone or other
electrical device while the vehicle is moving and, instead,
concentrate on the full-time job of driving.
In addition, the gasoline distributors are warning against using
cell phones during refueling procedures, due to their increased
concern about static electricity fires in the self-service pump
environment.
2008 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Accessories
268

A
