WARNING: An airbag can kill or injure a child in a child seat.
Child seats should never be placed in the front seats, unless
passenger airbag switch is turned off. SeePassenger airbag
on/off switch in this chapter.
WARNING: Rear facing child seats should NEVER be placed in
the front seats unless the passenger airbag switch is turned off.
WARNING: Booster seats must be installed only in seating
positions equipped with a combination lap/shoulder belt.
WARNING: To reduce the risk of injury, make sure children sit
where they can be properly restrained.
How does the airbag supplemental restraint system work?
The airbag SRS is designed to
activate when the vehicle sustains
sufficient longitudinal deceleration.
The fact that the airbags did not
inflate in a collision does not mean
that something is wrong with the
system. Rather, it means the forces
were not of the type sufficient to
cause activation. Airbags are
designed to inflate in frontal and
near-frontal collisions, not rollover,
side-impact, or rear-impacts.
CIMS #683852
com_how_work.mbs itdseq=117
art=comss002_a
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 81OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
81
Page 82 of 266
JOBNAME: No Job Name PAGE: 82 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og
The airbags inflate and deflate
rapidly upon activation. After airbag
deployment, it is normal to notice a
smoke-like, powdery residue or
smell the burnt propellant. This may
consist of cornstarch, talcum
powder (to lubricate the bag) or
sodium compounds (e.g., baking
soda) that result from the
combustion process that inflates the
airbag. Small amounts of sodium
hydroxide may be present which
may irritate the skin and eyes, but
none of the residue is toxic.
While the system is designed to help
reduce serious injuries, it may also
cause minor abrasions, swelling or temporary hearing loss. Because
airbags must inflate rapidly and with considerable force, there is the risk
of death or serious injuries such as fractures, facial and eye injuries or
internal injuries, particularly to occupants who are not properly
restrained or are otherwise out of position at the time of airbag
deployment. Thus, it is extremely important that occupants be properly
restrained as far away from the airbag module as possible while
maintaining vehicle control.WARNING: Several airbag system components get hot after
inflation. Do not touch them after inflation or you may be
burned.
WARNING: If the air bag has deployed, the air bag will not
function again and must be replaced immediately. If the air bag
is not replaced, the unrepaired area will increase the risk of
injury in a collision.
The SRS consists of:
² driver and passenger airbag modules (which include the inflators and
airbags),
² passenger airbag deactivation switch and restraint control module
(RCM)
² a readiness light and tone,
art=comss003_b
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 82OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
82
Page 83 of 266
JOBNAME: No Job Name PAGE: 83 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

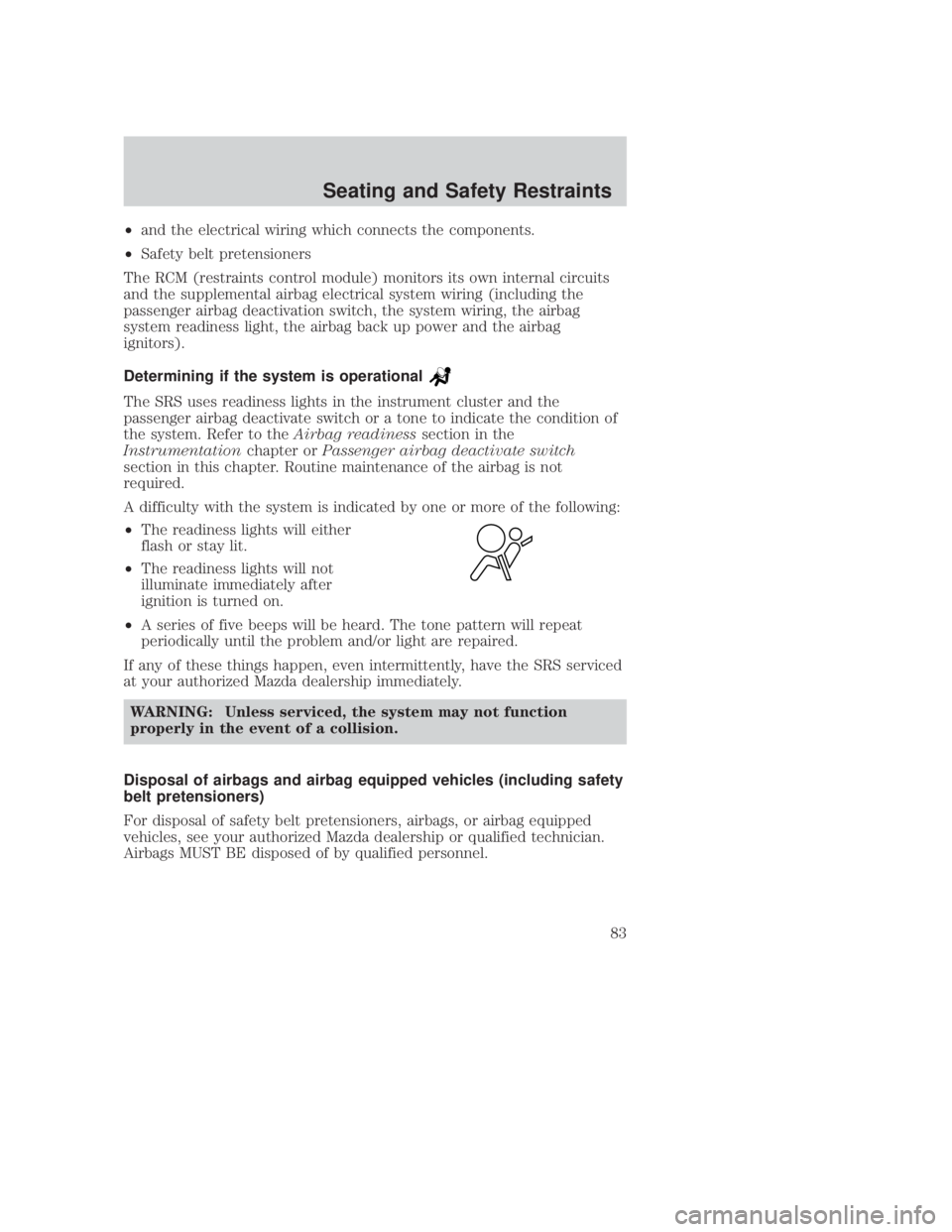

²and the electrical wiring which connects the components.
² Safety belt pretensioners
The RCM (restraints control module) monitors its own internal circuits
and the supplemental airbag electrical system wiring (including the
passenger airbag deactivation switch, the system wiring, the airbag
system readiness light, the airbag back up power and the airbag
ignitors).
Determining if the system is operational
The SRS uses readiness lights in the instrument cluster and the
passenger airbag deactivate switch or a tone to indicate the condition of
the system. Refer to the Airbag readinesssection in the
Instrumentation chapter orPassenger airbag deactivate switch
section in this chapter. Routine maintenance of the airbag is not
required.
A difficulty with the system is indicated by one or more of the following:
² The readiness lights will either
flash or stay lit.
² The readiness lights will not
illuminate immediately after
ignition is turned on.
² A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at your authorized Mazda dealership immediately.
WARNING: Unless serviced, the system may not function
properly in the event of a collision.
Disposal of airbags and airbag equipped vehicles (including safety
belt pretensioners)
For disposal of safety belt pretensioners, airbags, or airbag equipped
vehicles, see your authorized Mazda dealership or qualified technician.
Airbags MUST BE disposed of by qualified personnel.
CIMS #683853
com_deter_operational.mbs itdseq=118
CIMS #683854
com_disposing.mbs itdseq=119
art=ranis319_a
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 83OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
83
Page 84 of 266
JOBNAME: No Job Name PAGE: 84 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

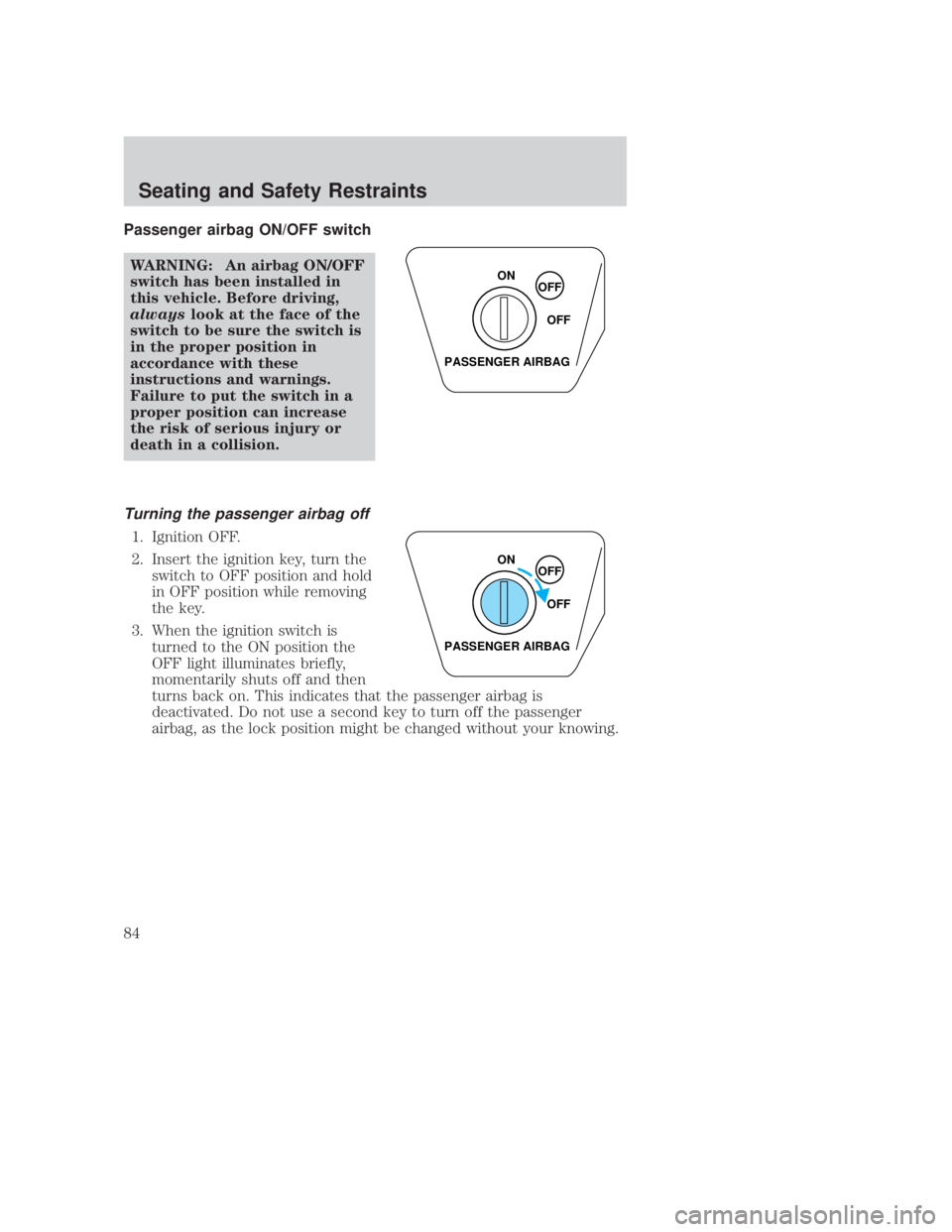

Passenger airbag ON/OFF switchWARNING: An airbag ON/OFF
switch has been installed in
this vehicle. Before driving,
always look at the face of the
switch to be sure the switch is
in the proper position in
accordance with these
instructions and warnings.
Failure to put the switch in a
proper position can increase
the risk of serious injury or
death in a collision.
Turning the passenger airbag off
1. Ignition OFF.
2. Insert the ignition key, turn the switch to OFF position and hold
in OFF position while removing
the key.
3. When the ignition switch is turned to the ON position the
OFF light illuminates briefly,
momentarily shuts off and then
turns back on. This indicates that the passenger airbag is
deactivated. Do not use a second key to turn off the passenger
airbag, as the lock position might be changed without your knowing.
ON OFF
OFF
PASSENGER AIRBAG
ON OFF
OFF
PASSENGER AIRBAG
CIMS #683855
com_deactivate.mbs itdseq=120
art=ranss502_a
art=ranss501_a
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 84OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
84
Page 85 of 266
JOBNAME: No Job Name PAGE: 85 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

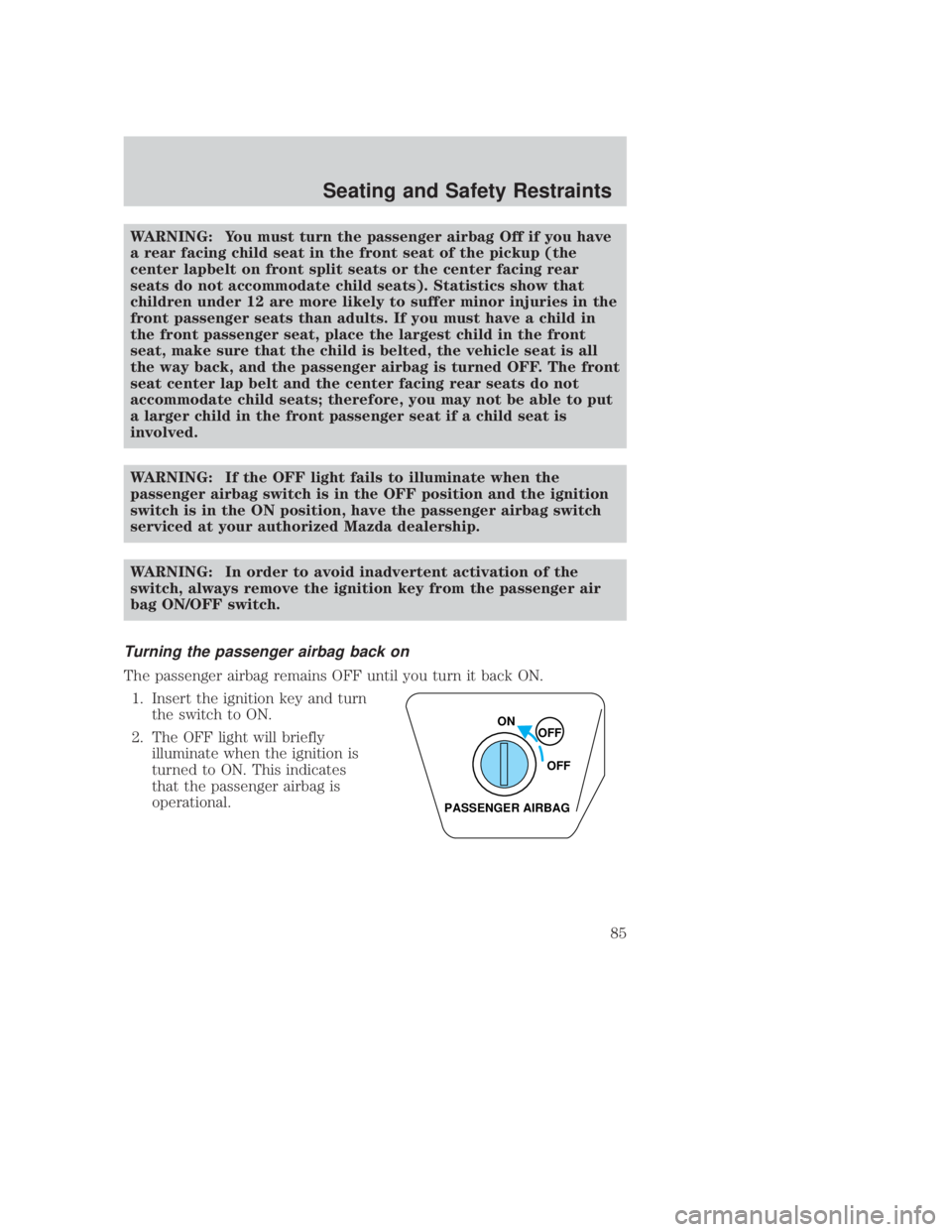

WARNING: You must turn the passenger airbag Off if you have
a rear facing child seat in the front seat of the pickup (the
center lapbelt on front split seats or the center facing rear
seats do not accommodate child seats). Statistics show that
children under 12 are more likely to suffer minor injuries in the
front passenger seats than adults. If you must have a child in
the front passenger seat, place the largest child in the front
seat, make sure that the child is belted, the vehicle seat is all
the way back, and the passenger airbag is turned OFF. The front
seat center lap belt and the center facing rear seats do not
accommodate child seats; therefore, you may not be able to put
a larger child in the front passenger seat if a child seat is
involved.
WARNING: If the OFF light fails to illuminate when the
passenger airbag switch is in the OFF position and the ignition
switch is in the ON position, have the passenger airbag switch
serviced at your authorized Mazda dealership.
WARNING: In order to avoid inadvertent activation of the
switch, always remove the ignition key from the passenger air
bag ON/OFF switch.
Turning the passenger airbag back on
The passenger airbag remains OFF until you turn it back ON.1. Insert the ignition key and turn the switch to ON.
2. The OFF light will briefly illuminate when the ignition is
turned to ON. This indicates
that the passenger airbag is
operational.
ON OFF
OFF
PASSENGER AIRBAG
art=ranss500_a
REVIEW COPY ÐÐ2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 85OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
85
Page 86 of 266
JOBNAME: No Job Name PAGE: 86 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

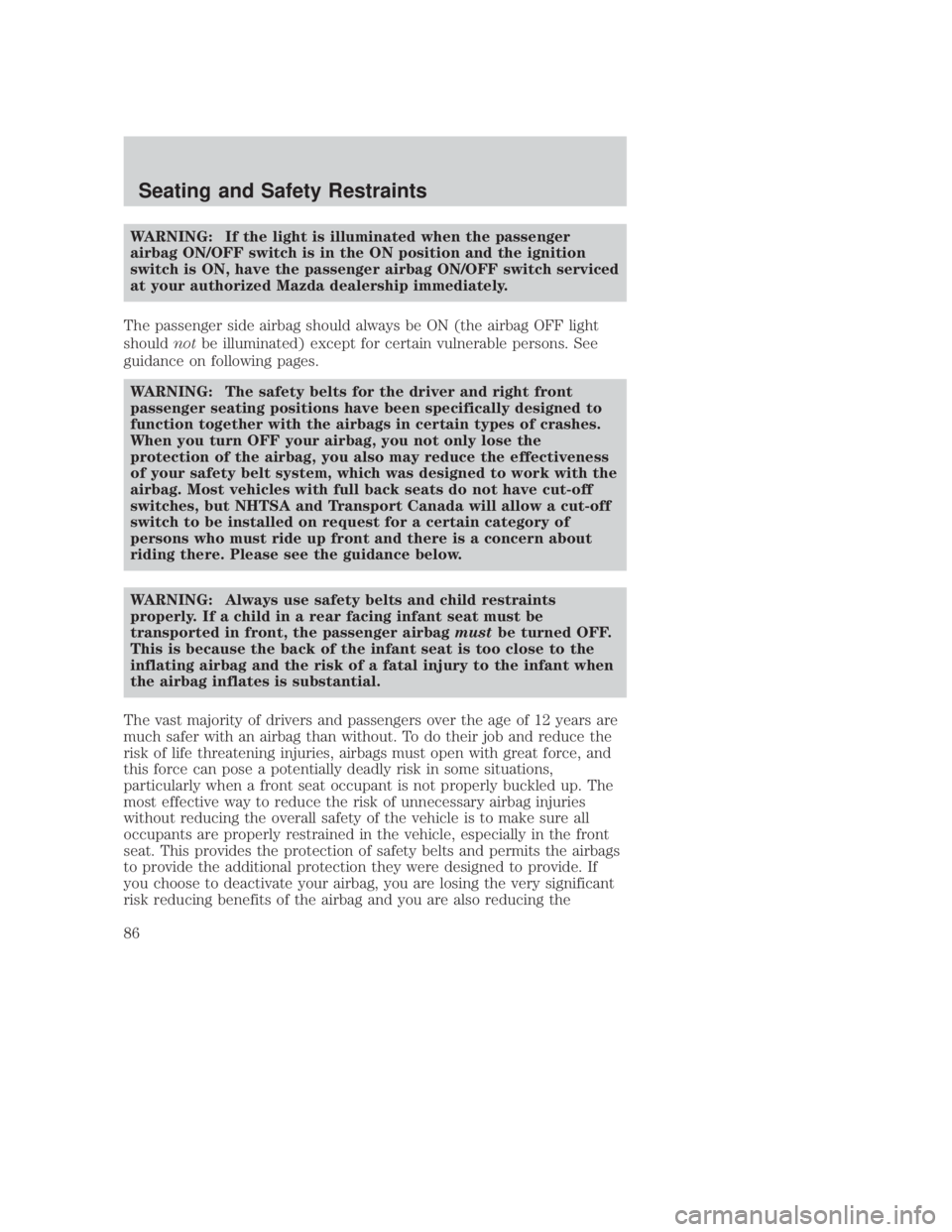

WARNING: If the light is illuminated when the passenger
airbag ON/OFF switch is in the ON position and the ignition
switch is ON, have the passenger airbag ON/OFF switch serviced
at your authorized Mazda dealership immediately.
The passenger side airbag should always be ON (the airbag OFF light
should notbe illuminated) except for certain vulnerable persons. See
guidance on following pages.
WARNING: The safety belts for the driver and right front
passenger seating positions have been specifically designed to
function together with the airbags in certain types of crashes.
When you turn OFF your airbag, you not only lose the
protection of the airbag, you also may reduce the effectiveness
of your safety belt system, which was designed to work with the
airbag. Most vehicles with full back seats do not have cut-off
switches, but NHTSA and Transport Canada will allow a cut-off
switch to be installed on request for a certain category of
persons who must ride up front and there is a concern about
riding there. Please see the guidance below.
WARNING: Always use safety belts and child restraints
properly. If a child in a rear facing infant seat must be
transported in front, the passenger airbag mustbe turned OFF.
This is because the back of the infant seat is too close to the
inflating airbag and the risk of a fatal injury to the infant when
the airbag inflates is substantial.
The vast majority of drivers and passengers over the age of 12 years are
much safer with an airbag than without. To do their job and reduce the
risk of life threatening injuries, airbags must open with great force, and
this force can pose a potentially deadly risk in some situations,
particularly when a front seat occupant is not properly buckled up. The
most effective way to reduce the risk of unnecessary airbag injuries
without reducing the overall safety of the vehicle is to make sure all
occupants are properly restrained in the vehicle, especially in the front
seat. This provides the protection of safety belts and permits the airbags
to provide the additional protection they were designed to provide. If
you choose to deactivate your airbag, you are losing the very significant
risk reducing benefits of the airbag and you are also reducing the
REVIEW COPY ÐÐ 2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 86OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
86
Page 87 of 266
JOBNAME: No Job Name PAGE: 87 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

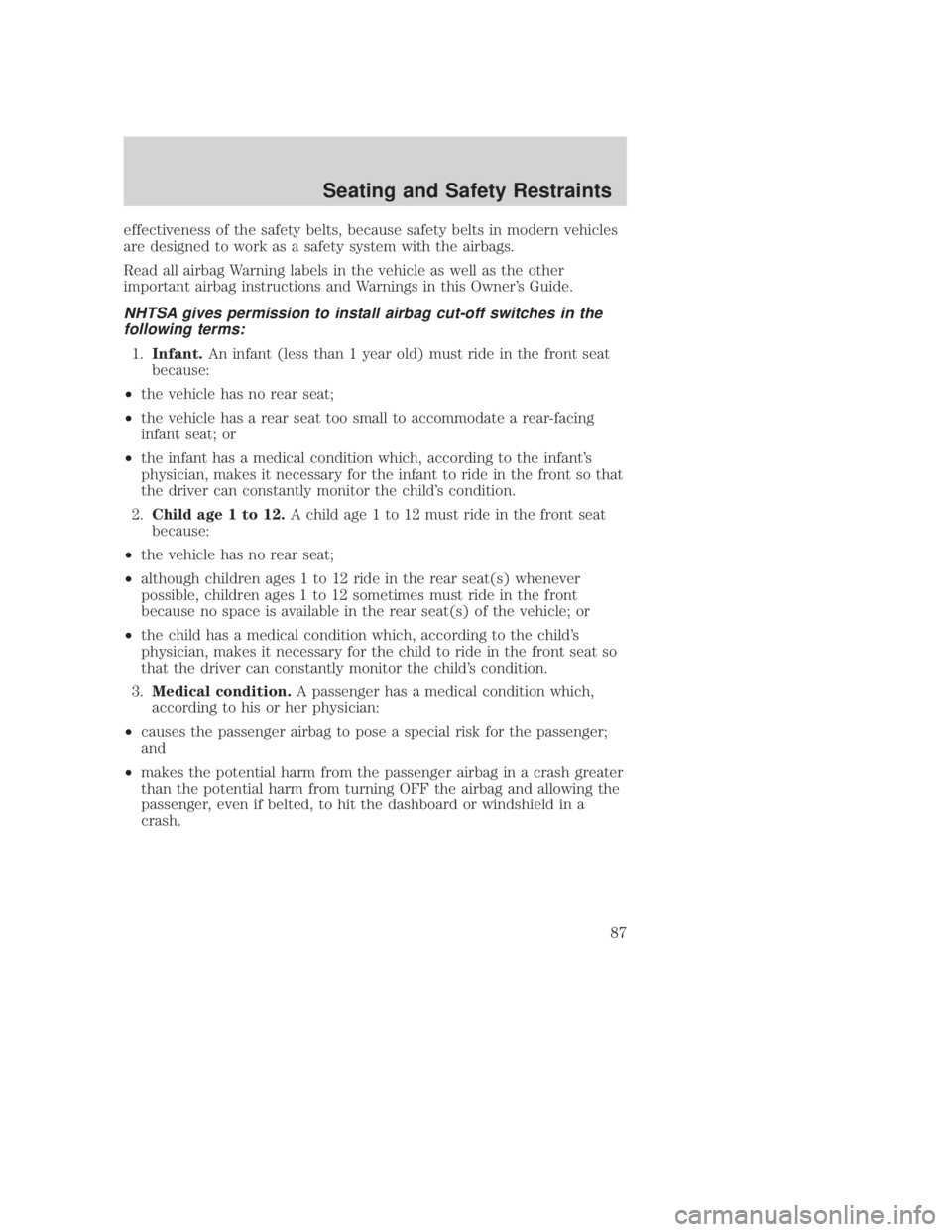

effectiveness of the safety belts, because safety belts in modern vehicles
are designed to work as a safety system with the airbags.
Read all airbag Warning labels in the vehicle as well as the other
important airbag instructions and Warnings in this Owner's Guide.
NHTSA gives permission to install airbag cut-off switches in thefollowing terms:
1. Infant. An infant (less than 1 year old) must ride in the front seat
because:
² the vehicle has no rear seat;
² the vehicle has a rear seat too small to accommodate a rear-facing
infant seat; or
² the infant has a medical condition which, according to the infant's
physician, makes it necessary for the infant to ride in the front so that
the driver can constantly monitor the child's condition.
2. Child age 1 to 12. A child age 1 to 12 must ride in the front seat
because:
² the vehicle has no rear seat;
² although children ages 1 to 12 ride in the rear seat(s) whenever
possible, children ages 1 to 12 sometimes must ride in the front
because no space is available in the rear seat(s) of the vehicle; or
² the child has a medical condition which, according to the child's
physician, makes it necessary for the child to ride in the front seat so
that the driver can constantly monitor the child's condition.
3. Medical condition. A passenger has a medical condition which,
according to his or her physician:
² causes the passenger airbag to pose a special risk for the passenger;
and
² makes the potential harm from the passenger airbag in a crash greater
than the potential harm from turning OFF the airbag and allowing the
passenger, even if belted, to hit the dashboard or windshield in a
crash.
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 87OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
87
Page 88 of 266
JOBNAME: No Job Name PAGE: 88 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

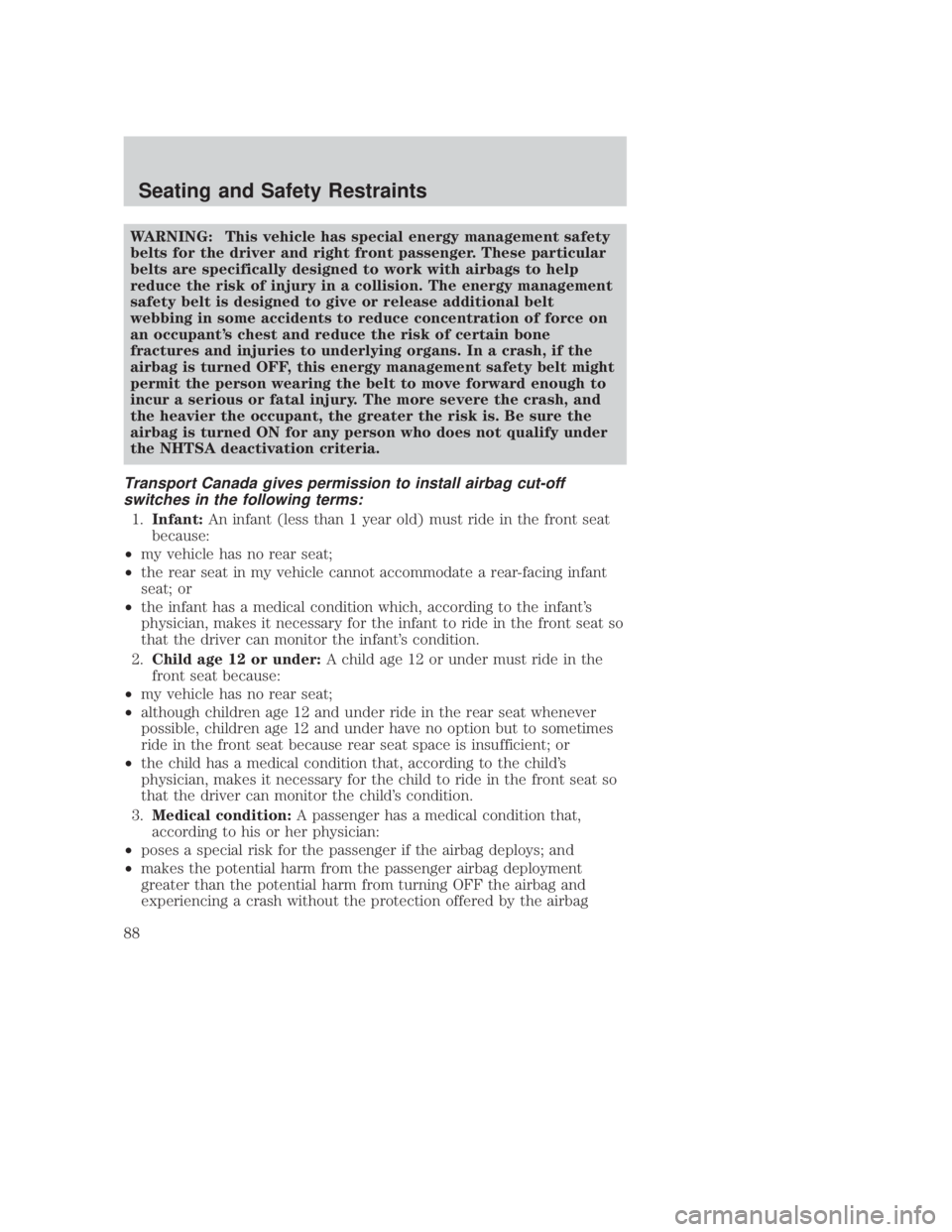

WARNING: This vehicle has special energy management safety
belts for the driver and right front passenger. These particular
belts are specifically designed to work with airbags to help
reduce the risk of injury in a collision. The energy management
safety belt is designed to give or release additional belt
webbing in some accidents to reduce concentration of force on
an occupant's chest and reduce the risk of certain bone
fractures and injuries to underlying organs. In a crash, if the
airbag is turned OFF, this energy management safety belt might
permit the person wearing the belt to move forward enough to
incur a serious or fatal injury. The more severe the crash, and
the heavier the occupant, the greater the risk is. Be sure the
airbag is turned ON for any person who does not qualify under
the NHTSA deactivation criteria.
Transport Canada gives permission to install airbag cut-offswitches in the following terms:
1. Infant: An infant (less than 1 year old) must ride in the front seat
because:
² my vehicle has no rear seat;
² the rear seat in my vehicle cannot accommodate a rear-facing infant
seat; or
² the infant has a medical condition which, according to the infant's
physician, makes it necessary for the infant to ride in the front seat so
that the driver can monitor the infant's condition.
2. Child age 12 or under: A child age 12 or under must ride in the
front seat because:
² my vehicle has no rear seat;
² although children age 12 and under ride in the rear seat whenever
possible, children age 12 and under have no option but to sometimes
ride in the front seat because rear seat space is insufficient; or
² the child has a medical condition that, according to the child's
physician, makes it necessary for the child to ride in the front seat so
that the driver can monitor the child's condition.
3. Medical condition: A passenger has a medical condition that,
according to his or her physician:
² poses a special risk for the passenger if the airbag deploys; and
² makes the potential harm from the passenger airbag deployment
greater than the potential harm from turning OFF the airbag and
experiencing a crash without the protection offered by the airbag
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 88OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
88
Page 89 of 266
JOBNAME: No Job Name PAGE: 89 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

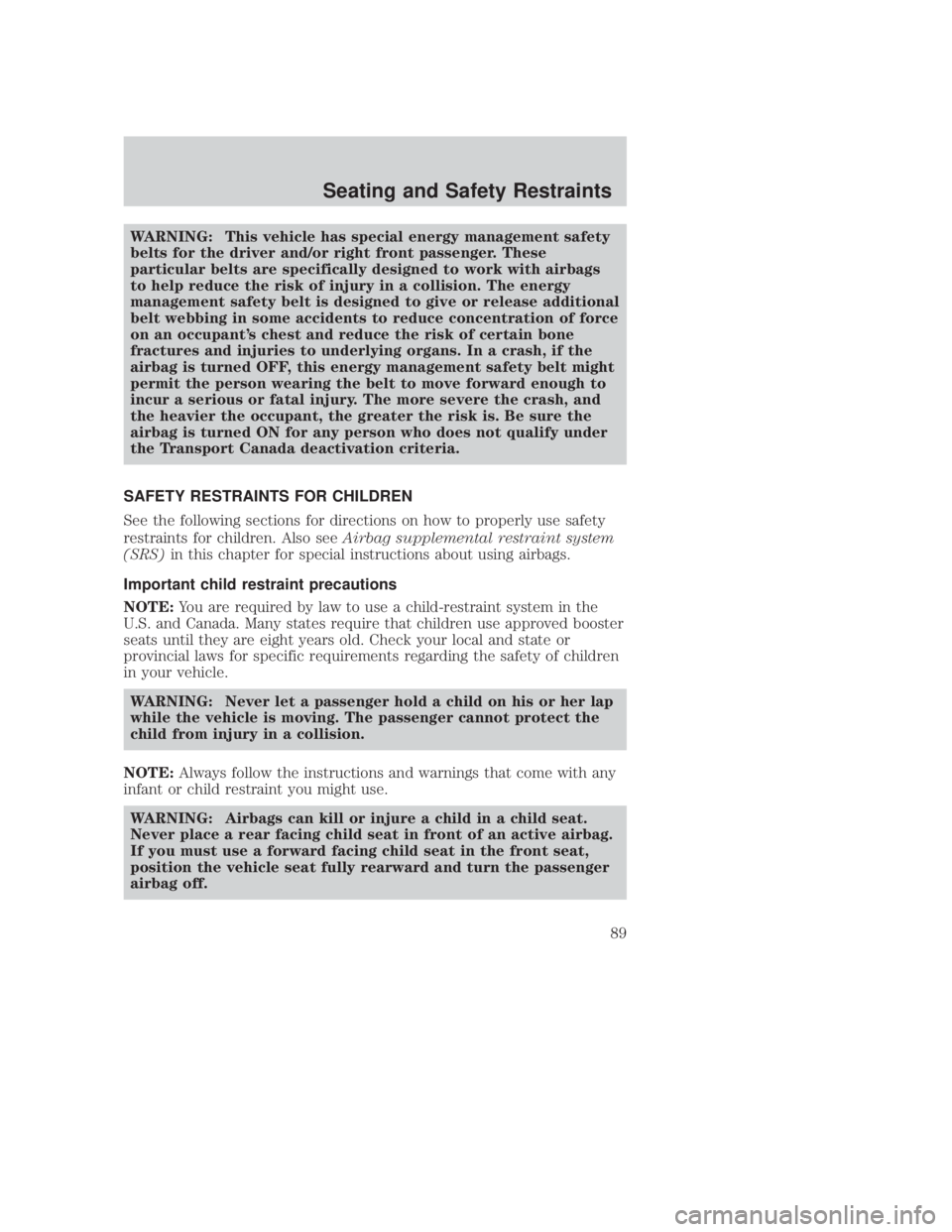

WARNING: This vehicle has special energy management safety
belts for the driver and/or right front passenger. These
particular belts are specifically designed to work with airbags
to help reduce the risk of injury in a collision. The energy
management safety belt is designed to give or release additional
belt webbing in some accidents to reduce concentration of force
on an occupant's chest and reduce the risk of certain bone
fractures and injuries to underlying organs. In a crash, if the
airbag is turned OFF, this energy management safety belt might
permit the person wearing the belt to move forward enough to
incur a serious or fatal injury. The more severe the crash, and
the heavier the occupant, the greater the risk is. Be sure the
airbag is turned ON for any person who does not qualify under
the Transport Canada deactivation criteria.
SAFETY RESTRAINTS FOR CHILDREN
See the following sections for directions on how to properly use safety
restraints for children. Also see Airbag supplemental restraint system
(SRS) in this chapter for special instructions about using airbags.
Important child restraint precautions
NOTE: You are required by law to use a child-restraint system in the
U.S. and Canada. Many states require that children use approved booster
seats until they are eight years old. Check your local and state or
provincial laws for specific requirements regarding the safety of children
in your vehicle.
WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
NOTE: Always follow the instructions and warnings that come with any
infant or child restraint you might use.
WARNING: Airbags can kill or injure a child in a child seat.
Never place a rear facing child seat in front of an active airbag.
If you must use a forward facing child seat in the front seat,
position the vehicle seat fully rearward and turn the passenger
airbag off.
CIMS #52677
com_safety-for-kids itdseq=121
CIMS #683856
com_imp_precautions.mbs itdseq=122
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 89OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
89
Page 90 of 266
JOBNAME: No Job Name PAGE: 90 SESS: 1 OUTPUT: Thu Sep 15 08:22:27 2005
/ford_pdm/ford/own2002/mbs/og

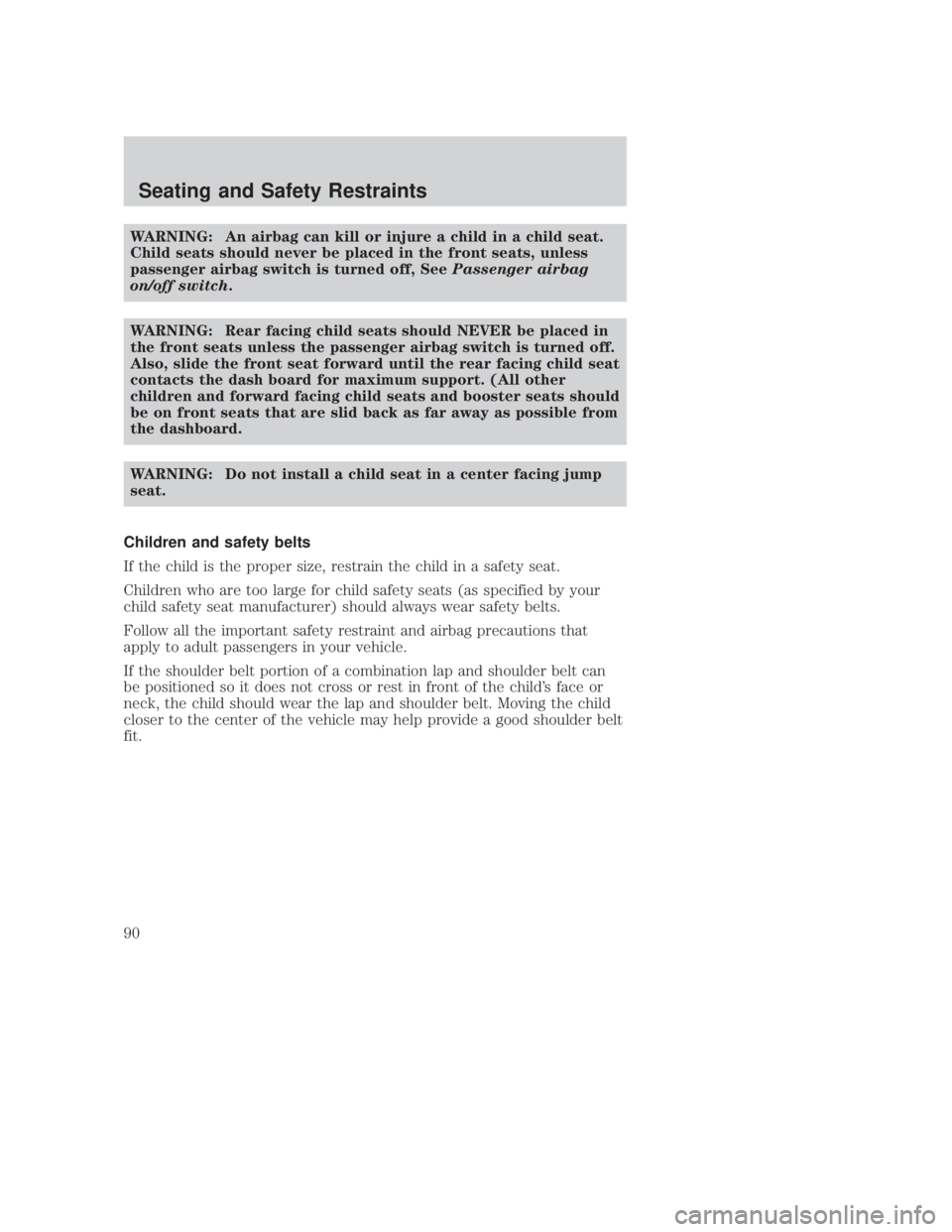

WARNING: An airbag can kill or injure a child in a child seat.
Child seats should never be placed in the front seats, unless
passenger airbag switch is turned off, SeePassenger airbag
on/off switch.
WARNING: Rear facing child seats should NEVER be placed in
the front seats unless the passenger airbag switch is turned off.
Also, slide the front seat forward until the rear facing child seat
contacts the dash board for maximum support. (All other
children and forward facing child seats and booster seats should
be on front seats that are slid back as far away as possible from
the dashboard.
WARNING: Do not install a child seat in a center facing jump
seat.
Children and safety belts
If the child is the proper size, restrain the child in a safety seat.
Children who are too large for child safety seats (as specified by your
child safety seat manufacturer) should always wear safety belts.
Follow all the important safety restraint and airbag precautions that
apply to adult passengers in your vehicle.
If the shoulder belt portion of a combination lap and shoulder belt can
be positioned so it does not cross or rest in front of the child's face or
neck, the child should wear the lap and shoulder belt. Moving the child
closer to the center of the vehicle may help provide a good shoulder belt
fit.
CIMS #1065521
com_safety_belts.mbs itdseq=123
REVIEW COPY ÐÐ
2006 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002),Market:USA(fus)
PAGE: 90OP: root EDIT SESSION: 1DATE: SEPT 15 2005 at 8:21JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og
Seating and Safety Restraints
90
