Page 492 of 580
*Some models.7–32
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
(Illuminate)
Lane Departure
Warning System
(LDWS) Warning
Light
*
y The warning light remains turned on if there is a problem with the system. Have your
vehicle inspected at an Authorized Mazda Dealer.
y The LDWS does not operate when the warning light illuminates.
CAUTION
¾
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an Authorized Mazda Dealer.
¾ When the light remains turned on while driving the vehicle.
When the system is canceled automatically, the light turns on. Normally, the system
restores automatically and the light turns off , however, if the light remains turned on,
there may be a problem with the system.
¾ The light does not illuminate when the ignition is switched ON.
¾
Always use tires for all wheels that are of the specifi ed size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle. If such improper tires are used, the LDWS may not operate
normally.
¾ When an emergency spare tire is used, the system may not operate normally.
(Amber)
High Beam Control
System (HBC)
Warning Light
*
The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
LED Headlight
Warning Light *
This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
(Amber)
Mazda Radar
Cruise Control
(MRCC) Warning
Light
*
The warning light turns on if there is a malfunction in the system while the Mazda Radar
Cruise Control (MRCC) system is on.
Have your vehicle inspected at an Authorized Mazda Dealer.
Blind Spot
Monitoring (BSM)
OFF Indicator
Light
*
A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
y The light does not turn on when the ignition is switched ON. y The light remains turned on even if the Blind Spot Monitoring (BSM) switch is operated. y It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffi c and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator light in
the instrument cluster illuminates). However, it does not indicate a malfunction.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 531 of 580
8–25
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
13. Max. permissible infl ation pressure
14. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing
Association).
215
“215” is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
6 5
“65” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction”.
1 5
“15” is the wheel rim diameter in inches.
9 5
“95” is the Load Index. This two-or three-digit number indicates how much weight each tire
can support.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 533 of 580
8–27
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Maximum Permissible Infl ation Pressure
This number is the greatest amount of air pressure that should ever be put in the tire under
normal driving conditions.
Tread Wear, Traction and Temperature Grades
Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specifi ed government test course. For example,
a tire graded 150 would wear one and one-half (1 1/2) times as well on the government
course as a tire graded 100.
Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on specifi ed government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature: The temperature grades are A (the highest), B and C, representing the
tire's resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specifi ed indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels. Make
sure you purchase snow tires that are the same size and construction type as the other tires
on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
y EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-MATCH
TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa) TO SEAT
BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TIRES.
y TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 534 of 580
8–28
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Information on Temporary Tires
Please refer to the sample below.
1. Temporary tires
2. Nominal width of tire in millimeters
3. Ratio of height to width (aspect ratio)
4. Diagonal
5. Rim diameter code
6. Load index & speed symbol
T115/70D16 90M is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
T
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
1 1 5
“115” is the nominal width of the tire in millimeters. This three-digit number gives the width
in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger the
number, the wider the tire.
7 0
“70” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
D
“D” is the tire construction symbol. D indicates “diagonal ply construction”.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 536 of 580
8–30
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)

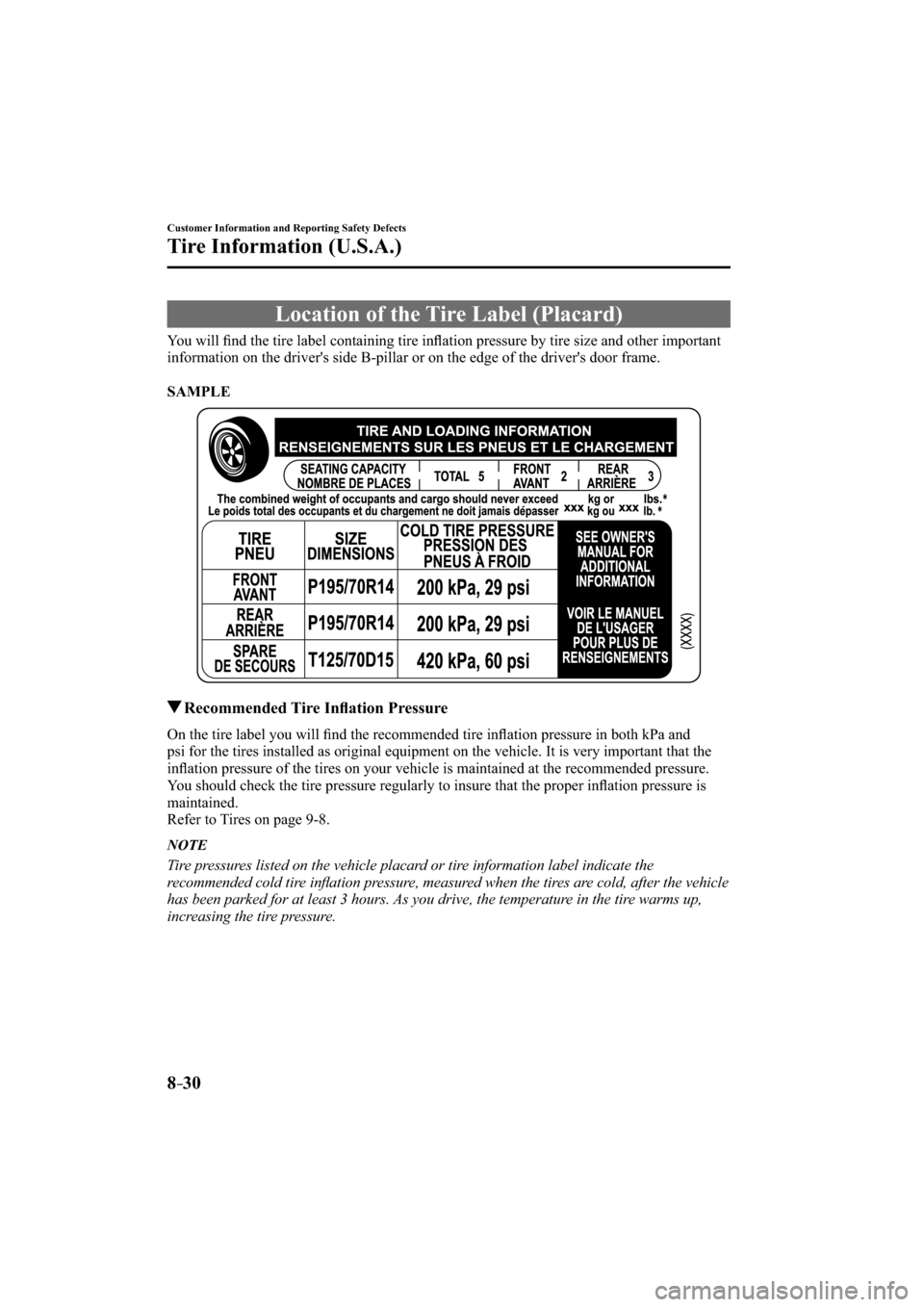

Location of the Tire Label (Placard)
You will fi nd the tire label containing tire infl ation pressure by tire size and other important
information on the driver's side B-pillar or on the edge of the driver's door frame.
SAMPLE
Recommended Tire Infl ation Pressure
On the tire label you will fi nd the recommended tire infl ation pressure in both kPa and
psi for the tires installed as original equipment on the vehicle. It is very important that the
infl ation pressure of the tires on your vehicle is maintained at the recommended pressure.
You should check the tire pressure regularly to insure that the proper infl ation pressure is
maintained.
Refer to Tires on page 9-8 .
NOTE
Tire pressures listed on the vehicle placard or tire information label indicate the
recommended cold tire infl ation pressure, measured when the tires are cold, after the vehicle
has been parked for at least 3 hours. As you drive, the temperature in the tire warms up,
increasing the tire pressure.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 538 of 580
8–32
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Glossary of Terms
Tire Placard: A label indicating the OE tire sizes, recommended infl ation pressure, and the
maximum weight the vehicle can carry.
Tire Identifi cation Number (TIN): A number on the sidewall of each tire providing
information about the tire brand and manufacturing plant, tire size, and date of manufacture.
Infl ation Pressure: A measure of the amount of air in a tire.
kPa: Kilopascal, the metric unit for air pressure.
psi: Pounds per square inch, the English unit for air pressure.
B-pillar: The structural member at the side of the vehicle behind the front door.
Original Equipment (OE): Describes components originally equipped on the vehicle.
Vehicle Load Limit: The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.
Seating capacity means the total allowable number of vehicle occupants. Seating capacity
is described on the tire label.
Production options weight is the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard items which they replace,
and not previously considered in the curb weight or accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim.
Rim is the metal support (wheel) for a tire or a tire and tube assembly upon which the tire
beads are seated.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 542 of 580
8–36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow a
trailer and doing so will aff ect the drive system which could result in vehicle damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will provide
maximum return of vehicle design performance. Before loading your vehicle, familiarize
yourself with the following terms for determining your vehicle's weight ratings, from the
vehicle's Safety Certifi cation Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the size of
the tire, its load range, and corresponding infl ation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certifi cation and Tire and Load Information labels.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 564 of 580
9–8
Specifi cations
Specifi cations
Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fi tted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and infl ation pressure.
Refer to Tire Infl ation Pressure on page 6-42 .
After adjusting the tire pressure, initialization of the tire pressure m\
onitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-129 .
Standard tire
(U.S.A. and Canada)
Tire size Infl
ation pressure
Front Rear
P215/60R16 94H 250 kPa (36 psi) 230 kPa (33 psi)
P215/50R18 92V 250 kPa (36 psi) 230 kPa (33 psi)
(Mexico)
Tire size Infl
ation pressure
Up to 3 persons —Full load
215/60R16 95V Front 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear
210 kPa (2.1 bar, 30 psi)
*1 /
230 kPa (2.3 bar, 33 psi) *2 330 kPa (3.3 bar, 48 psi) *1 /
350 kPa (3.5 bar, 51 psi) *2
215/50R18 92V Front 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear
210 kPa (2.1 bar, 30 psi) *1 /
230 kPa (2.3 bar, 33 psi) *2 330 kPa (3.3 bar, 48 psi) *1 /
350 kPa (3.5 bar, 51 psi) *2
1 person's weight: About 75 kg
*1 2WD
*2 AWD
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 565 of 580
9–9
Specifi cations
Specifi cations
Temporary spare tire
(U.S.A. and Canada)
Tire size Infl ation pressure
T125/90D16 98M 420 kPa (60 psi)
(Mexico)
Tire size Infl ation pressure
185/60R16 86M 300 kPa (3.0 bar, 44 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108—147 N·m (12—14 kgf·m, 80—108 ft·lbf)
Fuses
Refer to Fuses on page 6-53 .
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
