lock MAZDA MODEL CX-3 2016 Owners Manual (in English)

1–2
Pictorial Index
Interior Overview
Interior Equipment (View A)



Door-lock knob ..................................................................................................... page 3-17



Turn and lane-change signal ................................................................................. page 4-46



Lighting control..................................................................................................... page 4-41



Wiper and washer lever ......................................................................................... page 4-47



TCS OFF switch.................................................................................................... page 4-60



Tire pressure monitoring system set switch ........................................................ page 4-129



Blind Spot Monitoring (BSM) switch ................................................................... page 4-85



SCBS OFF switch ............................................................................................... page 4-108



LDWS switch ........................................................................................................ page 4-77



Outside mirror switch............................................................................................ page 3-28



Door-lock switch ................................................................................................... page 3-15



Power window lock switch ................................................................................... page 3-32



Power window switches ........................................................................................ page 3-30
The equipment and installation position varies by vehicle
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










1–3
Pictorial Index
Interior Overview



Audio control switches.......................................................................................... page 5-55



Instrument cluster .................................................................................................. page 4-12



Dashboard illumination knob ................................................................................ page 4-18



Cruise control switches ..............................................................................page 4-122 , 4-97



Seat warmer switches .............................................................................................. page 2-5



Hazard warning fl asher switch .............................................................................. page 4-53



Push button start ...................................................................................................... page 4-4



Steering shift switches .......................................................................................... page 4-33



Lock release lever ................................................................................................. page 3-27



Hood release handle .............................................................................................. page 6-24



Remote fuel-fi ller lid release ................................................................................. page 3-25
The equipment and installation position varies by vehicle
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










1–4
Pictorial Index
Interior Overview
Interior Equipment (View B)



SRS air bags ........................................................................\
.................................. page 2-35



Active driving display ........................................................................\
................... page 4-22



Climate control system..................................................\
.......................................... page 5-2



Rear window defogger switch.............................................\
.................................. page 4-52



Audio system............................................................\
............................................. page 5-14



CD player ........................................................................\
...................................... page 5-14



Accessory sockets ........................................................................\
....................... page 5-133



External input terminal.................................................\
......................................... page 5-57



Commander switch ........................................................................\
....................... page 5-34



Drive selection switch ........................................................................\
................... page 4-65



Selector lever..........................................................\
............................................... page 4-30



Fuse block (Left side) ........................................................................\
................... page 6-53
The equipment and installation position varies by vehicle
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










1–6
Pictorial Index
Exterior Overview



Hood ........................................................................\
.............................................. page 6-24



Windshield wiper blades ........................................................................\
............... page 6-34



Moonroof ........................................................................\
...................................... page 3-33



Doors and keys ........................................................................\
.............................. page 3-11



Fuel-fi ller lid ........................................................................\
................................. page 3-25



Wheels and Tires ........................................................................\
........................... page 6-42



Exterior lights ........................................................................\
................................ page 6-46



Rear window wiper blade ........................................................................\
............. page 6-35



Liftgate ........................................................................\
.......................................... pag e 3-19



Child safety locks ........................................................................\
.......................... page 3-18



Outside mirror ........................................................................\
............................... page 3-28
The equipment and installation position varies by vehicle
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–2
Essential Safety Equipment
Seats
Seat Precautions
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure the
adjustable components of the seat are locked in place by attempting to slide the seat
forward and backward and rocking the seatback.

Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a
child's hands or feet become caught in the seat.

Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can allow passengers to be ejected or thrown
around and baggage to strike occupants in a sudden stop or collision, resulting in severe
injury. After adjusting the seatback at any time, even when there are no other passengers,
rock the seatback to make sure it is locked in place.

Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.

Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening
any bolts is dangerous. The front seats contain air bag components essential to the
supplemental restraint system. Such modifi cations could damage the supplemental
restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there
is any need to remove or reinstall the front seats.

Do not drive with damaged front seats:
Driving with damaged front seats is dangerous. A collision, even one not strong enough
to infl ate the air bags, could damage the front seats which contain essential air bag
components. If there was a subsequent collision, an air bag may not deploy which could
lead to injuries. Always have an Authorized Mazda Dealer inspect the front seats, front
seat belt pretensioners and air bags after a collision.

Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not
get the full protection from seat belts. During sudden braking or a collision, you can slide
under the lap belt and suff er serious internal injuries. For maximum protection, sit well
back and upright.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–4
Essential Safety Equipment
Seats
Front Seat
Seat Operation
Seat Slide
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
Height Adjustment (Driver's Seat)
To adjust the seat height, move the lever up or down.
Seat Recline
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–7
Essential Safety Equipment
Seats
1. Lower the head restraint all the way
down.
Refer to Head Restraints on page 2-8 .
2. Press the push knob to fold down the
seatback.
Push knob
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the 3-point
seat belt is not caught in the seatback
and the 3-point seat belt is not twisted.
If the seat belt is used while it is twisted
and caught in the seatback, the seat
belt cannot function at its full capacity,
which could cause serious injury or
death. When returning a seatback to its
upright position, make sure that it is
fi rmly locked and the red indication is
not visible.
If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.

Red indicationUnlocked positionLocked position
1. Make sure that the seat belt passes
through the seat belt guide correctly
and it is not twisted, then raise the
seatback while preventing the seat belt
from being caught in the seatback.
Seat belt guideRed indication
2. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










2–10
Essential Safety Equipment
Seat Belt Systems
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
(Except Mexico)
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when
not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in
two modes: emergency locking mode, and for child-restraint systems, automatic locking
mode. While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
(Mexico)
All the seats have lap/shoulder belts. These belts have retractors with inertia locks that keep
them out of the way when not in use. The locks allow the belts to remain comfortable on
users, but they will lock in position during a collision.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out of
the vehicle. They could be seriously injured or even killed. In the same collision, occupants
wearing seat belts would be much safer.

Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to
absorb the impact. This puts more force on the bones beneath the belt, which could cause
serious injury or death. So, if your seat belt is twisted, you must straighten the seat belt to
remove any twists and to allow the full width of the belt to be used.

Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could
be crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.2–12
Essential Safety Equipment
Seat Belt Systems
Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specifi c
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your doctor
for any special instructions regarding specifi c medical conditions.
Emergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out
slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the belt
feels tight and hinders comfortable movement while the vehicle is stopped or in motion, it
may be in the automatic locking mode because the belt has been pulled too far out. To return
the belt to the more comfortable emergency locking mode, wait until the vehicle has stopped
in a safe, level area, retract the belt fully to convert it back to emergency locking mode and
then extend it around you again.
Automatic Locking Mode *
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will retract
down to the child-restraint system and stay locked on it. See the section on child restraint
(page 2-18 ).
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC

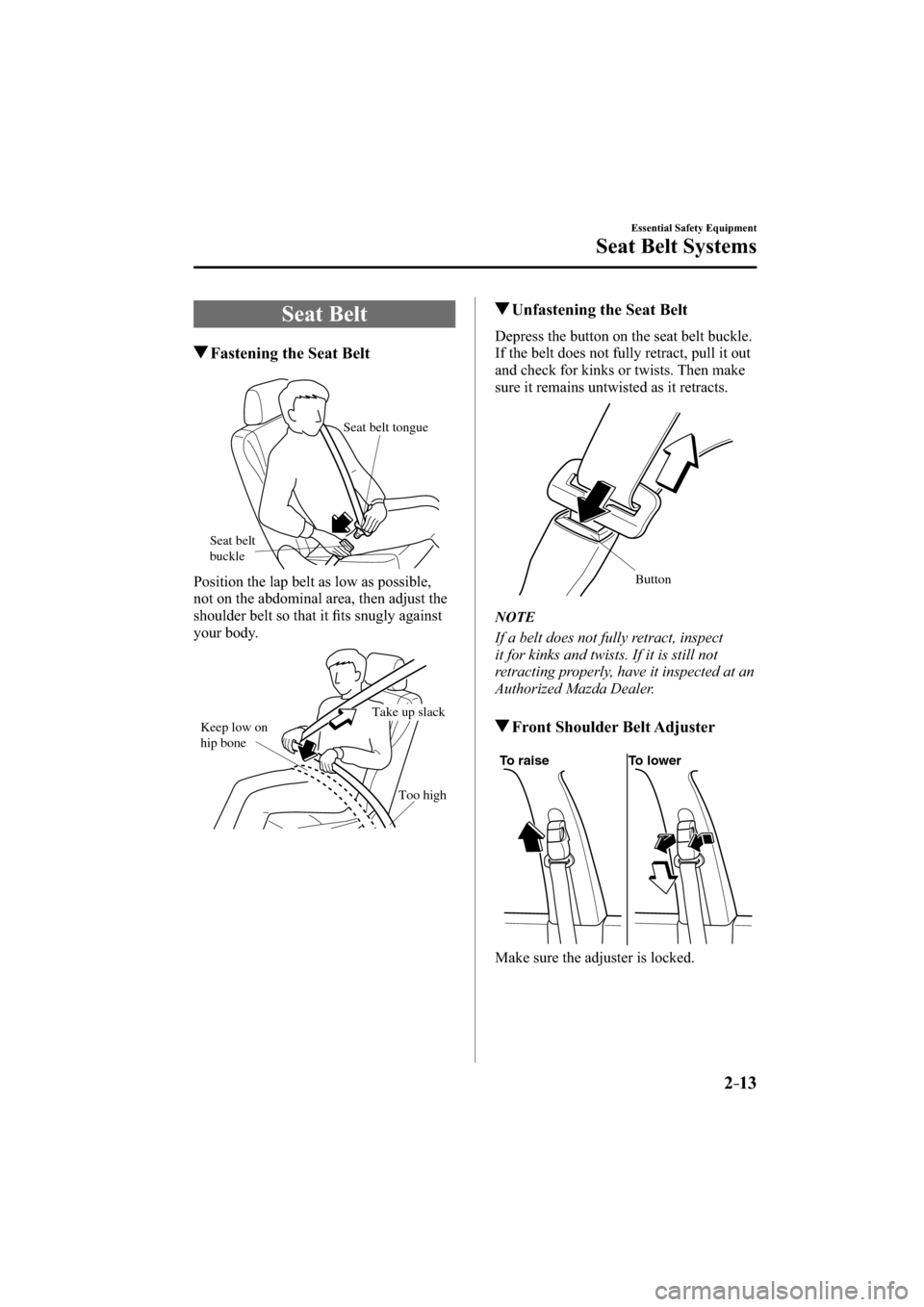

2–13
Essential Safety Equipment
Seat Belt Systems
Seat Belt
Fastening the Seat Belt
Seat belt
buckleSeat belt tongue
Position the lap belt as low as possible,
not on the abdominal area, then adjust the
shoulder belt so that it fi ts snugly against
your body.
Keep low on
hip bone
Too highTake up slack
Unfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect
it for kinks and twists. If it is still not
retracting properly, have it inspected at an
Authorized Mazda Dealer.
Front Shoulder Belt Adjuster
To raise To lower
Make sure the adjuster is locked.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
