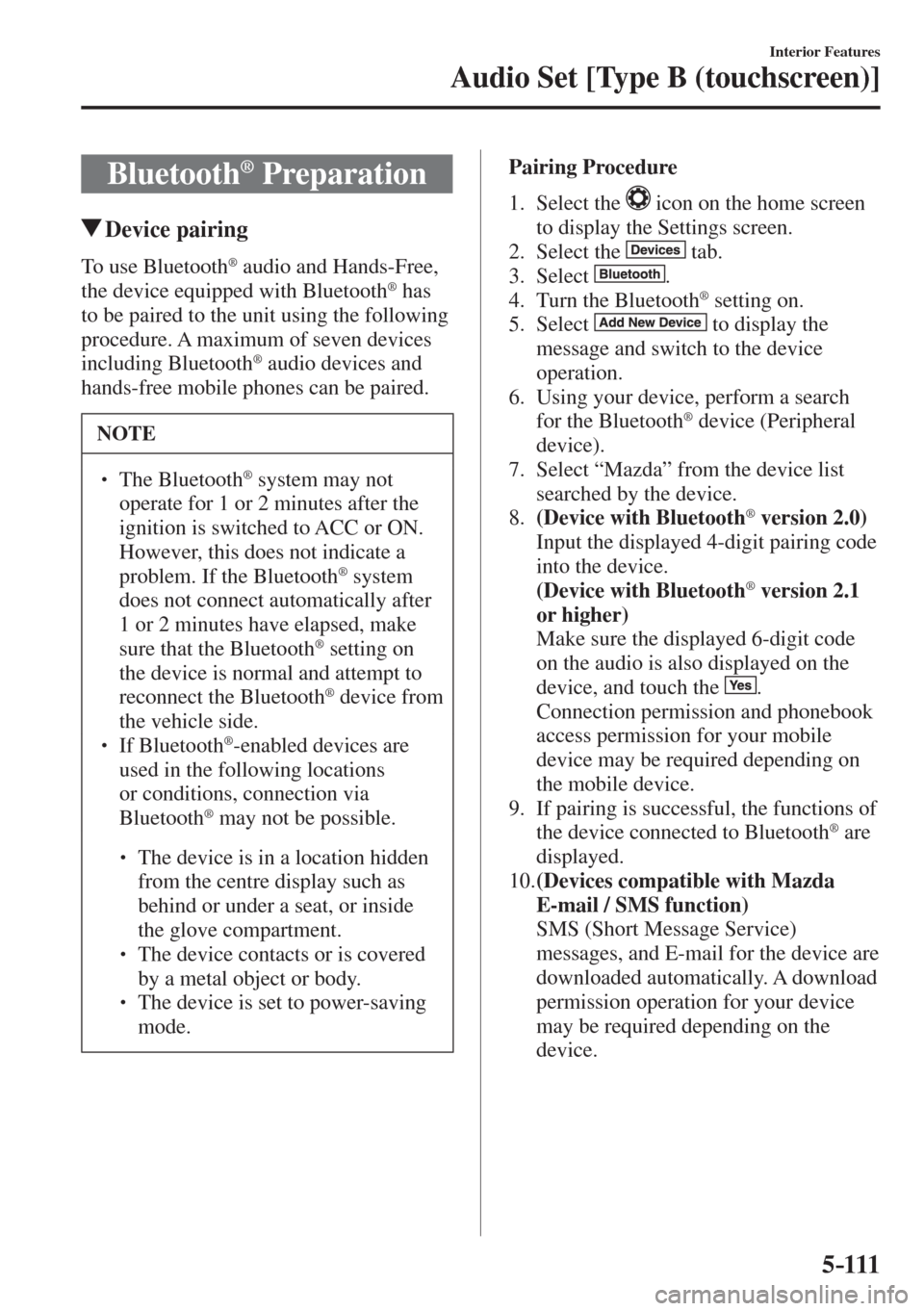

MAZDA MODEL CX-3 2017 Owner's Manual - RHD (UK, Australia) (in English)

5–111
Interior Features
Audio Set [Type B (touchscreen)]
Bluetooth ® Preparation
Device pairing
To use Bluetooth ® audio and Hands-Free,
the device equipped with Bluetooth ® has
to be paired to the unit using the following
procedure. A maximum of seven devices
including Bluetooth
® audio devices and
hands-free mobile phones can be paired.
NOTE
  The Bluetooth ® system may not
operate for 1 or 2 minutes after the
ignition is switched to ACC or ON.
However, this does not indicate a
problem. If the Bluetooth
® system
does not connect automatically after
1 or 2 minutes have elapsed, make
sure that the Bluetooth
® setting on
the device is normal and attempt to
reconnect the Bluetooth
® device from
the vehicle side.
  If Bluetooth ® -enabled devices are
used in the following locations
or conditions, connection via
Bluetooth
® may not be possible.


 The device is in a location hidden
from the centre display such as
behind or under a seat, or inside
the glove compartment.



 The device contacts or is covered
by a metal object or body.



 The device is set to power-saving
mode. Pairing Procedure
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select
to display the
message and switch to the device
operation.
6. Using your device, perform a search
for the Bluetooth
® device (Peripheral
device).
7. Select “Mazda” from the device list
searched by the device.
8. (Device with Bluetooth
® version 2.0)
Input the displayed 4-digit pairing code
into the device.
(Device with Bluetooth
® version 2.1
or higher)
Make sure the displayed 6-digit code
on the audio is also displayed on the
device, and touch the
.
Connection permission and phonebook
access permission for your mobile
device may be required depending on
the mobile device.
9. If pairing is successful, the functions of
the device connected to Bluetooth
® are
displayed.
10. (Devices compatible with Mazda
E-mail / SMS function)
SMS (Short Message Service)
messages, and E-mail for the device are
downloaded automatically. A download
permission operation for your device
may be required depending on the
device.

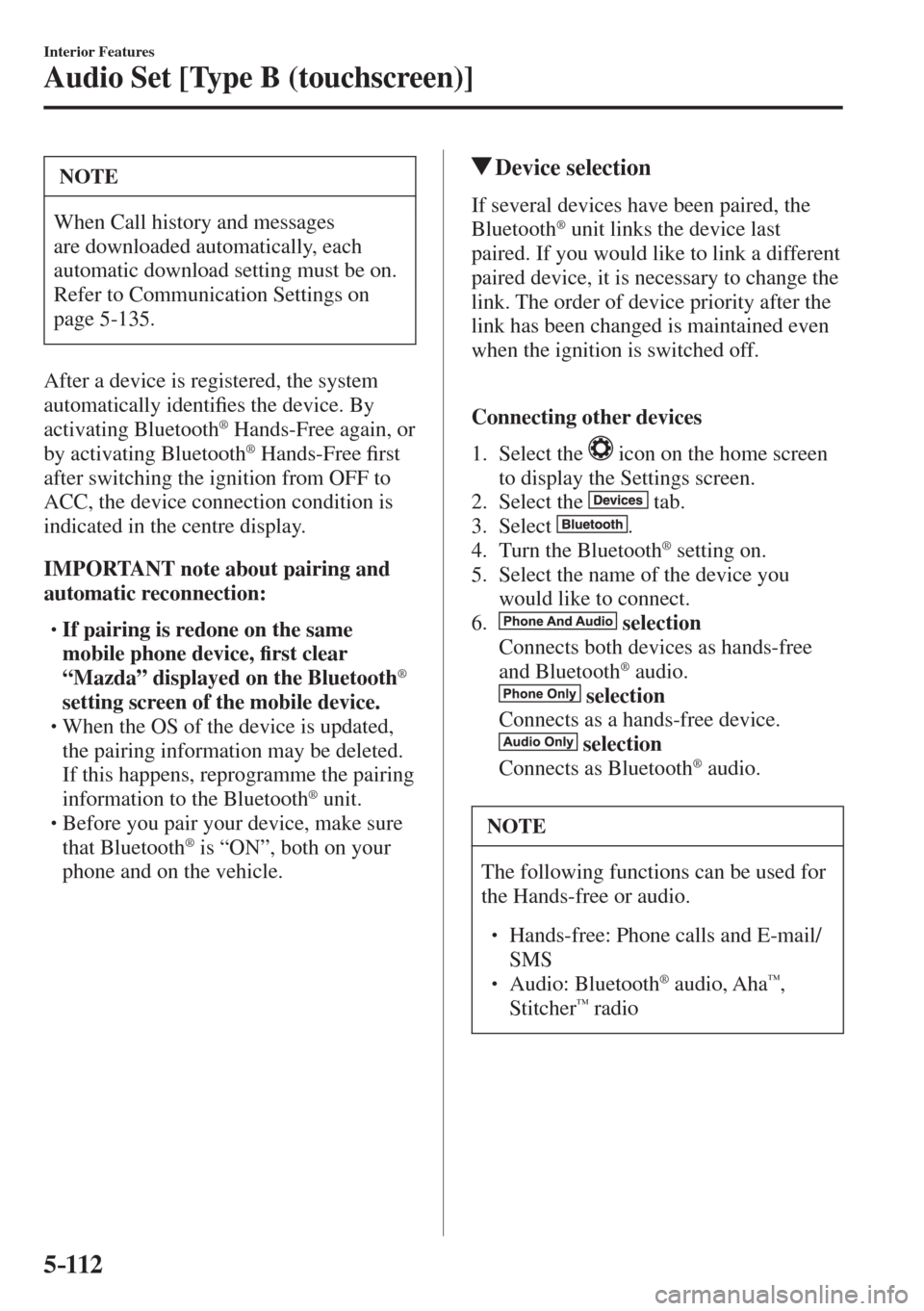

5–112
Interior Features
Audio Set [Type B (touchscreen)]
NOTE
When Call history and messages
are downloaded automatically, each
automatic download setting must be on.
Refer to Communication Settings on
page 5-135 .
After a device is registered, the system
automatically identi¿ es the device. By
activating Bluetooth
® Hands-Free again, or
by activating Bluetooth ® Hands-Free ¿ rst
after switching the ignition from OFF to
ACC, the device connection condition is
indicated in the centre display.
IMPORTANT note about pairing and
automatic reconnection:





 If pairing is redone on the same
mobile phone device, ¿ rst clear
“Mazda” displayed on the Bluetooth
®
setting screen of the mobile device.




 When the OS of the device is updated,
the pairing information may be deleted.
If this happens, reprogramme the pairing
information to the Bluetooth
® unit.


 Before you pair your device, make sure
that Bluetooth ® is “ON”, both on your
phone and on the vehicle.

Device selection
If several devices have been paired, the
Bluetooth ® unit links the device last
paired. If you would like to link a different
paired device, it is necessary to change the
link. The order of device priority after the
link has been changed is maintained even
when the ignition is switched off.

Connecting other devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select the name of the device you
would like to connect.
6.
selection
Connects both devices as hands-free
and Bluetooth
® audio.

selection
Connects as a hands-free device.

selection
Connects as Bluetooth ® audio.
NOTE
The following functions can be used for
the Hands-free or audio.

 Hands-free: Phone calls and E-mail/
SMS
  Audio: Bluetooth ® audio, Aha™,
Stitcher™ radio

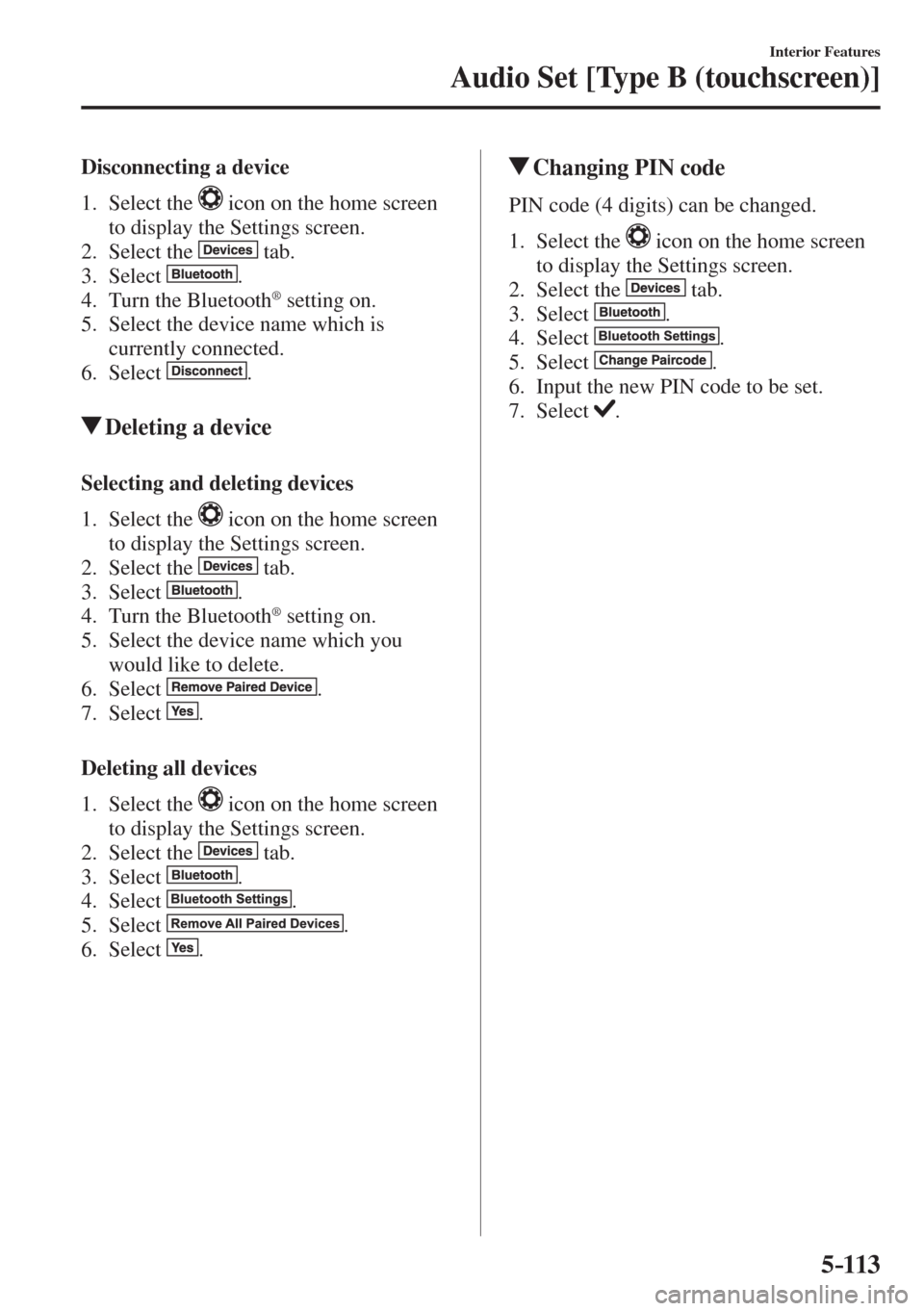

5–113
Interior Features
Audio Set [Type B (touchscreen)]
Disconnecting a device
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select the device name which is
currently connected.
6. Select
.
Deleting a device
Selecting and deleting devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select the device name which you
would like to delete.
6. Select
.
7. Select
.
Deleting all devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Select
.
Changing PIN code
PIN code (4 digits) can be changed.
1. Select the icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Input the new PIN code to be set.
7. Select
.

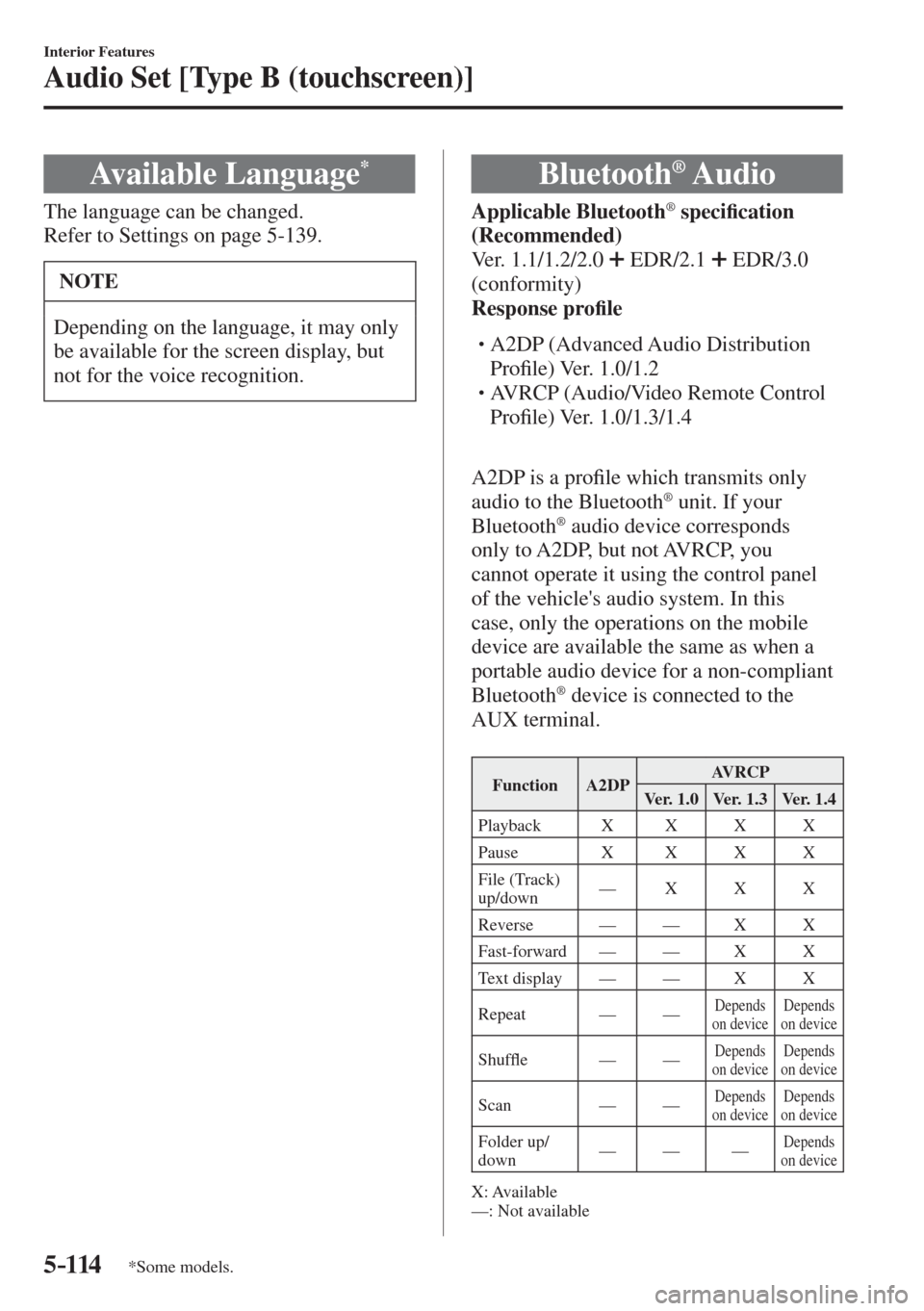

5–114
Interior Features
Audio Set [Type B (touchscreen)]
*Some models.
Available Language *
The language can be changed.
Refer to Settings on page 5-139 .
NOTE
Depending on the language, it may only
be available for the screen display, but
not for the voice recognition.
Bluetooth ® Audio
Applicable Bluetooth ® speci¿ cation
(Recommended)
Ver. 1.1/1.2/2.0
EDR/2.1 EDR/3.0
(conformity)
Response pro¿ le




 A2DP (Advanced Audio Distribution
Pro¿ le) Ver. 1.0/1.2




 AVRCP (Audio/Video Remote Control
Pro¿ le) Ver. 1.0/1.3/1.4


A2DP is a pro¿ le which transmits only
audio to the Bluetooth
® unit. If your
Bluetooth ® audio device corresponds
only to A2DP, but not AVRCP, you
cannot operate it using the control panel
of the vehicle's audio system. In this
case, only the operations on the mobile
device are available the same as when a
portable audio device for a non-compliant
Bluetooth
® device is connected to the
AUX terminal.

Function A2DP AVRCP
Ver. 1.0 Ver. 1.3 Ver. 1.4
Playback X X X X
Pause X X X X
File (Track)
up/down — X X X
Reverse — — X X
Fast-forward — — X X
Text display — — X X
Repeat — —
Depends
on device Depends
on device
ShufÀ e — — Depends
on device Depends
on device
Scan — — Depends
on device Depends
on device
Folder up/
down — — — Depends
on device
X: Available
—: Not available

5–115
Interior Features
Audio Set [Type B (touchscreen)]

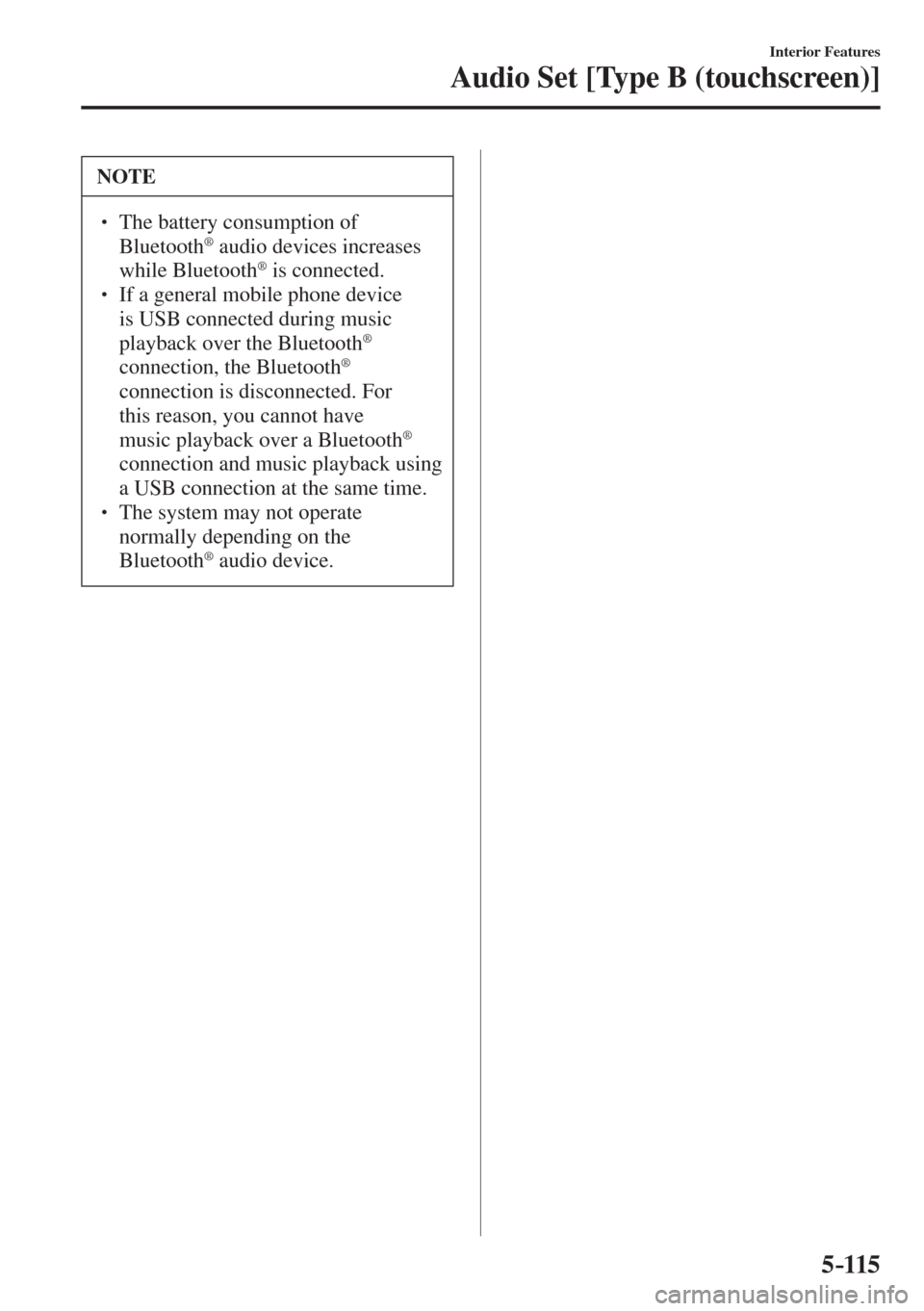

NOTE
  The battery consumption of
Bluetooth ® audio devices increases
while Bluetooth ® is connected.   If a general mobile phone device
is USB connected during music
playback over the Bluetooth
®
connection, the Bluetooth ®
connection is disconnected. For
this reason, you cannot have
music playback over a Bluetooth
®
connection and music playback using
a USB connection at the same time.
  The system may not operate
normally depending on the
Bluetooth
® audio device.

5–116
Interior Features
Audio Set [Type B (touchscreen)]
Switching to Bluetooth ® audio mode
To listen to music or voice audio recorded to a Bluetooth ® audio device, switch to the
Bluetooth ® audio mode to operate the audio device using the audio system control panel.
Any Bluetooth ® audio device must be paired to the vehicle's Bluetooth ® unit before it can be
used.
Refer to Bluetooth
® Preparation (Type B) on page 5-111 .
1. Turn on the Bluetooth ® audio device's power.
2. Switch the ignition to ACC or ON.
3. Select the
icon on the home screen to display the Entertainment screen.
4. When
is selected, switches to the Bluetooth ® audio mode to begin playback.
NOTE
  If Bluetooth ® audio is used after using Aha™ or Stitcher™ radio, the application on the
mobile device has to be closed ¿ rst.

 If the Bluetooth ® audio device does not begin playback, select the icon.
 If the mode is switched from Bluetooth ® audio mode to another mode (radio mode),
audio playback from the Bluetooth ® audio device stops.

5–117
Interior Features
Audio Set [Type B (touchscreen)]
Playback
To listen to a Bluetooth ® audio device over the vehicle's speaker system, switch the mode to
Bluetooth ® audio mode. (Refer to “Switching to Bluetooth ® audio mode”)
After switching to the Bluetooth ® audio mode, the following icons are displayed in the
lower part of the display. Icons which can be used differ depending on the version of the
Bluetooth
® audio device which you are currently using.

Icon Function

Displays the Entertainment menu. Use to switch to a different audio source.

(AVRCP Ver. 1.4 only)
Displays the top level folder/¿ le list.
Select the folder which you want to select.
The ¿ les in the selected folder are displayed.
Select the ¿ le you want to play.

(AVRCP Ver. 1.3 or higher)
Replays the song currently being played repeatedly.
When selected again, the songs in the folder are played repeatedly.
Select it again to cancel.
Icons change when the song is repeated or the folder is repeated.

(AVRCP Ver. 1.3 or higher)
Plays songs in the folder in random order.
When selected again, the songs on the device are played in random order.
Select it again to cancel.
Icons change during folder shufÀ e or device shufÀ e.

Scans the titles in a folder and plays the beginning of each song to aid in ¿ nding a desired
song.
When selected again, the beginning of each song on the device is played.
When selected again, the operation is cancelled and the song currently being played
continues.

Returns to the beginning of the previous song.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.

Plays the Bluetooth
® audio. When selected again, playback is temporarily stopped.

Advances to the beginning of the next song.
Long-press to fast forward. It stops when you remove your hand from the icon or the
commander knob.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-86 .

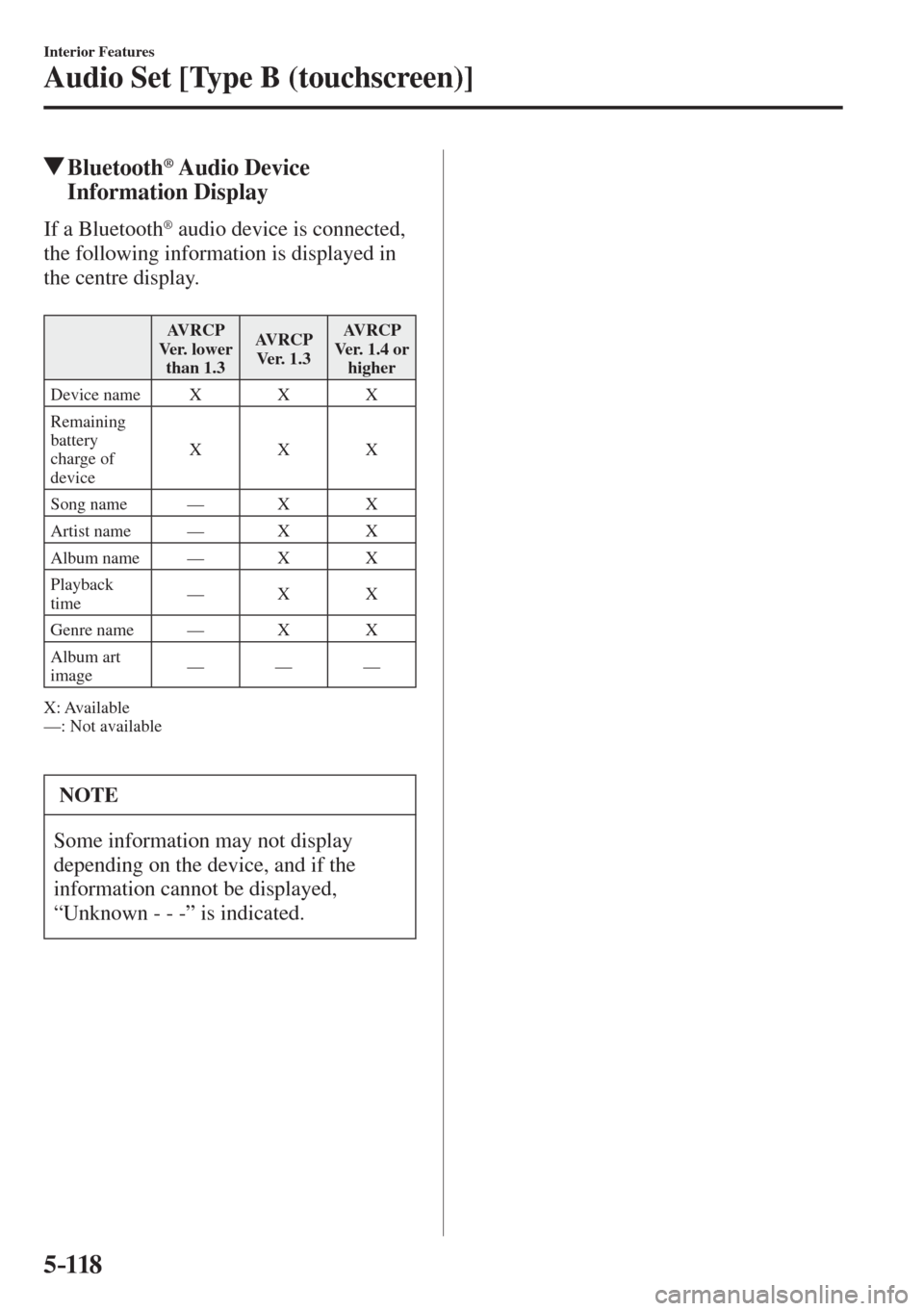

5–118
Interior Features
Audio Set [Type B (touchscreen)]
Bluetooth ® Audio Device
Information Display
If a Bluetooth ® audio device is connected,
the following information is displayed in
the centre display.

AVRCP
Ve r. l o w e r
than 1.3 AVRCP
Ver. 1.3 AVRCP
Ver. 1.4 or
higher
Device name X X X
Remaining
battery
charge of
device X X X
Song name — X X
Artist name — X X
Album name — X X
Playback
time — X X
Genre name — X X
Album art
image — — —
X: Available
—: Not available

NOTE
Some information may not display
depending on the device, and if the
information cannot be displayed,
“Unknown - - -” is indicated.

5–119
Interior Features
Audio Set [Type B (touchscreen)]
How to Use Aha™
What is Aha™?
A h a *1 is an application which can be used to enjoy various Internet content such as Internet
radio and podcasts.
Stay connected to your friends activities by getting updates from Facebook and Twitter.
Using the location-based service, nearby services and destinations can be searched or real-
time local information can be obtained.
For details on Aha, refer to “http://www.aharadio.com/”.

*1 Aha, the Aha logo, and the Aha trade dress are trademarks or registered trademarks of
Harman International Industries, Inc., used with permission.

NOTE
  The service content provided by Aha varies depending on the country in which the user
resides. In addition, the service is not available in some countries.
  To operate Aha from your Bluetooth ® device, perform the following in advance:



 Install the Aha application to your device.



 Create an Aha account for your device.



 Log onto Aha using your device.



 Select the preset station on your device.

5–120
Interior Features
Audio Set [Type B (touchscreen)]
Playback
Select the icon on the home screen to display the Entertainment screen. When is
selected, the following icons are displayed at the bottom of the centre display. The displayed
icon differs depending on the selected station.
In addition, icons other than the following icons may be displayed.

Icon Function

Displays the Entertainment menu. Use to switch to a different audio source.

Displays the main menu.
Use to switch to other stations.

Displays the content list.
Use to switch to other desired content on the station.

Shout
Records voice.
Records voice and posts it as playable audio to Facebook and other social stations.

Like
*1

Evaluates the current content as “Like”.

Dislike
*1

Evaluates the current content as “Dislike”.

Reverses for 15 seconds.

Map (vehicles with navigation system)
Displays the destination searched by the location based services on the navigation system.

Call
A call can be made to the telephone number of a shop searched using the Location Based
Services. Available when a device is connected as a Hands-Free.

Returns to the previous content.

Pauses playback of the content. When selected again, playback resumes.

Goes to the next content.
