Interior Features
Audio System
AUX/USB mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug cable is required.
Contact an Authorized Mazda Dealer for
details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
N O T E
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine) with
stored map data is inserted into the SD
card slot and used.

Ty p e A


Auxiliary jack/USB port
Ty p e B


USB port
Auxiliary jack


How to use AUX mode
(Type A) ..................................page 5-59

How to use USB mode
(Type A) ..................................page 5-60

How to use iPod mode
(Type A) ..................................page 5-64

How to use AUX mode
(Type B) ..................................page 5-67

How to use USB mode
(Type B) ..................................page 5-67
WARNING
Do not adjust the portable audio unit
or a similar product while driving the
vehicle:
Adjusting the portable audio unit
or a similar product while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident. Always adjust the portable
audio unit or a similar product while
the vehicle is stopped.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–58
Interior Features
Audio System
CAUTION
Depending on the portable audio
device, noise may occur when the
device is connected to the vehicle
accessory socket. (If noise occurs, do
not use the accessory socket.)

N O T E



y This mode may not be usable depending
on the portable audio device to be
connected.



y Before using the auxiliary jack/USB
port, refer to the instruction manual for
the portable audio device.



y Use a commercially-available, non-
impedance (3.5
) stereo mini plug for
connecting the portable audio unit to
the auxiliary jack. Before using the
auxiliary jack, read the manufacturer's
instructions for connecting a portable
audio unit to the auxiliary jack.



y To prevent discharging of the battery,
do not use the auxiliary input for long
periods with the engine off or idling.



y When connecting a device to the
auxiliary jack or USB port, noise may
occur depending on the connected
device. If the device is connected to the
vehicle's accessory socket, the noise can
be reduced by unplugging it from the
accessory socket.

How to connect USB port/
Auxiliary jack
Ty p e A


USB port Auxiliary jack

Ty p e B


USB port Auxiliary jack

Connecting a device
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the connector on the device to
the USB port.

Connecting with a connector cable
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the device plug/connector
cable to the auxiliary jack/USB port.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–59
Interior Features
Audio System
WARNING
Do not allow the connection plug cord
to get tangled with the parking brake or
the selector lever:
Allowing the plug cord to become
tangled with the parking brake or the
selector lever is dangerous as it could
interfere with driving, resulting in an
accident.

CAUTION
Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.

N O T E



y Insert the plug into the auxiliary jack/
USB port securely.



y Insert or pull out the plug with the plug
perpendicular to the auxiliary jack/USB
port hole.



y Insert or remove the plug by holding its
base.

How to use AUX mode (Type A)
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) of the
audio unit to change to the AUX mode.


N O T E



y When the device is not connected to the
auxiliary jack, the mode does not switch
to the AUX mode.



y Adjust the audio volume using the
portable audio device or audio unit.



y Audio adjustments other than audio
volume can only be done using the
portable audio device.



y If the connection plug is pulled out from
the auxiliary jack while in AUX mode,
noise may occur.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–60
Interior Features
Audio System
How to use USB mode (Type A)
Media/Scan button
Folder down button Folder up button Play/Pause button Random button
Repeat buttonAudio display
Text button
Track down/Reverse button
Track up/Fast-forward button
Type Playable data
USB mode MP3/WMA/AAC ¿ le

This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the USB mode and start
playback.

N O T E



y Some devices such as smart phones
may require a setting change to allow
operation using a USB connection.



y When the USB device is not connected,
the mode does not switch to USB mode.



y When there is no playable data in the
USB device, “ NO CONTENTS ”is
À ashed.




y Playback of the USB device is in the
order of the folder numbers. Folders
which have no MP3/WMA/AAC ¿ les are
skipped.



y Do not remove the USB device while
in the USB mode. The data may be
damaged.

Pause
To stop playback, press the play/pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–61
Interior Features
Audio System
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
Press the track down button (
) after a
few seconds have elapsed to start playback
from the beginning of the current track.
Folder search
To change to the previous folder, press the
folder down button (
), or press the folder
up button (
) to advance to the next
folder.
Music scan
This function scans the titles in a folder
currently being played and plays ten
seconds of each song to aid you in ¿ nding
a song you want to listen to.
Press and hold the scan button (
)
during playback to start the scan play
operation (the track number will À ash).
Press and hold the scan button (
)
again to cancel scan playback.
N O T E
If the unit is left in scan, normal playback
will resume where scan was selected.

Repeat playback
T r a c k r e p e a t
1. Press the repeat button ( 1 ) during
playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
(
is displayed next to RPT at the
bottom of the display area).
2. To cancel the repeat playback, press the
button again after 3 seconds.

Folder repeat
1. Press the repeat button ( 1 ) during
playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ FOLDER RPT ” is displayed (
is
displayed next to RPT at the bottom of
the display area).
2. Press the button again to cancel the
repeat playback.

Random playback
Tracks are randomly selected and played.
Folder random
1. Press the random button ( 2 ) during
playback to play the tracks in the folder
randomly. “ FOLDER RDM ” is
displayed (
is displayed next to RDM
at the bottom of the display area).
2. To cancel the random playback, press
the button again after 3 seconds.

All random
1. Press the random button ( 2 ) during
playback, and then press the button
again within 3 seconds to play the
tracks in the USB device randomly.
“ ALL RDM ” is displayed (
is
displayed next to RDM at the bottom of
the display area).
2. Press the button again to cancel the
random playback.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–62
Interior Features
Audio System
Switching the display
The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.

Button Information displayed
on audio display

File number/
Elapsed time
Folder number/
File number
File name
Folder name
Album name
Song name
Artist name

N O T E



y The information (artist name, music
name) is displayed only when the USB
device information in the USB device
has information which can be displayed
on the screen.



y This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
(
).
Display scroll
Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.
N O T E
The number of characters which can be
displayed is restricted.

Error Messages
When the message “ CHECK USB ” is
displayed, it indicates that there is some
error in the USB device. Verify that the
content recorded in the USB device has
MP3/WMA/AAC ¿ les and re-connect
correctly. If the message reappears, have
the unit checked by an Authorized Mazda
Dealer.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–66
Interior Features
Audio System
N O T E



y The information (artist name, music
name) is displayed only when the iPod
has information which can be displayed.



y This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
(
).
Display scroll
13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.
N O T E
The number of characters which can be
displayed is restricted.

Error Messages
If the message “ CHECK iPod ” is
displayed, it indicates that there is a
malfunction in the iPod. Verify that the
content recorded in the iPod has playable
¿ les and connect correctly. If the message
reappears, have the unit checked by an
Authorized Mazda Dealer.
Error Indications (Type A)
If you see an error indication on the
display, ¿ nd the cause in the chart. If you
cannot clear the error indication, take the
vehicle to an Authorized Mazda Dealer.

Indication Cause
Solution
C H E C K
USB USB device
malfunction Verify that the content
recorded in the USB
device has MP3/WMA/
AAC ¿ les and re-
connect correctly.
If the error indication
continues to display,

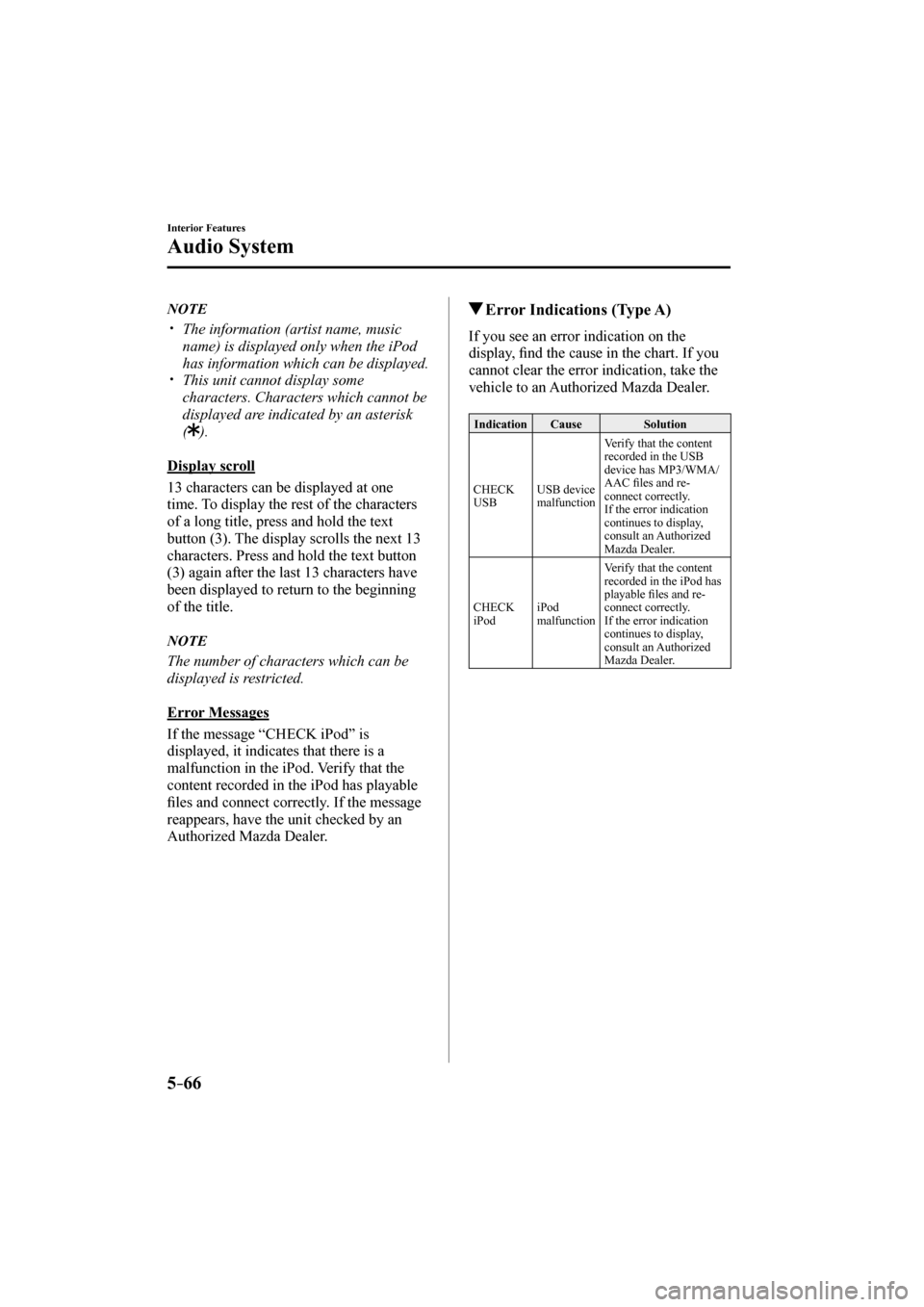

consult an Authorized
Mazda Dealer.
C H E C K
iPod iPod
malfunction Verify that the content
recorded in the iPod has
playable ¿ les and re-
connect correctly.
If the error indication
continues to display,
consult an Authorized
Mazda Dealer.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–67
Interior Features
Audio System

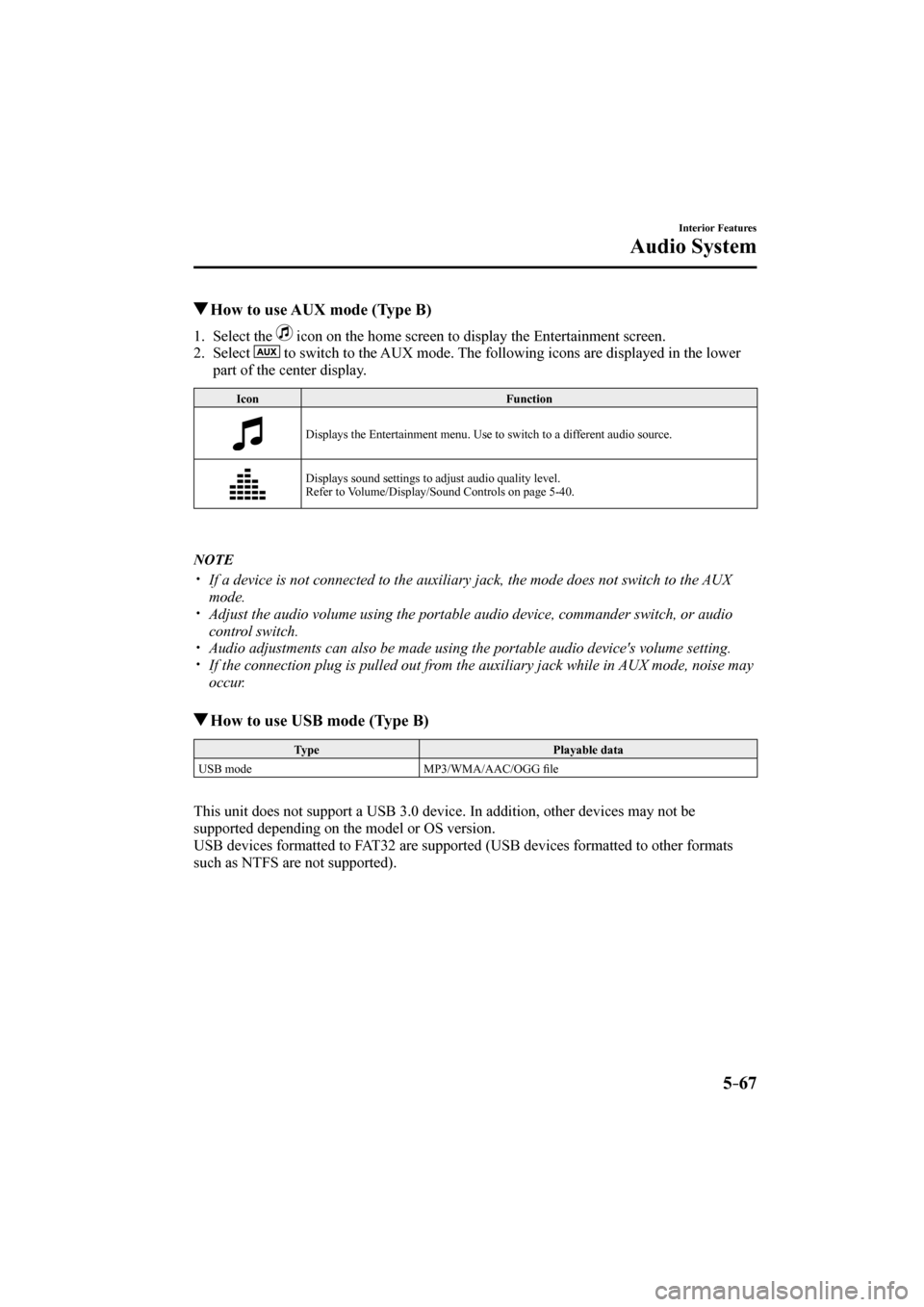

How to use AUX mode (Type B)
1. Select the icon on the home screen to display the Entertainment screen.
2. Select
to switch to the AUX mode. The following icons are displayed in the lower
part of the center display.
Icon Function

Displays the Entertainment menu. Use to switch to a different audio source.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-40 .

N O T E



y If a device is not connected to the auxiliary jack, the mode does not switch to the AUX
mode.



y Adjust the audio volume using the portable audio device, commander switch, or audio
control switch.



y Audio adjustments can also be made using the portable audio device's volume setting.



y If the connection plug is pulled out from the auxiliary jack while in AUX mode, noise may
occur.

How to use USB mode (Type B)
Type Playable data
USB mode MP3/WMA/AAC/OGG ¿ le

This unit does not support a USB 3.0 device. In addition, other devices may not be
supported depending on the model or OS version.
USB devices formatted to FAT32 are supported (USB devices formatted to other formats
such as NTFS are not supported).
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–68
Interior Features
Audio System
Playback
1. Select the
icon on the home screen to display the Entertainment screen.
2. Select
or to switch the USB mode. The following icons are displayed in the
lower part of the center display.

Icon Function

Displays the Entertainment menu. Use to switch to a different audio source.

Category list is displayed.

Current track list is displayed.
Select a desired track to play it.

Plays the current track repeatedly.
Select it again to play the tracks in the current track list repeatedly.
When selected again, the function is canceled.

Tracks in the current track list are played randomly.
Select it again to cancel.

Starts playing a track similar to the current track using Gracenote's More Like This
™.
Select the desired song from the category list to cancel More Like This™.

If selected within a few seconds from the beginning of a song which has started to play, the
previous song is selected.
If more than a few seconds have elapsed, the song currently being played is replayed from
the beginning.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.

Track is played. When selected again, playback is temporarily stopped.

Advances to the beginning of the next song.
Long-press to fast forward.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-40 .

N O T E



y To move to the desired location on the track, move the slider indicating the playback time.



y The appearance of the repeat and shufÀ e icons changes depending on the type of
operation in which the function is used.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

5–69
Interior Features
Audio System
Category list
Select the
icon to display the following category list.
Select a desired category and item.

Category Function
Playlist *1 Displays playlists on the device.
Artist Displays the artist name list.
All the tracks or tracks for each album of the selected artist can be played.
Album Displays the album name list.
Song All the tracks in the device are displayed.
Genre Displays the genre list.
All the tracks or tracks per album or artist in the selected genre can be played.
Audiobook
*2 Displays the audiobook list.
Chapters can be selected and played.
Podcast
*2 Displays the podcast list.
Episode can be selected and played.
(Special service for some Apple devices.)
Folder
*3 Displays the folder/¿ le list.
*1 Playlist folders of Apple devices are not supported.
*2 Apple device only
*3 USB-Sticks and USB-Android
™ device only

Example of use (to play all tracks in
USB device)
( M e t h o d 1 )
1. Select
to display the category list.
2. Select
.
All the tracks in the USB device are
displayed.
3. Select a desired track.
The selected track is played. All the
tracks in the USB device can be played
by continuing playback.

N O T E
Only the tracks in the desired category
selected in Step 2 are played.

(Method 2) *1
1. Select
to display the category list.
2. Select
.
All the folders in the USB device are
displayed.
3. Select
.
All the tracks in the USB device are
displayed.
4. Select a desired track.
The selected track is played. All the
tracks in the USB device can be played
by continuing playback.

*1 Can be operated using an Android™
device or USB À ash memory.

N O T E
Only the tracks in the desired folder
selected in Step 3 are played.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD
