MAZDA MODEL CX-3 2017 Owners Manual (in English)

7–17
If Trouble Arises
Flat Tire
15. Insert the luggage compartment
cover from the top of the luggage
compartment opening with the cloth
side of the cover facing outward,
and slide it between the À at tire and
the inside perimeter of the luggage
compartment opening.



16. Check the tire inÀ ation pressure.
Refer to the speci¿ cation charts on
page 9-8 .
17. Have the À at tire repaired or replaced
as soon as possible.

N O T E
(With tire pressure monitoring system)
Do not press the tire pressure monitoring
system set switch after installing the spare
tire. The switch is only to be pressed after
installing the repaired À at tire or installing
a replacement tire (page 4-24 ).

WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could aff ect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.

N O T E
To prevent the jack and tool from rattling,
store them properly.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–18
If Trouble Arises
Battery Runs Out
J u m p - S t a r t i n g
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.


Do not allow the positive ( ) terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a battery, do
not allow metal tools to contact the positive (
) or negative ( ) terminal of the battery.


Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.

Do not jump-start a frozen battery or one with a low fl uid level:
Jump-starting a frozen battery or one with a low fl uid level is dangerous. It may rupture
or explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–19
If Trouble Arises
Battery Runs Out
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a
24 V motor generator set).



Jumper cables
Discharged battery
Booster battery

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–20
If Trouble Arises
Battery Runs Out
1. Remove the battery cover.



2. Make sure the booster battery is 12
V and that its negative terminal is
grounded.
3. If the booster battery is in another
vehicle, do not allow both vehicles
to touch. Turn off the engine of the
vehicle with the booster battery and
all unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.


y
 Connect one end of a cable to the
positive terminal on the discharged
battery (1).


y
 Attach the other end to the positive
terminal on the booster battery (2).


y
 Connect one end of the other cable to
the negative terminal of the booster
battery (3).


y
 Connect the other end to the ground
point indicated in the illustration
away from the discharged battery (4).

5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
6. When ¿ nished, carefully disconnect the
cables in the reverse order described in
the illustration. 7. If the battery cover has been removed,
install it in the reverse order of
removal.

N O T E
Verify that the covers are securely
installed.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–21
If Trouble Arises
Emergency Starting
Starting a Flooded Engine
If the engine fails to start, it may be
À ooded (excessive fuel in the engine).

Follow this procedure:


1. If the engine does not start within
¿ ve seconds on the ¿ rst try, wait ten
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.
4. Depress the brake pedal, then press the
push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.
5. If the engine fails to start, crank it
without depressing the accelerator.


If the engine still does not start using
the above procedure, have your vehicle
inspected by an Authorized Mazda Dealer.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be injured.

N O T E
You cannot start a vehicle with an
automatic transaxle by pushing it.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–22
If Trouble Arises
Overheating
O v e r h e a t i n g
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WARNING
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before attempting
to work near the cooling fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running indefi nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.


Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.

Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.

If the high engine coolant temperature
warning light turns on:


1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.

6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.


%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–23
If Trouble Arises
Overheating
If you ¿ nd a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.

Cooling system cap Coolant reservoir
Cooling fan

If you ¿ nd no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
6-30 ).
CAUTION
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

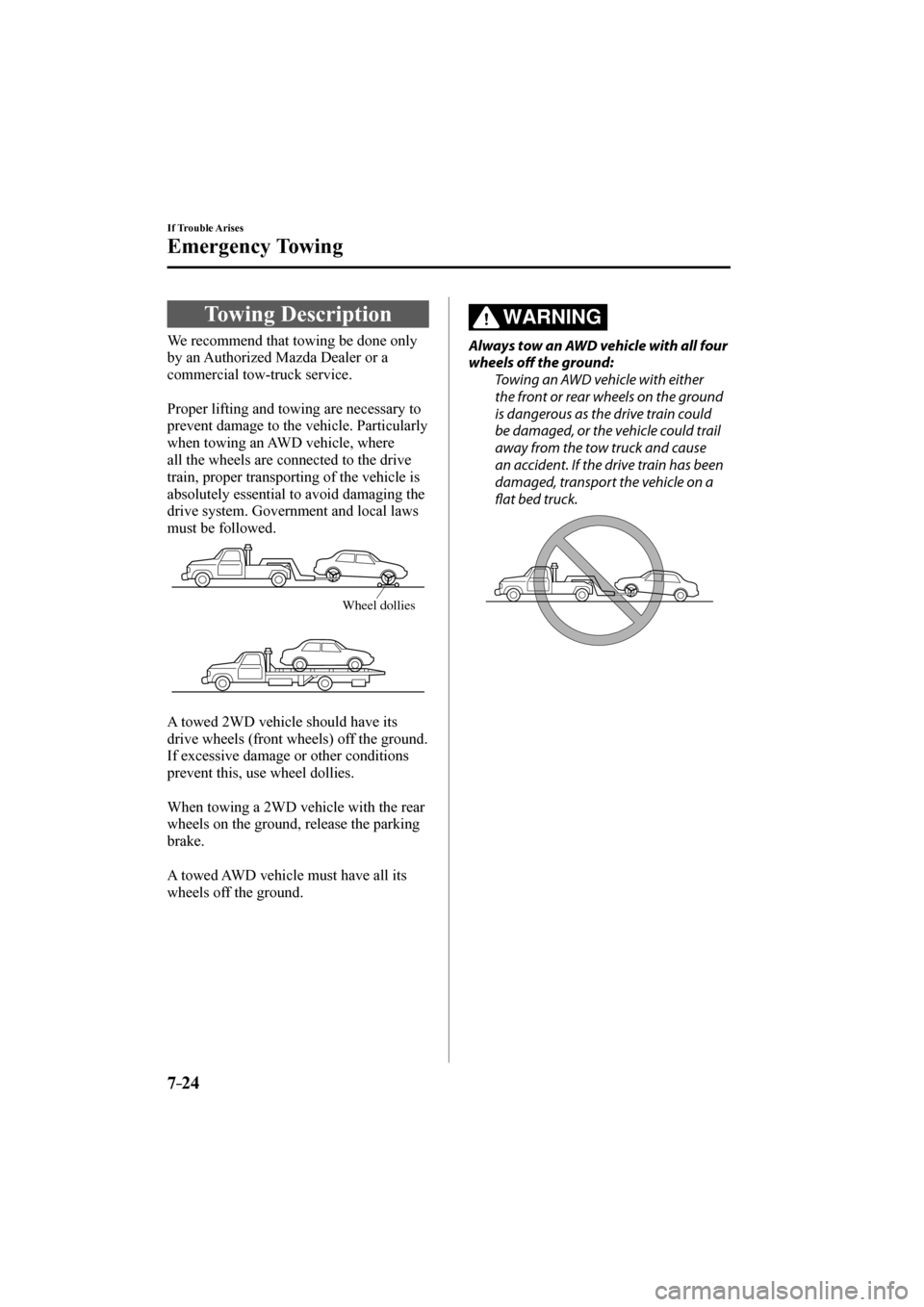

7–24
If Trouble Arises
Emergency Towing
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.

Proper lifting and towing are necessary to
prevent damage to the vehicle. Particularly
when towing an AWD vehicle, where
all the wheels are connected to the drive
train, proper transporting of the vehicle is
absolutely essential to avoid damaging the
drive system. Government and local laws
must be followed.

Wheel dollies


A towed 2WD vehicle should have its
drive wheels (front wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.

When towing a 2WD vehicle with the rear
wheels on the ground, release the parking
brake.

A towed AWD vehicle must have all its
wheels off the ground.
WARNING
Always tow an AWD vehicle with all four
wheels off the ground:
Towing an AWD vehicle with either
the front or rear wheels on the ground
is dangerous as the drive train could
be damaged, or the vehicle could trail
away from the tow truck and cause
an accident. If the drive train has been
damaged, transport the vehicle on a
fl at bed truck.


%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–25
If Trouble Arises
Emergency Towing
*Some models.
CAUTION



¾ Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal damage
to the transaxle.




¾ Do not tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or fl atbed equipment.


Tiedown Hooks *
CAUTION
Do not use the front tiedown eyelet for
towing the vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelet for any other purpose
could result in the vehicle being
damaged.

Tiedown Hook-Front
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3 ).
2. Wrap a jack lever or similar tool with
a soft cloth to prevent damage to a
painted bumper, and open the cap
located on the front bumper.



CAUTION
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–26
If Trouble Arises
Emergency Towing
N O T E
Remove the cap completely and store it so
as not to lose it.

3. Securely install the tiedown eyelet
using the lug wrench.


Lug wrench
Tiedown eyelet

4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.

Tiedown Hook-Rear
The hook positioned under the rear
bumper on the right side is for tying down
the vehicle during transport, and it cannot
be used for towing other vehicles.
It can be used as a towing hook only when
the vehicle must be towed by another
vehicle in an emergency case such as when
the vehicle is stuck in snow, however, it
may damage the bumper.

Tiedown hook
CAUTION
When using the hook in such
emergency cases, observe the
following so as not to damage the
tiedown hook or the vehicle body.



¾ The vehicle must be pulled straight
to the rear so that no load is applied
to the vehicle in the lateral direction.



¾ The bumper may be damaged if the
tie down hook is used as a towing
hook.



¾ When using a metal chain or wire
cable, wrap a cloth around the
attachment area. If the metal chain
or wire cable contacts the bumper
directly, the bumper could be
scratched or damaged.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD
