MAZDA MODEL CX-3 2017 Owners Manual (in English)

8–41
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)


GCW
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).

GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.

WARNING
Never Exceed GVWR or GAWR Specifi cations:
Exceeding the GVWR or the GAWR specifi ed on the certifi cation label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement tires
with a higher limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specifi ed on the certifi cation label.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–42
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never exceed
XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting ¿ gure equals the available amount of cargo and luggage load capacity. For
example, if the “XXX” amount equals 1400 lbs. and there will be ¿ ve 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That
weight may not safely exceed the available cargo and luggage load capacity calculated in
Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your
vehicle. Consult this manual to determine how this reduces the available cargo and
luggage load capacity of your vehicle.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–43
Customer Information and Reporting Safety Defects
Declaration of Conformity
Declaration of Conformity
Keyless Entry System/Immobilizer System

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–44
Customer Information and Reporting Safety Defects
Declaration of Conformity
Blind Spot Monitoring (BSM) System

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–45
Customer Information and Reporting Safety Defects
Declaration of Conformity
Bluetooth ® Hands-Free
T y p e A
U.S.A. and Canada


FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.

WARNING
Changes or modifi cations not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

The term “IC: ” before the radio certi¿ cation number only signi¿ es that Industry Canada
technical speci¿ cations were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Mazda Bluetooth
® Hands-Free Customer Service



y U.S.A.
 Phone: 800-430-0153 (Toll-free)
 Web: www.MazdaUSA.com/bluetooth



y Canada
 Phone: 800-430-0153 (Toll-free)
 Web: www.mazdahandsfree.ca
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–46
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico




y Brief description: Bluetooth module for Hands-free telephone and streaming audio



y Name and address of the importer: Refer to "MEXICO" (page 8-12 ) in Importer/
Distributor section.



y Brand name of the product: Johnson Controls Inc.



y Model name of the product: MAZ



y Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-12 ) in Importer/Distributor section.



y Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-12 ) in Importer/Distributor section.




y Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet for detailed warranty information.



y Warranty procedure:
 Center of Attention to Client (CAC)
 Phone: 01-800-01-MAZDA
 Web: www.mazdamexico.com.mx



y Electrical speci¿ cations:
 Voltage: 9-16V, Frequency: 2.4Ghz, Current: 270mA(Typ)
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

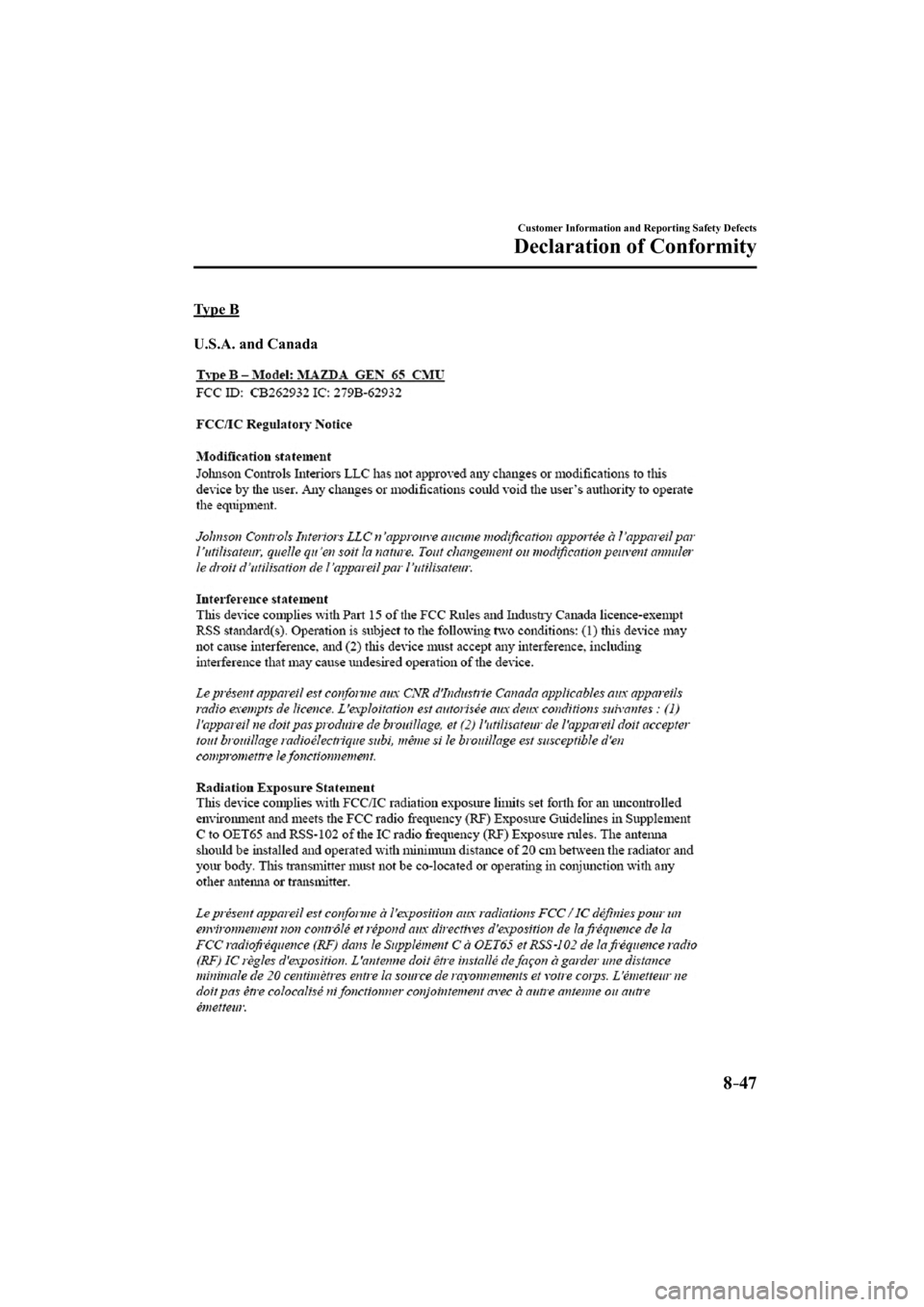

8–47
Customer Information and Reporting Safety Defects
Declaration of Conformity
T y p e B
U.S.A. and Canada


%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–48
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico


%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–49
Customer Information and Reporting Safety Defects
Declaration of Conformity
Smart Brake Support (SBS)/Mazda Radar Cruise Control (MRCC)/Distance
Recognition Support System (DRSS)


%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–50
MEMO
