Page 246 of 582
4–126
When Driving
Tire Pressure Monitoring System
*Some models.
Tire Pressure Monitoring System *
The Tire Pressure Monitoring System (TPMS) monitors the air pressure of all four tires. If
the air pressure of one or more tires is too low, the system warns the driver by indicating the
tire pressure monitoring system warning light in the instrument cluster and operating a beep
sound. The system monitors the tire pressures indirectly using the data sent from the ABS
wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the speci ¿ ed
tire pressure (value on the tire pressure label). Follow the procedure and perform the
initialization.
Refer to Tire Pressure Monitoring System Initialization on page 4-129 .
The warning light À ashes when the system has a malfunction.
Refer to Warning Lights on page 4-25 .
ABS wheel speed sensor
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 247 of 582
4–127
When Driving
Tire Pressure Monitoring System
CAUTION
¾ Each tire, including the spare (if provided), should be checked monthly when cold and
infl ated to the infl ation pressure recommended by the vehicle manufacturer on the vehicle
placard or tire infl ation pressure label. (If your vehicle has tires of a diff erent size than the
size indicated on the vehicle placard or tire infl ation pressure label, you should determine
the proper tire infl ation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires
is signifi cantly under-infl ated. Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and infl ate them to the proper
pressure. Driving on a signifi cantly under-infl ated tire causes the tire to overheat and can
lead to tire failure. Under-infl ation also reduces fuel effi ciency and tire tread life, and may
aff ect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the
driver's responsibility to maintain correct tire pressure, even if under-infl ation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when
the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will fl ash for approximately one minute and then
remain continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
¾ To avoid false readings, the system samples for a little while before indicating a problem. As
a result it will not instantaneously register a rapid tire defl ation or blow out.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 402 of 582
6–6
Maintenance and Care
Scheduled Maintenance
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
T : Tighten
Remarks:
*1 The engine oil and ¿ lter must be changed at least once a year or within 16,000 km (10,000 miles) since last
engine oil and ¿ lter change. The system must be reset whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 48,000 km (30,000 miles).
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km (10 miles)
*6 If this component has been submerged in water, the oil should be replaced.
*7 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 404 of 582
6–8
Maintenance and Care
Scheduled Maintenance
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*3 To equalize tread wear for maintaining good performance in handling and braking, rotate the tires every 12,000
km (7,500 miles). However Mazda recommends to rotate every 8,000 km (5,000 miles) to help increase tire life
and distribute wear more evenly.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 48,000 km (30,000 miles).
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km (10 miles)
*6 If this component has been submerged in water, the oil should be replaced.
*7 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 406 of 582
6–10
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
A l l l o c k s a n d h i n g e s L L L L L L L L L L L L
Wa s h e r À uid level I I I I I I I I I I I I
Emergency À at tire repair kit (if installed)
*8 Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air ¿ lter Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Engine oil À exible maintenance is available for U.S.A. and Puerto Rico residents whose vehicle is operated
mainly where none of the following conditions apply.
y Extended periods of idling or low-speed operation such as police car, taxi or driving school car
y Driving in dusty conditions If any do apply, follow ¿ xed maintenance.
The engine oil and ¿ lter must be changed at least once a year or within 16,000 km (10,000 miles) since last
engine oil and ¿ lter change. Reset the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*4 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*5 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*6 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 48,000 km (30,000 miles).
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km (10 miles)
*7 If this component has been submerged in water, the oil should be replaced.
*8 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 408 of 582
6–12
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers (miles), whichever comes ¿ rst.
Months 6
12 18 24 30 36 42 48 54 60 66 72
×1000 km 8
16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5
10 15 20 25 30 35 40 45 50 55 60
AIR CONDITIONER SYSTEM
Cabin air ¿ lter Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 48,000 km (30,000 miles).
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km (10 miles)
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 411 of 582
6–15
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 10
20 30 40 50 60 70 80 90
100 110 120
AIR CONDITIONER SYSTEM
Cabin air ¿ lter R R R
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 45,000 km.
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 413 of 582

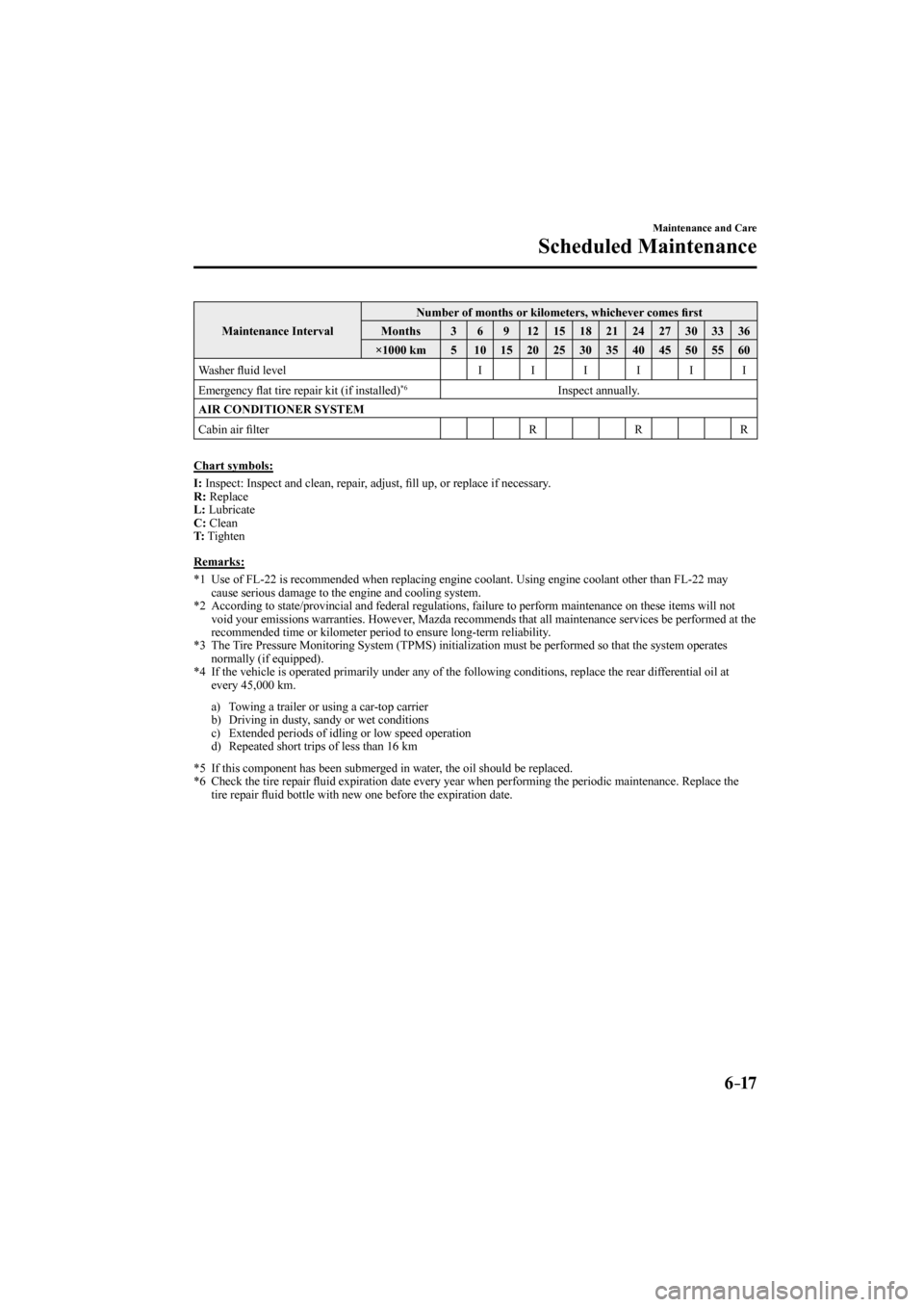

6–17
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5
10 15 20 25 30 35 40 45 50 55 60
Wa s h e r À uid level I I I I I I
Emergency À at tire repair kit (if installed)
*6 Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air ¿ lter R R R
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 45,000 km.
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 415 of 582
6–19
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65
70 75 80 85 90 95
100 105 110 115 120
Wa s h e r À uid level I I I I I I
Emergency À at tire repair kit (if installed)
*6 Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air ¿ lter R R R
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 45,000 km.
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 495 of 582
7–31
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
AWD Warning
Light
*
When the light is turned on
If the AWD warning light illuminates, contact an Authorized Mazda Dealer.
y Illuminates when there is an abnormality with the AWD system.
y Illuminates if there is too much difference in tire radius between the front and rear wheels.
When the light is À ashing
Park the vehicle in a safe place. After a few moments, if the warning light stops À ashing,
you can resume driving. If the light does not stop À ashing, contact an Authorized Mazda
Dealer.
y Flashes when the differential oil temperature is abnormally high.
y Flashes when there is a continuous large difference between front and rear wheel rotation,
such as when trying to pull away from an icy surface or when trying to remove the vehicle
from mud, sand or similar conditions.
Air Bag/Front Seat
Belt Pretensioner
System Warning
Light A system malfunction is indicated if the warning light constantly À ashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident. WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized
Mazda Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
(Flashing)
Tire Pressure
Monitoring System
Warning Light
* If the tire pressure monitoring system has a malfunction, the tire pressure warning
light À ashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an Authorized Mazda Dealer as soon as
possible.
WARNING
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden maneuvering and braking:
If the tire pressure monitoring system warning light illuminates or fl ashes, or the tire
pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a fl at, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed
to a place where air may be added and the system monitored again by an Authorized
Mazda Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Have the problem taken care of as soon as possible before it develops into a more
serious situation that could lead to tire failure and a dangerous accident.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
