▼Locking, Unlocking with Auxiliary
Key
Turn the auxiliary key
toward the front to
lock, toward the back to unlock.
To l o c k
All doors and the liftgate lock
automatically when th e driver's door is
locked using the auxiliary key.
To u n l o c k
The driver’s door unlocks when the
auxiliary key is turned briefly to the
unlock position and then immediately
returned to the center position.
All doors and the liftgate unlock when the
driver's door is unlocked and the auxiliary
key is held in the unlock position for one
second or longer.
Lock Unlock
▼
Locking, Unlocking with Request
Switch (With the advanced keyless
function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch on
the front doors while the key is being
carried.
The request switch on the liftgate can only
be used to lock all d
oors and the liftgate.
Front doors
Request switch
Liftgate (Lock only)
Request switch
Before Driving
Doors and Locks
3-13
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

To l o c k
To lock the doors and the liftgate, press the
request switch and the hazard warning
lights will flash once.
A beep sound will be heard once.
To u n l o c k
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be heard
twice and the hazard warning lights will
flash twice.
To unlock all doors and the liftgate, press
the request switch again within three
seconds and two more beep sounds will be
heard.
Front passenger door request switch
To unlock all doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
NOTE
•The system can be set to unlock all
doors by performing a single operation.
Refer to Personalization Features on
page 9-9.
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
UNLOCK button on the key for 5
seconds or longer (the sound of the
doors locking/unlocking can be
heard).
After this, the system switches the
setting of pressing the driver's
request switch once or twice to
unlock all doors and the liftgate
each time the UNLOCK button is
pressed (the sound of the doors
locking/unlocking can be heard).
4. The setting change is completed by
doing any one of the following:
•Switching the igni tion to ACC or
ON.
•Closing the driver's door.
•Opening the liftgate.
•Not operating the key for ten
seconds.
•Pressing any button except the
UNLOCK button on the key.
•Pressing a request switch.
•Confirm that all doors and the liftgate
are securely locked.
For the liftgate, move it without pressing
the electric liftgate opener to verify that
the liftgate has not been left ajar.
•All doors and the liftgate cannot be
locked when any door or the liftgate is
open.
•It may require a few seconds for the
doors to unlock after the request switch
is pressed.
•A beep sound is heard for confirmation
when the doors and the liftgate are
locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
Before Driving
Doors and Locks
3-14
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

The volume of the beep sound can also
be changed. Refer to Personalization
Features on page 9-9.
Use the following procedure to change
the setting.
1. Switch the ignition off and close allof the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's door, press and hold the
LOCK button on the key for 5
seconds or longer (All of the doors
and the liftgate are locked and
unlocked when the LOCK button on
the key is pressed and held for 5
seconds.).
The beep sound activates at the
currently set volume. The setting
changes each time the LOCK button
on the key is pressed and the beep
sound activates at the set volume. (If
the beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed by
doing any one of the following:
•Switching the ignition to ACC or
ON.
•Closing the driver's door.
•Opening the liftgate.
•Not operating the key for ten
seconds.
•Pressing any button except the
LOCK button on the key.
•Pressing a request switch.
•(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-41.
•The setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the
request switch.
Refer to Personalization Features on
page 9-9.
(Walk-away auto lock function)
A beep sound is heard when all doors
and the liftgate are closed while the
advanced key is being carried. All doors
and the liftgate are locked automatically
after about three seconds when the
advanced key is out of the operational
range. Also, the hazard warning lights
flash once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out of the
operational range before the doors and
the liftgate are completely closed or
another key is left in the vehicle, the
walk-away auto lock function will not
work. Always make sure that all doors
and the liftgate are closed and locked
before leaving the vehicle. The
walk-away auto lock function does not
close the power windows.
•(Auto re-lock function)
After unlocking with the request switch,
all doors and the liftgate will
automatically lock if any of the
following operations are not performed
within about 60 seconds. If your vehicle
has a theft-deterrent system, the hazard
warning lights will flash for
confirmation.
Before Driving
Doors and Locks
3-15
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on
page 9-9.
•Opening a door or the liftgate.
•Switching the ignition to any position
other than off.
▼ Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter,
refer to Keyless Entry
System (page 3-3).
▼ Locking, Unlocking with Door-Lock
Switch
All doors and the liftgate lock
automatically when the lock side is
pressed. They unlock when the unlock
side is pressed.
Driver's door
Lock
Unlock
Front passenger's door
Unlock Lock
To lock all the doors and the liftgate from
an open front door, press the lock side of
the door lock switch and then close the
door.
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
▼
Auto Lock/Unlock Function
WA R N I N G
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front door
while the vehicle is moving is dangerous.
Passengers can fall out of the vehicle if the
door opens accidentally , which could
result in death or
serious injury.
•When the vehicle speed exceeds 20
km/h (12 mph), all doors and the liftgate
lock automatically.
•When the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Before Driving
Doors and Locks
3-16
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can be set to
lock or unlock automatically by selecting
any one of the functions from the
following table and using the driver's
door-lock switch on the interior door
panel.
NOTE
•Function number 3 in the following
table is the factory setting for your
vehicle.
•There are only a total of six auto lock/
unlock settings available for automatic
transaxle vehicles, and three for manual
transaxle vehicles. Be sure to press the
unlock side of the driver's door-lock
switch the correct number of times
according to the selected function
number. If the switch is mistakenly
pressed seven times on an automatic
transaxle vehicle or four times on a
manual transaxle, the procedure will be
cancelled. If this occurs, start the
procedure from the beginning.
Function number Function*1
1The auto door-lock function is disa-
bled.
2 All the doors and the liftgate lock au-
tomatically when the vehicle speed is
about 20 km/h (12 mph) or more.
3 (Factory Setting) All the doors and the liftgate lock au-
tomatically when the vehicle speed is
about 20 km/h (12 mph) or more. All
the doors and the liftgate unlock
when the ignition is switched from
ON to Off.
Function
number Function*1
4(Automatic transaxle vehicles only)
When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position, all
the doors and the liftgate lock auto-
matically.
5 (Automatic transaxle vehicles only)
When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position, all
the doors and the liftgate lock auto-
matically.
When the selector lever is shifted to
park (P) while the i
gnition is switched
ON, all the doors an d the liftgate un-
lock automatically.
6 (Automatic transaxle vehicles only)
All the doors and the liftgate lock au-
tomatically when the vehicle speed is
about 20 km/h (12 mph) or more.
When the selector lever is shifted to
park (P) while the i
gnition is switched
ON, all the doors an d the liftgate un-
lock automatically.
*1 Other settings for the au to door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to Personalization Features on page 9-9.
Settings can be changed using the
following procedure.
1. Safely park the vehicle. All doors and
the liftgate must remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
Before Driving
Doors and Locks
3-17
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

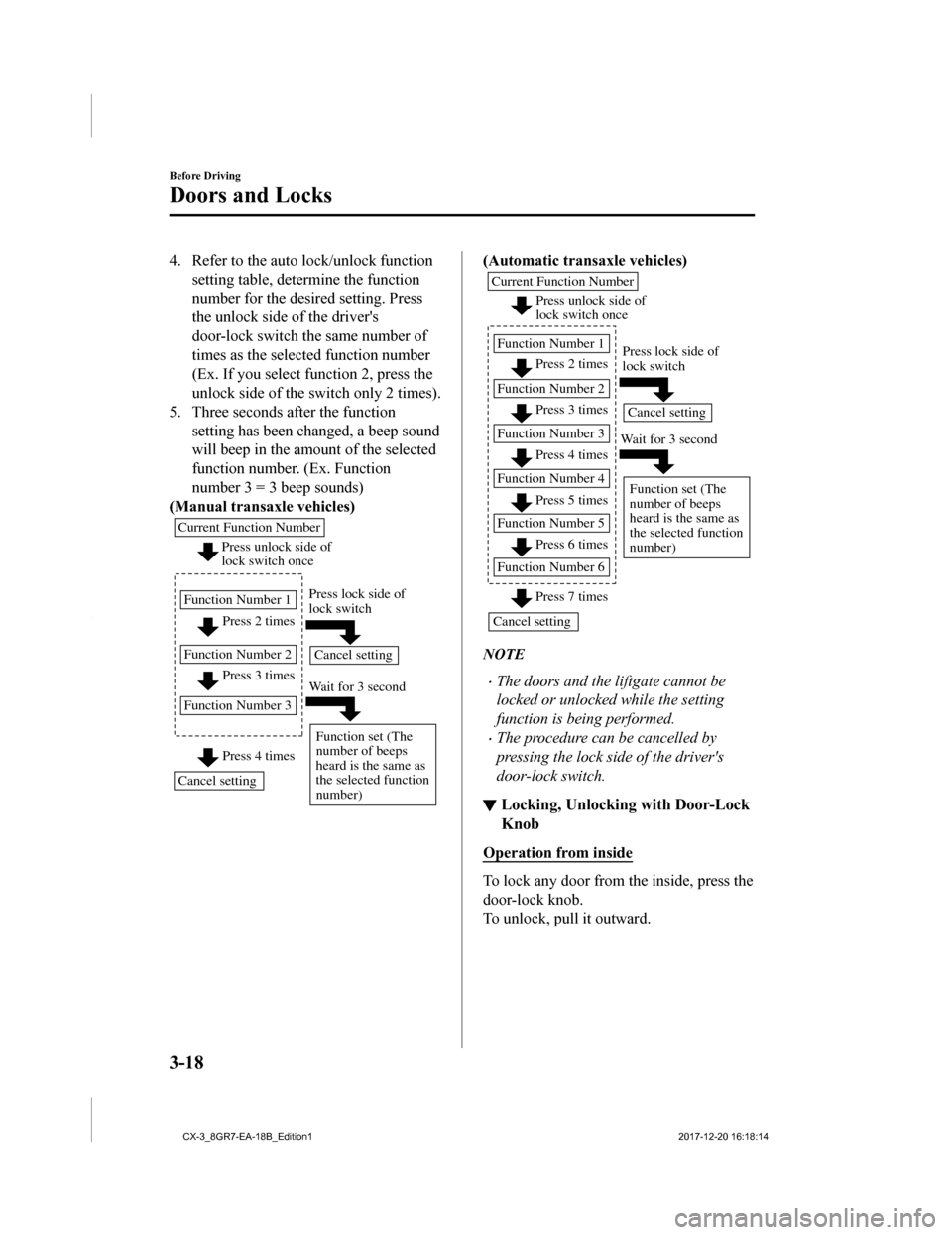

4. Refer to the auto lock/unlock function
setting table, determine the function
number for the desired setting. Press
the unlock side of the driver's
door-lock switch the same number of
times as the selected function number
(Ex. If you select function 2, press the
unlock side of the switch only 2 times).
5. Three seconds after the function
setting has been changed, a beep sound
will beep in the amount of the selected
function number. (Ex. Function
number 3 = 3 beep sounds)
(Manual transaxle vehicles)
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Function Number 3 Press 4 times
Press unlock side of
lock switch once
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
(Automatic transaxle vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Press 4 times
Function Number 3
Press 5 times
Function Number 4
Press 7 times
Function Number 5
Press 6 times
Function Number 6
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
NOTE
•The doors and the liftgate cannot be
locked or unlocked while the setting
function is being performed.
•The procedure can be cancelled by
pressing the lock side of the driver's
door-lock switch.
▼ Locking, Unlocking with Door-Lock
Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
Before Driving
Doors and Locks
3-18
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

This does not operate the other door locks.

Lock
Unlock
Unlocked: Red indicator
Operation from outside
To lock any door using its door-lock knob
from the outside, press the door-lock knob
to the lock position and close the door
(holding the door handle in the open
position is not required).
This does not operate
the other door locks.

Door-lock knob
NOTE
When locking the door this way:
•Be careful not to leave the key inside the
vehicle.
•The doors cannot be locked using the
driver's door lock knob if any door is
open when the igni tion is switched to
ACC or ON.
▼ Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them on both rear doors
whenever a child rides in the rear seat of
the vehicle.

If you slide the chil
d safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can only be opened by pulling
the outside handle.

Lock Unlock
Before Driving
Doors and Locks
3-19
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

Liftgate
WA R N I N G
Never allow a person to ride in the luggage
compartment:
Allowing a person to ride in the luggage
compartment is dangerous. The person in
the luggage compartment could be
seriously injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open liftgate in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous, and it can
cause loss of consciousness and death.
Moreover, an open liftgate could cause
occupants to fall out in an accident.
Do not stack or leave loaded luggage
unsecured in the luggage compartment:
Otherwise, the luggage may move or
collapse, resulting in injury or an accident.
In addition, do not load luggage higher
than the seatbacks. It may affect the side or
rear field of view.
CAUTION
Before opening the liftgate, remove any
snow and ice accumulation on it.
Otherwise, the liftgate could close under
the weight of the snow and ice resulting
in injury.
Be careful when opening/closing the
liftgate during strong winds. If a strong
gust blows against the liftgate, it could
close suddenly resulting in injury.
 Fully open the liftgate and make sure
that it stays open. If the liftgate is only
opened partially, it could slam shut by
vibration or wind gusts resulting in
injury.
 When loading or unloading luggage in
the luggage compartment, turn off the
engine. Otherwise, you could get burned
by the heat of the exhaust gas.
 Be careful not to apply excessive force to
the damper stay on the liftgate such as
by putting your hand on the stay.
Otherwise, the damper stay may bend
and
affect the liftgate operation.
Damper stay

Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer if a liftgate damper stay is
deformed or damaged for reasons such
as a collision or if there is some other
problem.
Before Driving
Doors and Locks
3-20
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Opening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and
liftgate, then press
the electric liftgate op ener on the liftgate
and raise the liftgate when the latch
releases.
Electric liftgate
opener
NOTE
(With the advanced keyless function)
•A locked liftgate can also be opened
while the key is being carried.
•When opening the liftgate with the doors
and the liftgate locked, it may require a
few seconds for the liftgate latch to
release after the electric liftgate opener
is pressed.
•The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, first push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate.
•When the liftgate latch is released by
pressing the electric liftgate opener, the
liftgate raises slightly. If the liftgate is
not operated for a certain period of
time, the liftgate cannot be raised.
To open
Press the electric liftgate opener again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
•If the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
•If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing the
emergency procedure.
Refer to When Liftgate Cannot be
Opened on page 7-48.
Before Driving
Doors and Locks
3-21
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Closing the liftgate
CAUTION
(With luggage board)
When closing the liftgate, return the
luggage board to its original position. If the
liftgate is closed with the luggage board
standing upright, the luggage
compartment cover could be damaged.
Luggage compartment cover
Luggage board
Lower the liftgate slow ly using the liftgate
grip recess, then push the liftgate closed
using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate grip recess
NOTE
Confirm that the liftgate is securely closed.
The liftgate, move it without pressing the
electric liftgate opener to verify that the
liftgate has not been left ajar.
▼ Luggage Compartment
Luggage compartment cover*
WA R N I N G
Do not place anything on top of the cover:
Placing luggage or other cargo on top of
the luggage compartment cover is
dangerous. During sudden braking or a
collision, the cargo could become a
projectile that could hit and injure
someone. The vehicl
e has a light weight
luggage compartment cover to keep the
contents of your luggage area out of sight;
it will not retain heavy objects that are not
tied down in an accident such as a rollover.
Tie down all heavy objects, whether
luggage or cargo, using the tie down
hooks.
Make sure luggage and cargo are secured
before driving:
Not securing cargo while driving is
dangerous as it could move or be crushed
during sudden braking or a collision and
cause injury.
CAUTION
Make sure the luggage compartment cover
is firmly secured. If it is not
firmly secured, it
could unexpectedly disengage resulting in
injury.
Before Driving
Doors and Locks
3-22*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
