Each setting/adjustment for the active driving display can be performed on the center
display.
1. Select the
icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.
•Method for adjusting screen brightness (automatically/manually)
•Screen brightness initial settings (automatic adjustment is sel ected)
•Screen brightness adjustment (manual adjustment is selected)
•Display position of active driving display (display height)
•Active driving display ON/OFF (indication)
•Navigation guidance ON/OFF
•Reset settings (reset)
NOTE
•The desired driving position (display position, brightness level, display information) can
be called up after programming the position.
Refer to Driving Position Memory on page 2-7.
When Driving
Instrument Cluster and Display
4-23
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

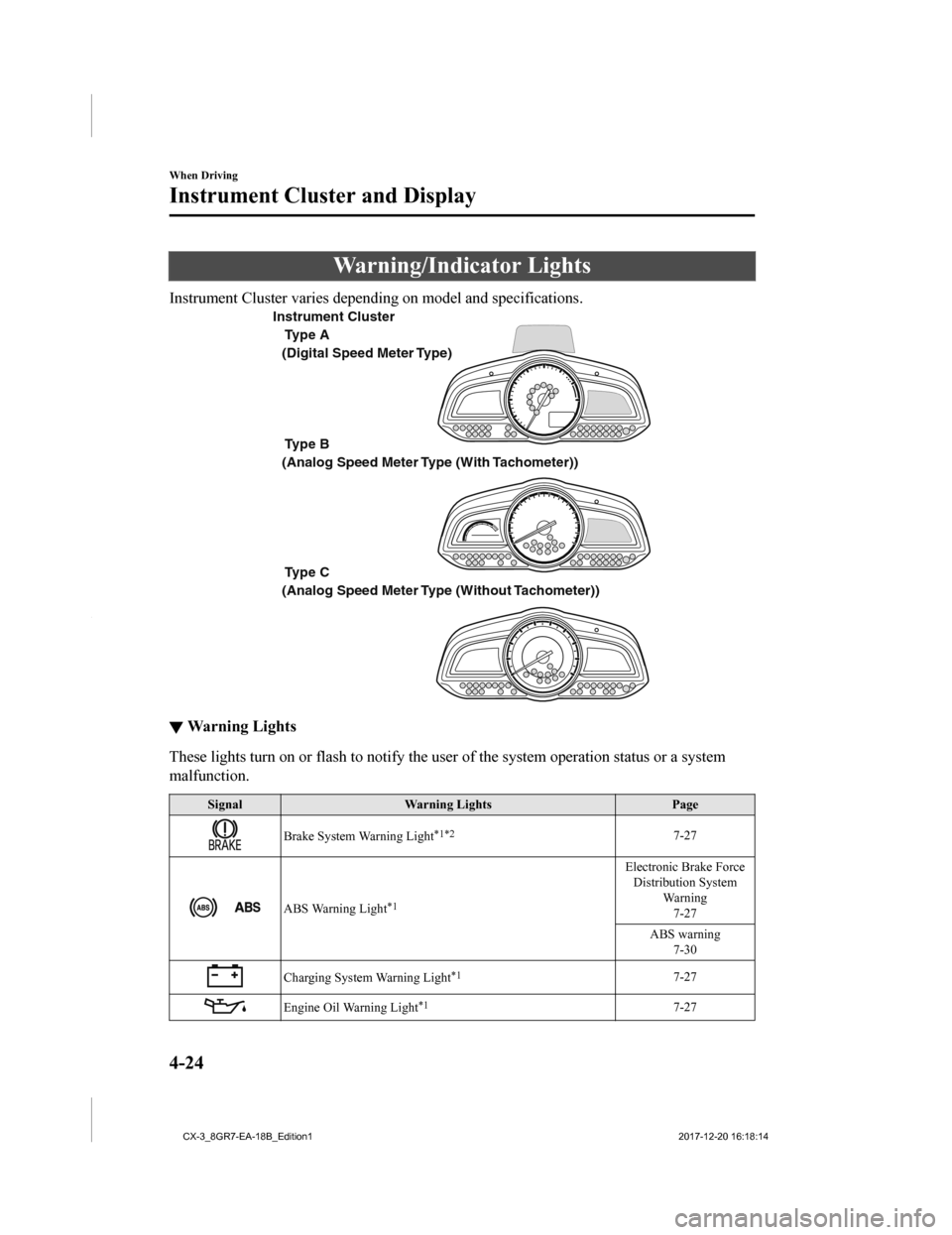

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Type A
Type B
Type C
(Digital Speed Meter Type)
(Analog Speed Meter Type (With Tachometer))
(Analog Speed Meter Type (Without Tachometer))
Instrument Cluster
▼
Warning Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Warning Lights Page
Brake System Warning Light*1*27-27
ABS Warning Light*1
Electronic Brake Force
Distribution System Wa r n i n g7-27
ABS warning 7-30
Charging System Warning Light*17-27
Engine Oil Warning Light*17-27
When Driving
Instrument Cluster and Display
4-24
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

SignalWarning Lights Page
(Red)High Engine Coolant Temperature Warning Light
*17-27
Power Steering Malfunction Indicator Light*17-27
Master Warning Light*17-30
Electric Parking Brake (EPB) Warning Light*17-30
(Red)Brake Pedal Operation Demand Warning Light
*1
Flashing
4-61
Buzzer & Flashing 7-30
Check Engine Light*17-30
*Automatic Transaxle Warning Light*17-30
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-30
*AWD Warning Light*17-30
*Tire Pressure Monitoring System Warning Light*1
Flashing7-30
Turns on 7-34
(Red) KEY Warning Light
*1
Turns on
7-30
Flashing 7-34
(Amber)
*High Beam Control System (HBC) Warning Light*17-30
*Lane Departure Warning System (LDWS) Warning Light*1
Flashing4-88
Turns on 7-30
(Amber)
*Mazda Radar Cruise Control with Stop & Go function
(MRCC with Stop & Go fun ction) Warning Indication 7-30
*LED Headlight Warning Light*17-30
Low Fuel Warning Light
7-34
When Driving
Instrument Cluster and Display
*Some models.4-25
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

SignalWarning Lights Page
Check Fuel Cap Warning Light*17-34
Seat Belt Warning Light (Front seat) 7-34
Door-Ajar Warning Light7-34
*Low Washer Fluid Level Warning Light7-34
(Amber)
*Smart Brake Support/Smart City Brake Support (SBS/SCBS)
Warning Light 7-34
*1 The light turns on when the ignition is switched on for an ope
ration check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼Indicator Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Indicator Lights Page
Front Passenger Air Bag Deactivation Indicator Light*12-61
(Green)KEY Indicator Light
3-9
Security Indicator Light*13-40
Wrench Indicator Light*14-29
(Blue)Low Engine Coolant Temperature Indicator Light 4-29
*Shift Position Indication
4-34
Lights-On Indicator Light
4-43
When Driving
Instrument Cluster and Display
4-26*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

SignalIndicator Lights Page
Headlight High-Beam Indicator Light Headlight High-Low
Beam4-46
Flashing the Headlights 4-46
Turn Signal/Hazard Warning Indicator Lights Turn and Lane-Change
Signals4-48
Hazard Warning Flasher 4-55
(Green)
*Brake Pedal Operation demand Indicator Light 4-57
AUTOHOLD Active Indicator Light*14-63
*Mazda Radar Cruise Control
with Stop & Go function
(MRCC with Stop & Go fun ction) indicator Light 4-115
TCS/DSC Indicator Light*1
Traction Control System
(TCS)4-68
Dynamic Stability Con- trol (DSC)4-70
Turns on 7-30
TCS OFF Indicator Light*14-69
*Select Mode Indicator Light 4-73
(Green)
*High Beam Control System (HBC) Indicator Light4-83
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
Malfunction
7-30
Except malfunction 4-95
*Lane Departure Warning Sys tem (LDWS) OFF Indicator
Light*14-88
(Green)
*Mazda Radar Cruise Control with Stop & Go function
(MRCC with Stop & Go func tion) Set Indicator Light 4-110
When Driving
Instrument Cluster and Display
*Some models.4-27
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

SignalIndicator Lights Page
(Red)
*Smart Brake Support/Smart City Brake Support (SBS/SCBS)
Indicator Light*1
Advanced Smart City Brake Support (Ad- vanced SCBS)
4-121
Smart City Brake Sup- port (SCBS)4-125
Smart Brake Support (SBS)4-129
*Smart Brake Support/Smart City Brake Support (SBS/SCBS)
OFF Indicator Light*1
Advanced Smart City Brake Support (Ad- vanced SCBS)
4-121
Smart City Brake Sup- port (SCBS)4-126
Smart Brake Support (SBS)4-129
(White)
*Cruise Main Indication 4-141
(White/Green)
*Cruise Set Indication/Indicator Light4-141
*1 The light turns on when the ignition is switched on for an ope
ration check, and turns off
a few seconds later or when the e ngine is started. If the light does not turn on or remains
turned on, have the ve hicle inspected at an Authorized Mazda De aler.
When Driving
Instrument Cluster and Display
4-28*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Wrench Indicator Light
When the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.

The wrench indicator
light turns on when
the preset maintenance period arrives.
Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page 6-
15.
▼ Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
Mazda Dealer.
When Driving
Instrument Cluster and Display
4-29
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

Manual Transaxle ShiftPattern
Neutral position
The shift pattern o f the transaxle is
conventional, as shown.

Depress the clutch pedal all the way down
while shifting; then release it slowly.

Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift to
R.

WA R N I N G
Do not use sudden engine braking on
slippery road surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Always leave the shift lever in 1 or R
position and set the parking brake when
leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.
CAUTION
 Keep your foot off the clutch pedal except
when shifting gears. Also, do not use the
clutch to hold the vehicle on an upgrade.
Riding the clutch will cause needless
clutch wear and damage.
 Do not apply any excessive lateral force
to the shift lever when changing from
5th to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the transaxle.
 Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transaxle.
NOTE
•If shifting to R is difficult, shift back into
neutral, release the clutch pedal, and try
again.
When Driving
Manual Transaxle Operation
4-30
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Gear Shift Indicator (GSI)
The GSI supports you to obtain optimum
fuel economy and smooth driving. It
displays the selected gear position in the
instrument cluster as well as notifies the
driver to change to the most suitable gear
position corresponding to the actual
driving condition.

Selected gear position Suitable gear position
Indication
Condition
Numeral The selected gear position is dis-
played.
and numeral
Shift up or down to the indicated
gear position is recommended.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traffic conditions
have to be judged correctly by the driver
before shifting.
NOTE
The GSI turns off when the following
operations are performed.
•The vehicle is stopped.
•The vehicle is put in neutral.
•The vehicle is driven in reverse.
•The clutch is not fully engaged when
accelerating from a stop.
•The clutch pedal remains depressed for
2 seconds or longer while driving.
▼
Recommendations for Shifting
Upshifting
For normal acceleration, Mazda
recommends these shift points:
Gear
Vehicle speed
1 to 2 24 km/h (15 mph)
2 to 3 42 km/h (26 mph)
3 to 4 60 km/h (37 mph)
4 to 5 74 km/h (46 mph)
5 to 6 79 km/h (49 mph)
For cruising, Mazda recommends these
shift points:
Gear Vehicle speed
1 to 2 13 km/h (8 mph)
2 to 3 29 km/h (18 mph)
3 to 4 48 km/h (30 mph)
4 to 5 63 km/h (39 mph)
5 to 6 69 km/h (43 mph)
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade, downshift
before the engine starts to overwork. This
reduces the chance of stalling and gives
better acceleration when you need more
speed.
On a steep downgrade, downshifting
helps maintain safe speed and prolongs
brake life.
When Driving
Manual Transaxle Operation
4-31
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Automatic Transaxle Controls
Lock-release button
Indicates the shift lever can be shifted freely into any position.
Indicates that you must hold in the lock-release button to shift. Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).
Various Lockouts:
NOTE
The Sport AT has an option that is not included in the traditional automatic transaxle that
gives the driver the option of selecting each
gear instead of leaving it to the transaxle to
shift gears. Even if you intend to use the automatic transaxle functions as a traditional
automatic, you should also be aw are that you can inadvertently shift into manual shift mode
and an inappropriate gear may be retained as the vehicle speed increases. If you notice the
engine speed going higher or hear the engine racing, confirm you have not accidentally
slipped into manual shift mode (page 4-35).
When Driving
Automatic Transaxle
4-32
