How the SRS Air Bags Work
Your Mazda is equipped with the following types of SRS air bags. SRS air bags are
designed to work together with the seat belts to help to reduce injuries during an accident.
The SRS air bags are designed to provide further protection for passengers in addition to the
seat belt functions. Be sure to wear seat belts properly.
▼ Front Seat Bel
t Pretensioners
The front seat belt pretensioners are designed to deploy in mod erate or severe frontal, near
frontal collisions.
In addition, the pretensioners o perate when a side collision (only on the side in which the
collision occurs) or a roll-over accident is detected. The pretensioners operate differently
depending on what types of air bags are equipped. For more deta ils about seat belt
pretensioner operation, refer to the SRS Air Bag Deployment Cri teria (page 2-58).
▼Driver Air Bag
The driver's air bag is mounted in the steering wheel.
When air bag crash sensors detect a frontal impact of greater than moderate force, the
driver's air bag inflates quickly helping to reduce injury main
ly to the driver's head or chest
caused by directly hitting the steering wheel.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-58).
(With Front Passenger Occupa nt Classification System)
The driver's dual-stage air bag controls air bag inflation in t wo energy stages. During an
impact of moderate severity, the driver's air bag deploys with lesser energy, whereas during
more severe impacts, it deploys with more energy.
Essential Safety Equipment
SRS Air Bags
2-54
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

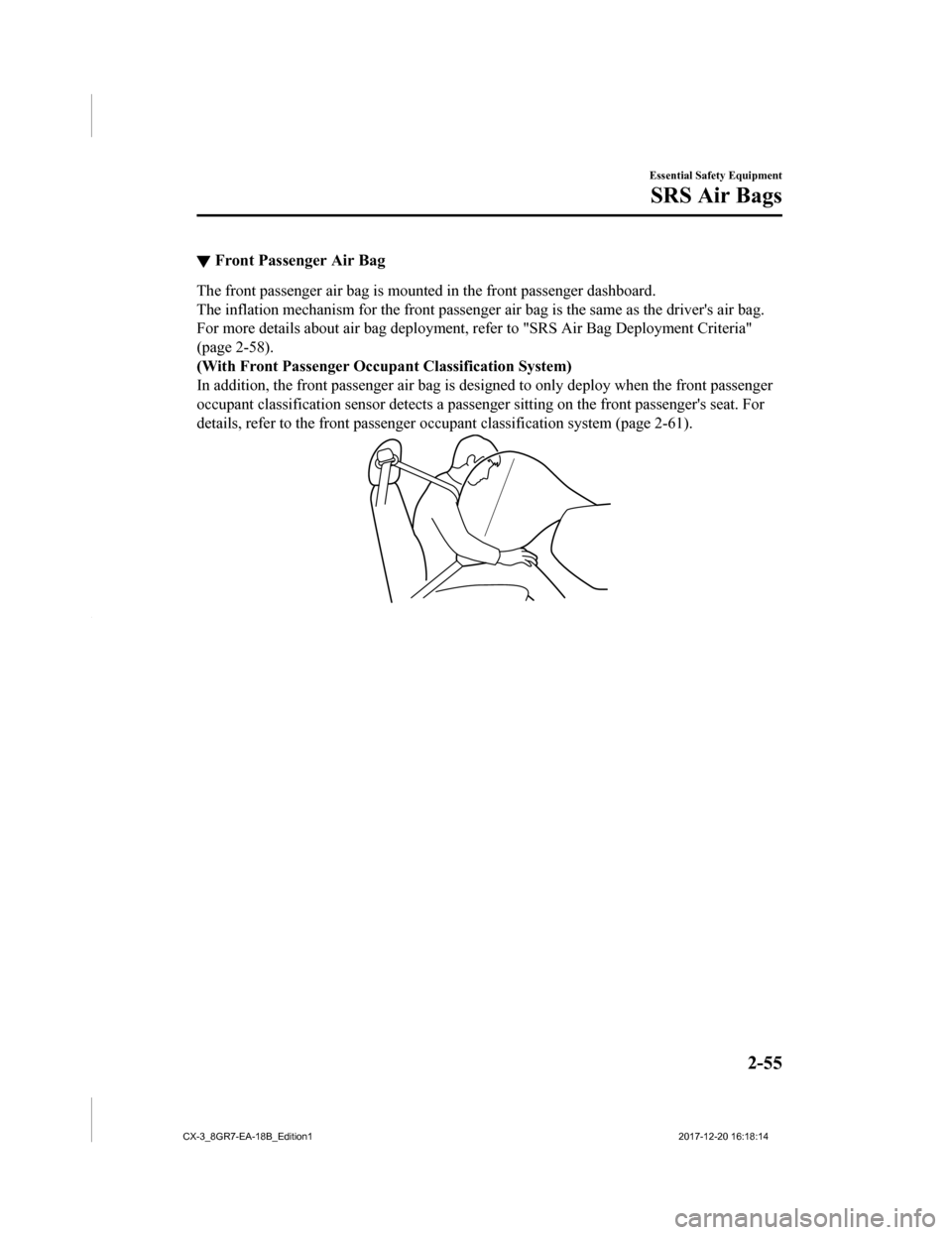

▼Front Passenger Air Bag
The front passenger air bag is mounted in the front passenger dashboard.
The inflation mechanism for the fr
ont passenger air bag is the same as the driver's air bag.
For more details about air bag deployment, refer to "SRS Air Ba g Deployment Criteria"
(page 2-58).
(With Front Passenger Occupa nt Classification System)
In addition, the front passenger air bag is designed to only de ploy when the front passenger
occupant classification sensor detects a passenger sitting on t he front passenger's seat. For
details, refer to the front passenger occupant classification s ystem (page 2-61).
Essential Safety Equipment
SRS Air Bags
2-55
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Side Air Bags*
The side air bags are mounted in the outboard sides of the fron
t seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce injury to the driver or front pa ssenger's chest caused by
directly hitting interior pa rts such as a door or window.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-58).
(With Front Passenger Occupa nt Classification System)
In addition, the front passenger side air bag is designed to on ly deploy when the front
passenger occupant classification sensor detects a passenger si tting on the front passenger's
seat. For details, refer to the f ront passenger occupant classification system (page 2-61).

▼ Curtain Air Bags*
The curtain air bags are mounted in the front and rear window p
illars, and the roof edge
along both sides.
When the air bag crash sensors d etect a side impact of greater than moderate force, the curtain air
bag inflates quickly and helps to reduce injury mainly to the r ear outboard passenger's head
caused by directly hitting interior parts such as a door or win dow.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-58).
Essential Safety Equipment
SRS Air Bags
2-56*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type of
collision.
(The illustrations are the representative cases of collisions.)
SRS equip- ment Types of collision
A severe frontal/near frontal colli- sion A severe side colli-
sion
*2A roll-over/nearroll-over*3A rear collision
Front seat
belt preten- sioner X*1 (both sides)
X*1 (impact side
only) X*1 (both sides)
No air bag and
front seat belt pre-
tensioner will be
activated in a rear
collision.
Driver air
bag X
Front pas- senger air bag X
*1
Side air bag*X*1 (impact side
only)
Curtain air bag
*X (impact side on- ly) X (both sides)
X: The SRS air bag equipment is
designed to deploy in a collision.*1(With Front Passenger Occupant Classification System)
The front passenger front and side air bags and the seat belt pretensioner are designed to deploy when the front
passenger occupant cla ssification sensor detects a passenger si tting on the front passenger's seat.
*2(With Side/Curtain Air Bags)
In a side collision, the seat be lt pretensioners and the side/c urtain air bags deploy (only on the side in which the
collision occurs).
*3 (With Front Passenger Occupant Classification System)
In a roll-over accident, the s eat belt pretensioners and the cu rtain air bags deploy.
NOTE
In a frontal offset collision, the equipp ed air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.
Essential Safety Equipment
SRS Air Bags
2-58*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Front Passenger Occupant Classification System*
First, please read "Supplemental Restraint System (SRS) Precautions" (page 2-45) carefully.
▼Front Passenger Occupant Classification Sensor
Your vehicle is equipped with a front passenger occupant classi
fication sensor as a part of
the supplemental restraint system. This sensor is equipped in t he front passenger's seat
cushion. This sensor measures th e electrostatic capacity of the front passenger's seat. The
SAS unit is designed to prevent the front passenger front and s ide air bags and seat belt
pretensioner system from deployi ng if the front passenger air bag deactivation indicator
light turns on.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivati on indicator light turns on.
Refer to the following table for the front passenger air bag deactivation indicator light
illumination conditions.

This system shuts off the front passenger front and side air ba gs and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light turns on
according to the following table.

The air bag/front seat belt pretensioner system warning light f lashes and the front passenger
air bag deactivation indicator light illuminates if the sensors have a possible malfunction. If
this happens, the front passenger front and side air bags and s eat belt pretensioner system
will not deploy.
Front passenger air bag deactivation indicator light
This indicator light turns on to r emind you that the front passenger front and side air bags
and seat belt pretensioner will not deploy during a collision.
If the front passenger occupant classification sensor is normal, the indicator light turns on
when the ignition is switched ON. The light turns off after a f ew seconds. Then, the
indicator light turns on or is off under the following conditio ns:
Essential Safety Equipment
SRS Air Bags
*Some models.2-61
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Front passenger air bag deactivation indicator light on/off condition chart
Condition detected by the front
passenger occupant classifica- tion system Front passenger air
bag deactivation indi- cator light Front passenger front
and side air bags Front passenger seat
belt pretensioner sys- tem
Empty (Not occupied) On Deactivated Deactivated
A child less than 1 year old is
seated in a child-restraint system On Deactivated Deactivated
Child
*1On or off Deactivated or ready Deactivated or ready
Adult
*2Off Ready Ready
*1 The occupant classification sens or may not detect a child seated on the seat, in a child-restraint system, or a
junior seat depending on the ch ild's physical size and seated posture.
*2 If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child
depending on the person's physique.
The curtain air bag is ready for inflating regardless of what the front passenger air bag
deactivation indicator light on/off condition chart indicates.
If the front passenger air bag deactivation indicator light doe s not turn on when the ignition
is switched ON and does not turn on as indicated in the front p assenger air bag deactivation
indicator light on/off condition chart, do not allow an occupan t to sit in the front passenger
seat and consult an Authorized M azda Dealer as soon as possible. The system may not work
properly in an accident.
WA R N I N G
Do not allow an occupant in the front passenger's seat to sit with a posture which makes it
difficult for the front passenger occupant classification sensor to detect the occupant
correctly:
Sitting in the front passenger's seat with a posture which makes it difficult for the front
passenger occupant classification sensor to dete ct the occupant correctly is dangerous. If the
front passenger occupant classification sensor ca nnot detect the occupant sitting on the front
passenger's seat correctly, the front passenge r front and side air bags and pretensioner
system may not operate (non-deploy) or they may operate (deploy) accidentally. The front
passenger will not have the su pplementary protection of the air bags or the accidental
operation (deployment) of the air bags could result in serious injury or death.
Under the following conditions, the front passe nger occupant classification sensor cannot
detect a passenger sitting on the front passe nger's seat correctly and the deployment/
non-deployment of the air bags cannot be contro lled as indicated in the front passenger air
bag deactivation indicator light on /off condition chart. For example:
Essential Safety Equipment
SRS Air Bags
2-62
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

The front passenger front and side air bags and seat belt pretensioner systems will deactivate
if the front passenger air bag deactivation indicator light turns on.
CAUTION
 To assure proper deployment of the front air bag and to prevent damage to the sensor in
the front seat cushion:
 Do not place sharp objects on the front seat cushion or leave heavy luggage on them.
 Do not spill any liquids on the front seats or under the front seats.
 To allow the sensors to function properly, always perform the following:
 Adjust the front seats as far back as possibl e and always sit upright against the seatbacks
with seat belts worn properly.
 If you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-34).
NOTE
•The system requires about 10 seconds to alte rnate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
•The front passenger air bag deactivation indicato r light may turn on repeatedly if luggage
or other items are put on the front passenger seat, or if the temperature of the vehicle's
interior changes suddenly.
•The front passenger air bag deactivation indicato r light may turn on for 10 seconds if the
electrostatic capacity on the front passenger seat changes.
•The air bag/front seat belt pretensioner system warning light might turn on if the front
passenger seat receives a severe impact.
•If the front passenger air bag deactivation indicator light does not turn on after installing
a child-restraint system on the front passenger seat, first, re-install your child-restraint
system according to the procedure in this owner's manual. Then, if the front passenger air
bag deactivation indicator light still does not tu rn on, install the child-restraint system on
the rear seat and consult an Authorized Mazda Dealer as soon as possible.
•If the front passenger air bag deactivation i ndicator light turns on when an occupant is
seated directly in the front passenger seat, have the passenger re-adjust their posture by
sitting with their feet on the floor, and th en re-fastening the seat belt. If the front
passenger air bag deactivation i ndicator light remains turned on, move the passenger to
the rear seat. If sitting in the rear seat is no t possible, slide the front passenger seat as far
back as possible. Consult an Authorized Mazda Dealer as soon as possible.
Essential Safety Equipment
SRS Air Bags
2-64
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

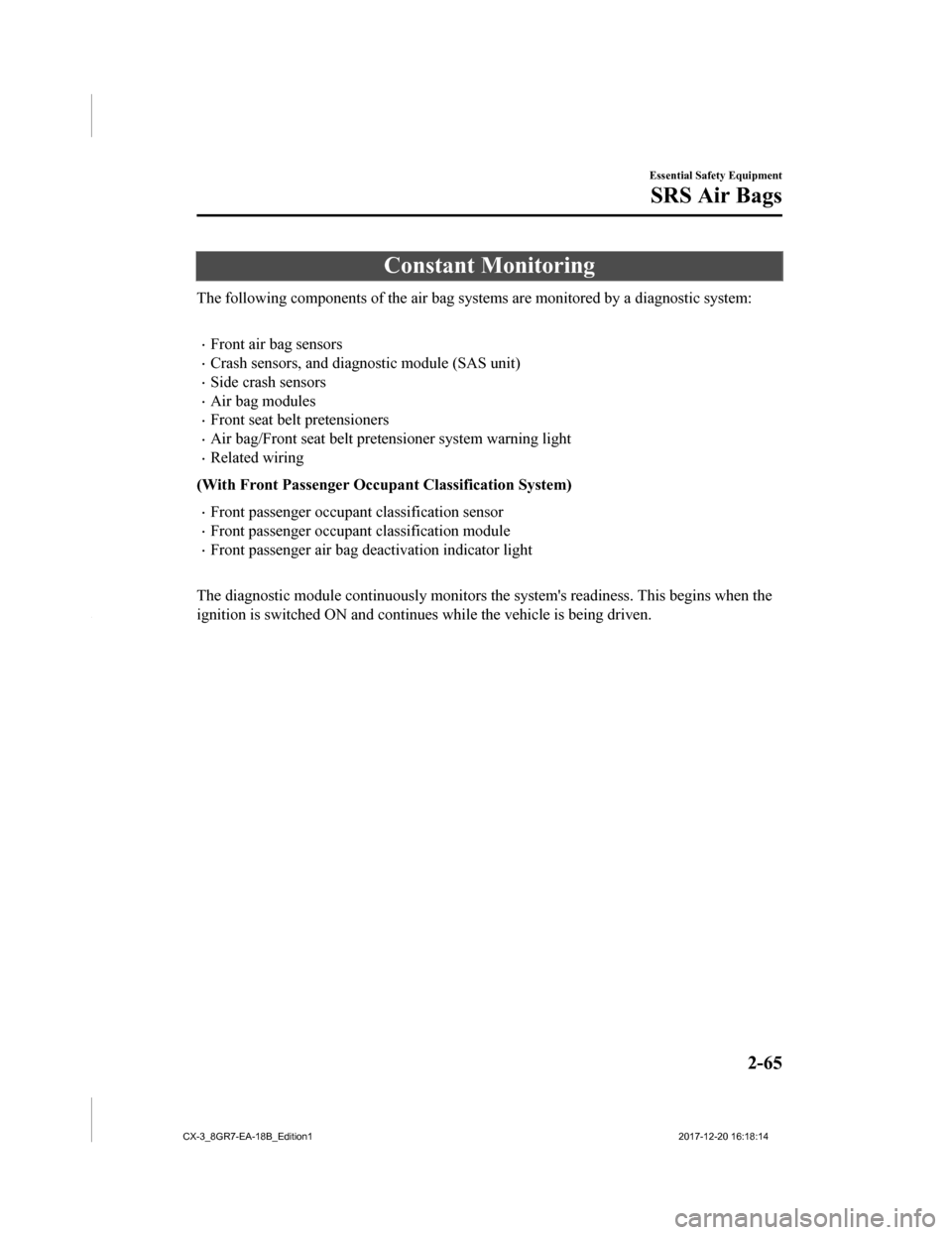

Constant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:

•Front air bag sensors
•Crash sensors, and diagnostic module (SAS unit)
•Side crash sensors
•Air bag modules
•Front seat belt pretensioners
•Air bag/Front seat belt pretensioner system warning light
•Related wiring
(With Front Passenger Occupa nt Classification System)
•Front passenger occupant classification sensor
•Front passenger occupant classification module
•Front passenger air bag deactivation indicator light

The diagnostic module continuously monitors the system's readin ess. This begins when the
ignition is switched ON and contin ues while the vehicle is being driven.
Essential Safety Equipment
SRS Air Bags
2-65
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Fuel and Engine Exhaust Precautions
▼Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use O
NLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.

This vehicle will per form best with fuel listed in the table.
Fuel
Octane Rating* (Anti-knock index)
Regular unleaded fuel 87 [(R
M)/2 method] or above (91 RON or above)
∗U.S. federal law requires that
octane ratings be posted on gaso line station pumps.
Fuel with a rating lower than 87 octane (91 RON) will negatively affect the emission control
system performance and could also cause engine knocking and ser ious engine damage.
CAUTION
USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic co nverter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.
 This vehicle can only use oxygenated fuels containing no more than 10 % ethanol by
volume. Damage to the vehicle may occur when ethanol exceeds this recommendation, or
if the gasoline contains any methanol. Stop using gasohol of any kind if your vehicle engine
is performing poorly.
 Never add fuel system additives, otherwise the emission control system could be damaged.
Consult an Authorized Mazda Dealer for details.
Gasoline blended with oxygenates such as alcohol or ether compo unds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline conta ining alcohol, such as
ethanol or methanol, may be marketed under the name "Gasohol".

Vehicle damage and drivability pr oblems resulting from the use of the following may not be
covered by the warranty.
•Gasohol containing more than 10 % ethanol.
•Gasoline or gasohol containing methanol.
•Leaded fuel or leaded gasohol.
Before Driving
Fuel and Emission
3-24
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Rearview Mirror
WA R N I N G
Do not stack cargo or objects higher than
the seatbacks:
Cargo stacked higher than the seatbacks is
dangerous. It can block your view in the
rearview mirror, which might cause you to
hit another car when changing lanes.
Rearview mirror adjustment
Before driving, adjust
the rearview mirror
to center on the scene through the rear
window.

NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Day/Night lever
Day
Night
Auto-dimming mirror
The auto-dim ming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.
NOTE
•Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.

Light sensor
•The auto-dimming function is canceled
when the ignition is switched ON and
the selector lever is in reverse (R).
Before Driving
Mirrors
3-32
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
