Power Steering
•Power steering is only operable when
the engine is running. If the engine is off
or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.
If the steering feels stiffer than usual
during normal driving or the steering
vibrates, consult an Authorized Mazda
Dealer.
•The warning light not ifies the driver of
system abnormalities and operation
conditions.
In addition, the buzzer may also activate
depending on the system abnormality or
operation condition.
Refer to Stop Vehicle in Safe Place
Immediately on page 7-27.
Refer to Power Steering Warning
Buzzer on page 7-46.
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running. This
could damage the power steering system.
When Driving
Power Steering
4-76
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Adaptive Front Lighting System (AFS)*
The adaptive front lighting system (AFS) automatically adjusts the headlight beams to the
left or right in conjunction with the operation of the steering wheel after the headlights have
been turned on and the vehicle speed is about 2 km/h (2 mph) or higher.
A system malfunction or operation conditions are indicated by a warning.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-30.
NOTE
The Adaptive Front Lighting System (AFS) func tion can be switched to operable/inoperable
using the personalization function.
Refer to Personalization Features on page 9-9.
When Driving
i-ACTIVSENSE
4-80*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

The functions of the LDWS have limitations:
Always stay on course using the steering wheel and drive with care. The system is not
designed to compensate for a driver’s lack of caution and if you rely too much on the LDWS it
could lead to an accident. The driver is resp onsible for assuring lane changes and other
maneuvers. Always pay attention to the directi on in which the vehicle is traveling and the
vehicle’s surroundings.
CAUTION
Do not modify the suspension. If the vehicle he ight or the damping force of the suspensions is
changed, the LDWS may not operate correctly.
NOTE
•If your vehicle deviates from its traffic lane, the LDWS operates (warning sound and
indicator light). Steer the vehicle adequately to drive the vehicle to the center of the lane.
•When the turn signal lever is operated for a lane change, the LDWS warning is
automatically canceled. The LDWS warning becomes operable when the turn signal lever
is returned and the system detects the white or yellow lines.
•If the steering wheel, accelerator pedal, or brake pedal is operated abruptly and the
vehicle moves close to a white or yellow line, the system determines that the driver is
making a lane change and the LDWS warning is automatically canceled.
•The LDWS may not operate during the period immediately after the vehicle has deviated
from its lane and the LDWS has operated, or the vehicle deviates from its lane repeatedly
within a short period of time.
•The LDWS does not operate if it does not det ect the white or yellow lines of the traffic
lane.
•Under the following conditions, the LDWS may not be able to detect white or yellow lines
correctly and the LDWS may not operate correctly.
•If an object placed on the dashboard is reflected in the windshield and picked up by the
camera.
•Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is inclined.
•The tire pressures are not adjusted to the specified pressure.
•When the vehicle is driven on the entry and exit to or from the rest area or tollgate of a
highway.
•The white or yellow lines are less visi ble because of dirt or paint flaking.
•The vehicle ahead is running near a white or yellow line and the line is less visible.
•A white or yellow line is less visible be cause of bad weather (rain, fog, or snow).
•The vehicle is driven on a temporary lane or section with a closed lane due to
construction.
When Driving
i-ACTIVSENSE
4-85
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Auto cancel
In the following cases, the LDWS cancels
automatically and the LDWS warning
light in the instrument cluster turns on.
•The temperature inside the camera is
high or low.
•The windshield around the camera is
foggy.
•The windshield around the camera is
blocked by an obstruction, causing poor
forward visibility.
The LDWS is enabled automatically when
the operation conditions are met, and the
LDWS warning light turns off.
Auto cancel warning
When the following operations are
performed, the LDWS determines that the
driver intends to make a lane change and
the LDWS warning is canceled
automatically. The LDWS is enabled
automatically after the driver performs the
operation.
•The steering wheel is operated abruptly.
•The brake pedal is depressed abruptly.
•The accelerator pedal is depressed
abruptly.
•The turn signal lever is operated (after
the turn signal lever is returned, the
LDWS may not operate for about 3
seconds which is the period of time
required to make a lane correction).
NOTE
After about 30 seconds have elapsed with
the turn signal lever left operating, the
LDWS warning may operate if the vehicle
is close to a white or yellow line.
▼ Canceling the System
Press the LDWS OFF switch to cancel the
LDWS. The LDWS OFF indicator light
turns on.
▼Lane Departure Warning System
(LDWS) Warning
If the system determines that there is the
possibility of a lane
departure, the LDWS
warning beep activates and the LDWS
warning light flashes. Operate the steering
wheel appropriately and steer the vehicle
to the center of the lane.
For vehicles equipped with the active
driving display, if there is the possibility of
a lane departure, the system indicates the
direction it determines that the vehicle is
deviating in the active driving display.
Indication on display

NOTE
•If the LDWS warning sound is set to
rumble
*1, the sound will be heard from
the vehicle speaker on the side which the
system determined the vehicle may be
deviating from its lane.
When Driving
i-ACTIVSENSE
4-88
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

CAUTION
In the following cases, turn the system off to prevent a mis-operation:
The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Advanced Smart City Brake Support (Advanced SCBS) System Operation
on page 4-121 on how to turn off the Advanced SCBS system.
NOTE
•The Advanced SCBS system will operate under the following conditions.
•The engine is running.
•The Smart City Brake Support (SCBS) warning light (amber) does not illuminate.
•(Object is vehicle ahead)
The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).
•(Object is a pedestrian)
The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).
•The Advanced SCBS system is not turned off.
•Under the following conditions, the Advanced SCBS system may not operate normally:
•The Advanced SCBS system will not operate if the driver is deliberately performing
driving operations (accelerator pedal and steering wheel).
•If there is the possibility of pa rtial contact with a vehicle ahead.
•The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound roads.
•The braking performance is adversely affected due to cold temperatures or wet brakes.
•The vehicle is driven at the same speed as the vehicle ahead.
•The accelerator pedal is depressed.
•The brake pedal is depressed.
•The steering wheel is being operated.
•The selector lever is being operated.
•In the following cases, the Advanced SCBS may operate.
•Objects on the road at the entrance to a curve.
•Vehicles passing in the opposite lane while making a curve.
•When passing through a toll gate.
•When passing through low gates, narrow gates, car washing machines, or tunnels.
•If you suddenly come close to a vehicle ahead.
•2-wheeled vehicles, animals, or standing trees.
•(Manual transaxle)
If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed, the engine stops.
When Driving
i-ACTIVSENSE
4-120
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

CAUTION
In the following cases, turn the system off to prevent a mis-operation:
The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Smart City Brake Support (SCBS) system Operation on page 4-126 on
how to turn off the SCBS system.
NOTE
•The SCBS system will operate under the following conditions.
•The engine is running.
•The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system warning light
(amber) does not illuminate.
•(Rear-end coll ision warning)
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).
•(Brake control (Smart City Brake Support (SCBS) brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).
•The SCBS system is not turned off.
•Under the following conditions, the SCBS system may not operate normally:
•The SCBS system will not operate if the driver is deliberately performing driving
operations (accelerator pedal and steering wheel).
•If there is the possibility of pa rtial contact with a vehicle ahead.
•The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.
•The braking performance is adversely affected due to cold temperatures or wet brakes.
•The vehicle is driven at the same speed as the vehicle ahead.
•The accelerator pedal is depressed.
•The brake pedal is depressed.
•The steering wheel is being operated.
•The selector lever is being operated.
•In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the SCBS may operate.
•Objects on the road at the entrance to a curve.
•Vehicles passing in the opposite lane while making a curve.
•Metal objects, bumps, or protruding objects on the road.
•When passing through a toll gate.
•When passing through low gates, narrow gates, car washing machines, or tunnels.
When Driving
i-ACTIVSENSE
4-124
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

•The vehicle is driven at the same speed as the vehicle ahead.
•The accelerator pedal is depressed.
•The brake pedal is depressed.
•The steering wheel is being operated.
•The selector lever is being operated.
•The turn signal is being used.
•When the vehicle ahead is not equipped with taillights or the taillights are turned off.
•When warnings and messages, such as a dirty windshield, related to the Forward
Sensing Camera (FSC) are being displayed in the center display.
•Although the objects which activate the system are four-wheeled vehicles, the radar
sensor (front) could detect the following objects, determine them to be an obstruction, and
operate the SBS system.
•Objects on the road at the entrance to a curve (including guardrails and snow banks).
•A vehicle appears in the opposite lane while cornering or rounding a curve.
•When crossing a narrow bridge.
•When passing under a low gate or through a tunnel or narrow gate.
•When entering an underground parking area.
•Metal objects, bumps, or protruding objects on the road.
•If you suddenly come close to a vehicle ahead.
•When driving in areas where there is high grass or forage.
•Two-wheeled vehicles such as motorbikes or bicycles.
•Pedestrians or non-metallic objects such as standing trees.
•When the system operates, the user is notified by the active driving display.
•The SBS warning indication (amber) turns on when the system has a malfunction.
Refer to Taking Action on page 7-34.
When Driving
i-ACTIVSENSE
4-128
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

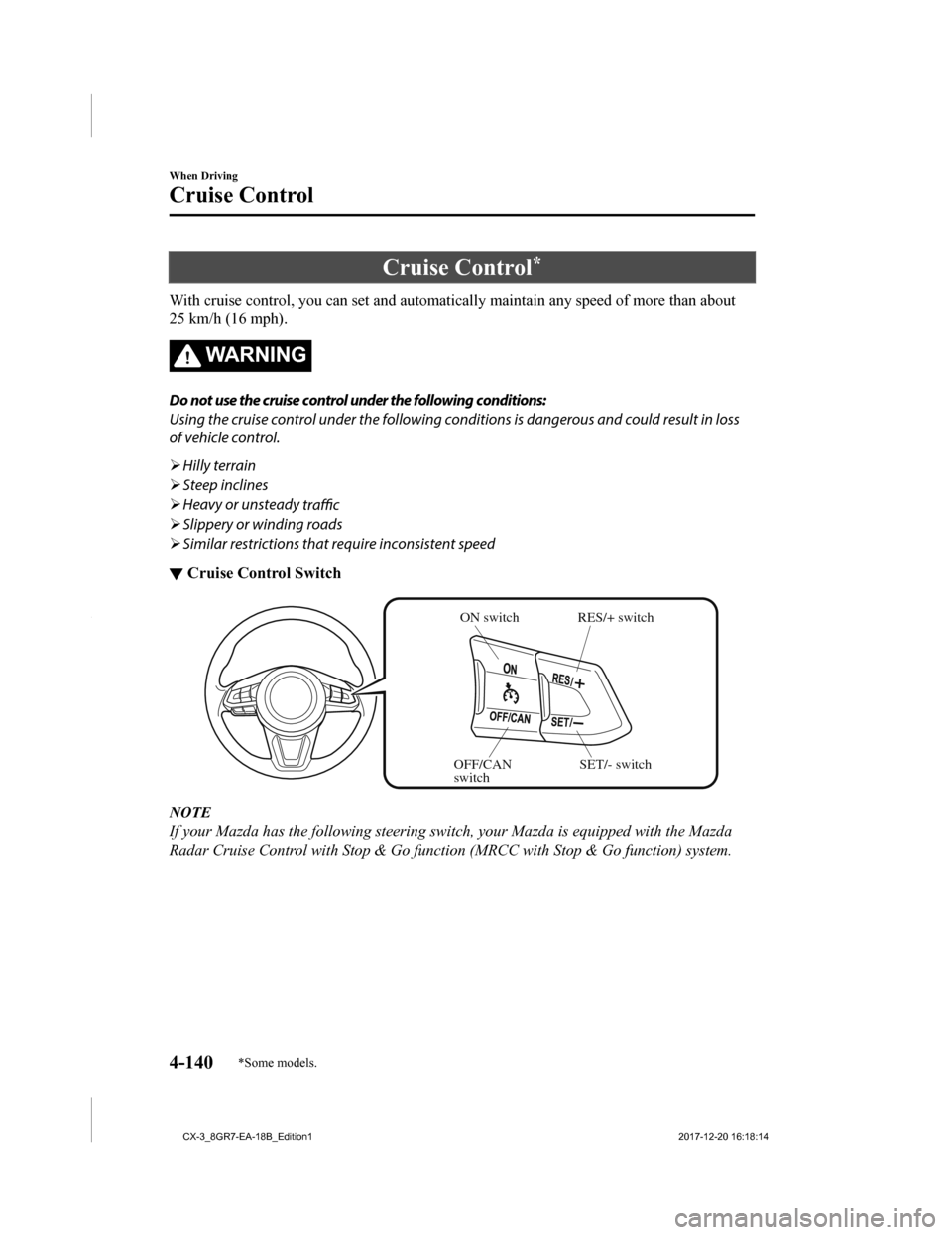

Cruise Control*
With cruise control, you can set and automatically maintain any speed of more than about
25 km/h (16 mph).
WA R N I N G
Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result in loss
of vehicle control.
 Hilly terrain
 Steep inclines
 Heavy or unsteady
traffic
 Slippery or winding roads
 Similar restrictions that require inconsistent speed
▼ Cruise Control Switch
ON switch RES/+ switch
SET/- switch
OFF/CAN
switch
NOTE
If your Mazda has the following steering switch, your Mazda is equipped with the Mazda
Radar Cruise Control with Stop & Go functi on (MRCC with Stop & Go function) system.
When Driving
Cruise Control
4-140*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Viewing the Display
Guide lines which indicate the wid
th of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking spa ce or garage.
b
a
a) Vehicle width guide lines (yellow)
These guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines. These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
•The red and yellow lines indicate the points about 50 cm (19 in ) for the red line and
100 cm (39.3 in) for the yellow l ines from the rear bumper (at the center point of each
of the lines).
CAUTION
The guide lines on the screen are fixed lines. They are not synced to the driver's turning of the
steering wheel. Always be careful and check the area to the vehicle's rear and the surrounding
area directly with your eyes while backing up.
▼ Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehic
le varies depending on the
traffic, road, and vehicle conditions. The amount of steering a nd the timing also varies
depending on conditions, so conf irm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear vie w monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
When Driving
Rear View Monitor
4-151
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

1. Shift the shift lever/selector lever to R to switch the display to the rear view monitor
display.
2. Confirming the surrounding conditions, reverse the vehicle.

(Display condition) (Vehicle condition)
3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle w idth lines and the sides of the parking space on the
left and right are roughly equal.
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
5. Once they are parallel, straighten the wheels and back your v ehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the vehicle in
the best possible position.

(Display condition) (Vehicle condition)
6. When the shift lever/selector lever is shifted from R to anot her shift lever/selector lever
position, the screen returns to the previous display.
When Driving
Rear View Monitor
4-152
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
