▼Opening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and
liftgate, then press
the electric liftgate op ener on the liftgate
and raise the liftgate when the latch
releases.
Electric liftgate
opener
NOTE
(With the advanced keyless function)
•A locked liftgate can also be opened
while the key is being carried.
•When opening the liftgate with the doors
and the liftgate locked, it may require a
few seconds for the liftgate latch to
release after the electric liftgate opener
is pressed.
•The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, first push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate.
•When the liftgate latch is released by
pressing the electric liftgate opener, the
liftgate raises slightly. If the liftgate is
not operated for a certain period of
time, the liftgate cannot be raised.
To open
Press the electric liftgate opener again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
•If the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
•If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing the
emergency procedure.
Refer to When Liftgate Cannot be
Opened on page 7-48.
Before Driving
Doors and Locks
3-21
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

3. Attach the removed cap to the innerside of the fuel-filler lid.

Fuel-filler lid
Fuel-filler cap
4. Insert the refueling nozzle all the wayand begin refueling. Pull out the
refueling nozzle a fter the refueling
stops automatically.
5. To close the fuel-filler cap, turn it clockwise until a click is heard.
6. To close, press the fuel-filler lid until it locks securely.

CAUTION
(U.S.A. and Canada)
If the check fuel cap warning light
illuminates, the fuel-filler cap may not be
properly installed. If the warning light
illuminates, park your vehicle safely off the
right-of-way, remove the fuel-filler cap and
reinstall it correctly. After the cap has been
correctly installed, the fuel cap warning
light may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of starting
the engine (after four or more hours with
the engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check fuel cap
warning light illuminated could cause the
check engine light to illuminate as well.
Before Driving
Fuel and Emission
3-28
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

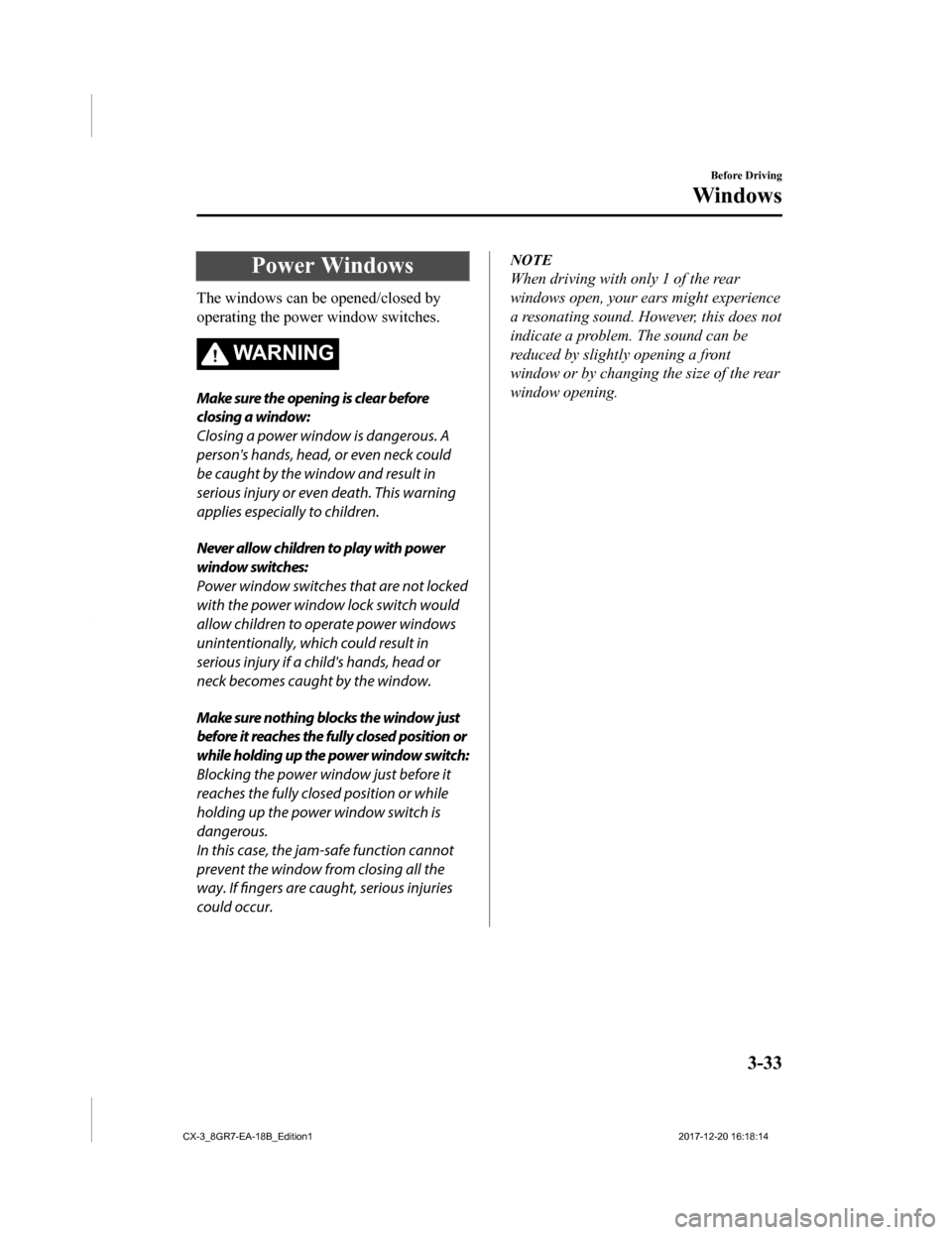

Power Windows
The windows can be opened/closed by
operating the power window switches.
WA R N I N G
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous. A
person's hands, head, or even neck could
be caught by the window and result in
serious injury or even death. This warning
applies especially to children.
Never allow children to play with power
window switches:
Power window switches that are not locked
with the power window lock switch would
allow children to operate power windows
unintentionally, which could result in
serious injury if a child's hands, head or
neck becomes caught by the window.
Make sure nothing bloc ks the w indow just
before it reaches the fully closed position or
while holding up the power window switch:
Blocking the power window just before it
reaches the fully closed position or while
holding up the power window switch is
dangerous.
In this case, the jam-safe function cannot
prevent the window from closing all the
way. If fingers are caught, serious injuries
could occur.
NOTE
When driving with only 1 of the rear
windows open, your ears might experience
a resonating sound. However, this does not
indicate a problem. The sound can be
reduced by slightly opening a front
window or by changing the size of the rear
window opening.
Before Driving
Windows
3-33
CX-3_8GR7-EA-18B_Edition12017-12-20 16:18:14

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry in to the vehicle, which
could result in the veh icle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼ Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
•Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.
•Forcing open a door, the hood or the
liftgate.
•Opening the hood by operating the hood
release handle.
•Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activat e until the driver's
door or the liftgate is unlocked with the
transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
•The liftgate does not open while the
theft-deterrent system is operating.
•If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash when the battery is
charged or replaced.
▼ How to Arm the System
1. Close the windows and the moonroof*
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the liftgate are closed.
4. Press the lock button on the transmitter or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully armed.
Before Driving
Security System
*Some models.3-41
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

NOTE
•The theft-deterrent system can also be
armed by activating the auto relock
function with all the doors, the liftgate
and the hood closed.
Refer to Transmitter on page 3-4.
•The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
•Unlocking any door.
•Opening any door.
•Opening the hood.
•Switching the ignition ON.
•(With the advanced keyless function)
Pressing the electric liftgate opener
while the key is being carried.
To rearm the system, do the arming
procedure again.
•When the doors are locked by pressing
the lock button on the transmitter or
using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
▼ To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
•Pressing the unlock button on the
transmitter.
•Starting the engine with the push button
start.
•(With the advanced keyless function)
•Pressing a request switch on the
doors.
The hazard warning lights will flash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
▼ To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
•Pressing the unlock button on the
transmitter.
•Starting the engine w
ith the push button
start.
•(With the advanced keyless function)
•Pressing a request switch on the
doors.
•Pressing the electric liftgate opener
while the key is being carried.
The hazard warning ligh ts will flash twice.
Before Driving
Security System
3-42
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off...............4-10
Instrument Cluster and Display............
........................................................... 4-11 Meters and Gauges..................... 4-11
Active Driving Display
*............. 4-21
Warning/Indicator Lights............4-24
Manual Transaxle Operation......... 4-30 Manual Transaxle Shift
Pattern......................................... 4-30
Automatic Transaxle....................... 4-32 Automatic Transaxle
Controls...................................... 4-32
Shift-Lock System...................... 4-33
Transaxle Ranges........................4-33
Manual Shift Mode..................... 4-35
Direct Mode
*.............................. 4-41
Driving Tips................................4-42
Switches and Controls..................... 4-43
Lighting Control......................... 4-43
Fog Lights
*................................. 4-48
Turn and Lane-Change
Signals........................................ 4-48
Windshield Wipers and
Washer........................................ 4-49
Rear Window Wiper and
Washer........................................ 4-53
Rear Window Defogg er.............. 4-53
Horn............................................ 4-55
Hazard Warning Flasher............. 4-55
Brake................................................ 4-56 Brake System.............................. 4-56
AUTOHOLD.............................. 4-61
Hill Launch Assist (HLA).......... 4-65
ABS/TCS/DSC................................. 4-67 Antilock Brake System
(ABS)..........................................4-67
Traction Control System
(TCS).......................................... 4-68
Dynamic Stability Control
(DSC)..........................................4-70
Fuel Economy Monitor................... 4-71 Fuel Economy Monitor
*............. 4-71
Drive Selection................................. 4-73 Drive Selection
*..........................4-73
*Some models.4-1
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

i-ACTIV AWD................................. 4-75i-ACTIV AWD Operation
*.........4-75
Power Steering................................. 4-76 Power Steering............................4-76
i-ACTIVSENSE............................... 4-77 i-ACTIVSENSE
*........................4-77
Adaptive Front Lighting System
(AFS)
*........................................ 4-80
High Beam Control System
(HBC)
*........................................4-81
Lane Departure Warning System
(LDWS)
*.................................... 4-84
Blind Spot Monitoring (BSM)
*.........
.................................................... 4-90
Traffic Sign Recognition System
(TSR)
*........................................ 4-96
Distance Recognition Support
System (DRSS)
*....................... 4-102
Rear Cross Traffic Alert (RCTA)
*.....
.................................................. 4-104
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)
*............... 4-107
Advanced Smart City Brake Support
(Advanced SCBS)
*................... 4-119
Smart City Brake Support
(SCBS)
*.................................... 4-123
Smart Brake Support (SBS)
*.... 4-127
Forward Sensing Camera (FSC)
*......
.................................................. 4-130
Radar Sensor (Front)
*.............. 4-135
Radar Sensors (Rear)
*.............. 4-138
Cruise Control............................... 4-140 Cruise Control
*.........................4-140
Tire Pressure Monitoring
System.............................................4-144 Tire Pressure Monitoring System
*.....
.................................................. 4-144
Rear View Monitor....................... 4-148 Rear View Monitor
*................. 4-148
4-2*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-24).
NOTE
When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
This does not indi cate an abnormality.
Starting the Engine
WA R N I N G
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key w ill affect the device.
NOTE
•The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
•The engine can be started when the push
button start is pressed from off, ACC, or
ON.
•The push button start system functions
(function which can start the engine by
only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
•After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.
When Driving
Start/Stop Engine
4-5
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON. Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
NOTE
•Under the following conditions, the
KEY warning light (red) flashes after
the push button start is pressed. This
informs the driver that the push
button start will not switch to ACC
even if it is pressed from off.
•The key battery is dead.
•The key is out of operational
range.
•The key is placed in areas where it
is difficult for the system to detect
the signal (page 3-7).
•A key from another manufacturer
similar to the key is in the
operational range.
•(Forced engine starting method)
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may
not start using the usual starting
method. Have your vehicle inspected
at an Authorized Mazda Dealer as
soon as possible. If this occurs, the
engine can be force-started. Press
and hold the push button start until
the engine starts. Other procedures
necessary for starting the engine,
such as having the key in the cabin,
and depressing the clutch pedal
(manual transaxle) or the brake
pedal (automatic transaxle) are
required.
•When the engine is force-started, the
KEY warning light (red) remains
illuminated and the push button start
indicator light (amber) remains
flashing.
•(Automatic transaxle)
When the selector lever is in the
neutral (N) position, the KEY
indicator light (green) and the push
button start indicator light (green)
do not illuminate.
7. Press the push button start after both the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.
NOTE
•After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to
the ON position.
When Driving
Start/Stop Engine
4-7
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

NOTE
When touching the push button start
using the backside of the key as shown
in the illustration, touch the push
button start with the lock switch side of
the key facing up.
5. Make sure that the push button start
indicator light (green) turns on.
6. Press the push button start to start the engine.
NOTE
•The engine cannot be started unless
the clutch pedal is fully depressed
(manual transaxle) or the brake
pedal is fully depressed (automatic
transaxle).
•If there is a malfunction with the
push button start function, the push
button start indica tor light (amber)
flashes. In this case, the engine may
start, however, have the vehicle
checked at an Authorized Mazda
Dealer as soon as possible.
•If the push button start indicator
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.
•To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the clutch pedal (manual
transaxle) or brake pedal
(automatic transaxle).
2. Press the push button start toswitch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position
again, perform the operation
from the beginning.
▼Emergency Operation for Starting
the Engine
If the KEY warning light
(red) illuminates,
or the push button st art indicator light
(amber) flashes, this could indicate that
the engine may not start using the usual
starting method. Have your vehicle
inspected at an Authorized Mazda Dealer
as soon as possible . If this occurs, the
engine can be force-started. Press and hold
the push button start until the engine starts.
Other procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
When Driving
Start/Stop Engine
4-9
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
