▼Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WA R N I N G
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning rubber
floor mats:
Cleaning the rubber
floor mats with rubber
cleaning products makes the floor mats
slippery.
This may cause an accident when
depressing the accelerator, brake, or clutch
(Manual transaxle) pedal or when getting
in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them securely
(page 3-44).
Maintenance and Care
Appearance Care
6-63
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

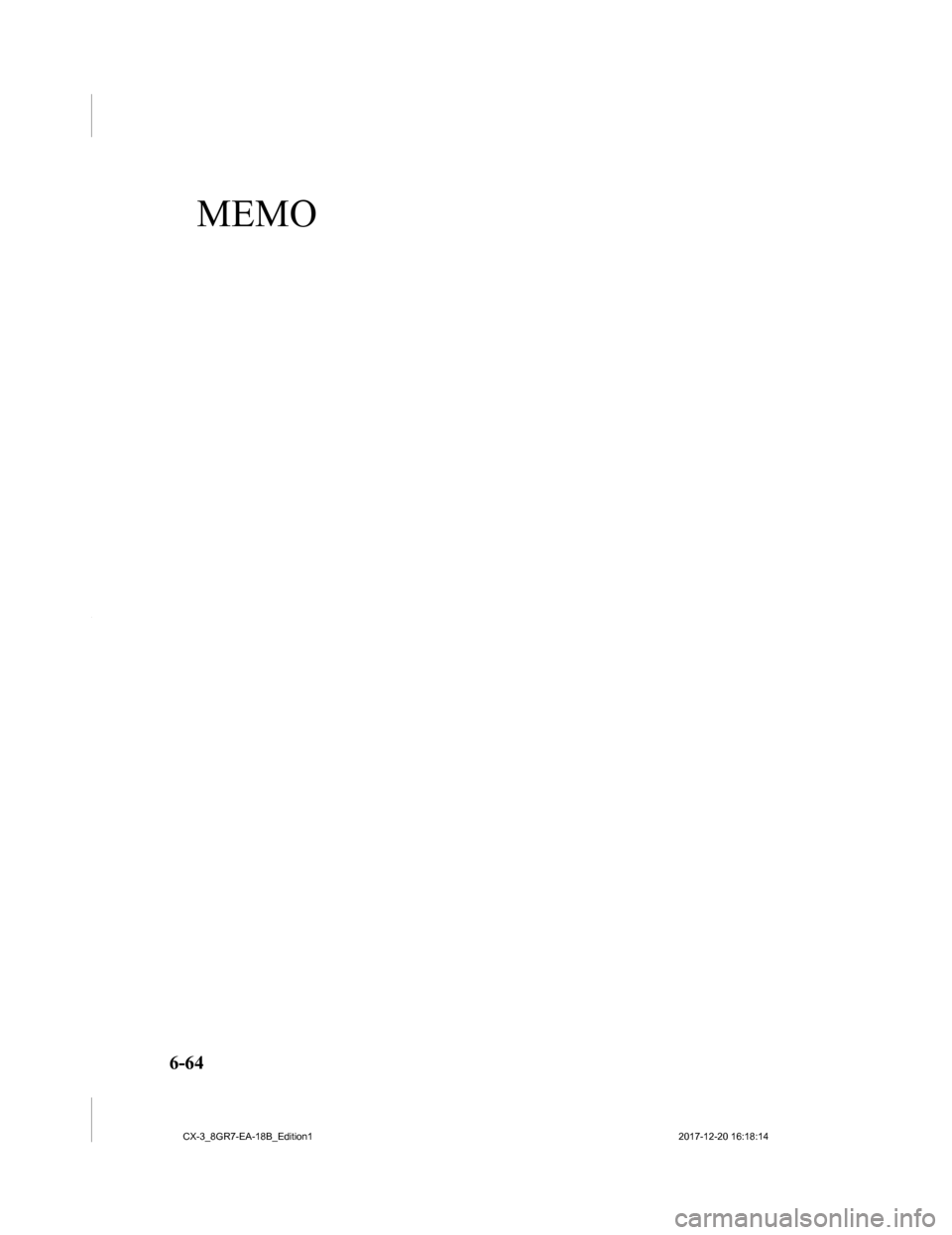

MEMO
6-64
CX-3_8GR7-EA-18B_Edition12017-12-20 16:18:14

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-8
Battery Runs Out............................ 7-18 Jump-Starting............................. 7-18
Emergency Starting.........................7-21 Starting a Flooded Engine.......... 7-21
Push-Starting.............................. 7-21
Overheating......................................7-22 Overheating................................ 7-22
Emergency Towing.......................... 7-24 Towing Description.................... 7-24
Tiedown Hooks
*......................... 7-25
Warning/Indicator Lights and
Warning Sounds.............................. 7-27If a Warning Light Turns On or
Flashes........................................ 7-27
Message Indicated on Display
*..........
.................................................... 7-41
Warning Sound is Activated....... 7-43
When Liftgate Cannot be
Opened..............................................7-48 When Liftgate Cannot be
Opened........................................7-48
Active Driving Display Does Not
Operate............................................. 7-49 If the Active Driving Display Does
Not Operate................................ 7-49
*Some models.7-1
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.
NOTE
•The turn signals do not work when the
hazard warning lights are on.
•Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Jack Flat tire belt
Jack lever
Spare tire hold-down bolt
Spare tire
With sub-woofer
Type A
Tiedown eyelet
Lug wrench
Jack
Jack lever
Spare tire hold-down bolt
Spare tire
Type B
Tiedown eyelet
Lug wrench
Some models.
If Trouble Arises
Flat Tire
7-3
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Spare tire hold-down bolt
Tiedown eyelet
Jack
Spare tire
Jack lever Lug wrench
Spare tire hold-down bolt
Without sub-woofer
Tiedown eyelet
Jack
Flat tire belt
Spare tire
Jack lever Lug wrench
Type A
Type B
Some models.
If Trouble Arises
Flat Tire
7-4
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

▼Jack
To remove the jack
1.
(With luggage board)
Lift up the luggage board.
2. (With luggage board)
Pull the luggage board outward a little
and insert the opposite end into the
holders so that the luggage board
stands.
Luggage board
Holders
3. Lift the luggage mat.
Luggage mat
4. Remove the cargo sub compartment.
5. Remove the cover.
Tabs
6. Turn the wing bolt and jack screw counterclockwise.
Wing bolt
Jack screw
If Trouble Arises
Flat Tire
7-5
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
4. Insert the cover tabs and install the cover.
NOTE
Verify that the cover is securely
installed.
Maintenance
•Always keep the jack clean.
•Make sure the moving parts are kept
free from dirt or rust.
•Make sure the screw thread is
adequately lubricated.
▼ Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used fo
r long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tire on
the front wheels (driving wheels):
Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
 Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.
If Trouble Arises
Flat Tire
7-6
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Do not use a tire chain on this tire
because it will not fit properly.
 Do not use your temporary spare tire
on any other vehicle, it has been
designed only for your Mazda.
 Use only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
1. (With luggage board)
Lift up the luggage board.
2. (With luggage board)
Pull the luggage board outward a little
and insert the opposite end into the
holders so that the luggage board
stands.

Luggage board
Holders
3. Lift the luggage mat.
Luggage mat
4. For vehicles equipped with asub-woofer, uncouple the connector.

Connector
NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
If Trouble Arises
Flat Tire
7-7
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

5. For vehicles equipped with asub-woofer, loosen the hold-down bolt
and remove the woofer and spare tire.

For vehicles not equipped with a
sub-woofer, turn the spare tire
hold-down bolt counterclockwise and
remove the spare tire.

Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
•Steering becomes difficult.
•The vehicle begins to vibrate
excessively.
•The vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WA R N I N G
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not done
properly. The vehicle can slip off the jack
and seriously injure someone.
No person should plac e any portion of their
body under a vehicle that is supported by a
jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a vehicle
supported by a jack is dangerous. The
occupant could cause the vehicle to fall
resulting in serious injury.
If Trouble Arises
Flat Tire
7-8
