tow MAZDA MODEL CX-3 2019 Owners Manual (in English)

Child-Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.

You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or pro vincial laws for specific requirements regarding the safety
of children riding in your vehicle.

Whatever child-restraint system you consider, please pick the a ppropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.

A child who has outgrown child-re straint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle in the outboard seats, and towards the buckle on th e right if the
child is seated on the center seat.

Statistics confirm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplementa l restraint system (air bags).

A rear-facing child-restraint system should NEVER be used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.

(With Front Passenger Occupa nt Classification System)
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger occupant classification sensor works as a part of the supplemental restraint
system. This system deactivates the front passenger front and s ide air bags and also the front
passenger seat belt pretensioner system when the front passenge r air bag deactivation
indicator light illuminates.

When an infant or small child si ts on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner sy stem, so make sure the front
passenger air bag deactivation indicator light illuminates.

Even if the fron t passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.

For more details, re fer to "Front passeng er occupant classifica tion sensor" (page 2-61).

Essential Safety Equipment
Child Restraint
2-23
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys.................................................... 3-2 Keys.............................................. 3-2
Keyless Entry System................... 3-3
Advanced Keyless Entry
System.................................................3-9 Advanced Keyless Entry System
*.....
...................................................... 3-9
Operational Range...................... 3-10
Doors and Locks.............................. 3-11 Door Locks................................. 3-11
Liftgate....................................... 3-20
Fuel and Emission........................... 3-24 Fuel and Engine Exhaust
Precautions................................. 3-24
Fuel-Filler Lid and Cap.............. 3-27
Steering Wheel................................. 3-29 Steering Wheel....... .................... 3-29
Mirrors............................................. 3-31 Mirrors........................................ 3-31
Windows........................................... 3-33Power Windows..........................3-33
Moonroof
*.................................. 3-36
Security System............................... 3-39 Modification and Add-On
Equipment...................................3-39
Immobilizer System....................3-39
Theft-Deterrent System
*.............3-41
Driving Tips..................................... 3-43 Break-In Period.......................... 3-43
Saving Fuel and Protection of the
Environment............................... 3-43
Hazardous Driving.... ..................3-44
Floor Mat.................................... 3-44
Rocking the Vehicle....................3-45
Winter Driving............................3-45
Driving In Flooded A rea............ 3-47
Overloading................................ 3-48
Driving on Uneven Road............ 3-49
Towing.............................................. 3-50 Trailer Towing............................ 3-50
Recreational Towing................... 3-50
*Some models.3-1
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Locking, Unlocking with Auxiliary
Key
Turn the auxiliary key
toward the front to
lock, toward the back to unlock.
To l o c k
All doors and the liftgate lock
automatically when th e driver's door is
locked using the auxiliary key.
To u n l o c k
The driver’s door unlocks when the
auxiliary key is turned briefly to the
unlock position and then immediately
returned to the center position.
All doors and the liftgate unlock when the
driver's door is unlocked and the auxiliary
key is held in the unlock position for one
second or longer.
Lock Unlock
▼
Locking, Unlocking with Request
Switch (With the advanced keyless
function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch on
the front doors while the key is being
carried.
The request switch on the liftgate can only
be used to lock all d
oors and the liftgate.
Front doors
Request switch
Liftgate (Lock only)
Request switch
Before Driving
Doors and Locks
3-13
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Trailer Towing
Your Mazda is not designed for towing.
Never tow a trailer with your Mazda.
Recreational Towing
An example of "recreational towing" is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
"Towing Description" (page 7-24) and
"Tiedown Hooks" (page 7-25) and
carefully follow the instructions.
Before Driving
To w i n g
3-50
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

NOTE
•If the gears cannot be shifted down
when driving at higher speeds, the gear
position indication will flash twice to
signal that the gears cannot be shifted
down (to protect the transaxle).
•If the automatic transaxle fluid (ATF)
temperature becomes too high, there is
the possibility that the transaxle will
switch to automatic shift mode,
canceling manual shift mode and
turning off the gear position indication
illumination. This is a normal function
to protect the AT. After the ATF
temperature has decreased, the gear
position indication illumination turns
back on and driving in manual shift
mode is restored.
▼Manually Shifting Up
You can shift gears up by operating the
selector lever or
the steering shift
switches
*.
M1 → M2 → M3 → M4 → M5 → M6
Using selector lever
To shift up to a higher gear, tap the
selector lever back
once.

Using steering shift switch*
To shift up to a higher gear with the
steering shift switches, pull the UP switch
(
) toward you once with your
fingers.

UP switch (+/OFF)
WA R N I N G
Keep your hands on the steering wheel rim
when using fingers on the steering shift
switches:
Putting your hands inside the rim of the
steering wheel when using the steering
shift switches is dangerous. If the driver's
air bag were to deploy in a collision, your
hands could be impacted causing injury.
NOTE
•When driving slowly, the gears may not
shift up.
•Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In addition,
manual shift mode switches to automatic
shift mode while the accelerator pedal is
completely depressed.
When Driving
Automatic Transaxle
4-36*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

This function is canceled while the TCS
is turned off. However, if the vehicle is
continuously driven at a high rpm, the
gears may automatically shift up to
protect the engine.
•The steering shift switch can be used
temporarily even if the selector lever is
in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (
) is
pulled rearward for a sufficient amount
of time.
▼ Manually Shifting Down
You can shift gears down by operating the
selector lever or the steering shift
switches
*.
M6 → M5 → M4 → M3 → M2→ M1
Using selector lever
To shift down to a lower gear, tap the
selector lever forward
once.

Using steering shift switch*
To shift down to a l ower gear with the
steering shift switches, pull the DOWN
switch
toward you once with your
fingers.

DOWN switch (-)
WA R N I N G
Do not use engine braking on slippery road
surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Keep your hands on the steering wheel rim
when using fingers on the steering shift
switches:
Putting your hands inside the rim of the
steering wheel when using the steering
shift switches is dangerous. If the driver's
air bag were to deploy in a collision, your
hands could be impacted causing injury.
When Driving
Automatic Transaxle
*Some models.4-37
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Headlight High-Low Beam
The headlights switch between high and
low beams by moving the lever forward or
backward.

High beam
Low beam
When the headlight high-beams are on, the
headlight high-beam indicator light is
turned on.

▼ Flashing the Headlights
Can be used when the ignition is switched
ON.
To flash the headlights
, pull the lever fully
towards you (the headlight switch does not
need to be on).

OFF
Headlight
flashing
The headlight high-b eam indicator light in
the instrument cluster illuminates
simultaneously. The lever will return to
the normal position when released.

▼ Coming Home Light
The coming home light turns on the
headlights (low beam
s) when the lever is
operated.
To turn on the lights
When the lever is pulled with the ignition
switched to ACC or OFF, the low beam
headlights turn on.
The headlights turn o ff after a certain
period of time has elapsed after the doors
are closed.
NOTE
•The time until the headlights turn off
after all of the doors are closed can be
changed.
Refer to Personalization Features on
page 9-9.
•If no operations are done for 3 minutes
after the lever is pu lled, the headlights
turn off.
When Driving
Switches and Controls
4-46
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

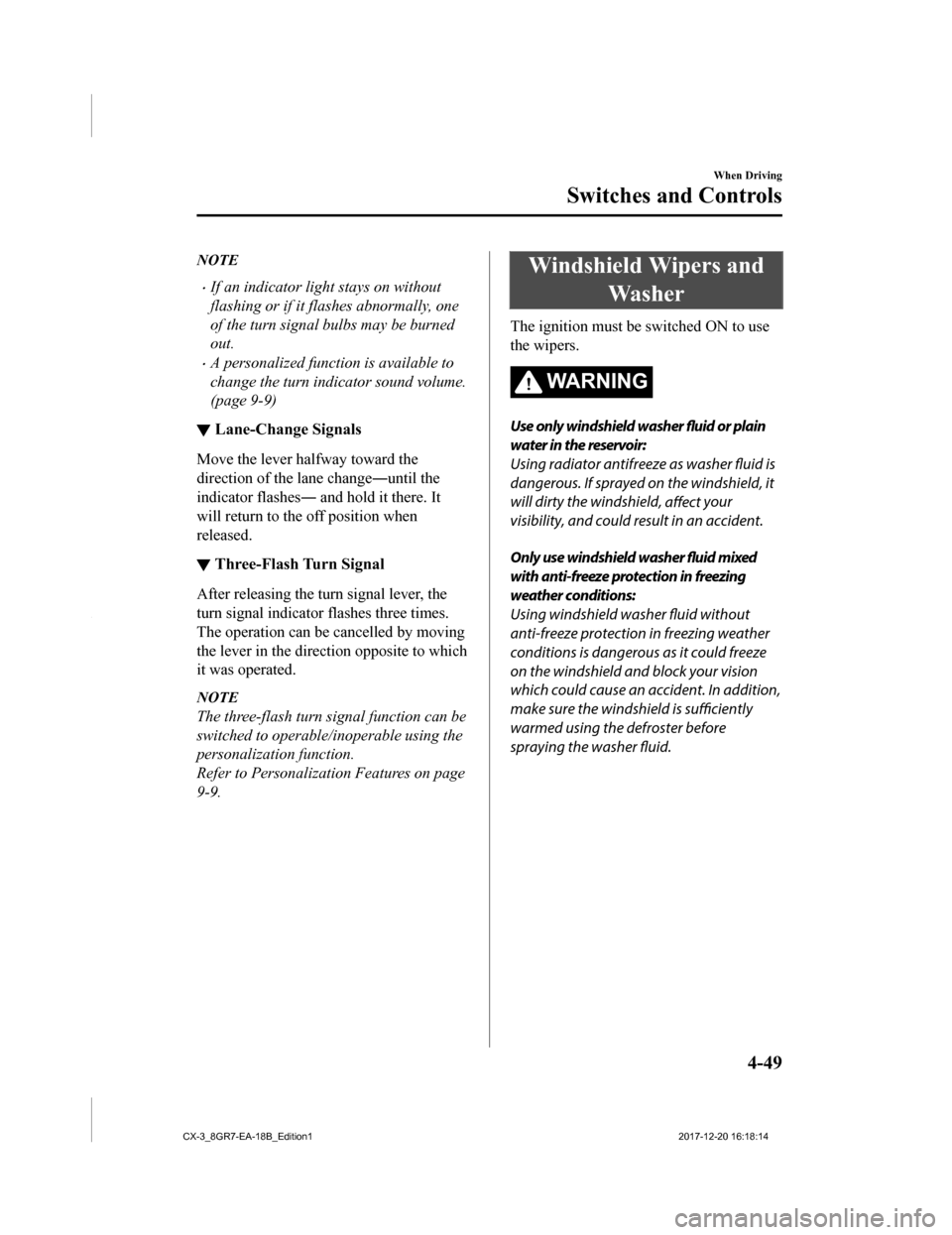

NOTE
•If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
•A personalized function is available to
change the turn indicator sound volume.
(page 9-9)
▼Lane-Change Signals
Move the lever halfway toward the
direction of the lane change―until the
indicator flashes― and hold it there. It
will return to the off position when
released.
▼Three-Flash Turn Signal
After releasing the turn signal lever, the
turn signal indicator flashes three times.
The operation can be cancelled by moving
the lever in the direction opposite to which
it was operated.
NOTE
The three-flash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page
9-9.
Windshield Wipers and
Wa s h e r
The ignition must be switched ON to use
the wipers.
WA R N I N G
Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.
Only use windshield washer fluid mixed
with anti-freeze protection in freezing
weather conditions:
Using windshield washer fluid without
anti-freeze protection in freezing weather
conditions is dangerous as it could freeze
on the windshield and block your vision
which could cause an accident. In addition,
make sure the windshield is sufficiently
warmed using the defroster before
spraying the washer fluid.
When Driving
Switches and Controls
4-49
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

NOTE
•Switching the auto-wiper lever from the
to the position while driving
activates the windshield wipers once,
after which they operate according to
the rainfall amount.
•The auto-wiper control may not operate
when the rain sensor temperature is
about
－10 °C (14 °F) or lower, or
about 85 °C (185 °F) or higher.
•If the windshield is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and the auto-wiper control
may not operate properly.
•If dirt or foreign matter (such as ice or
matter containing salt water) adheres to
the windshield above the rain sensor, or
if the windshield is iced, it could cause
the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the
auto-wiper control wi ll stop operation.
In this case, set the wiper lever to the
low speed position or high speed
position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper
operation.
•If the auto-wiper lever is left in the
position, the wipers could operate
automatically from the effect of strong
light sources, electromagnetic waves, or
infrared light because the rain sensor
uses an optical sensor. It is
recommended that the auto-wiper lever
be switched to the
position other
than when driving the vehicle under
rainy conditions.
•If the headlight switch and the
windshield wiper switch are in
,
and the wipers are operated at low or
high speed by the auto wiper control for
several seconds, bad weather conditions
are determined and the headlights may
be turned on.
•The auto-wiper control functions can be
turned off. Refer to Personalization
Features on page 9-9.
▼ Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.

Washer
OFF
NOTE
If the windshield wash
er is turned on when
the windshield wipers are not operating,
the windshield wipers operate a few times.
If the washer does no t work, inspect the
fluid level (page 6-27). If the fluid level
is normal, consult a n Authorized Mazda
Dealer.
When Driving
Switches and Controls
4-52
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Horn
To sound the horn, press the mark on
the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.
NOTE
•The turn signals do not work when the
hazard warning lights are on.
•Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
When Driving
Switches and Controls
4-55
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
