How the SRS Air BagsWork
▼How the SRS Air Bags Work
Your Mazda is equipped with the
following types of SRS air bags. SRS air
bags are designed to work together
with the seat belts to help to reduce
injuries during an accident.
The SRS air bags are designed to
provide further protection for
passengers in addition to the seat belt
functions. Be sure to wear seat belts
properly.
▼Front Seat Belt Pretensioners
The front seat belt pretensioners are
designed to deploy in moderate or
severe frontal, near frontal collisions.
In addition, the pretensioners operate
when a side collision or a roll-over
accident is detected. The pretensioners
operate
differently depending on what
types of air bags are equipped. For
more details about seat belt
pretensioner operation, refer to the
SRS Air Bag Deployment Criteria (page
2-60).
▼ Driver Air Bag
The driver's air bag is mounted in the
steering wheel.
When air bag crash sensors detect a
frontal impact of greater than
moderate force, the driver's air bag
inflates quickly helping to reduce injury
mainly to the driver's head or chest
caused by directly hitting the steering
wheel.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-60).
(With Front Passenger Occupant
Classification System)
The driver's dual-stage air bag controls
air bag inflation in two energy stages.
During an impact of moderate severity,
the driver's air bag deploys with lesser
energy, whereas during more severe
impacts, it deploys with more energy.
▼Front Passenger Air Bag
The front passenger air bag is mounted
in the front passenger dashboard.
The inflation mechanism for the front
passenger air bag is the same as the
driver's air bag.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-60).
(With Front Passenger Occupant
Classification System)
In addition, the front passenger air bag
is designed to only deploy in
accordance with the total seated
weight on the front passenger seat. For
details, refer to the front passenger
Essential Safety Equipment
SRS Air Bags
2-57
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

occupant classification system (page
2-64).
▼Driver and Front Passenger Knee
Air Bags*
The knee air bags are equipped under
the instrument panel.
If the air bag crash sensors receive a
frontal impact of greater than
moderate force, the knee air bags
deploy immediately to reduce impact
to the driver and front passenger's
legs.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-60).
▼
Side Air Bags
The side air bags are mounted in the
outboard sides of the front seatbacks.
When the air bag crash sensors detect
a side impact of greater than moderate
force, the system inflates the side air
bag only on the side in which the
vehicle was hit. The side air bag inflates
quickly to reduce injury to the driver or
front passenger's chest caused by
directly hitting interior parts such as a
door or window.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-60).
(With Front Passenger Occupant
Classification System)
In addition, the front passenger side air
bag is designed to only deploy in
accordance with the total seated
weight on the front passenger seat. For
details, refer to
the front passenger
occupant classification system (page
2-64).

▼ Curtain Air Bags
The curtain air bags are mounted in the
front and rear window pillars, and the
roof edge along both sides.
When the air bag crash sensors detect
a side impact of greater than moderate
force, the curtain air bag inflates
quickly and helps to reduce injury
mainly to the driver and front and rear
outboard passengers' heads caused by
directly hitting interior parts such as a
door or window.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-60).
In a side impact:
Greater than moderate impact to one
side of the vehicle will cause the
Essential Safety Equipment
SRS Air Bags
2-58*Some models.
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

curtain air bag on that side only to
inflate.

Only one side curtain air bag will
deploy on the side of the vehicle that
receives the force of an impact.
(With Front Passenger Occupant
Classification System)
In a roll-over:
In response to a vehicle roll-over, both
curtain air bags inflate.

Both curtain air bags will deploy after
the roll-over accident is detected.
▼ Warning Light/Beep
A system malfunction or operation
conditions are indicated by a warning.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning
Indication/Warning Light on page
7-27.
Essential Safety Equipment
SRS Air Bags
2-59
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

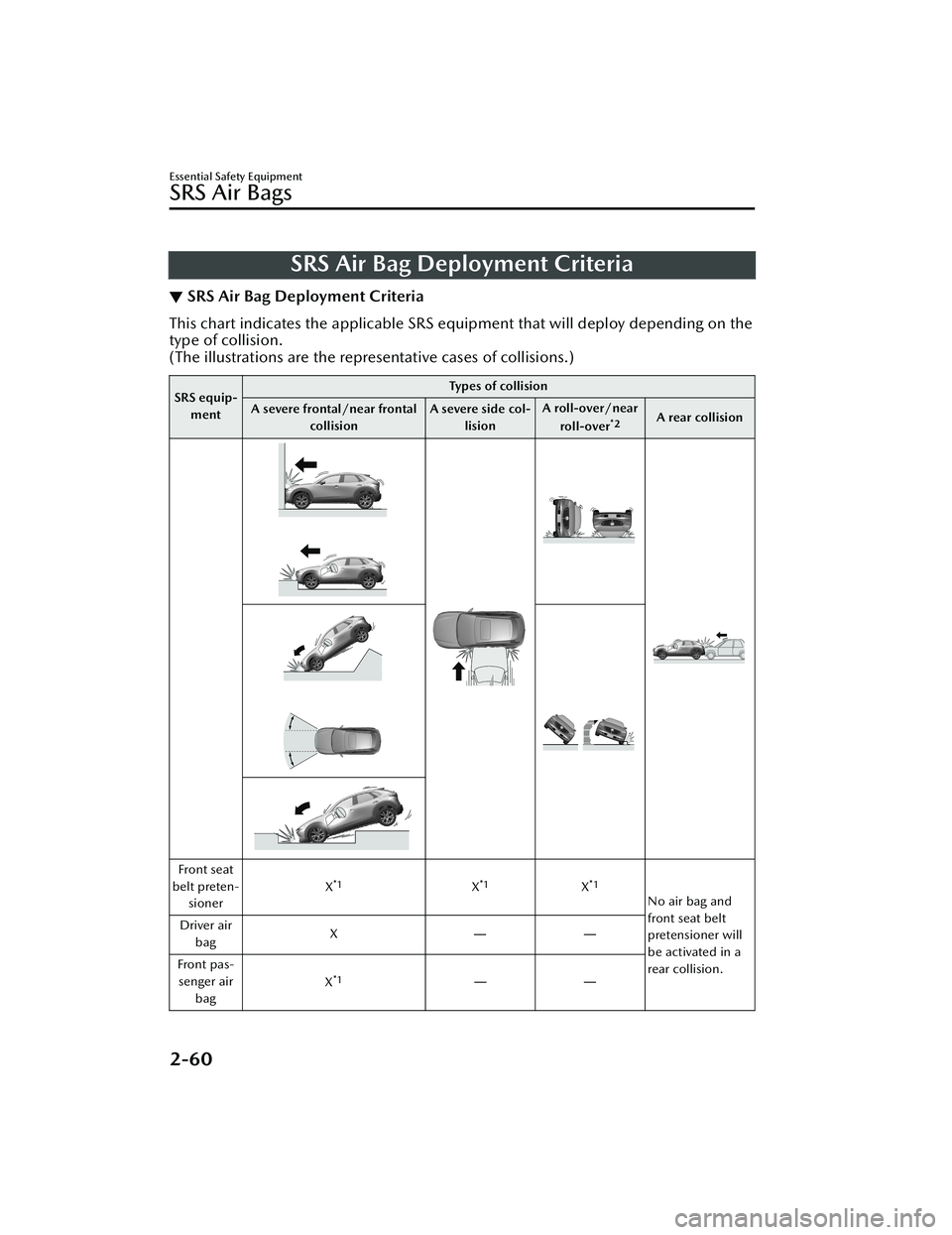

SRS Air Bag Deployment Criteria
▼SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the
type of collision.
(The illustrations are the representative cases of collisions.)
SRS equip-
ment Types of collision
A severe frontal/near frontal collision A severe side col-
lision A roll-over/near
roll-over
*2A rear collision
Front seat
belt preten- sioner X*1X*1X*1
No air bag and
front seat belt
pretensioner will
be activated in a
rear collision.
Driver air
bag X
――
Front pas- senger air bag X
*1――
Essential Safety Equipment
SRS Air Bags
2-60
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

SRS equip-ment Types of collision
A severe frontal/near frontal collision A severe side col-
lision A roll-over/near
roll-over
*2A rear collision
Knee Air- bag X
*1――
Side air bag ―X
*1 (impact side
only) ―
Curtain air bag ―
X (impact side
only) X (both sides)
X: The SRS air bag equipment deploys in a collision.
―
:The SRS air bag equipment does not deploy in a collision.
*1 (With Front Passenger Occupant Classification System)
The front passenger front and side air bags, seat belt pretensioner and knee air bag are designed to
deploy depending on the condition of the total seated weight on the front passenger seat.
*2(With Front Passenger Occupant Classification System)
In a roll-over accident, the seat belt pretensioners and the curtain air bags deploy.
NOTE
In a frontal
offset collision, the equipped air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.
Essential Safety Equipment
SRS Air Bags
2-61
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

Limitations to SRS Air Bag
▼Limitations to SRS Air Bag
In severe collisions such as those
described previously in "SRS Air Bag
Deployment Criteria", the applicable
SRS air bag equipm
ent will deploy.
However, in some accidents, the
equipment may not deploy depending
on the type of collision and its severity.

Limitations to front/near front
collision detection:
The following illustrations are
examples of front/near front collisions
that may not be detected as severe
enough to deploy the SRS air bag
equipment.

Impacts involving trees or poles

Frontal offset impact to the vehicle

Rear-ending or running under a
truck's tail gate
Limitations to side collision detection:
The following illustrations are
examples of side collisions that may
Essential Safety Equipment
SRS Air Bags
2-62
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

not be detected as severe enough to
deploy the SRS air bag equipment.

Side impacts involving trees or poles

Side impacts with two-wheeled
vehicles

Roll-over (Without Front Passenger
Occupant Classification System)
Limitations to roll-over detection
(With Front Passenger Occupant
Classification System):
The following illustration is an example
of an accident that may not be
detected as a roll-over accident.
Therefore, the front seat belt
pretensioners and curtain air bags may
not deploy.

Pitch end over end
Essential Safety Equipment
SRS Air Bags
2-63
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

Driver and Front
Passenger Occupant
Classification System
*
▼ Driver and Front Passenger
Occupant Classification System
First, please read "Supplemental
Restraint System (SRS) Precautions"
(page 2-49) carefully.
▼Driver Seat Slide Position Sensor
Your vehicle is equipped with a driver
seat slide position
sensor as a part of
the supplemental restraint system. The
sensor is located under the driver seat.
The sensor determines whether the
driver seat is fore or aft of a reference
position and sends the seat position to
the diagnostic module (SAS unit).
The SAS unit is designed to control the
deployment of the driver air bag
depending on how close the driver
seat is to the steering wheel.
The air bag/front seat belt
pretensioner system warning light
flashes if the sensor has a possible
malfunction (page 2-59).
▼ Front Passenger Seat Weight
Sensors
Your vehicle is equipped with a front
passenger seat weight sensors as a part
of the supplemental restraint system.
These sensors are located under both
of the front passenger seat rails. These
sensors determine the total seated
weight on the front passenger seat and
monitor the seat belt buckle for the
front passenger seat. The SAS unit is
designed to prevent the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system from deploying if
the front passenger air bag
deactivation indicator light illuminates.
To reduce the chance of injuries
caused by deployment of the front
passenger air bag, the system
deactivates the front passenger front
and side air bags and knee air bags,
and also the seat belt pretensioner
system when the front passenger air
bag deactivation indicator light
illuminates. Refer to the following
table for the front passenger air bag
deactivation indicator light
illumination conditions.

This system shuts off the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system, so make sure the
front passenger air bag deactivation
indicator light illuminates according to
the following table.

The air bag/front seat belt
pretensioner system warning light
flashes and the front passenger air bag
deactivation indicator light illuminates
if the sensors have a possible
malfunction. If this
happens, the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system will not deploy.
Front passenger air bag deactivation
indicator light
This indicator light illuminates to
remind you that the front passenger
front and side air bags and knee air
Essential Safety Equipment
SRS Air Bags
2-64*Some models.
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

bags, and seat belt pretensioners will
not deploy during a collision.
If the front passenger weight sensors
are normal, the indicator light
illuminates when the ignition is
switched ON. The light turns off after a
few seconds. Then, the indicator light
illuminates or is off under the following
conditions:
Front passenger air bag deactivation
indicator light on/off condition chart
Condition
detected by the
front pas-
senger oc- cupant
classifica- tion sys- tem Front pas-
senger air
bag deacti-
vation indi- cator light Front pas-
senger
front and side andknee air bags Front
passen-
ger seat
belt pre-
tensioner system
Empty
(Not occu-
pied) On
Deactivat-
ed Deacti-
vated
Child or
child-re-
straint sys-
tem
*1
On Deactivat-
ed Deacti-
vated
Adult
*2Off Ready Ready
*1 If a larger child sits on the front passenger seat, the sensors might detect the child as
being an adult depending on the child's
physique.
*2 If a smaller adult sits on the front passenger
seat, the sensors might detect the person as
being a child depending on the person's
physique.
The curtain air bag is ready for inflating
regardless of what the front passenger air bag
deactivation indicator light on/off condition
chart indicates.

If the front passenger air bag
deactivation indicator light does not
illuminate when the ignition is
switched ON and does not illuminate
as indicated in the front passenger air
bag deactivation indicator light on/off
condition chart, do not allow a child to
sit in the front passenger seat and
consult an Authorized Mazda Dealer
as soon as possible. The system may
not work properly in an accident.
WARNING
Do not decrease the total seated
weight on the front passenger seat:
When an adult or large child sits on the
front passenger seat, decreasing the
total seated weight on the front
passenger seat required for air bag
deployment is dangerous. The front
passenger seat we ight sensors will
detect the reduced total seated weight
condition and the front passenger front
and side air bags and knee air bags,
and the seat belt pretensioner system
will not deploy during an accident. The
front passenger will not have the
supplementary protection of the air
bag, which could result in serious
injury. Decreasing the total seated
weight on the front passenger seat
could result in an air bag not deploying
under the following conditions, for
example:
Essential Safety Equipment
SRS Air Bags
2-65
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

A front passenger is seated as shown
in the following figure:A rear passenger pushes up on the
front passenger seat with their feet.
 Luggage or other items placed under
the front passenger seat or between
the front passenger seat and driver
seat that push up the front passenger
seat bottom.
 Any accessories which might
decrease the total seated weight on
the front passenger seat are attached
to the front passenger seat.
The front passenger front and side air
bags and knee air bags, and the seat
belt pretensioner system will
deactivate if the front passenger air
bag deactivation indicator light
illuminates.

Do not increase the total seated
weight on the front passenger seat:
When an infant or small child sits on
the front passenger seat, increasing the
total seated weight on the front
passenger seat is dangerous. The front
passenger seat weight sensors will
detect the increased total seated
weight, which could result in the
unexpected deployment of the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system in an accident and
may cause serious injury. Increasing the
total seated weight on the front
passenger seat could result in the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system deployment in an
accident under the following
conditions, for example:
 Luggage or other items are placed on
the seat with the child in the
child-restraint system.
Essential Safety Equipment
SRS Air Bags
2-66
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11
