display MAZDA MODEL CX-30 2020 Owners Manual

Interior Equipment (View B)
▼Interior Equipment (View B)
ƒ
Instrument cluster............................................................................. page 4-11
„ Active driving display......................................................................... page 4-27
… Mazda Connect................................................................................ page 5-13
† Climate control system........................................................................ page 5-2
‡ Heated steering wheel switch............................................................. page 2-18
ˆ Seat warmer switches........................................................................ page 2-17
‰ Hazard warning flasher switch............................................................ page 4-55
Š Rear window defogger switch............................................................ page 4-53
‹ Glove compartment.......................................................................... page 5-41
ΠExternal input terminal.......................................................................page 5-13
Push button start................................................................................. page 4-4
Ž Horn................................................................................................ page 4-54
Lock release lever................................................................................ page 2-4
Hood release handle......................................................................... page 6-12
‘ Storage pocket.................................................................................. page 5-41
Pictorial Index
Interior Overview
1-4The equipment and installation position varies by vehicle
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

2. Adjust the steering wheel height sothat the gauges can be viewed
easily.
3. Raise the lever to securely lock the steering wheel.
Adjusting the head restraint position
To prevent shock to the head and
neck, adjust the head restraints to their
correct positions.
Refer to Height Adjustment on page
2-15.
▼Driving Position Memory (Power
Seat)*
The desired driving position can be
called up after programming the
position.
The following driving positions can be
programmed.
Driver’s seat position (seat slide,
height adjustment, front edge of seat
bottom, seat recline)
Refer to Adjusting the Driver's Seat
on page 2-4.
Active driving display (display
position, brightness level, display
information)
Refer to Active
Driving Display on
page 4-27.
Outside mirror angle
Refer to Outside Mirrors on page
3-33.
A driving position can be programmed
to the following parts.
Position memory button
Transmitter used for vehicle
NOTE
Lumbar support adjustment cannot
be programmed.
Programming
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in
the P position.
3. Switch the ignition ON.
4. Adjust the following parts to the desired conditions.
Driver's seatActive driving displayOutside mirrors
5. Press the SET button continuously
until a sound is activated.
1. 1 button
2. 2 button
3. SET button
6. Do the following operation within 5 seconds after the sound is activated
to program the driving position.
Programming to a position
memory button
Press the button you want to
program, either 1 or 2 button.
Programming to the transmitter
Press the unlock button on the
transmitter.
A sound is activated when the
operation is completed correctly.
Essential Safety Equipment
Seats
2-10*Some models.
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
If the angle of the outer mirrors only
changes a little, the angle of the
outer mirrors may not have been
programmed correctly.
If the angle of the outer mirrors is
adjusted close to the limits of its
range of motion, the driving position
can be successfully programmed, but
it may fail when calling up the
programmed driving position.
Calling up the programmed driving
position
CAUTION
Do not place fingers or hands around
the bottom of the seat while the seat
memory function is operating. The seat
moves automatically while the seat
memory function is operating and
fingers or hands could get pinched and
injured.
Using the position memory button
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in
the P position.
3. Switch the ignition ON.
4. Press the programming button for the driving position you want to call
up (button 1 or 2).
5. A sound is activated when the adjustment to the programmed
driving position is completed.
NOTE
When adjustment of the driving
position is not necessary, a sound is
not activated.
The driving position adjustment is
canceled in the following cases:
The seat adjustment switch on the
driver's seat is operated.
The angle of the outer mirrors is
adjusted.
The SET button is pressed.Programming button 1 or 2 is
pressed.
The lock button or unlock button
on the transmitter is pressed.
The vehicle starts moving.The active driving display is
adjusted.
(Manual transmission)
The parking brake is released.
(Automatic transmission)
The selector lever is shifted to a
position other than P.
Using the transmitter
1. Unlock the driver's door using one of the following methods.
Touch the sensing area of the
door release touch sensor.
Press the unlock button on the
transmitter.
2. When you open the driver's door within 90 seconds after unlocking
the doors, the adjustment of the
following parts starts.
Driver's seatActive driving display (When the
ignition is switched ON, the
adjusted active driving display is
activated.)
Outside mirrors
A sound is activated when the
adjustment is completed.
NOTE
When adjustment of the driving
position is not necessary, a sound is
not activated.
Essential Safety Equipment
Seats
2-11
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

The driving position adjustment is
canceled in the following cases:
The seat adjustment switch on the
driver's seat is operated.
The angle of the outer mirrors is
adjusted.
The SET button is pressed.Programming button 1 or 2 is
pressed.
The lock button or unlock button
on the transmitter is pressed.
The vehicle starts moving.The active driving display is
adjusted.
(Manual transmission)
The parking brake is released.
(Automatic transmission)
The selector lever is shifted to a
position other than P.
Erasing programmed driving positions
Erasing the driving positions
programmed to the key
1. Switch the ignition OFF.
2. Press the SET button continuously until a sound is activated.
3. Press the lock button on the transmitter within 5 seconds after
the sound is activated.
NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
▼Adjusting the Front Passenger's
Seat
1.
Seat Slide
To move a seat forward or
backward, raise the lever and slide
the seat to the desired position and
release the lever.
Make sure the lever returns to its
original position and the seat is
locked in place by attempting to
push it forward and backward.
2. Seat Recline
To change the seatback angle, lean
forward slightly while raising the
lever. Then lean back to the desired
position and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to
push it forward and backward.

Essential Safety Equipment
Seats
2-12
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

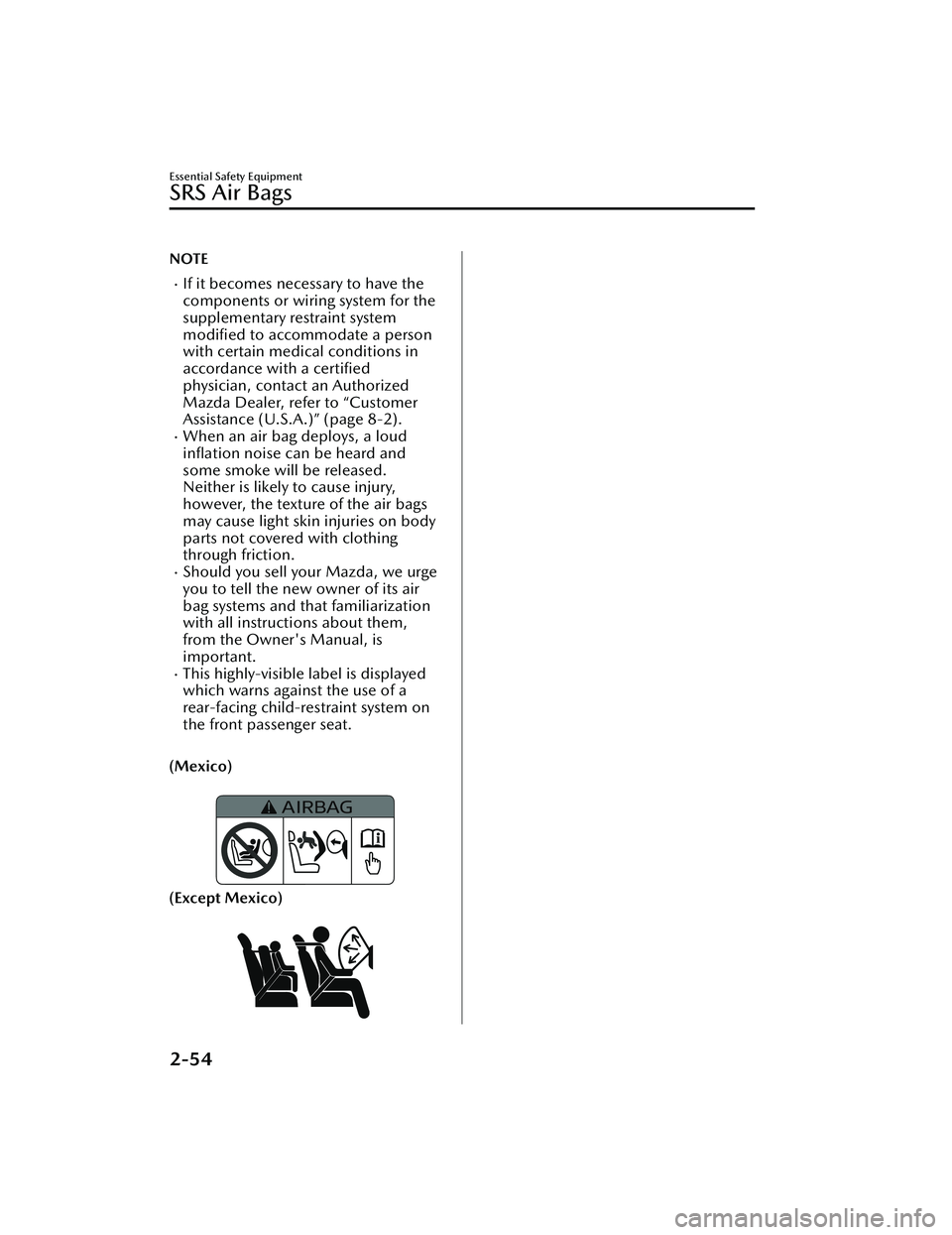

NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint systemmodified to accommodate a person
with certain medical conditions in
accordance with a certified
physician, contact an Authorized
Mazda Dealer, refer to “Customer
Assistance (U.S.A.)” (page 8-2).
When an air bag deploys, a loud inflation noise can be heard and
some smoke will be released.
Neither is likely to cause injury,
however, the texture of the air bags
may cause light skin injuries on body
parts not covered with clothing
through friction.
Should you sell your Mazda, we urge
you to tell the new owner of its air
bag systems and that familiarization
with all instructions about them,
from the Owner's Manual, is
important.
This highly-visible label is displayed
which warns against the use of a
rear-facing child-restraint system on
the front passenger seat.

(Mexico)

(Except Mexico)

Essential Safety Equipment
SRS Air Bags
2-54
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

Keyless Entry System
▼Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors,
liftgate, and fuel-filler lid, and opens/
closes the liftgate.
The system can start the engine
without having to take the key out of
your purse or pocket.
It can also help you signal for attention
or help.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the following warning
lights or beeps.
Check the displayed message for more
information and, if necessary, have the
vehicle inspected at an Authorized
Mazda Dealer, according to the
indication.
KEY Warning Indication/Warning
Light (Red)
Refer to KEY Warning Indication/
Warning Light (Red) on page 7-28.
Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched
Off
(STOP) Warning Beep on page
7-37.
Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-37.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to
make the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
NOTE
The keyless entry system operation
may vary due to local conditions.
The keyless entry system is fully
operational when the ignition is
switched off. The system does not
operate if the ignition is switched to
any position other than off.
If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new
battery, refer to Key Battery
Replacement (page 6-26).
Battery life is about 1 year. Replace
the battery with a new one if the
messages are displayed in the
instrument cluster. Replacing the
battery about once a year is
recommended because the KEY
warning indication may not display
depending on the rate of battery
depletion.
Additional keys can be obtained at
an Authorized Mazda Dealer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorized Mazda Dealer
when additional keys are required.
Before Driving
Keys
3-4
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the
liftgate is not operated for a certain
period of time, the liftgate cannot be
raised.
To o p e n
Press the electric liftgate opener
again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by
pressing the electric liftgate opener,
then close it after waiting at least 1
second.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the liftgate cannot be
unlocked, the liftgate can be opened
by performing the emergency
procedure.
Refer to When Liftgate Cannot be
Opened on page 7-41.
Closing the liftgate
Lower the liftgate slowly using the
liftgate grip recess, then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate
to make sure it is secure.
For the power liftgate operation, refer
to Power Liftgate on page 3-21.
WARNING
Do not drive the vehicle with the
liftgate-ajar warning indication
displayed :
Otherwise, the liftgate may open
unexpectedly and result in an accident.
NOTE
Confirm that the liftgate is securely
closed.
Move the liftgate without pressing the
electric liftgate opener to verify that the
liftgate has not been left ajar.
▼ Power Li ft g ate*
The power liftgate opens/closes
electrically by operating the switches in
the vehicle or the buttons on the
keyless entry system transmitter.
WARNING
Be sure to watch the power liftgate as
it opens or closes, and make sure that
it closes completely:
Opening or closing the power liftgate
while not watching it move is
dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely and,
if left unnoticed, could result in serious
injury or death if an occupant were to
fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating it.
Before Driving
Doors and Locks
*Some models.3-21
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine..................... 4-4 Ignition Switch.......................4-4
Starting the Engine................. 4-5
Turning the Engine Off............ 4-9
Cylinder Deact ivat ion
*..........4-10
Instrument Cluster and
Display.................................. 4-11 Instrument Cluster and
Display................................4-11
Instrument Cluster............... 4-11
Active Driving Display
*......... 4-27
Manual Transmission
Operation.............................. 4-29 Manual Transmission Shift
Pattern................................ 4-29
Automatic Transmission........... 4-31 Automatic Transmission
Controls.............................. 4-31
Shift-Lock System................. 4-32
Transmission Ranges............ 4-33
Manual Shift Mode.............. 4-34
Direct Mode
*.......................4-40
Driving Tips......................... 4-41
Switches and Controls............. 4-42
Lighting Control................... 4-42
Turn and Lane-Change
Signals................................ 4-47
Windshield Wipers and
Washer............................... 4-48
Rear Window Wiper and
Washer............................... 4-52
Rear Window Defogger........ 4-53
Horn................................... 4-54
Hazard Warning Flasher....... 4-55
HomeLink Wireless Control
System
*............................... 4-55
Brake.....................................4-60 Brake System....................... 4-60
AUTOHOLD........................ 4-65
Hill Launch Assist (HLA)........4-69
ABS/TCS/DSC/Off-Road
Traction Assist.........................4-71 Antilock Brake System
(ABS).................................. 4-71
Tra c t i o n C o n t r o l Sy s te m
(TCS).................................. 4-72
Dynamic Stability Control
(DSC)................................. 4-74
Off-Road Traction Assist
*...... 4-75
Drive Selection....................... 4-77 Drive Selection
*................... 4-77
i-ACTIV AWD......................... 4-79 i-ACTIV AWD Operation
*..... 4-79
*Some models.4-1
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

This is for improved exhaust gaspurification and does not indicate
any parts defect.
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
1. Make sure you are carrying the key.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Continue to depress the brake pedal firmly until the engine has
completely started.
5. (Manual transmission)
Continue to depress the clutch
pedal firmly until the engine has
completely started.
(Automatic transmission)
Put the vehicle in park (P). If you
must restart the engine while the
vehicle is moving, shift into neutral
(N).
NOTE
(Manual transmission)
The starter will not operate if the
clutch pedal is not depressed
sufficiently.
(Automatic transmission)
The starter will not operate if the
selector lever is not in P or N
position and the brake pedal is
not depressed sufficiently.
6. Make sure that the push button
start indicator light (green) turns
on.
1. Indicator light
2. Push button start
NOTE
If the push button start indicator
light (green) flashes, make sure
that the key is being carried.
If the push button start indicator
light (green) flashes with the key
being carried, touch the key to
the push button start and start
the engine.
Refer to Engine Start Function
When Key Battery is Dead on
page 4-7.
CAUTION
If the KEY warning indication (red)
is displayed, or the push button
start indicator light (amber) flashes,
this could indicate a problem with
the engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC
or ON.
Refer to KEY Warning Indication/
Warning Light (Red) on page
7-28.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon
as possible.
When Driving
Start/Stop Engine
4-6
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

NOTE
Under the following conditions,
the KEY warning indication (red)
is displayed after the push button
start is pressed. This informs the
driver that the push button start
will not switch to ACC, even if it
is pressed from off (page 7-28).
The key battery is dead.The key is out of operational
range.
The key is placed in areas where
it is difficult for the system to
detect the signal (page 3-7).
A key from another
manufacturer similar to the key
is in the operational range.
(Forced engine starting method)
If the KEY warning indication
(red) is displayed, or the push
button start indicator light
(amber) flashes, this could
indicate that the engine may not
start using the usual starting
method (page 7-28). Have your
vehicle inspected at an
Authorized Mazda Dealer as
soon as possible. If this occurs,
the engine can be force-started.
Press and hold the push button
start until the engine starts. Other
procedures necessary for starting
the engine, such as having the key
in the cabin, and depressing the
clutch pedal (manual
transmission) or the brake pedal
(automatic transmission) are
required.
When the engine is force-started,
the KEY warning indication (red)
remains displayed and the push
button start indicator light
(amber) remains flashing.
(Automatic transmission)
When the selector lever is in the
neutral (N) position, the push
button start indicator light (green)
does not turn on.
7. Press the push button start after the push button start indicator light
(green) turns on.
NOTE
After starting the engine, the push
button start indicator light
(amber) turns off and the ignition
switches to the ON position.
After pressing the push button
start and before the engine starts,
the operation sound of the fuel
pump motor from near the fuel
tank can be heard, however, this
does not indicate a malfunction.
8. After starting the engine, let it idle for about 10 seconds.
NOTE
Whether the engine is cold or
warm, it should be started
without the use of the
accelerator.
If the engine does not start the
first time, refer to Starting a
Flooded Engine under Emergency
Starting. If the engine still does
not start, have your vehicle
inspected by an Authorized
Mazda Dealer (page 7-16).
▼ Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not to
allow the following, otherwise the
signal from the key will not be received
correctly and the engine may not start.
When Driving
Start/Stop Engine
4-7
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11
