CARGO
Cargo Weight includes all weight
added to the Base Curb Weight,
including cargo and optional
equipment.

The cargo weight limit decreases
depending on the number of vehicle
occupants. The cargo weight limit can
be calculated by subtracting the total
weight of the vehicle occupants from
the “combination weight of occupants
and cargo should never exceed” value
on the tire label.

Examples: Based on a single occupant
weight of 68 kg (150 lbs), and a value
of 385 kg (849 lbs) for the
“combination weight of occupants and
cargo should never exceed”:
The cargo weight limit with one
occupant is 385 kg (849 lbs) － 68 kg
(150 lbs) = 317 kg (699 lbs)
The cargo weight limit with two
occupants is 385 kg (849 lbs) － (68 ×
2) kg ( (150 × 2) lbs) = 249 kg (549
lbs)
If the weight of the occupant increases,
the cargo weight limit decreases by
that much.

GAW (Gross Axle Weight) is the total
weight placed on each axle (front and
rear) - including vehicle curb weight
and all payload.

GAWR (Gross Axle Weight Rating) is
the maximum allowable weight that
can be carried by a single axle (front or
rear). These numbers are shown on
the Safety Compliance Certification
Label located on the driver's door
frame or door pillar. The total load on
each axle must never exceed its
GAWR.

GVW
GVW (Gross Vehicle Weight) is the
Vehicle Curb Weight + cargo +
passengers.

GVWR (Gross Vehicle Weight Rating)
is the maximum allowable weight of
the fully loaded vehicle (including all
options, equipment, passengers and
cargo). The GVWR is shown on the
Safety Compliance Certification Label
located on the driver's door frame or
door pillar. The GVW must never
exceed the GVWR.

SAMPLE
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-33
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

WARNING
Never Exceed Axle Weight Rating
Limits:
Exceeding the Safety Certification
Label axle weight rating limits is
dangerous and could result in death or
serious injury as a result of substandard
vehicle handling, pe rformance, engine,
transmission and/or structural
damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle
weight rating limits.

GCW
GCW (Gross Combination Weight) is
the weight of the loaded vehicle
(GVW).

GCWR (Gross Combination Weight
Rating) is the maximum allowable
weight of the vehicle - including all
cargo and passengers - that the vehicle
can handle without risking damage.
The GCW must never exceed the
GCWR.

WARNING
Never Exceed GVWR or GAWR
Specifications:
Exceeding the GVWR or the GAWR
specified on the certification label is
dangerous. Exceeding any vehicle
rating limitation could result in a
serious accident, injury, or damage to
the vehicle.
Do not use replacement tires with
lower load carrying capacities than the
originals because they may lower the
vehicle's GVWR and GAWR
limitations. Replacement tires with a
higher limit than the originals do not
increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR
specified on the certification label.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-34
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

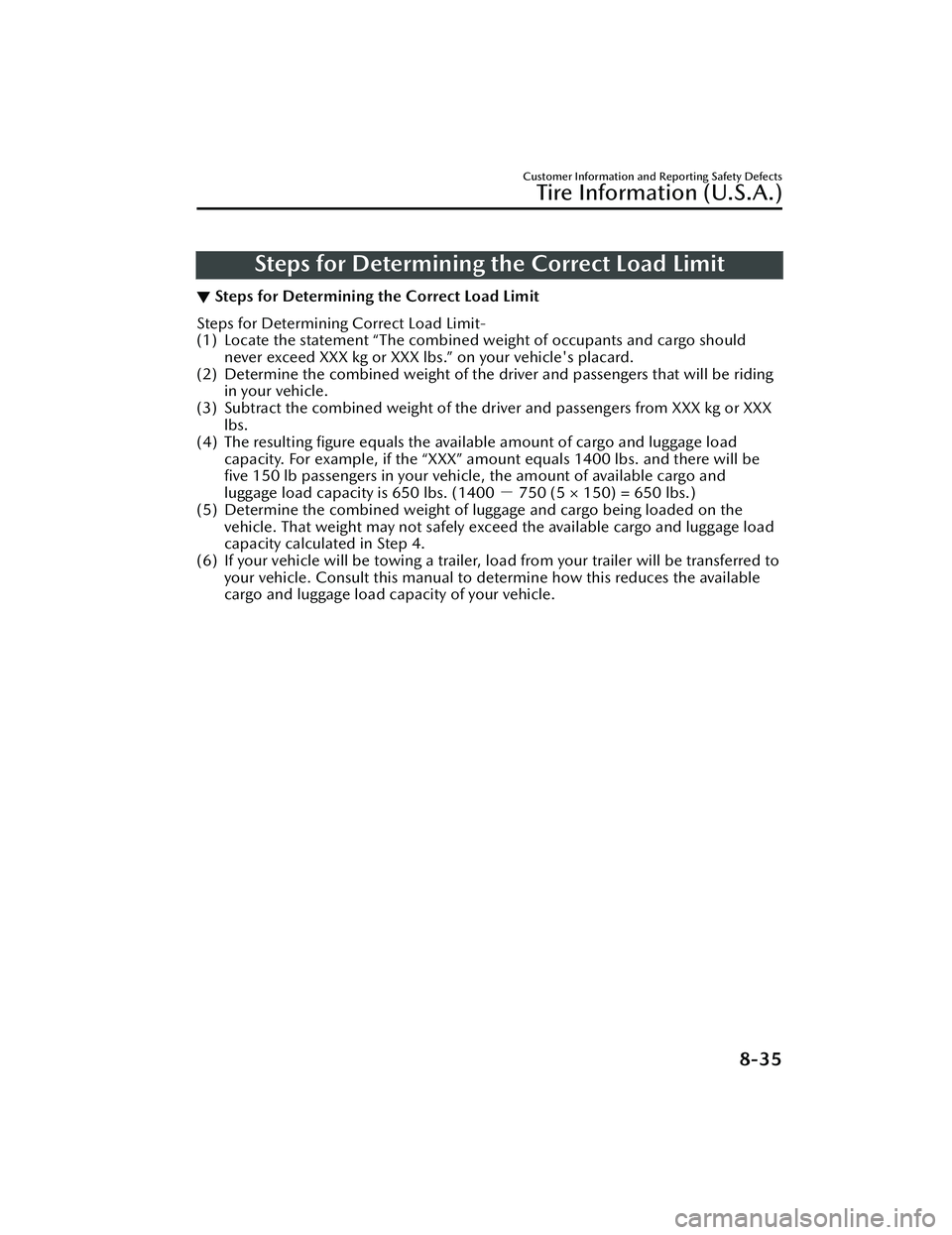

Steps for Determining the Correct Load Limit
▼Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the dr iver and passengers from XXX kg or XXX
lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs. and there will be
five 150 lb passengers in your vehicle, the amount of available cargo and
luggage load capacity is 650 lbs. (1400 － 750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely exceed the available cargo and luggage load
capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to
your vehicle. Consult this manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-35
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Declaration of Conformity
▼Keyless Entry System/Immobilizer System
▼Tire Pressure Monitoring System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-36
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

▼HomeLink Wireless Control System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-37
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

▼Radio System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-38
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

▼Audio System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-39
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

▼Data Communication System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-40
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

▼Front Radar Sensor System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-41
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

▼Front Side Radar Sensor System/Rear Side Radar Sensor System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-42
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
