MAZDA MODEL CX-5 2014 Owners Manual (in English)

Black plate (511,1)

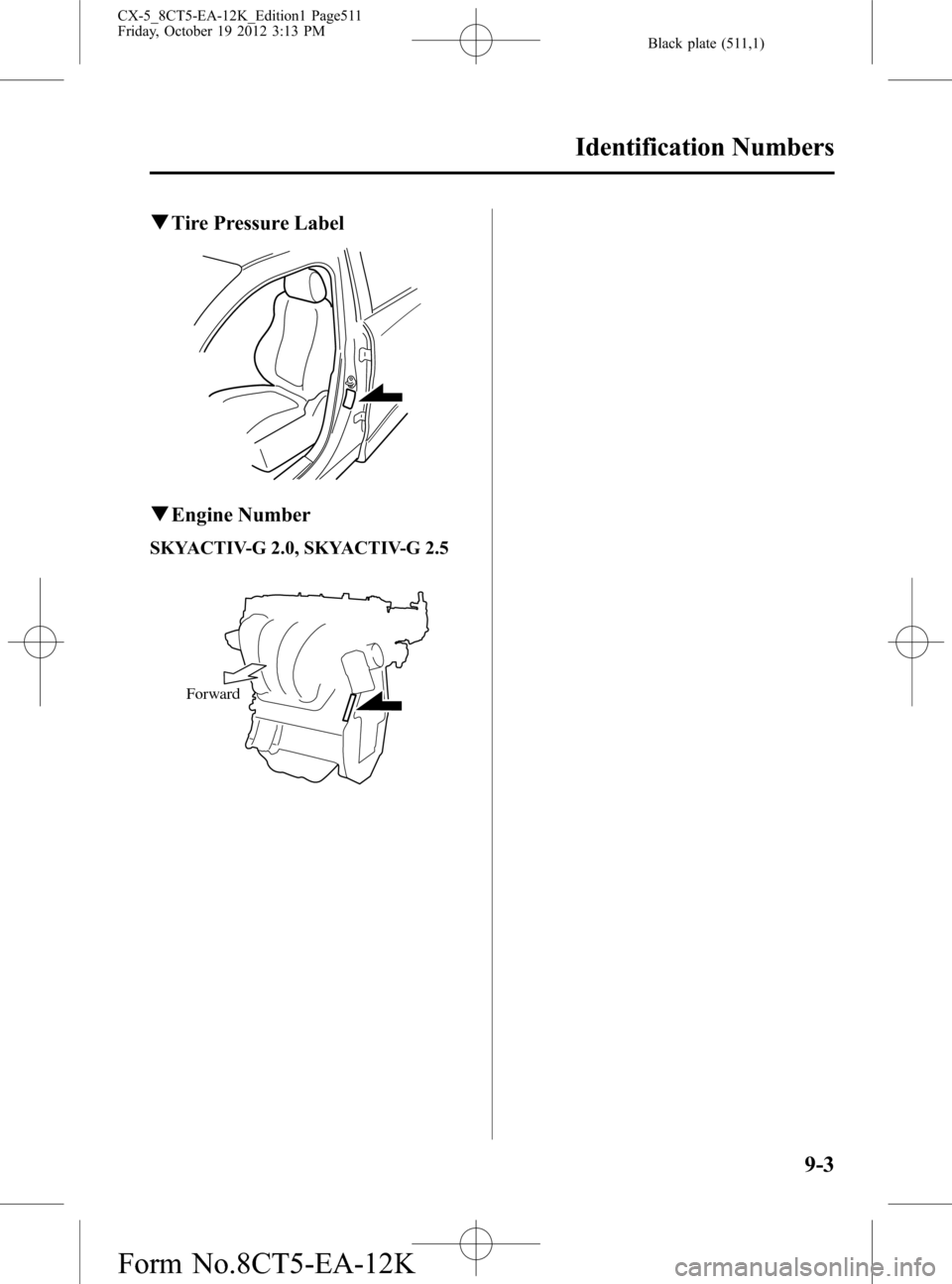

qTire Pressure Label
qEngine Number
SKYACTIV-G 2.0, SKYACTIV-G 2.5
Forward
Identification Numbers
9-3
CX-5_8CT5-EA-12K_Edition1 Page511
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (512,1)
Specifications
qEngine
ItemSpecification
SKYACTIV-G 2.0 SKYACTIV-G 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 1,998 ml (1,998 cc, 121.9 cu in) 2,488 ml (2,488 cc, 151.8 cu in)
Compression ratio 13.0 13.0
qElectrical System
Item Classification
Battery 12V-60Ah/20HR, 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE01-18-110, PE02-18-110, PE5R-18-110, or
PE5S-18-110
*1 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda
Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 6-21.
Manual transaxle oilAPI Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF FZ
Transfer case oilAPI Service GL-5
SAE 80W-90
Rear differential oilAPI Service GL-5
SAE 80W-90
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
9-4
Specifications
CX-5_8CT5-EA-12K_Edition1 Page512
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (513,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil
SKYACTIV-G 2.0With oil filter replacement 4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G 2.5With oil filter replacement 4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
CoolantU.S.A. and
Canada
SKYACTIV-G 2.0
Manual transaxle 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic
transaxle7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5 7.8 L (8.2 US qt, 6.9 Imp qt)
Mexico
SKYACTIV-G 2.0
Manual transaxle 7.5 L (7.9 US qt, 6.6 Imp qt)
Automatic
transaxle7.8 L (8.2 US qt, 6.9 Imp qt)
SKYACTIV-G 2.5 7.9 L (8.3 US qt, 7.0 Imp qt)
Manual transaxle oil 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Fuel tank2WD 56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall length 4,540 mm (178.7 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,710 mm (67.3 in)
Front tread 1,585 mm (62.4 in)
Rear tread 1,590 mm (62.6 in)
Wheelbase 2,700 mm (106.3 in)
Specifications
9-5
CX-5_8CT5-EA-12K_Edition1 Page513
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (514,1)
qWeights
U.S.A. and Canada
SKYACTIV-G 2.0
(2WD)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,927 kg (4,248 lbs) 1,962 kg (4,325 lbs)
GAWR (Gross Axle Weight Rating)Front 964 kg (2,125 lbs) 1,001 kg (2,207 lbs)
Rear 966 kg (2,130 lbs) 964 kg (2,125 lbs)
(AWD)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,030 kg (4,475 lbs)
GAWR (Gross Axle Weight Rating)Front 1,018 kg (2,244 lbs)
Rear 1,015 kg (2,238 lbs)
SKYACTIV-G 2.5
(2WD)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,987 kg (4,381 lbs)
GAWR (Gross Axle Weight Rating)Front 1,027 kg (2,264 lbs)
Rear 963 kg (2,123 lbs)
(AWD)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,058 kg (4,537 lbs)
GAWR (Gross Axle Weight Rating)Front 1,048 kg (2,310 lbs)
Rear 1,013 kg (2,233 lbs)
Mexico
SKYACTIV-G 2.0
(2WD)
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight)Total 1,938 kg (4,273 lbs) 1,978 kg (4,361 lbs)
Front 956 kg (2,108 lbs) 991 kg (2,185 lbs)
Rear 982 kg (2,165 lbs) 987 kg (2,176 lbs)
GAW (Permissible axle load)Front 979 kg (2,158 lbs) 1,011 kg (2,229 lbs)
Rear 1,061 kg (2,339 lbs) 1,065 kg (2,348 lbs)
9-6
Specifications
CX-5_8CT5-EA-12K_Edition1 Page514
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (515,1)
(AWD)
Item Weight
GVW (Gross Vehicle Weight)Total 2,038 kg (4,493 lbs)
Front 1,007 kg (2,220 lbs)
Rear 1,031 kg (2,273 lbs)
GAW (Permissible axle load)Front 1,030 kg (2,271 lbs)
Rear 1,109 kg (2,445 lbs)
SKYACTIV-G 2.5
(2WD)
Item Weight
GVW (Gross Vehicle Weight)Total 2,000 kg (4,409 lbs)
Front 1,017 kg (2,242 lbs)
Rear 983 kg (2,167 lbs)
GAW (Permissible axle load)Front 1,037 kg (2,286 lbs)
Rear 1,062 kg (2,341 lbs)
(AWD)
Item Weight
GVW (Gross Vehicle Weight)Total 2,066 kg (4,555 lbs)
Front 1,037 kg (2,286 lbs)
Rear 1,029 kg (2,269 lbs)
GAW (Permissible axle load)Front 1,058 kg (2,332 lbs)
Rear 1,108 kg (2,443 lbs)
qAir Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine compartment. Check the
label before recharging the refrigerant. Refer to Climate Control System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
9-7
CX-5_8CT5-EA-12K_Edition1 Page515
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (516,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
With halogen bulb headlights
HeadlightsLow beam 55 H11 (H11)
High beam
60 HB3 (HB3)
Daytime running lights
With xenon fusion bulb headlights
Headlights High/Low beam 35 D4S (D4S)
Daytime running lights 13 P13W (―)
Front turn signal lights/
Parking lights (Front side-marker lights)27/8―(#1157NA)
Fog lights
í55 H11 (H11)
Side turn signal lights LED*1―(―)
High-mount brake light LED*1―(―)
Rear turn signal lights 21 WY21W (22.3CP)
Brake lights/Taillights 21/5 W21/5W (#7443)
Rear side-marker lights 5 W5W (4CP)
Taillights (Liftgate side) 5 W5W (4CP)
Reverse light 18 W16W (#921)
License plate lights 5 W5W (―)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Overhead light (Front)/Map lights 8―
Rear map light 8―
Luggage compartment light 5―
Vanity mirror lights
í2―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
9-8íSome models.
Specifications
CX-5_8CT5-EA-12K_Edition1 Page516
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (517,1)
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 6-36.
After adjusting the tire pressure, initialization of the tire pressure monitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-94.
Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
P225/65R17 100H 230 kPa (34 psi) 230 kPa (34 psi)
P225/55R19 99V 250 kPa (36 psi) 250 kPa (36 psi)
(Mexico)
Tire sizeInflation pressure
Up to 3 persons―Full load
225/65R17 102VFront 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear 230 kPa (2.3 bar, 33 psi) 280 kPa (2.8 bar, 41 psi)
225/55R19 99VFront 250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Temporary spare tire
(U.S.A. and Canada)
Tire size Inflation pressure
T145/90D16 98M 420 kPa (60 psi)
(Mexico)
Tire size Inflation pressure
185/80R17 95M 250 kPa (2.5 bar, 36 psi)
qFuses
Refer to Fuses on page 6-49.
Specifications
9-9
CX-5_8CT5-EA-12K_Edition1 Page517
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (518,1)
Personalization Features
For vehicles with type A instrument cluster, the following function settings can be changed by the customer.
For vehicles with type B instrument cluster, the following function settings can be changed at an Authorized
Mazda Dealer. Consult an Authorized Mazda Dealer for details.
To determine which type of instrument cluster is equipped on your Mazda, Refer to Meters and Gauges on page
4-10.
Items in which the function setting can be changed differ depending on the market and specification.
Item Feature Factory Setting Available Settings
Turn indicatorThe turn indicator beep volume level can be
changedHigh Low
Lights-on reminderThe volume of the lights-on reminder warning
alarm can be changedHigh Low/Off
Blind Spot
Monitoring (BSM)
systemThe volume of the BSM warning beep can be
changedHigh Low/Off
Meter displayThe distance unit can be changed miles or km km or miles
The display language can be changedEnglish, French,
or Spanish
English/French/Spanish
The temperature unit can be changed °F or °C °C or °F
Smart City Brake
Support (SCBS)The system can be changed so that Smart City
Brake Support (SCBS) does not operate.ON OFF
For the function setting procedure, Refer to Trip Computer and INFO Switch on page 4-18.
9-10
Personalization Features
CX-5_8CT5-EA-12K_Edition1 Page518
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (519,1)
For vehicles with audio (On-screen function type), the following function settings can be changed by the customer.
For vehicles without audio (On-screen function type), the following function settings can be changed at an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Items in which the function setting can be changed differ depending on the market and specification.
Item Feature Factory Setting Available Settings
Power door lock
*1Changes the auto lock/unlock function setting
for all the doors according to the vehicle speed,
the vehicle power supply condition, and the
selector lever positionLock: Driving,
Unlock: IGN OffOff/Lock When
Driving/Lock: Shift
From P, Unlock: In
P/Lock When Shifting
Out Of P
Keyless entry systemThe method for unlocking the doors using the
transmitter can be changed
*3Once: Driver's,
Twice: All DoorsTouch Once: All Doors
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed60 seconds 30 seconds/90 seconds
Advanced keyless
entry systemThe volume of the answer-back beep during
advanced keyless entry system operation can be
changed
*3Medium Off/Low/High
The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be changedOff On
The method for unlocking the doors using the
request switch can be changed
*3Once: Driver's,
Twice: All DoorsTouch Once: All Doors
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed60 seconds 30 seconds/90 seconds
Illumination entryThe time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar)30 minutes 60 minutes/10 minutes
The time required for the interior lamp to turn
off automatically after all doors are closed can
be changed15 seconds7.5 seconds/30
seconds/60 seconds
Lane-change signal
(Smart turn)The smart turn function can be changed Off On
Auto-wiper control The auto-wiper control function can be changedOn
(Rain Sensing)Off (Intermittent)
Personalization Features
9-11
CX-5_8CT5-EA-12K_Edition1 Page519
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (520,1)
Item Feature Factory Setting Available Settings
Auto headlight off
*2The time required for headlights to turn off
after ignition is switched off can be changed30 seconds0 seconds/60
seconds/90
seconds/120 seconds
Auto-light controlThe headlight illumination on/off timing based
on surrounding lightness/darkness can be
changedMediumLight/Medium
Light/Medium
Dark/Dark
For the function setting procedure, Refer to Setup on page 5-55.
*1 Setting changes using the door-lock switch can also be done. Refer to Auto Lock/Unlock Function on page
3-14.
*2 If the setting is changed to 0 seconds, the following operation is performed according to the headlight switch
position:
lAtposition: Headlights turn off immediately after the ignition is switched off.lAt any position other than: Headlights do not turn off after the ignition is switched off.
*3 Settings can be changed using the transmitter button. For the changing procedure, Refer to Locking, Unlocking
with Request Switch (With the advanced keyless function) on page 3-11.
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Daytime running
lightsThe function of the daytime running lights can
be changedOn Off
9-12
Personalization Features
CX-5_8CT5-EA-12K_Edition1 Page520
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K
