fold seats MAZDA MODEL CX-5 2014 Smart Start Guide (in English)

6
FRONT S EAT WARMER
The driver and front passenger seats can be warmed by pushing the
applicable seat warmer button while the ignition is ON.
Seat temperature increases with the number of illuminated indicator lights
(0-OFF, 1-Low, 2-Mid, 3-High).
www.MazdaUSA.comSeats
Seatback Knob
FOLDING SECOND-ROW SEATS
1 Support the seatback with your hand.
2
Push the rear seatback knob down (red indicator is visible when seat
is in the unlocked position).
3 Bring the seatback forward. Low
High
Seats

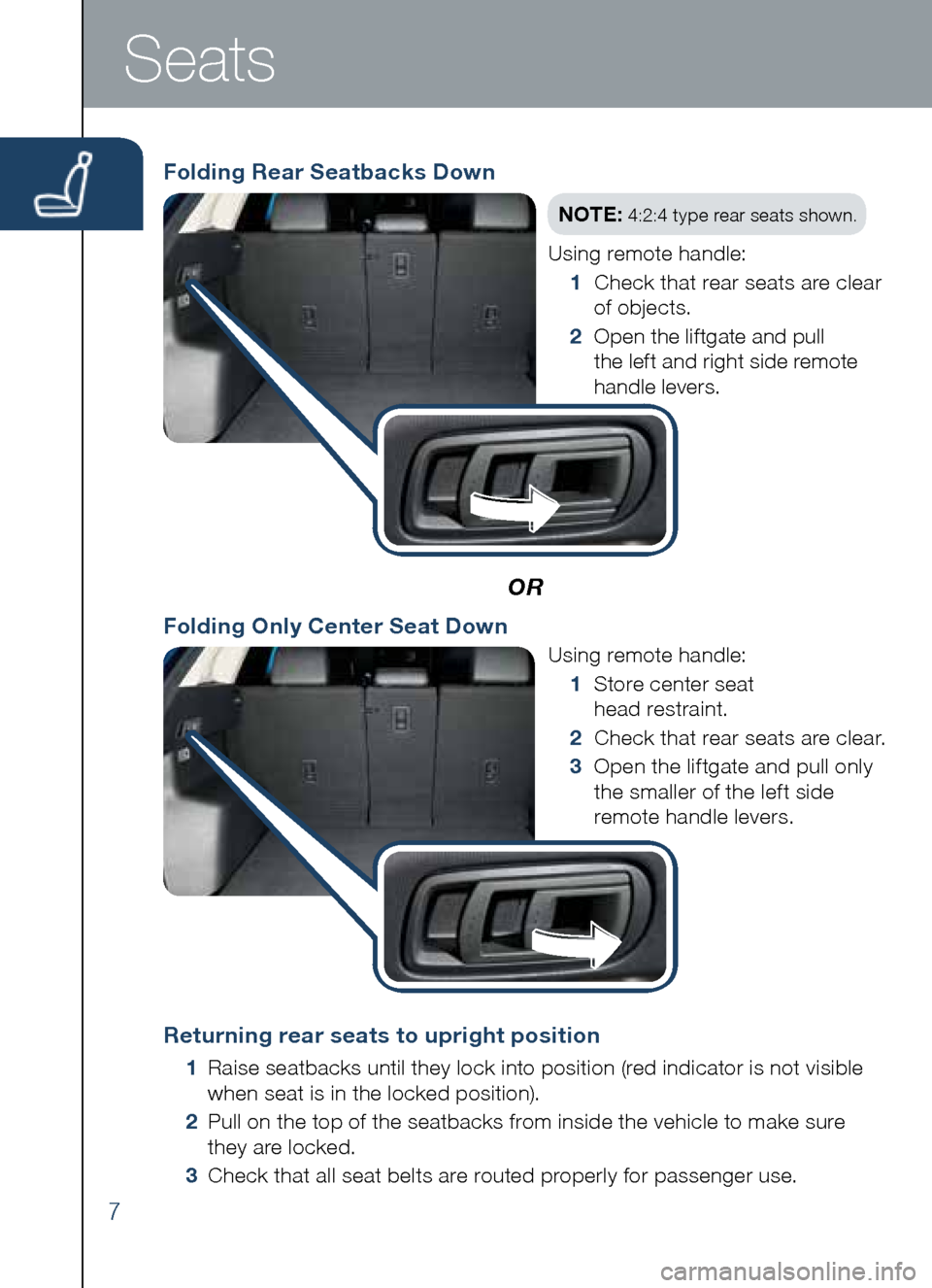

Folding Rear Seatbacks Down
OR
Returning rear seats to upright position
1 Raise seatbacks until they lock into position (red indicator is not visible
when seat is in the locked position).
2 Pull on the top of the seatbacks from inside the vehicle to make sure
they are locked.
3 Check that all seat belts are routed properly for passenger use.
Folding Only Center Seat Down
NOTE: 4:2:4 type rear seats shown.
Using remote handle:
1 Check that rear seats are clear
of objects.
2 Open the liftgate and pull
the left and right side remote
handle levers.
Using remote handle:
1 Store center seat
head restraint.
2 Check that rear seats are clear.
3 Open the liftgate and pull only
the smaller of the left side
remote handle levers.
7
Seats
