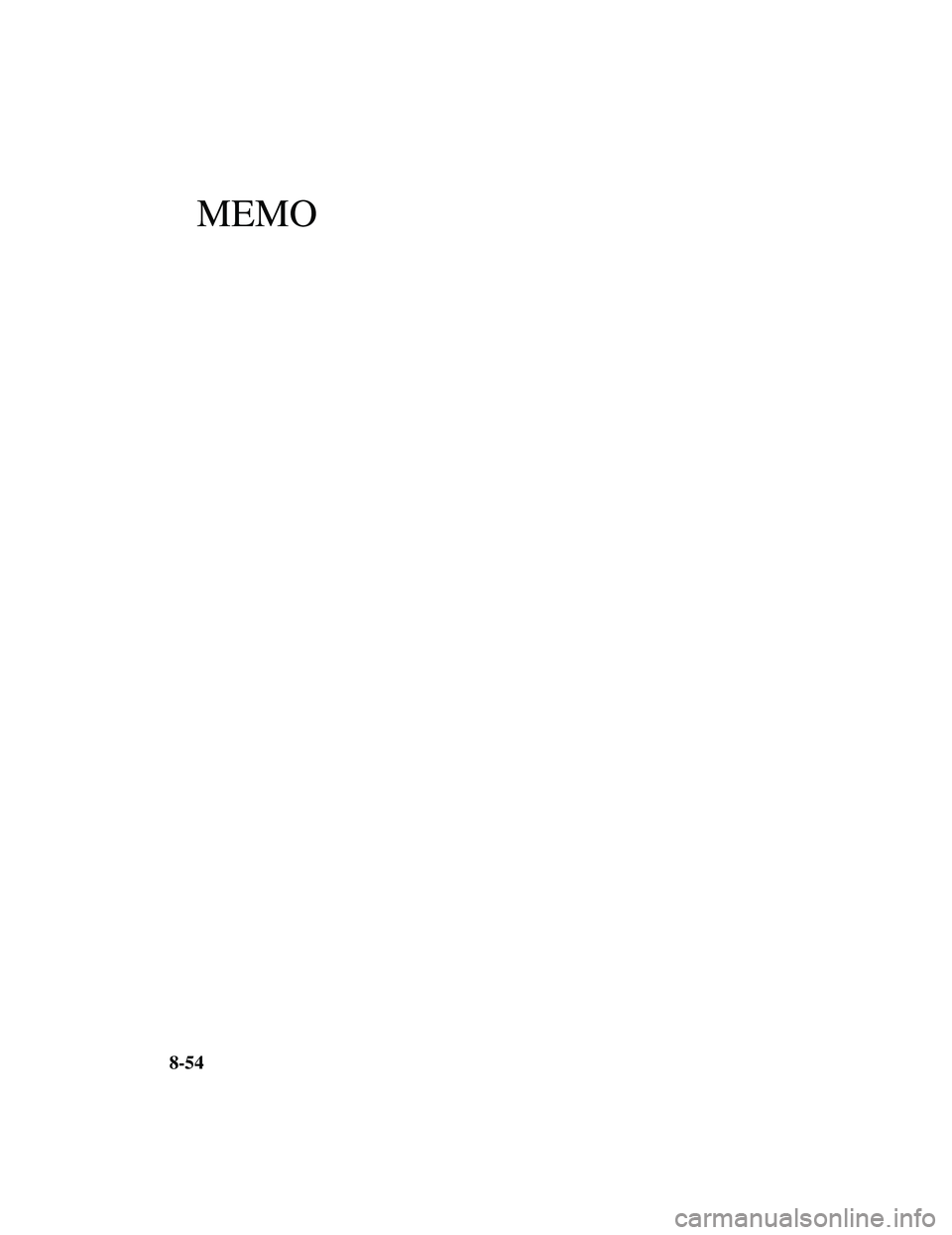

MEMO
8-54
CX-5_8JM9-EA-20G_Edition6_old2021-12-9 11:43:53

9Specifications
Technical information about your Mazda.
Identification Numbers..................... 9-2 Vehicle Information Labels.......... 9-2
Specifications..................................... 9-4Specifications............................... 9-4
9-1
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

▼Engine Number
SKYACTIV-G 2.5, SKYACTIV-G 2.5T

Forward
SKYACTIV-D 2.2

Forward
Specifications
Identification Numbers
9-3
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

Specifications
▼Engine
Gasoline engine
Item Specification
SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.010.5
Diesel engine
Item Specification
SKYACTIV-D 2.2
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 86.0

CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-22.
Coolant FL-22 type
Automatic transaxle fluid Mazda Genuine ATF-FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
▼Capacities
(Approximate Quantities)
Specifications
Specifications
9-5
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

ItemCapacity
Fuel tank FWD
56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,550 mm (179.1 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,675 mm (65.9 in)
Front tread 17 inch styled steel wheel
vehicle
1,586 mm (62.4 in)
17 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
19 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
Rear tread 17 inch styled steel wheel
vehicle
1,586 mm (62.4 in)
17 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
19 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
Wheelbase 2,698 mm (106.2 in)
▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.5
Item Weight
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,060 kg (4,541 lbs)/
2,075 kg (4,575 lbs) 2,143 kg (4,724 lbs)
GAWR (Gross Axle Weight
Rating) Front
1,060 kg (2,337 lbs)/
1,075 kg (2,370 lbs) 1,100 kg (2,425 lbs)
Rear 1,000 kg (2,205 lbs) 1,043 kg (2,299 lbs)
Item Weight
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,140 kg (4,718 lbs) 2,180 kg (4,806 lbs)
9-6
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

ItemWe i g h t
FWD AWD
GAWR (Gross Axle Weight
Rating) Front
1,120 kg (2,469 lbs) 1,140 kg (2,513 lbs)
Rear 1,020 kg (2,249 lbs) 1,040 kg (2,293 lbs)
SKYACTIV-D 2.2
Item We i g h t
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,175 kg (4,795 lbs) 2,240 kg (4,938 lbs)
GAWR (Gross Axle Weight
Rating) Front
1,150 kg (2,535 lbs) 1,170 kg (2,579 lbs)
Rear 1,025 kg (2,260 lbs) 1,070 kg (2,359 lbs)
Mexico
SKYACTIV-G 2.5
Item We i g h t
Without moonroof With moonroof
GVW (Gross Vehicle Weight) Total
2,060 kg (4,542 lbs) 2,110 kg (4,652 lbs)
Front 1,035 kg (2,282 lbs) 1,045 kg (2,304 lbs)
Rear 1,025 kg (2,260 lbs) 1,065 kg (2,348 lbs)
GAW (Permissible axle load) Front
1,055 kg (2,326 lbs) 1,065 kg (2,348 lbs)
Rear 1,105 kg (2,436 lbs) 1,145 kg (2,524 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) Total
2,115 kg (4,663 lbs)
Front 1,100 kg (2,425 lbs)
Rear 1,015 kg (2,238 lbs)
GAW (Permissible axle load) Front
1,125 kg (2,480 lbs)
Rear 1,090 kg (2,403 lbs)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UN-R*1(SAE)
Headlights/Daytime running lights LED― (― )
Parking lights LED typeLED― (― )
Front turn signal lights/Parking lights
*28/8 ― (#7444NA)
*Some models.9-7
