turn signal MAZDA MODEL CX-5 2021 Owners Manual

Interior Equipment (View A)
ƒLighting control.....................................................................................................page 4-74
„ Turn and lane-change signal..................................................................................page 4-81
… Audio control switches.......................... ...................................................... page 5-19, 5-38
† INFO switch........................................................ ............................... page 4-14, 4-32, 4-49
‡ Mazda Radar Cruise Control (MRCC) switches................................................ page 4-152
ˆ Cruise control switches................................. ...................................................... page 4-251
‰ Wiper and washer lever.............................. ........................................................... page 4-82
Š Off-Road Traction Assist switch......................................................................... page 4-113
‹ TCS OFF Switch................................................................................................. page 4-110
ΠLane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF
switch.................................................................................................................. page 4- 169
Parking sensor switch.................................... ..................................................... page 4-283
Ž 360° View Monitor switch..................................................................................page 4-191
Power liftgate switch............................................................................................. page 3-22
Headlight leveling switch........................ ..............................................................page 4-79
‘ Outside mirror switch............................................................................................page 3-35
’ Door-lock switch................................................................................................... page 3-16
“ Power window switches................................. ....................................................... page 3-40
” Power window lock switch...................... ............................................................. page 3-40
• Door-lock knob..................................................................................................... page 3-18
Pictorial Index
Interior Overview
1-2The equipment and installation position varies by vehicle
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

NOTE
The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized Mazda
Dealer, will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
the Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼ Operation
NOTE
The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key to
a location within the signal range,
switch the ignition off, and then restart
the engine.
Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after 3
or more tries, contact an Authorized
Mazda Dealer.
NOTE
If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorized Mazda Dealer, and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorized Mazda
Dealer, so that they can be programmed.
Before Driving
Security System
3-47
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Leave enough slack to allow full turns. Consult literature published by your trailer or hitch
manufacturer for more details.
WA R N I N G
Make sure the safety chain is securely attached to both the trailer and the vehicle prior to
departure:
Towing a trailer without using a safety chain securely attached to both the trailer and the
vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the trailer could
wander into another lane and cause a collision.
▼ Trailer Lights
Trailer lights must comply with all federal, st
ate, and local regulations. Equip your trailer as
required before towing it day or night.
CAUTION
Do not connect a trailer lighting system directl y to the lighting system of your Mazda. This
may damage your vehicle's electrical system an d lighting systems. Have a recreational vehicle
dealer or trailer rental agency connect the system, and inspect the brake lights and turn
signals yourself before each trip.
▼ Trailer Brakes
If the total trailer weight exceeds 450 kg (1,000
lb), trailer brakes are required. If your trailer
has brakes, make sure they comply with all federal, state, and local regulations.
WA R N I N G
Do not connect a hydraulic trailer-brake system to your vehicle's brake system:
Connecting a hydraulic trailer-brake system direc tly to the vehicle brake system is dangerous
and will result in inadequate braking and possible injury.
▼ Trailer Towing Tips
Verify that your Mazda maintains a near-normal attitude when a loaded or unloaded trailer
is connected. Do not drive if it has an abnor
mal front-up or front-down position. Inspect
for incorrect tongue load, worn suspension parts, and trailer overloading.
Make sure the trailer is properly loaded and th e cargo is secure to prevent it from shifting.
Make sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
Before Driving
To w i n g
3-62
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off...............4-10
Instrument Cluster and Display ............
........................................................... 4-12 Instrument Cluster and
Display........................................4-12
Instrument Cluster (Type A)....... 4-13
Instrument Cluster (Type B)....... 4-31
Instrument Cluster (Type C)....... 4-48
Active Driving Display
*............. 4-60
Automatic Transaxle....................... 4-63 Automatic Transaxle
Controls...................................... 4-63
Shift-Lock System...................... 4-64
Transaxle Ranges........................4-64
Manual Shift Mode..................... 4-66
Direct Mode
*.............................. 4-72
Driving Tips................................4-73
Switches and Controls..................... 4-74 Lighting Control......................... 4-74
Fog Lights
*................................. 4-81
Turn and Lane-Change
Signals........................................ 4-81
Windshield Wipers and
Washer........................................ 4-82
Rear Window Wiper and
Washer........................................ 4-86
Rear Window Defogg er.............. 4-86
Horn............................................ 4-89
Hazard Warning Flasher............. 4-89
HomeLink Wireless Control System
(Type A)
*.................................... 4-90
HomeLink Wireless Control System
(Type B)
*.................................... 4-93
Brake................................................ 4-98 Brake System.............................. 4-98
AUTOHOLD............................ 4-102
Hill Launch Assist (HLA)........ 4-106
ABS/TCS/DSC/Off-Road Traction
Assist............................................... 4-108 Antilock Brake System
(ABS)........................................4-108
Traction Control System
(TCS)........................................ 4-109
Dynamic Stability Control
(DSC)........................................ 4-111
Off-Road Traction Assist
*........ 4-112
Drive Selection............................... 4-114 Drive Selection
*........................4-114
i-ACTIV AWD............................... 4-116 i-ACTIV AWD Operation
*....... 4-116
Power Steering............................... 4-118 Power Steering..........................4-118
i-ACTIVSENSE............................. 4-119 i-ACTIVSENSE
*...................... 4-119
*Some models.4-1
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

After pressing the push button start
and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not
indicate a malfunction.
(SKYACTIV-D 2.2)
The starter does not rotate until
the glow indicator light turns off.
If the ignition is left switched ON
for a long period of time without
the engine running after the glow
plugs are warmed up, the glow
plugs may warm up again which
will illuminate the glow indicator
light.
When starting the engine, do not
release the brake pedal until the
glow indicator light in the
instrument cluster turns off and
the engine starts, after pressing
the push button start.
If the brake pedal is released
before the engine starts, depress
the brake pedal again and press
the push button start to start the
engine.
8. After starting the engine, let it idle for about 10 seconds.
NOTE
(SKYACTIV-G 2.5, SKYACTIV-G
2.5T)
Whether the engine is cold or
warm, it should be started without
the use of the accelerator.
If the engine does not start the first
time, refer to Starting a Flooded
Engine under Emergency Starting.
If the engine still does not start,
have your vehicle inspected by an
Authorized Mazda Dealer (page
7-16).
(SKYACTIV-D 2.2)
If the ambient temperature is lower
than about
－ 10 °C (14 °F), the
maximum engine speed may not be
attained for about 3 minutes after
the engine starts to protect the
engine.
▼ Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding the
transmitter over the push button start due
to a dead key battery or a malfunctioning
key, be careful not to allow the following,
otherwise the signal from the key will not
be received correctly and the engine may
not start.

Metal parts of other keys or metal objects
touch the key.
When Driving
Start/Stop Engine
4-8
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

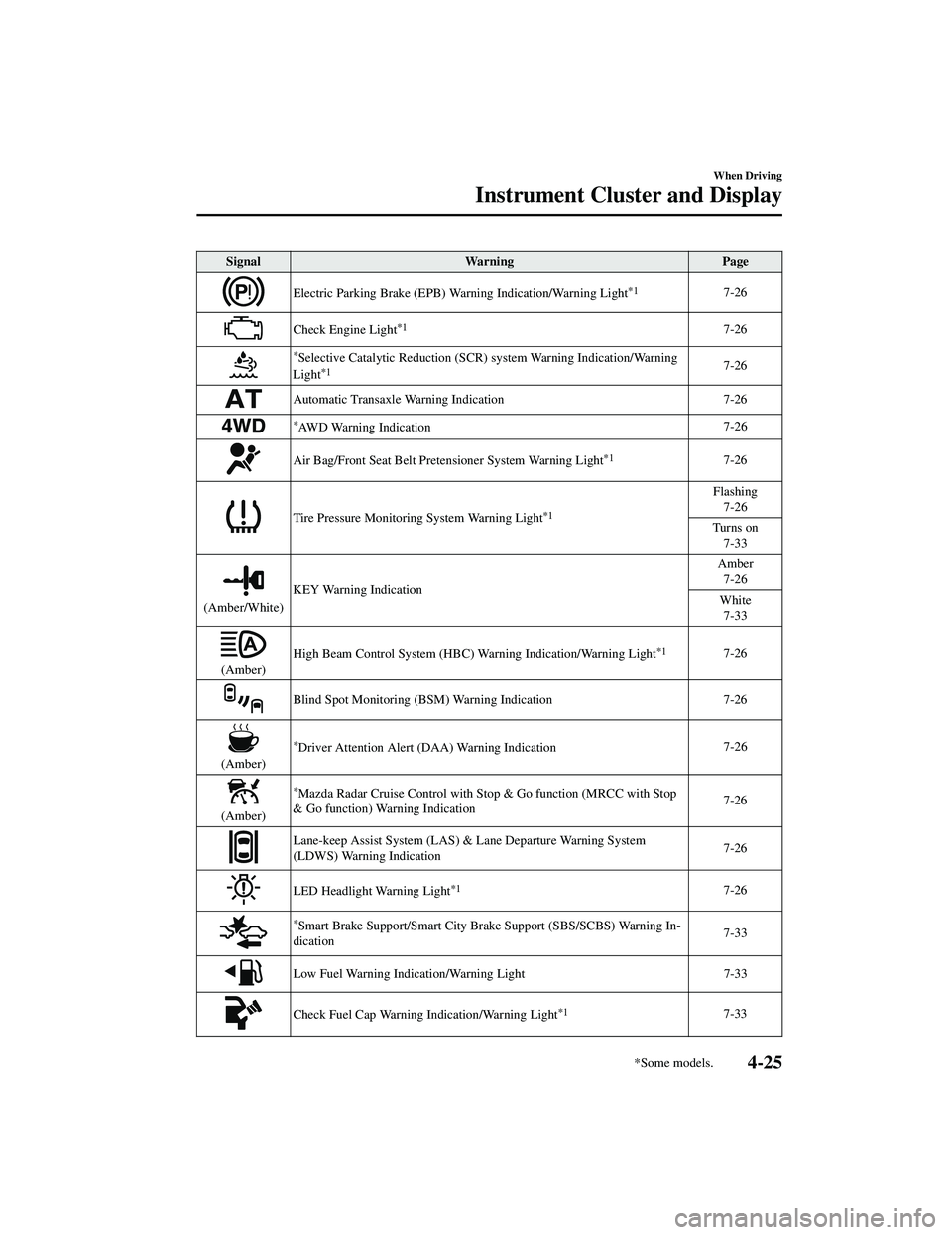

▼Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Center of Dashboard
Warning lights will appear in any of the highlighted areas
Instrument Cluster
▼
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal
Warning Page
Brake System Warning Indication/Warning Light*1*27-23
ABS Warning Light*1
Electronic Brake
Force Distribu ‐
tion System Wa r n i n g 7-23
ABS warning 7-26
Charging System Warning Indication/Warning Light*17-23
Engine Oil Warning Light*17-23
High Engine Coolant Temperature Warning Indication 7-23
Power Steering Malfunction Indication 7-23
Master Warning Indication/Warning Light 7-26
When Driving
Instrument Cluster and Display
4-24
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning Page
Electric Parking Brake (EPB) Warning Indication/Warning Light*17-26
Check Engine Light*17-26
*Selective Catalytic Reduction (SCR) system Warning Indication/Warning
Light*17-26
Automatic Transaxle Warning Indication 7-26
*AWD Warning Indication7-26
Air Bag/Front Seat Belt Preten
sioner System Warning Light*17-26
Tire Pressure Monitoring System Warning Light*1
Flashing
7-26
Turns on 7-33
(Amber/White) KEY Warning Indication Amber
7-26
White 7-33
(Amber) High Beam Control System (HBC) Warning Indication/Warning Light
*17-26
Blind Spot Monitoring (B
SM) Warning Indication 7-26
(Amber)
*Driver Attention Alert (DAA) Warning Indication 7-26
(Amber)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) Warning Indication 7-26
Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Warning Indication
7-26
LED Headlight Warning Light*17-26
*Smart Brake Support/Smart City Br
ake Support (SBS/SCBS) Warning In ‐
dication 7-33
Low Fuel Warning Indication/Warning Light
7-33
Check Fuel Cap Warning Indication/Warning Light*17-33
When Driving
Instrument Cluster and Display
*Some models.4-25
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning Page
Engine Oil Level Warning Light*17-33
Seat Belt Warning Light (Front seat) 7-33
(Red)Seat Belt Warning Light (Rear seat) 7-33
*Low Washer Fluid Level Warning Indication
7-33
Door-Ajar Warning Indication
7-33
Liftgate-Ajar Warning Indication 7-33
Door-Ajar Warning Light7-33
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼ Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal
Indicator Page
(Green)Seat Belt Indicator Light (Rear seat) 2-30
*Front Passenger Air Bag Deactivation Indicator Light*12-71
Security Indicator Light*13-47
Wrench Indication
4-29
*Glow Indicator Light*14-29
*Diesel Particulate Filter Indication4-260
When Driving
Instrument Cluster and Display
4-26*Some models.
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

SignalIndicator Page
Shift Position Indication 4-65
Lights-On Indication/Indicator Light 4-74
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-78
Flashing the Headlights 4-78
Turn Signal/Hazard Warning Indicator Lights Turn and
Lane-Change Signals4-81
Hazard Warning Flasher4-89
AUTOHOLD Active Indicator Light*14-104
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop &
Go function) indicator Light 4-158
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-109
Dynamic Stabil ‐
ity Control (DSC)4-111
Turns on 7-26
*TCS OFF Indicator Light*14-109
*Off-Road Traction Assist Indicator Light*14-112
Select Mode Indication 4-115
(Green)High Beam Control System
(HBC) Indicator Light 4-124
When Driving
Instrument Cluster and Display
*Some models.4-27
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalIndicator Page
(White)
*Cruise Main Indication 4-252
(Green)
*Cruise Set Indication4-252
*1 The light turns on when the ignition is switched on for an operatio
n check, and turns off
a few seconds later or when the engine is star ted. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
▼ Wrench Indication
The wrench indication is displayed under
the following conditions.
When the preset maintenance period has
arrived.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) section in the Mazda
Connect Owner's Manual.
When the engine oil replacement period
has arrived.
(SKYACTIV-D 2.2)
When the engine oil is deteriorated or
exceeds the specified amount.
When fuel filter (sedimentor) draining
is required. Consult an Authorized
Mazda Dealer.
NOTE
The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) section in the Mazda
Connect Owner's Manual.

▼ Glow Indicator Light
(SKYACTIV-D 2.2)
When the ignition is
switched ON, the
glow indicator light turns on. The glow
indicator light turns off when preheating is
finished.

The maintenance period for the glow plug
or a problem in the system may be
indicated under the following conditions.
Have your vehicle inspected by an
Authorized Mazda Dealer.
The glow indicator light does not turn
on when the ignition is switched ON or
it remains on.
The glow indicator light is flashing.
When Driving
Instrument Cluster and Display
*Some models.4-29
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53
