jump start MAZDA MODEL CX-5 2022 Owners Manual

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-6
Battery Runs Out............................ 7-13 Jump-Starting............................. 7-13
Emergency Starting.........................7-16 Starting a Flooded Engine.......... 7-16
Push-Starting.............................. 7-16
Overheating......................................7-17 Overheating................................ 7-17
Emergency Towing.......................... 7-19 Towing Description.................... 7-19
Tiedown Hooks
*......................... 7-20
Warning/Indicator Lights and
Warning Sounds.............................. 7-22If a Warning Light Turns On or
Flashes........................................ 7-22
Message Indicated on Multi-
information Display
*.................. 7-37
Message Indicated on Display
*..........
.................................................... 7-39
Warning Sound is Activated....... 7-41
When Liftgate Cannot be
Opened..............................................7-46 When Liftgate Cannot be
Opened........................................7-46
Active Driving Display Does Not
Operate............................................. 7-47 If the Active Driving Display Does
Not Operate................................ 7-47
*Some models.7-1
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel
unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the ba ttery, read the following precautions carefully
before using the battery or inspecting it.
Keep flames and sparks away from open battery cells and do not allow metal tools to
contact the positive (
) or negative () terminal of the battery when working near a battery.
Do not allow the positive (
) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep al l flames including cigarettes and sparks away
from open battery cells.
Keep all flames and sparks away from open battery cells because hydrogen gas is
produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep al l flames including cigarettes and sparks away
from open battery cells.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may rupture or
explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
If Trouble Arises
Battery Runs Out
7-13
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a 24 V
motor generator set).
1. Move the booster vehicle so that its battery is as close as possible to your vehicle's battery.
2. Make sure that the power such as for the headlights and air conditioner is turned off.
3. Remove the battery cover.
4. Turn off the booster vehicle's engine and connect the jumper cables in the following
order.
Make sure that the jumper cables are securely connected so that they do not disconnect
due to engine vibrations.
1st lead
Positive (+) terminal on the discharged battery
Positive (+) terminal on booster vehicle's battery
2nd lead
Negative (-) terminal on booster vehicle's battery
If Trouble Arises
Battery Runs Out
7-14
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

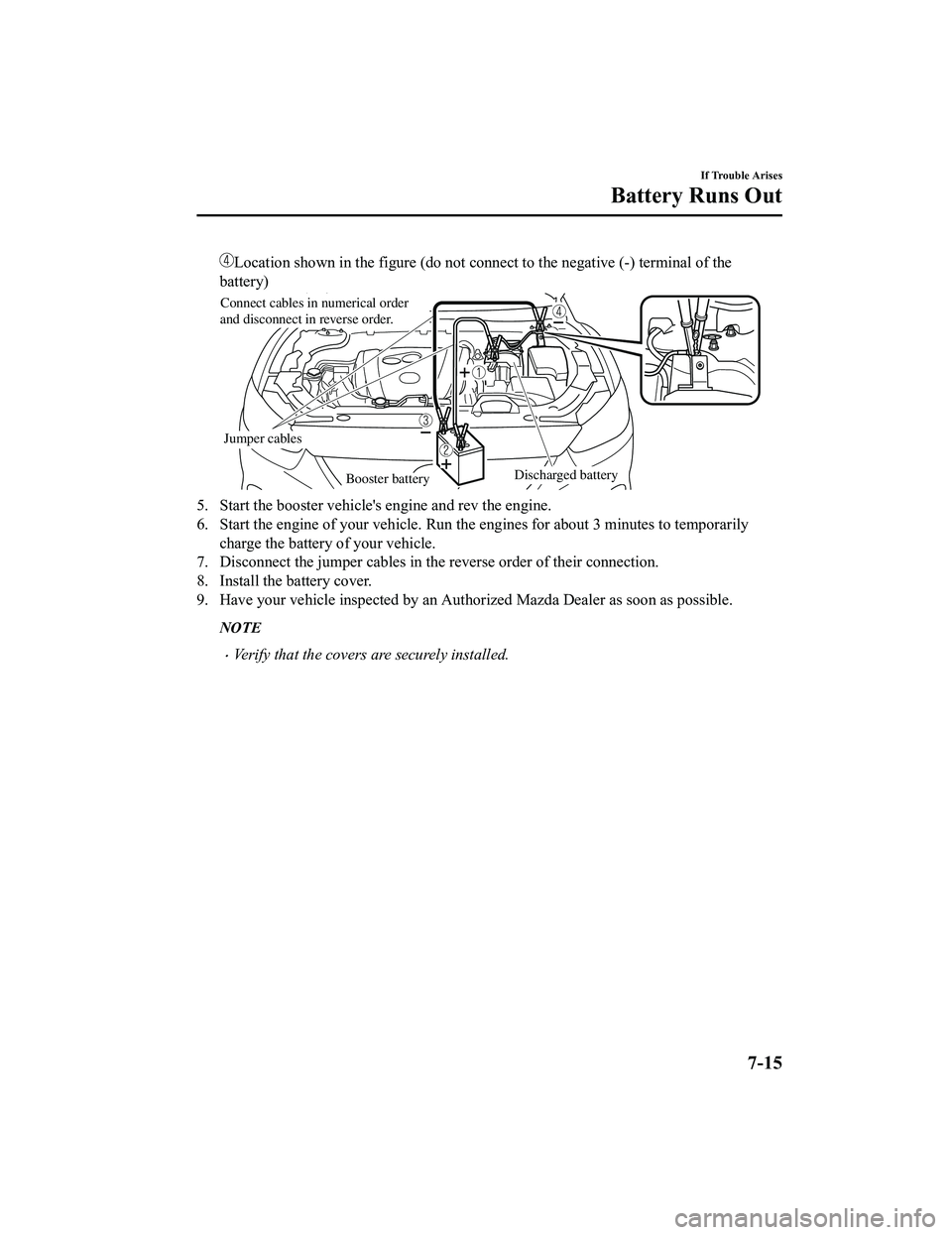

Location shown in the figure (do not connect to the negative (-) terminal of the
battery)
Booster batteryDischarged battery
Jumper cables
Connect cables in numerical order
and disconnect in reverse order.
5. Start the booster vehicle's engine and rev the engine.
6. Start the engine of your vehicle. Run the engines for about 3 minutes to temporarily
charge the battery of your vehicle.
7. Disconnect the jumper cables in th e reverse order of their connection.
8. Install the battery cover.
9. Have your vehicle inspected by an Authorized Mazda Dealer as soon as possible.
NOTE
Verify that the covers are securely installed.
If Trouble Arises
Battery Runs Out
7-15
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

When Liftgate Cannot beOpened
If the battery is dead, the liftgate cannot be
unlocked and opened.
In this case, the liftgate can be unlocked
by taking care of the dead battery
situation.
Refer to Jump-Starting on page 7-13.
If the liftgate cannot be unlocked even if
the dead battery situation has been
resolved, the electrical system may have a
malfunction.
In this case, the liftgate can be opened
using the following procedure as an
emergency measure.
1. Wrap the end of a flathead screwdriver
in a cloth and remove the cover on the
interior surface of the liftgate using it.

Cover
2.(Without power liftgate)
Turn the lever to the right to unlock the
liftgate.

Lever
(With power liftgate)
Push the liftgate while pressing the
lever down.

Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
If Trouble Arises
When Liftgate Cannot be Opened
7-46
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
A
Accessory Socket.............................. 5-60
Active Driving Display..................... 4-58
Adaptive Front Lighting System
(AFS)............................................... 4-120
Add-On Non-Genuine Parts and
Accessories........................................ 8-19
Advanced Key
Advanced keyless entry system... 3-10
Operational range........................ 3-11
Advanced Key Removed from Vehicle
Warning Beep.................................... 7-42
Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-190
Collision warning.... .................. 4-192
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................ 4-192
Air Bag Systems............................... 2-56
Air Bag/Front Seat Belt Pretensioner
System Warning Beep....................... 7-41
Antilock Brake System (ABS)........ 4-105
Armrest Box...................................... 5-69
AUTOHOLD..................................... 4-99
AUTOHOLD Warning Beep.............7-43
Automatic Transaxle......................... 4-60
Active Adaptive Shift (AAS)...... 4-62
Automatic transaxle controls....... 4-60
Direct mode................................. 4-69
Driving tips..................................4-70
Manual shift mode.......................4-63
Shift-lock system...... ................... 4-61
Transaxle ranges.......................... 4-61
B
Battery............................................... 6-31 Maintenance.................................6-32
Replacement................................ 6-32
Specifications.................................9-4
Battery Runs Out.............................. 7-13
Jump-starting............................... 7-13
Blind Spot Monitoring (BSM)........ 4-124 Canceling operation of Blind Spot
Monitoring (BSM).....................4-128
Blind Spot Monitoring (BSM) Warning
Beep...................................................7-44
Body Lubrication.............................. 6-25
Bottle Holder..................................... 5-67
Brakes
Brake assist.................................. 4-98
Electric parking brake (EPB)...... 4-95
Foot brake....................................4-95
Pad wear indicator....................... 4-98
Warning light............................... 4-97
Break-In Period................................. 3-45
C
Capacities............................................ 9-5
Carbon Monoxide......... .................... 3-26
Cell Phones....................................... 8-20
Center Console.................................. 5-69
Child Restraint Categories of child-restraint
systems.........................................2-40
Child-restraint precautions.......... 2-35
Child-restraint system
installation................................... 2-40
Child-restraint system suitability for
various seat positions table..........2-42
Installing child-restraint
systems.........................................2-45
ISOFIX child-restraint systems
(Mexico)...................................... 2-52
LATCH child-restraint systems
(Except Mexico).......................... 2-52
Child Safety Locks for Rear Doors... 3-18
Climate Control System...................... 5-2 Fully Automatic Type....................5-9
Manual Type.................................. 5-5
10-2
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
Cleaning the window interiors.....6-57
Instrument panel top (Soft pad)
maintenance................................. 6-56
Leather upholstery
maintenance................................. 6-56
Panel maintenance....................... 6-57
Plastic part maintenance.............. 6-56
Seat belt maintenance..................6-55
Upholstery maintenance.............. 6-55
Vinyl upholstery maintenance..... 6-55
Interior Lights................................... 5-56 Luggage compartment light.........5-56
Map lights....................................5-56
Overhead lights............................5-56
i-ACTIVSENSE.............................. 4-117 Active safety technology........... 4-117
Adaptive Front Lighting System
(AFS)......................................... 4-120
Advanced Smart City Brake Support
(Advanced SCBS)..................... 4-190
Blind Spot Monitoring (BSM) ............
................................................... 4-124
Camera and sensors................... 4-118
Distance Recognition Support System
(DRSS).......................................4-135
Driver Attention Alert (DAA)... 4-139
Forward Sensing Camera
(FSC)......................................... 4-256
High Beam Control System
(HBC)........................................ 4-121
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)..................................... 4-176
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)..................4-145
Pre-crash safety technology....... 4-118
Radar sensors (rear)...................4-264
Radar sensor (front)...................4-261
Rear Cross Traffic Alert
(RCTA)...................................... 4-141Smart Brake Suppor t (SBS)...... 4-200
Smart City Brake Support [Forward]
(SCBS F)................................... 4-193
Smart City Brake Support [Reverse]
(SCBS R)................................... 4-196
Traffic Sign Recognition System
(TSR)......................................... 4-129
Ultrasonic sensor (rear)............. 4-266
360°View Monitor (Mazda Connect
(Type A))................................... 4-202
360°view monitor (Mazda Connect
(Type B))................................... 4-228
i-ACTIV AWD Operation............... 4-114
J
Jack...................................................... 7-4
Jump-Starting.................................... 7-13
K
Keyless Entry System......................... 3-4
Keys.....................................................3-2 Key suspend function.................... 3-9
Transmitter..................................... 3-5
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)............................... 7-43
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)......... 7-43
Key Removed from Vehicle Warning
Beep...................................................7-42
Key Suspend Function........................ 3-9
L
Label Information............................... 9-2
Lane Departure Warning sound........ 7-44
Lane-change Signals......................... 4-79
Lane-keep Assist System (LAS) & Lane
Departure Warning System
(LDWS)........................................... 4-176
Leaving Home Light......................... 4-76
10-6
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
