MAZDA MODEL CX-7 2007 (in English) User Guide

Black plate (11,1)
Front
Hood .................................................................................................................. page 3-44
Windshield wiper blades .................................................................................... page 8-21
Moonroof ........................................................................................................... page 3-45
Doors and keys .................................................................................................. page 3-28
Fuel-filler lid ...................................................................................................... page 3-42
Tires ................................................................................................................... page 8-28
Light bulbs ......................................................................................................... page 8-33
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle CX-7_8V28-EA-06B_Edition2 Page11
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (12,1)
Rear
Rear wiper blade ................................................................................................ page 8-23
Liftgate .............................................................................................................. page 3-31
Light bulbs ......................................................................................................... page 8-33
Antenna ............................................................................................................. page 6-16
Child safety locks .............................................................................................. page 3-31
Outside mirror .................................................................................................... page 3-58
Tires ................................................................................................................... page 8-28
1-6
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
CX-7_8V28-EA-06B_Edition2 Page12
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-5
Rear Seat ................................................................................... 2-9
Seat Belt Systems ........................................................................ 2-14
Seat Belt Precautions .............................................................. 2-14
Seat Belt (Except Center-Rear Position) ................................. 2-17
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-19
Center-Rear Position Seat Belt ................................................ 2-21
Seat Belt Extender ................................................................... 2-24
Seat Belt Warning Light/Beep ................................................ 2-25
Child Restraint ............................................................................ 2-27
Child Restraint Precautions ..................................................... 2-27
Installing Child-Restraint Systems .......................................... 2-31
LATCH Child-Restraint Systems ............................................ 2-40
SRS Air Bags ............................................................................... 2-45
Supplemental Restraint System (SRS) Precautions ................ 2-45
Supplemental Restraint System Components ......................... 2-50
How the SRS Air Bags Work .................................................. 2-51
SRS Air Bag Deployment Criteria .......................................... 2-55
Limitations to SRS Air Bag .................................................... 2-56
Driver and Front Passenger Occupant Classification
System ..................................................................................... 2-58
Monitoring and Maintenance .................................................. 2-63
2-1
CX-7_8V28-EA-06B_Edition2 Page13
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, an
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
WARNING
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
2-2
Essential Safety Equipment
Seats
CX-7_8V28-EA-06B_Edition2 Page14
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (15,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
CX-7_8V28-EA-06B_Edition2 Page15
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (16,1)
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
2-4
Essential Safety Equipment
íSome models.
Seats
CX-7_8V28-EA-06B_Edition2 Page16
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (17,1)
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, an
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
Essential Safety Equipment
Seats
2-5
CX-7_8V28-EA-06B_Edition2 Page17
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (18,1)
CAUTION
lThe seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.
lTo prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electrical power.
lDon't use the switch to make more
than one adjustment at a time.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Always sit in a front passenger seat
properly with the seatback upright and
feet on the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
2-6
Essential Safety Equipment
Seats
CX-7_8V28-EA-06B_Edition2 Page18
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (19,1)

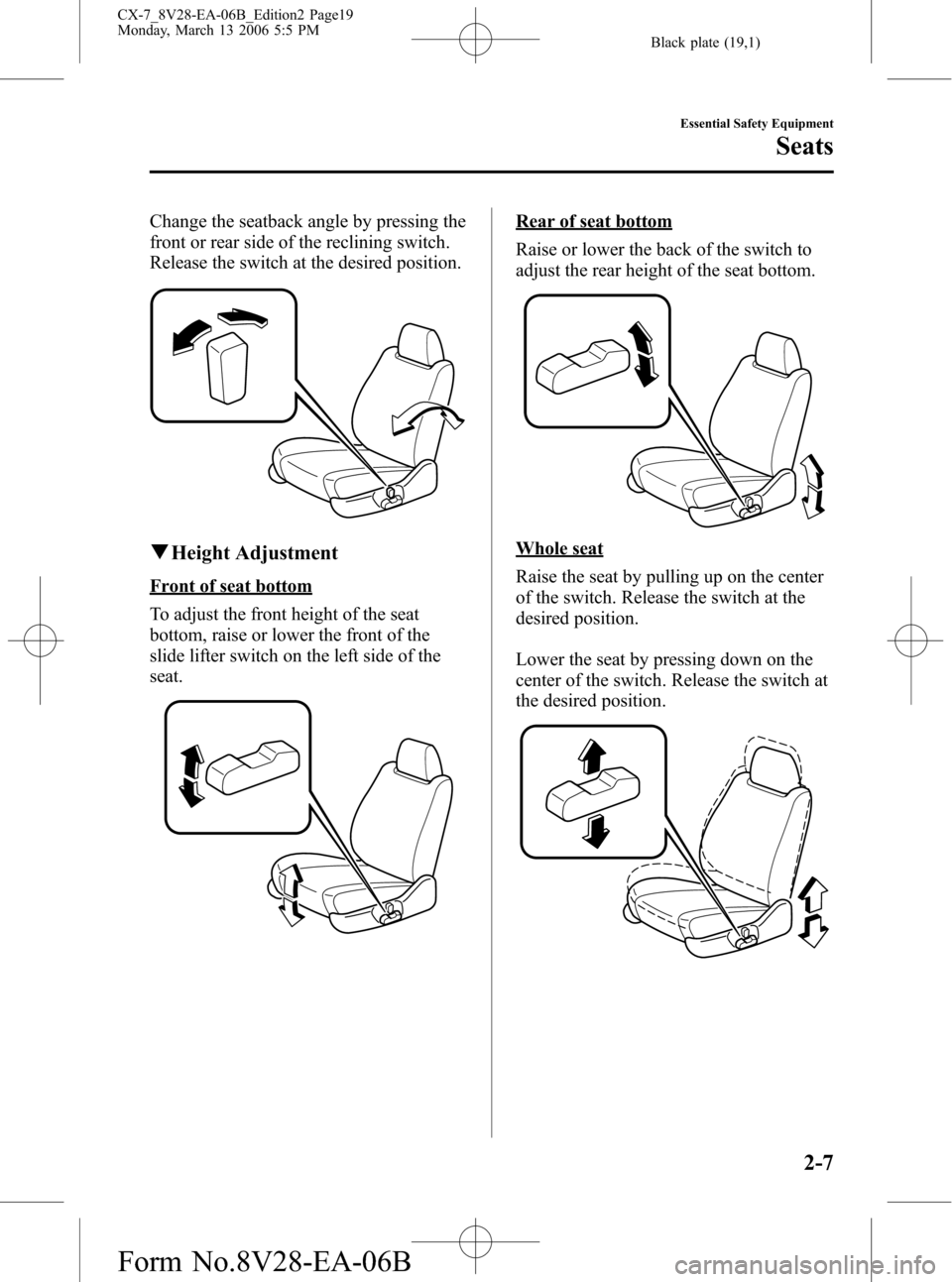

Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment
Front of seat bottom
To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear of seat bottom
Raise or lower the back of the switch to
adjust the rear height of the seat bottom.
Whole seat
Raise the seat by pulling up on the center
of the switch. Release the switch at the
desired position.
Lower the seat by pressing down on the
center of the switch. Release the switch at
the desired position.
Essential Safety Equipment
Seats
2-7
CX-7_8V28-EA-06B_Edition2 Page19
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (20,1)
qLumbar Support Adjustment
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
2-8
Essential Safety Equipment
íSome models.
Seats
CX-7_8V28-EA-06B_Edition2 Page20
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B
