MAZDA MODEL CX-7 2007 Owners Manual (in English)

Black plate (211,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the
position.
The headlight switch must be in the
position to turn on the front fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the headlight switch is in the
AUTO position, the front fog lights
can be turned on when the
headlights, the exterior lights and
dashboard illumination are on.
Driving Your Mazda
Switches and Controls
5-55íSome models. CX-7_8V28-EA-06B_Edition2 Page211
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (212,1)
Windshield Wipers and
Washer
The ignition switch must be in the ON
position.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident.
Do not use the washer without first
warming the windshield and never use
plain tap water:
Using windshield washer fluid without
anti-freeze protection in freezing
temperatures is dangerous. The
washer fluid could freeze on the
windshield and block your vision. You
could have an accident.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don't resume functioning, consult
an Authorized Mazda Dealer as soon as
possible. Drive to the side of the road
and park off the right-of-way. Wait until
the weather clears before trying to drive
with the wipers inoperative.
qWindshield Wipers
Turn the wipers on by pulling the lever
down.
MIST―Mist
INT―Intermittent
1―Low speed
2―High speed
For a single wiping cycle, push the lever
up to MIST.
5-56
Driving Your Mazda
Switches and Controls
CX-7_8V28-EA-06B_Edition2 Page212
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (213,1)
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.
INT ring
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-20). If it's OK, consult
an Authorized Mazda Dealer.
Rear Window Wiper and
Washer
The ignition switch must be in the ON
position.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON―Normal
INT―Intermittent
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer doesn't work, inspect the
fluid level (page 8-20). If it's OK and the
washer still doesn't work, consult an
Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-57
CX-7_8V28-EA-06B_Edition2 Page213
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (214,1)

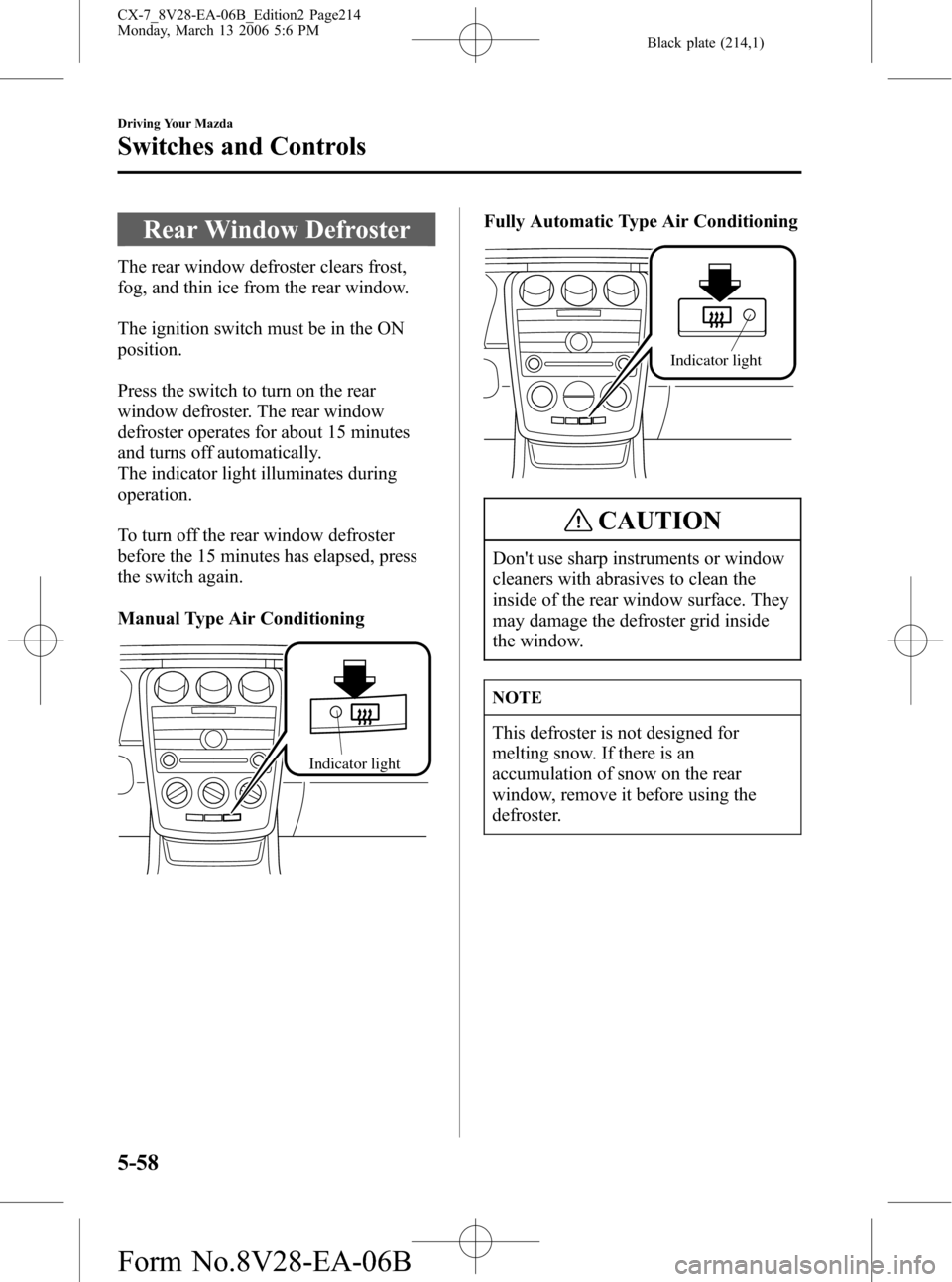

Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Manual Type Air Conditioning
Indicator light
Fully Automatic Type Air Conditioning
Indicator light
CAUTION
Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.
5-58
Driving Your Mazda
Switches and Controls
CX-7_8V28-EA-06B_Edition2 Page214
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (215,1)
Horn
To sound the horn, press around the
mark on the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
four turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
Driving Your Mazda
Switches and Controls
5-59
CX-7_8V28-EA-06B_Edition2 Page215
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (216,1)
5-60
CX-7_8V28-EA-06B_Edition2 Page216
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (217,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí........................................................... 6-11
Audio System ............................................................................... 6-16
Antenna ................................................................................... 6-16
Operating Tips for Audio System ........................................... 6-16
Audio Set ................................................................................ 6-27
Audio Control Switch Operation (Steering Wheel)
í............. 6-45
Safety Certification ................................................................. 6-48
Interior Equipment ..................................................................... 6-49
Sunvisors ................................................................................. 6-49
Interior Lights ......................................................................... 6-50
Information Display ................................................................ 6-52
Cup Holder .............................................................................. 6-54
Bottle Holder ........................................................................... 6-55
Storage Compartments ............................................................ 6-56
Accessory Sockets .................................................................. 6-57
6-1íSome models.
CX-7_8V28-EA-06B_Edition2 Page217
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (218,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switch in the ACC position
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along
with the heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
6-2
Interior Comfort
Climate Control System
CX-7_8V28-EA-06B_Edition2 Page218
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (219,1)
Vent Operation
Push
qAdjusting the Vents
Directing airflow
You can direct air flow by rotating the vent.
Opening/closing vents
These vents can be opened and closed with wheel.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of
trouble but a result of humid air being suddenly cooled.
Interior Comfort
Climate Control System
6-3
CX-7_8V28-EA-06B_Edition2 Page219
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B

Black plate (220,1)
qSelecting the Airflow Mode
Dashboard and Floor Vents Defroster Vents
Floor Vents Dashboard Vents Defroster and Floor Vents
6-4
Interior Comfort
Climate Control System
CX-7_8V28-EA-06B_Edition2 Page220
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
