MAZDA MODEL CX-7 2007 Owners Manual (in English)

Black plate (331,1)
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
of the replacement bulb to dispose of
the old bulb promptly out of the
reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. Make sure the headlight switch is off.
2. If you are changing the right Low-
beam bulb, start the engine, turn the
steering wheel all the way to the right,
and turn off engine. If you are
changing the left Low-beam bulb, turn
the steering wheel to the left.3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Detach the electrical connector from
the bulb by pulling it to the rear.
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.
Maintenance and Care
Owner Maintenance
8-35
CX-7_8V28-EA-06B_Edition2 Page331
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

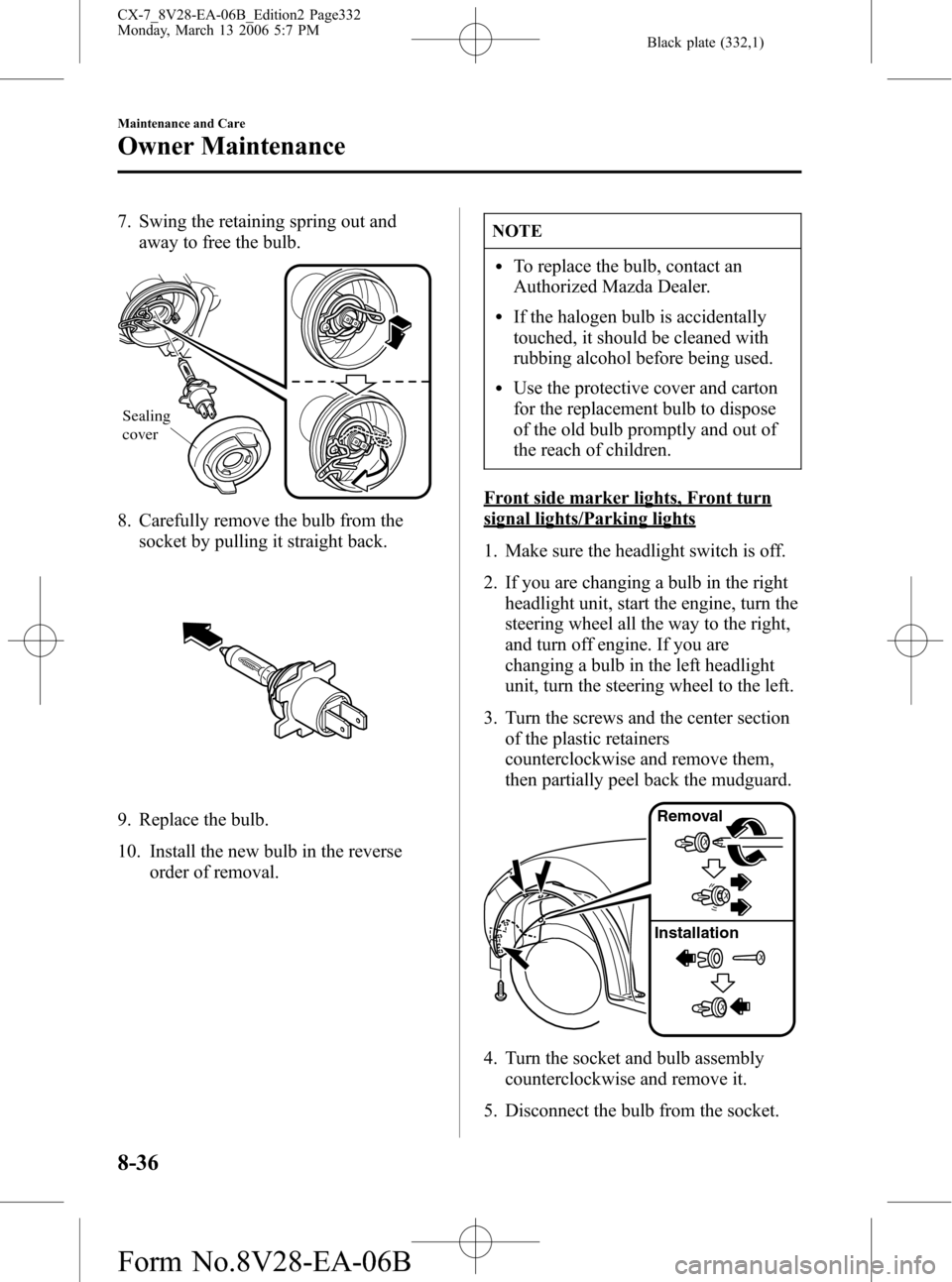

Black plate (332,1)
7. Swing the retaining spring out and
away to free the bulb.
Sealing
cover
8. Carefully remove the bulb from the
socket by pulling it straight back.
9. Replace the bulb.
10. Install the new bulb in the reverse
order of removal.
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Front side marker lights, Front turn
signal lights/Parking lights
1. Make sure the headlight switch is off.
2. If you are changing a bulb in the right
headlight unit, start the engine, turn the
steering wheel all the way to the right,
and turn off engine. If you are
changing a bulb in the left headlight
unit, turn the steering wheel to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
8-36
Maintenance and Care
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page332
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (333,1)
Front side marker lights
Front turn signal lights/Parking lights
6. Install the new bulb in the reverse order
of removal.
Fog lightsí
1. Make sure the headlight switch is off.
2. If you are changing the right fog light
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
fog light bulb, turn the steering wheel
to the left.3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-37íSome models. CX-7_8V28-EA-06B_Edition2 Page333
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (334,1)
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Brake lights/Taillights, Rear turn signal
lights, Reverse lights, Rear side-marker
lights
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.3. Disconnect the bulb from the socket.
Rear side-maker light
Brake light/Taillight
Rear direction indication light
Reverse light
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible.
The rear combination component must
be replaced.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
8-38
Maintenance and Care
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page334
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (335,1)
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Overhead light (Rear), Luggage
compartment light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-39
CX-7_8V28-EA-06B_Edition2 Page335
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (336,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
If the electrical system doesn't work, first
inspect fuses on the driver's side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.
Fuse panel cover
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
cover for the fuse panel and the fuse
block cover inside of the engine
compartment.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the ROOM circuit.
8-40
Maintenance and Care
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page336
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (337,1)
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-42).
Maintenance and Care
Owner Maintenance
8-41
CX-7_8V28-EA-06B_Edition2 Page337
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (338,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 IGN 2 40A Ignition system
2 BLOWER 40A Blower motor
3 BTN 60A For protection of various circuits
4 FAN 2 40A Cooling fan
5 IGN 1 40A Ignition system
6 FAN 1 40A Cooling fan
7 P.SEAT 40A Power seat
í
8 INJ 30A Injector
9 ROOF 20A Moonroofí
10 BOSE 30A Bose audio systemí
11 ENGINE 30A Engine control system
12 D.LOCK 20A Power door locks
13 P.WIND 30A Power windows
14 FUEL 30A Fuel pump
15 ABS 1 40A ABS
16 ABS 2 20A ABS
17 DSC 7.5A DSC
18 FOG 20A Fog lights
í
8-42
Maintenance and Care
íSome models.
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page338
Monday, March 13 2006 5:8 PM
Form No.8V28-EA-06B

Black plate (339,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
19 DEF 30A Rear window defroster
20 TNS 15AParking lights, License plate lights,
Illuminated entry system
21 A/C 10A Air conditioner
í
22 ETC 20A Accelerator position sensor
23 H/L HI 15A Headlight levelingí
24 DRL 15A DRLí
25 H/L LO RH 15A Headlight low beam (RH)
26 H/L LO LH 15A Headlight low beam (LH)
27 ENG BAR 2 7.5A PCM
28 ECM 10A Engine control system
29 ENG BAR 1 15A Air flow sensor, EGR control valve
30 P.WIND 2 20A Power windows
31 STOP 10A Brake lights
32 HORN 20A Horn
33 ENG B+ 25A PCM
34 HAZARD 10A Hazard warning flashers, Turn signals
Fuse block (Driver's side)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 OUTLET 1 15A Accessory Socket
Maintenance and Care
Owner Maintenance
8-43íSome models. CX-7_8V28-EA-06B_Edition2 Page339
Monday, March 13 2006 5:8 PM
Form No.8V28-EA-06B

Black plate (340,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
2 OUTLET 2 15A Accessory Socket
3 P.MIR 7.5A Power control mirror
4 WIPER 30A Windshield wiper and washer
5 M.DEF 7.5A Mirror defroster
í
6 ENG BAR 3 7.5A Air flow sensor, EGR control valve
7 P.WIND 15A Power windows
8 A/B 7.5A Advance Restraint System
9 ENGINE 15A Engine control system
10 METER 10A Instrument cluster
11 ROOM 15A Audio system, Overhead light
12 ILLUMI 10A Dashboard illumination
13 SEAT 20A Seat warmer
í
14 A/C 10A Air conditionerí
15 R.WIP 10A Rear window wiper and washer
8-44
Maintenance and Care
íSome models.
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page340
Monday, March 13 2006 5:8 PM
Form No.8V28-EA-06B
