DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
2 OUTLET 2 15A Accessory Socket
3 P.MIR 7.5A Power control mirror
4 WIPER 30A Windshield wiper and washer
5 M.DEF 7.5A Mirror defroster
í
6 ENG BAR 3 7.5A Air flow sensor, EGR control valve
7 P.WIND 15A Power windows
8 A/B 7.5A Advance Restraint System
9 ENGINE 15A Engine control system
10 METER 10A Instrument cluster
11 ROOM 15A Audio system, Overhead light
12 ILLUMI 10A Dashboard illumination
13 SEAT 20A Seat warmer
í
14A/C 10A Air conditionerí
15R.WIP 10A Rear window wiper and washer
Maintenance and Care
Owner Maintenance
8-49íSome models.
CX-7_8X59-EA-07E_Edition3 Page341
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (362,1)
Outside the United States and Canada
Government regulations in the United States and Canada require that automobiles meet
specific emission regulations and safety standards. Therefore, vehicles built for use in the
United States, its territories, and Canada may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside these areas.
You may have these problems if you do:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
The Mazda warranty applies only to Mazda vehicles registered and normally operated in
the United States, its territories, and Canada.
9-14
Customer Information and Reporting Safety Defects
Warranty
CX-7_8X59-EA-07E_Edition3 Page362
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (363,1)
Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety requirements (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Warranty
9-15
CX-7_8X59-EA-07E_Edition3 Page363
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (364,1)
Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of Canada:lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-16
Customer Information and Reporting Safety Defects
Warranty
CX-7_8X59-EA-07E_Edition3 Page364
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (366,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems: Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
9-18
Customer Information and Reporting Safety Defects
Warranty
CX-7_8X59-EA-07E_Edition3 Page366
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (387,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not taw a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-39
CX-7_8X59-EA-07E_Edition3 Page387
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (397,1)

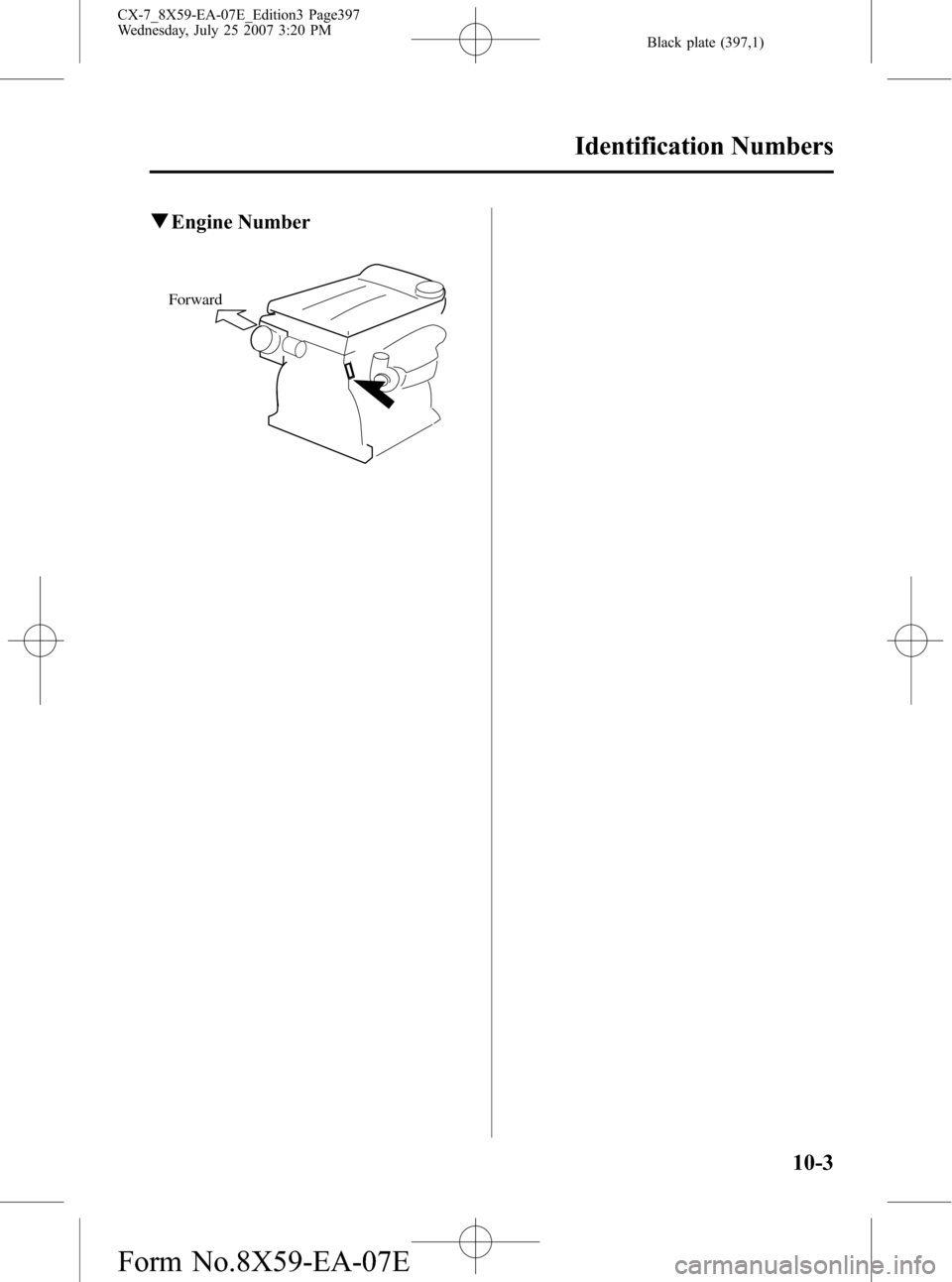

qEngine Number
Forward
Identification Numbers
10-3
CX-7_8X59-EA-07E_Edition3 Page397
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (398,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 9.5
qElectrical System
Item Classification
Battery 12V-48AH/5HR MF
12V-55AH/5HR MF
Spark-plug number L3K9 18 110A
*1
L3Y3 18 110
Spark-plug gap 0.70―0.80 mm (0.028 ―0.031 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-19.
Automatic transaxle fluid JWS3309
Transfer case oil API Service GL-5 (SAE 80W-90)
Rear differential oil API Service GL-5 (SAE 80W-90)
Power steering fluid ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications
CX-7_8X59-EA-07E_Edition3 Page398
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (399,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 9.0 L (9.5 US qt, 7.9 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 1.2 L (1.3 US qt, 1.1 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluid With low washer fluid level
warning light
4.5 L (4.8 US qt, 4.0 Imp qt)
Without low washer fluid level
warning light 2.5 L (2.6 US qt, 2.2 Imp qt)
Fuel tank 69.0 L (18.2 US gal, 15.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length With license plate holder
4,680 mm (184.3 in)
Without license plate holder 4,675 mm (184.1 in)
Overall width 1,872 mm (73.7 in)
Overall height 1,645 mm (64.8 in)
Front tread 1,617 mm (63.7 in)
Rear tread 1,612 mm (63.5 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
Item Weight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,168 kg (4,780 lbs) 2,267 kg (4,998 lbs)
GAWR (Gross Axle Weight Rating) Front 1,150 kg (2,535 lbs) 1,189 kg (2,621 lbs)
Rear 1,022 kg (2,253 lbs) 1,083 kg (2,388 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
