sensor MAZDA MODEL CX-7 2008 (in English) Owner's Guide

Black plate (228,1)
Interior temperature sensor
6-14
Interior Comfort
Climate Control System
CX-7_8X59-EA-07E_Edition3 Page228
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E

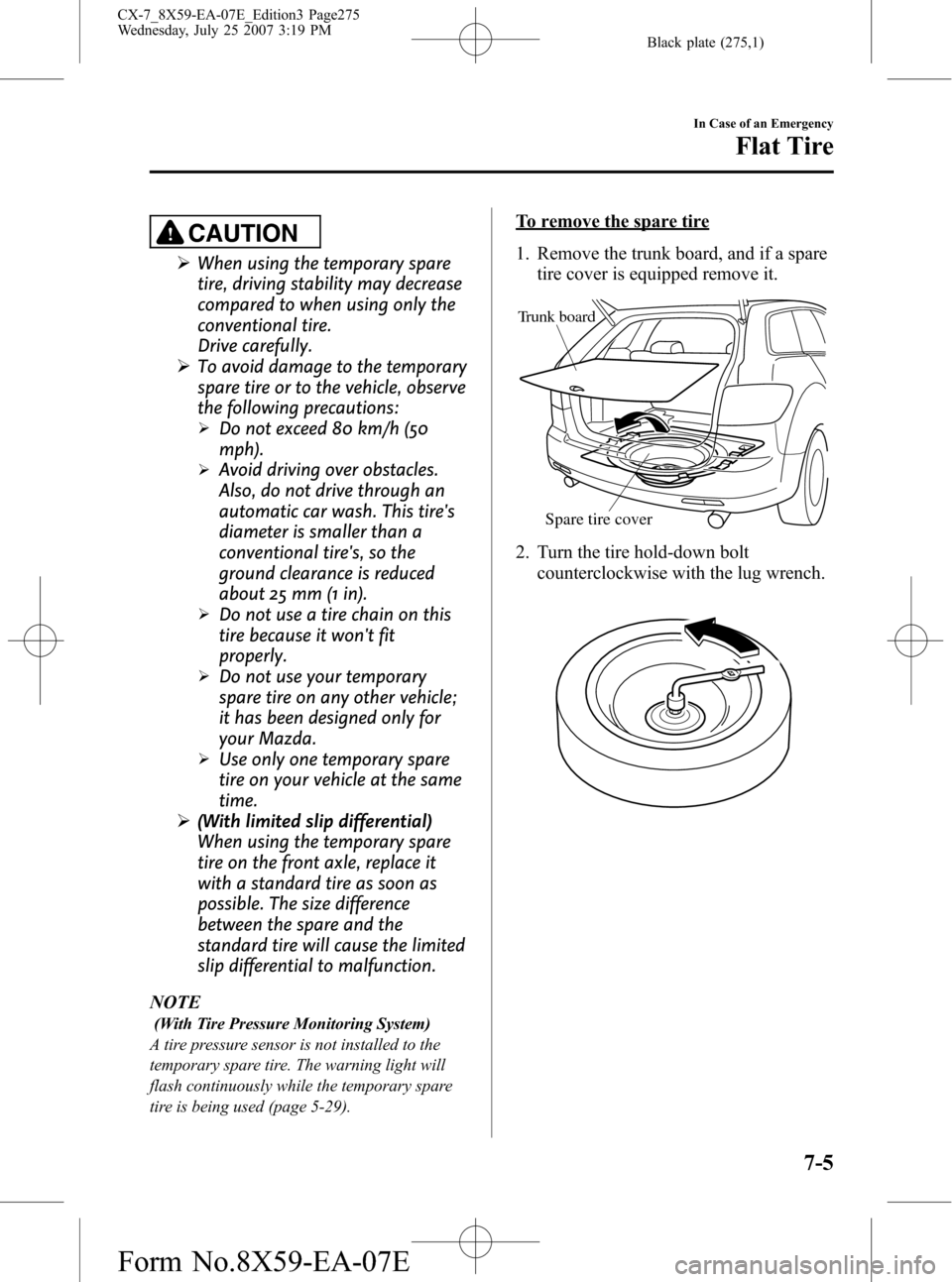

Black plate (275,1)
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
Ø To avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the
ground clearance is reduced
about 25 mm (1 in).
ØDo not use a tire chain on this
tire because it won't fit
properly.
ØDo not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
Ø (With limited slip differential)
When using the temporary spare
tire on the front axle, replace it
with a standard tire as soon as
possible. The size difference
between the spare and the
standard tire will cause the limited
slip differential to malfunction.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-29).
To remove the spare tire
1. Remove the trunk board, and if a spare tire cover is equipped remove it.
Trunk board
Spare tire cover
2. Turn the tire hold-down boltcounterclockwise with the lug wrench.
In Case of an Emergency
Flat Tire
7-5
CX-7_8X59-EA-07E_Edition3 Page275
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (276,1)
Changing a Flat Tire
NOTE
If the following occurs while driving, it could
indicate a flat tire.
lSteering becomes difficult.lThe vehicle begins to vibrate excessively.lThe vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a jack:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors. NOTE
lMake sure the jack is well lubricated before
using it.
(With Tire Pressure Monitoring System)
lBe sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-31).
1. Park on a level surface off the right-of- way and firmly set the parking brake.
2. Shift into Park (P) and turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
NOTE
When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.
7-6
In Case of an Emergency
Flat Tire
CX-7_8X59-EA-07E_Edition3 Page276
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (280,1)
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 89 ―117 (9 ―11, 66 ―86)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration: Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
5. Remove the center cap by tapping it with the jack lever.
6. Store the damaged tire, using the wing bolt to hold it in place.
Wing bolt
Tire clamp
NOTE
Always use the wing bolt to secure the
damaged tire. Store the tire hold-down bolt
used to tighten down the spare tire in the same
place as where the wing bolt had been stored.
7. Check the inflation pressure. Refer to
the specification charts on page 10-6.
8. Have the flat tire repaired or replaced as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure: Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-29).
NOTE
To prevent the jack and tool from rattling, store
them properly.
7-10
In Case of an Emergency
Flat Tire
CX-7_8X59-EA-07E_Edition3 Page280
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (328,1)
lImproper wheel alignmentlOut-of-balance wheellSevere braking
After rotation, inflate all tire pressures to
specification (page 10-6) and inspect the
lug nuts for tightness.
CAUTION
Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to
rear, not from side to side. Tire
performance will be weakened if
rotated from side to side.
CAUTION
Limited-Slip Differential system;
don't use the following:
Ø Tires not of the designated size
Ø Tires of different sizes or types at
the same time
Ø Tires not sufficiently inflated
If these instructions aren't followed,
the rotation of the left and right
wheels will be different and will thus
apply a constant load on the limited-
slip differential.
This will cause a malfunction.
q Replacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
CAUTION
(With Tire Pressure Monitoring
System)
When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.
NOTE
(With Tire Pressure Monitoring System)lWhen tires with steel wire reinforcement in
the sidewalls are used, the system may not
function correctly even with a genuine
wheel.
Refer to System Error Activation on page
5-31.
lBe sure to install the tire pressure sensors
whenever tires or wheels are replaced.
Refer to Tires and Wheels on page 5-31.
If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New tread Tread wear indicator
Worn tread
You should replace it before the band is
across the entire tread.
8-36
Maintenance and Care
Owner Maintenance
CX-7_8X59-EA-07E_Edition3 Page328
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (330,1)
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
ØLimited-Slip Differential System
Ø (With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-31.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
8-38
Maintenance and Care
Owner Maintenance
CX-7_8X59-EA-07E_Edition3 Page330
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (340,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
19 DEF 30A Rear window defroster
20 TNS 15AParking lights, License plate lights,
Illuminated entry system
21 A/C 10A Air conditioner
í
22ETC 20A Accelerator position sensor
23 H/L HI 15A Headlight levelingí
24DRL 15A DRLí
25 H/L LO RH 15A Headlight low beam (RH)
26 H/L LO LH 15A Headlight low beam (LH)
27 ENG BAR 2 7.5A PCM
28 ECM 10A Engine control system
29 ENG BAR 1 15A Air flow sensor, EGR control valve
30 P.WIND 2 20A Power windows
31 STOP 10A Brake lights
32 HORN 20A Horn
33 ENG B+ 25A PCM
34 HAZARD 10A Hazard warning flashers, Turn signals
Fuse block (Driver's side)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
1 OUTLET 1 15A Accessory Socket
8-48
Maintenance and Care
íSome models.
Owner Maintenance
CX-7_8X59-EA-07E_Edition3 Page340
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (341,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
2 OUTLET 2 15A Accessory Socket
3 P.MIR 7.5A Power control mirror
4 WIPER 30A Windshield wiper and washer
5 M.DEF 7.5A Mirror defroster
í
6 ENG BAR 3 7.5A Air flow sensor, EGR control valve
7 P.WIND 15A Power windows
8 A/B 7.5A Advance Restraint System
9 ENGINE 15A Engine control system
10 METER 10A Instrument cluster
11 ROOM 15A Audio system, Overhead light
12 ILLUMI 10A Dashboard illumination
13 SEAT 20A Seat warmer
í
14A/C 10A Air conditionerí
15R.WIP 10A Rear window wiper and washer
Maintenance and Care
Owner Maintenance
8-49íSome models.
CX-7_8X59-EA-07E_Edition3 Page341
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

8
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Introduction
nExtremely low or high temperatures may interfere with normal operationThe inside of the vehicle can become very hot or cold when it is parked for extended
periods in direct sunlight or in cold places with the engine turned off. The navigation system
may not operate normally under such circumstances. Turn off the navigation system until
the inside of the vehicle has cooled down or warmed up. If the system does not operate
thereafter, consult an authorized dealer, we recommend an Authorized Mazda Dealer.
This navigation system utilizes GPS* satellite signals, a speed sensor and gyrosensor to track
and display your vehicle’s current position, and to guide you from your starting point to your
destination along a calculated route.
* : GPS (Global Positioning System) is a position detecting system utilizing the signals from GPS satellites deployed by the U.S. Defense Department.
The beep sound and voice guidance related to the navigation system operation are not heard
while a Bluetooth Hands-Free is being used.
Screens displayed in this manual may differ from those on the actual display.
Product Use Safety
Navigation System
Beep sound and voice guidance restrictions while using Bluetooth Hands-Free (Mazda CX-9 only)
Screens
'<C)%FSSO4EKI8LYVWHE]1EVGL41

54
RoutingAddress
Book
If necessary
GPS is a position detecting system utilizing the signals
from GPS satellites deployed by the U.S. Department of
Defense. The Mobile Navigation System uses input from
three or more satellites and calculates the vehicle position
based on the principle of triangulation.
The positioning accuracy of the system corresponds to the
error display of the GPS which is from about 30 to 200 meters.
l If you are using the system for the first time, or if you have not used it for some time, it takes
about 5 minutes (or about 2 minutes in open areas) to calculate your vehicle’s position.
nGPS signal reception is poor in the following places
lThe GPS satellites are controlled by the U.S. Defense Department, which may intentionally
lower positioning accuracy. In such cases, there may be vehicle position deviations.
l There may be vehicle position deviations for some time until GPS signals are received after
turning on the ignition.
This function compares your vehicle’s tracking data with the road data on the map
disc, applies dead reckoning to determine the road you are driving on, and displays
your vehicle on that road on the map.
l Intelligent map matching addresses the following problems to achieve high accuracy in
vehicle positioning.
Position Correction for Elevated RoadsPosition accuracy is improved by detecting if the vehicle is
running on or under an elevated road.
Position Correction for Parking GaragesPosition accuracy is improved by detecting if the vehicle is
driving in an elevated or underground parking garage.
High-precision GyrosensorA gyro detects turns with an accuracy of 0.05° per second.
Combined with a speed sensor, it enables the system to
display the current vehicle position even where GPS signals
may be blocked.
l Using a spare tire in place of the regular one may cause vehicle position deviations.
l Any difference between the direction which your vehicle actually travels and that shown on
the map is automatically eliminated by azimuth correction.
GPS
In tunnelsAmong high-rise buildingsUnder elevated roads In wooded areas
Map Matching
'<C)%FSSO4EKI8LYVWHE]1EVGL41
