MAZDA MODEL CX-7 2008 Owners Manual (in English)

81
Audio Operation

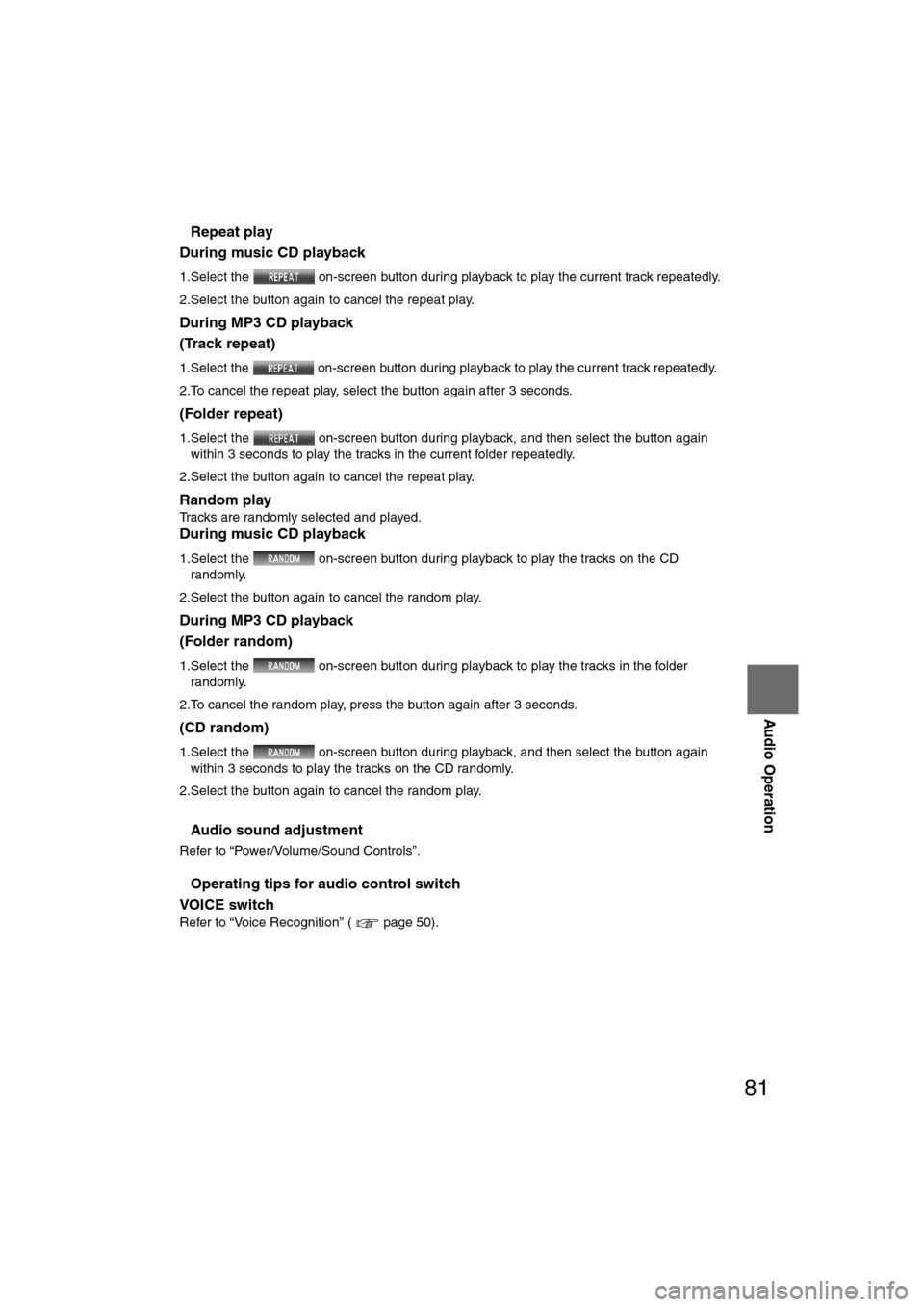

nRepeat play
During music CD playback
1.Select the on-screen button during playback to play the current track repeatedly.
2.Select the button again to cancel the repeat play.
During MP3 CD playback
(Track repeat)
1.Select the on-screen button during playback to play the current track repeatedly.
2.To cancel the repeat play, select the button again after 3 seconds.
(Folder repeat)
1.Select the on-screen button during playback, and then select the button again within 3 seconds to play the tracks in the current folder repeatedly.
2.Select the button again to cancel the repeat play.
Random play
Tracks are randomly selected and played.
During music CD playback
1.Select the on-screen button during playback to play the tracks on the CD randomly.
2.Select the button again to cancel the random play.
During MP3 CD playback
(Folder random)
1.Select the on-screen button during playback to play the tracks in the folder randomly.
2.To cancel the random play, press the button again after 3 seconds.
(CD random)
1.Select the on-screen button during playback, and then select the button again within 3 seconds to play the tracks on the CD randomly.
2.Select the button again to cancel the random play.
nAudio sound adjustment
Refer to “Power/Volume/Sound Controls”.
nOperating tips for audio control switch
VOICE switch
Refer to “Voice Recognition” ( page 50).
'<C)%FSSO4EKI8LYVWHE]1EVGL41

82
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
Adjusting the Volume
To increase the volume, pull up the volume switch.
To decrease the volume, press down the volume switch.
Changing the Source
Press the mode switch (MODE) to change the audio source (FM1 radio > FM2 radio >
AM radio > CD changer > SIRIUS > cyclical).
Seek Switch
When listening to the radio
Pull up or press down the seek switch, the radio switches to the next/previous stored station
in the order that it was stored (1-6).
Pull up or press down the seek switch for about 2 seconds until a beep sound is heard to seek
all usable stations at a higher or lower frequency whether programmed or not.
When playing a CD
Pull up the seek switch to skip to the next track.
Press down the seek switch to repeat the current track.
'<C)%FSSO4EKI8LYVWHE]1EVGL41

83
Audio Operation
nSafety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Note
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasona-
ble protection against harmful interference in a residential installation. This equipment gener-
ates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.l
This CD player should not be adjusted or repaired by anyone except
qualified service personnel.
If servicing is required, contact an Authorized Mazda Dealer.
l Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous laser exposure. Never
operate the CD player with the top case of the unit removed.
l Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Cautions
'<C)%FSSO4EKI8LYVWHE]1EVGL41

84
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up

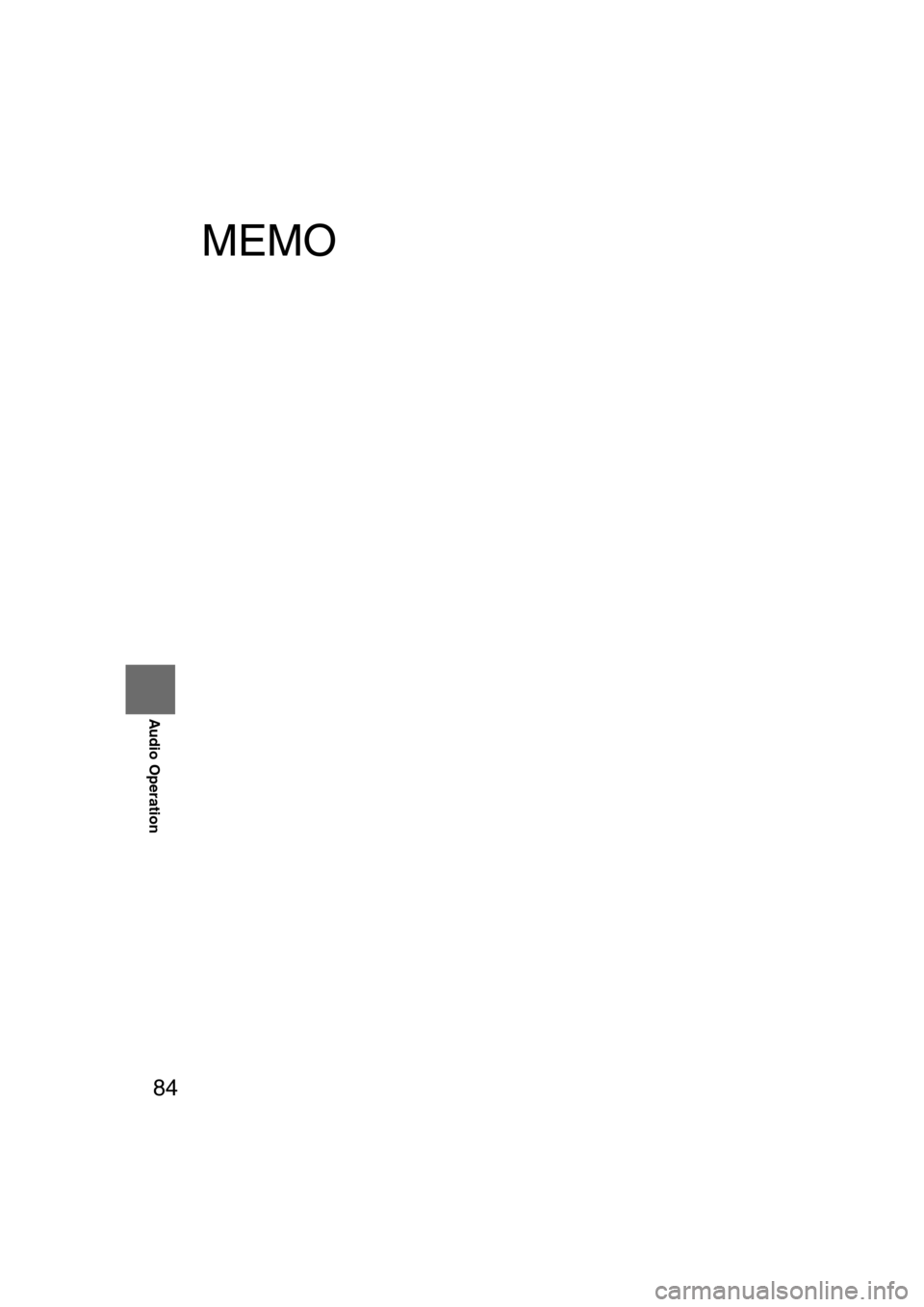

MEMO
'<C)%FSSO4EKI8LYVWHE]1EVGL41

85
Rear View Monitor

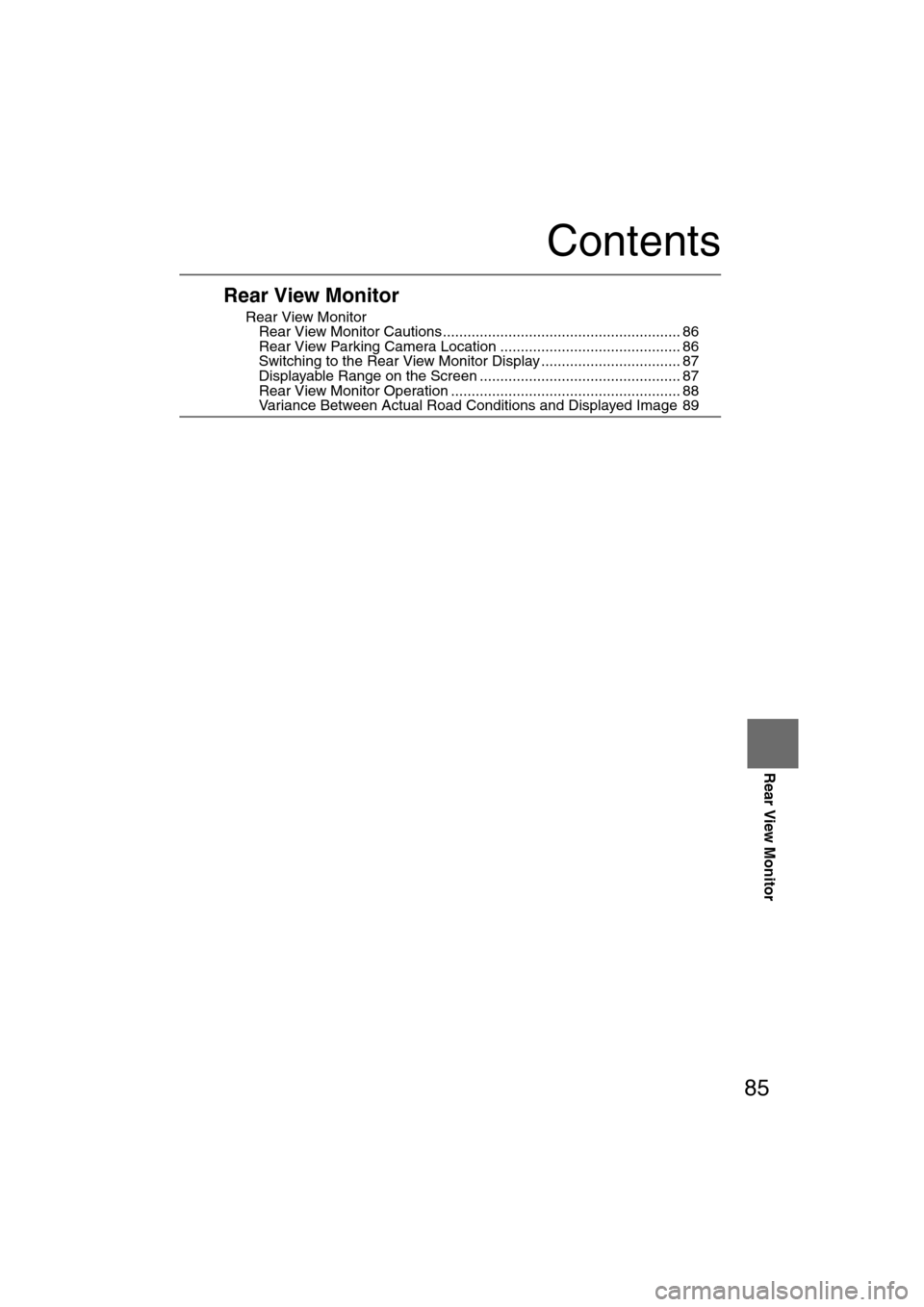

Contents
Rear View Monitor
nRear View MonitorlRear View Monitor Cautions .......................................................... 86lRear View Parking Camera Location ............................................ 86lSwitching to the Rear View Monitor Display .................................. 87lDisplayable Range on the Screen ................................................. 87lRear View Monitor Operation ........................................................ 88lVariance Between Actual Road Conditions and Displayed Image 89
'<C)%FSSO4EKI8LYVWHE]1EVGL41

86
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Rear View Monitor
Rear View Monitor
Rear View Monitor Cautions
The rear view monitor is a visual assist system when reversing the vehicle that provides
images from the rear of the vehicle.
Note
l
If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it cannot
be wiped off, use a mild detergent.
l If the camera temperature changes rapidly, such as by pouring hot water on it under cold
temperature conditions, the rear view monitor may not operate correctly.
Rear View Parking Camera Location
The rear view monitor is only a visual assist device when reversing the vehicle. The images on
the screen may be different from the actual conditions. Always drive carefully confirming the
safety of the rear and the surrounding conditions by looking directly with your eyes. Reversing the
vehicle by only looking at the screen may cause an accident or a collision with an object.
lWhen the display is cold, images may course across the monitor or the screen
and may be dimmer than usual, which could cause difficulty in confirming the
surrounding conditions of the vehicle. Always drive carefully confirming the safety
of the rear and the surrounding conditions by looking directly with your eyes.
l Do not apply excessive force to the camera. The camera position and angle
may deviate.
l Do not disassemble, modify, or remove it as it may no longer be waterproof.
l The camera cover is made of plastic. Do not apply degreasing agents,
organic solvents, wax, or glass coating agents to the camera cover. If any
are spilled on the cover, wipe off with a soft cloth immediately.
l Do not rub the cover excessively, or polish it using an abrasive compound or
a hard brush. The cover may be damaged affecting the image.
Warning
Cautions
Rear View Parking CameraMazda CX-9Rear View Parking CameraMazda CX-7
'<C)%FSSO4EKI8LYVWHE]1EVGL41

87
Rear View Monitor
Switching to the Rear View Monitor Display
Shift the shift lever to R with the ignition switch in the ON position to switch the display to the
rear view monitor display.
Note
When the shift lever is shifted from R to another shift lever position, the screen returns to the
previous display.
Displayable Range on the Screen
The images on the screen may be different from the actual conditions. The figure is an example showing Mazda CX-9.
Note
lThe displayable range varies depending on the vehicle and road conditions.
l The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.
l The distance appearing in the displayed image is different from the actual distance because
the rear view parking camera is equipped with a specific lens.
l Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating parts
or parts made of reflective material.
l It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.
• In darkened areas.
• When the temperature around the lens is high/low.
• When the camera is wet such as on a rainy day or during periods of high humidity.
• When foreign material such as mud is stuck around the camera.
• When the camera lens reflects sunlight or headlight beams.
l If the camera picks up a high-intensity light such as sunlight reflected off the vehicle body, a
bright belt (light line) may appear on the display. (Smear phenomenon)
(Screen display)
Both bumper ends are not displayed. Both bumper ends are not displayed. Object
(Actual view)
'<C)%FSSO4EKI8LYVWHE]1EVGL41

88
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Rear View Monitor
Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
Note
Images displayed on the navigation display from the rear view parking camera are reversed
images (mirror images).
(1) Shift the shift lever to R to switch the display to the rear view monitor display.
(2) Confirming the surrounding conditions, reverse the vehicle.
The figure is an example showing Mazda CX-9.
(3) When the shift lever is shifted from R to another shift lever position, the screen returns to the previous display.
(Screen display) (Actual view)
'<C)%FSSO4EKI8LYVWHE]1EVGL41

89
Rear View Monitor
Variance Between Actual Road
Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.
1When the vehicle is tilted due to the weight of passengers and
load
When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.
The figure is an example showing Mazda CX-9.
2When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
The figure is an example showing Mazda CX-9.
Object
Variance
Appears
farther than
actual
distance Appears
closer than
actual
distance
Object at actual position
Object at actual
position
Object on screen
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.
'<C)%FSSO4EKI8LYVWHE]1EVGL41

90
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Rear View Monitor

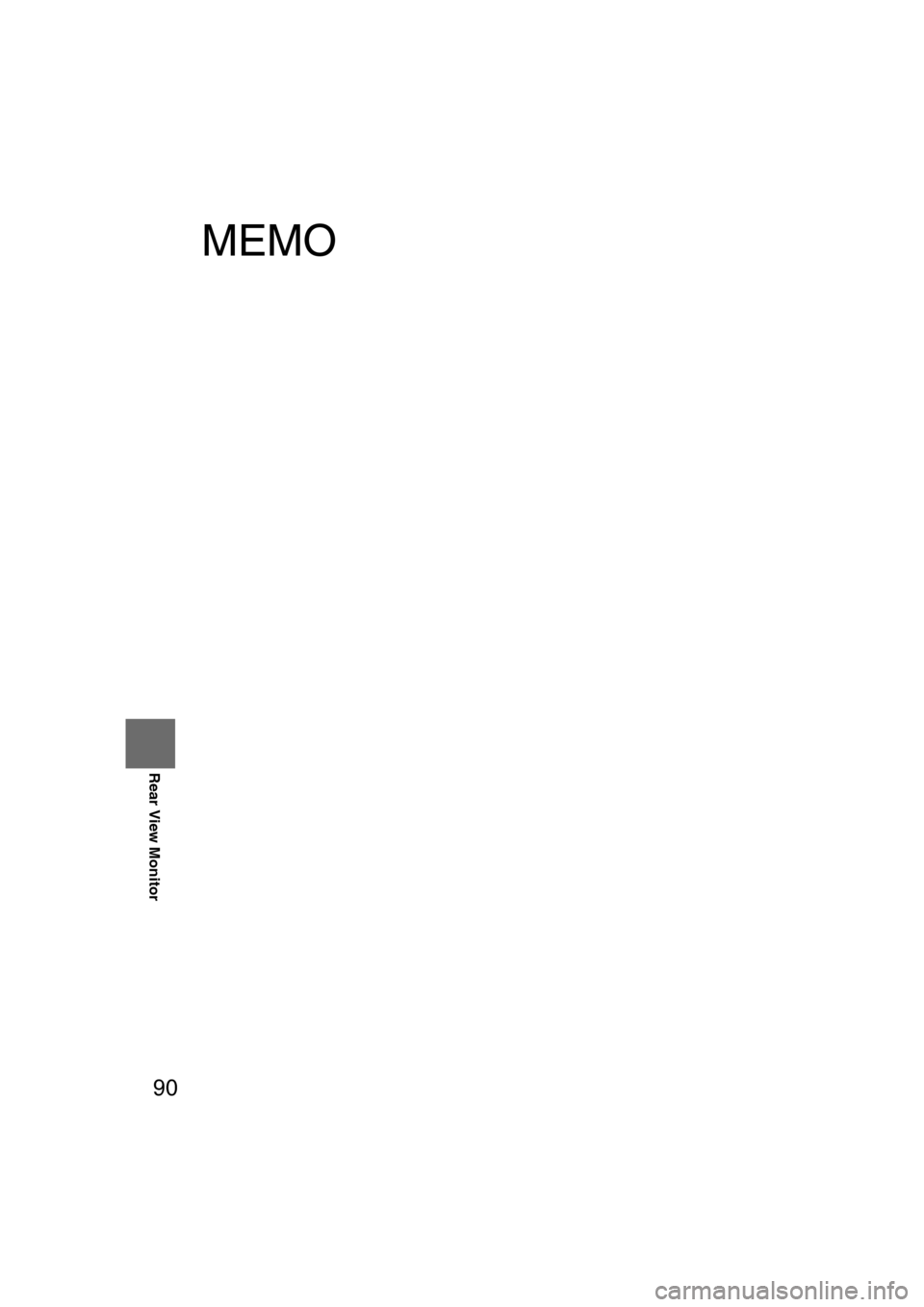

MEMO
