2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-4
Rear Seat ................................................................................... 2-7
Head Restraints ....................................................................... 2-10
Seat Warmer
í......................................................................... 2-11
Seat Belt Systems ........................................................................ 2-13
Seat Belt Precautions .............................................................. 2-13
Seat Belt (Except Center-Rear Position) ................................. 2-17
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-19
Center-Rear Position Seat Belt ................................................ 2-22
Seat Belt Extender ................................................................... 2-24
Seat Belt Warning Light/Beep ................................................ 2-26
Child Restraint ............................................................................ 2-28
Child Restraint Precautions ..................................................... 2-28
Installing Child-Restraint Systems .......................................... 2-32
LATCH Child-Restraint Systems ............................................ 2-41
SRS Air Bags ............................................................................... 2-47
Supplemental Restraint System (SRS) Precautions ................ 2-47
Supplemental Restraint System Components ......................... 2-52
How the SRS Air Bags Work .................................................. 2-53
SRS Air Bag Deployment Criteria .......................................... 2-57
Limitations to SRS Air Bag .................................................... 2-58
Driver and Front Passenger Occupant Classification
System ..................................................................................... 2-60
Monitoring and Maintenance .................................................. 2-65
2-1íSome models.
CX-7_8Z60-EA-08D_Edition2 Page13
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
CX-7_8Z60-EA-08D_Edition2 Page14
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (15,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
CX-7_8Z60-EA-08D_Edition2 Page15
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (16,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.

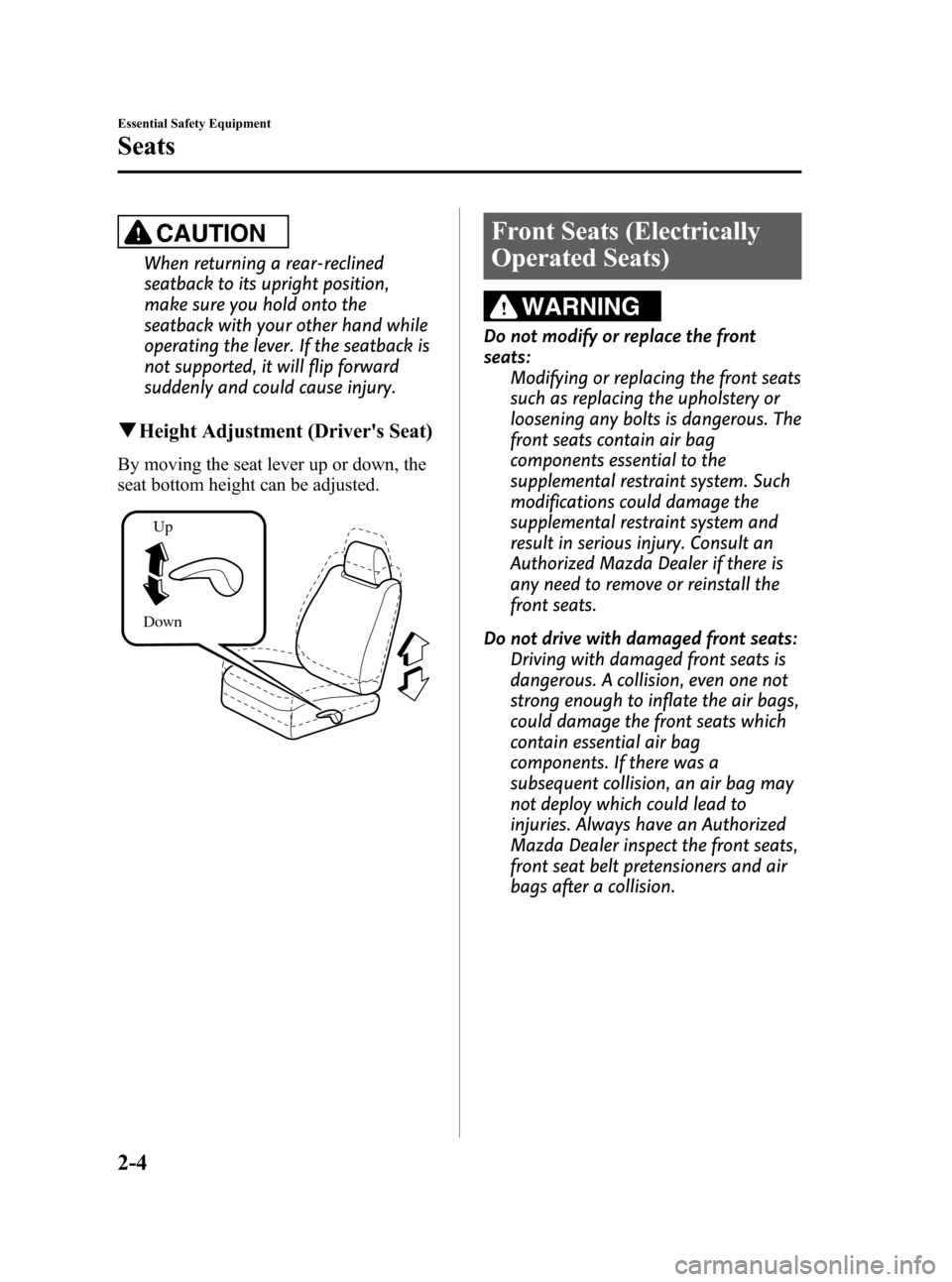

qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
2-4
Essential Safety Equipment
Seats
CX-7_8Z60-EA-08D_Edition2 Page16
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (17,1)
CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
ØTo prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
ØDon't use the switch to make more
than one adjustment at a time.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a front passenger seat
properly with the seatback upright and
feet on the floor:
If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
Essential Safety Equipment
Seats
2-5
CX-7_8Z60-EA-08D_Edition2 Page17
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (18,1)
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment
The seat height can be adjusted by
moving the switch up or down.
qLumbar Support Adjustment
To increase the seat firmness, pull the
lever forward. Push the lever backward to
decrease firmness.
2-6
Essential Safety Equipment
Seats
CX-7_8Z60-EA-08D_Edition2 Page18
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (19,1)
Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo
higher than the seatbacks, and
placing articles on the rear seat is
dangerous. During sudden braking
or a collision, objects can fly around
and become projectiles that may hit
and injure passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After returning the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
When returning a rear seat to its original
position, also replace the seat belt to its
normal position. Verify that the seat belt pulls
out and retracts.
Essential Safety Equipment
Seats
2-7
CX-7_8Z60-EA-08D_Edition2 Page19
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (20,1)

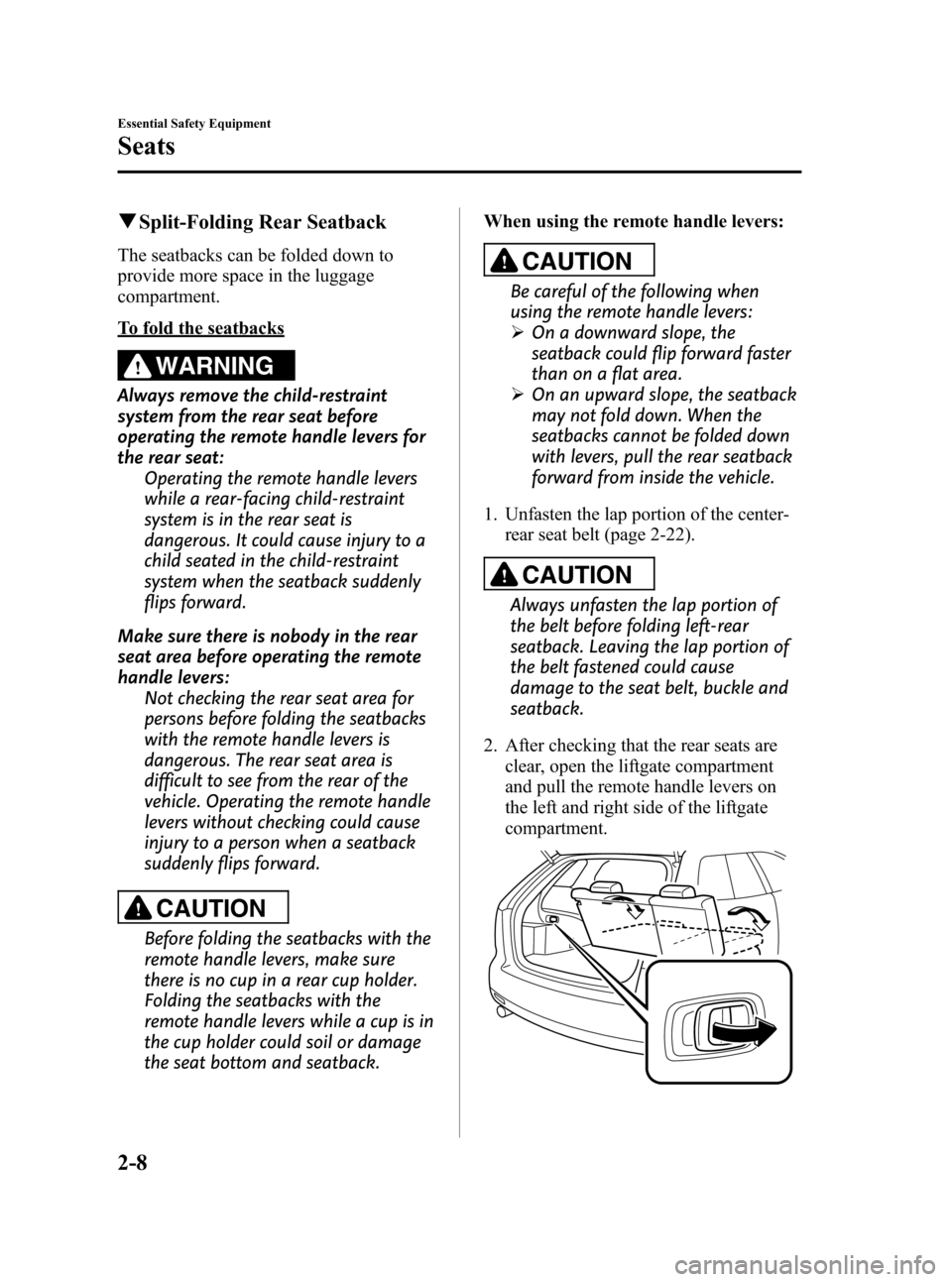

qSplit-Folding Rear Seatback
The seatbacks can be folded down to
provide more space in the luggage
compartment.
To fold the seatbacks
WARNING
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is
dangerous. It could cause injury to a
child seated in the child-restraint
system when the seatback suddenly
flips forward.
Make sure there is nobody in the rear
seat area before operating the remote
handle levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward.
CAUTION
Before folding the seatbacks with the
remote handle levers, make sure
there is no cup in a rear cup holder.
Folding the seatbacks with the
remote handle levers while a cup is in
the cup holder could soil or damage
the seat bottom and seatback.When using the remote handle levers:
CAUTION
Be careful of the following when
using the remote handle levers:
ØOn a downward slope, the
seatback could flip forward faster
than on a flat area.
ØOn an upward slope, the seatback
may not fold down. When the
seatbacks cannot be folded down
with levers, pull the rear seatback
forward from inside the vehicle.
1. Unfasten the lap portion of the center-
rear seat belt (page 2-22).
CAUTION
Always unfasten the lap portion of
the belt before folding left-rear
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, buckle and
seatback.
2. After checking that the rear seats are
clear, open the liftgate compartment
and pull the remote handle levers on
the left and right side of the liftgate
compartment.
2-8
Essential Safety Equipment
Seats
CX-7_8Z60-EA-08D_Edition2 Page20
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D
